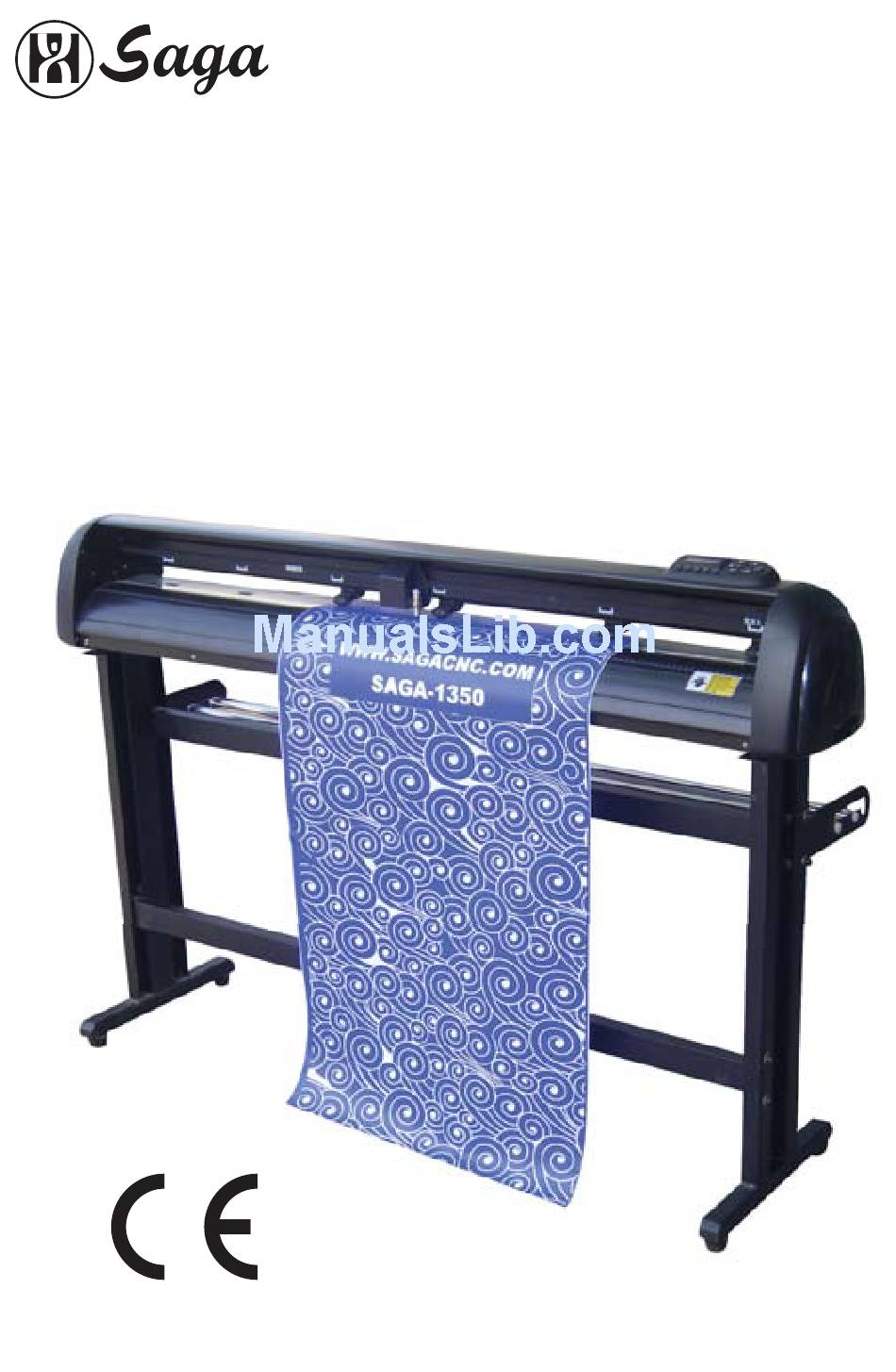

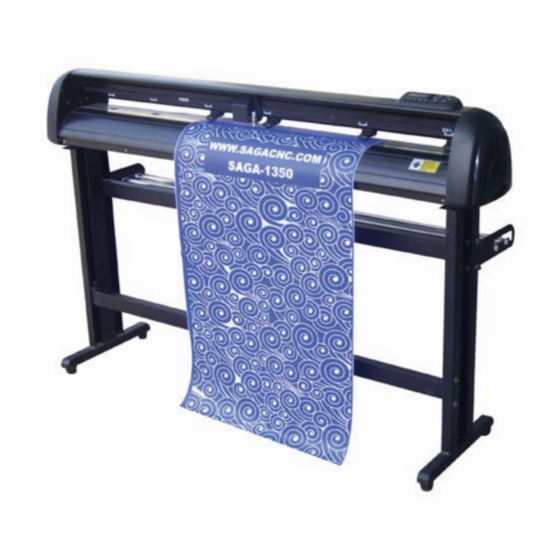

- Page 1 User Manual for: SAGA-720I, SAGA-1350I SAGA-720II, SAGA-1350II...
- Page 2 Specialized in developing, designing and manufacturing kinds of vinyl cutter Congratulations on purchasing cutting plotter! NOTICE We reserve the right to modify the information contained in this user manual at any time without prior notice; un-authorized modification, copying distribution is prohibited.
- Page 3 Safety Instructions for SAGA 1350I, 1350II, 720I, 720II...
- Page 7 Be sure to use only the stand designed for the SAGA 1350 series with your SAGA 1350I and II. The use of different stand may cause a plotter malfunction or bodily injury.
-
Page 8: What's In The Box
specialized in developing, designing and manufacturing kinds of vinyl cutter 2. What‘s in the box Please check immediately to ensure that you have received the following articles: • Cutting Plotter • Cutting Plotter Stand (dismantled) • Power Lead • USB connection lead •... -
Page 9: Floor Stand Installation
Specialized in developing, designing and manufacturing kinds of vinyl cutter 3. Floor Stand Installation Step1 Position the support for the left side perpendicularly to bottom stand and support for the left side place the screws into the holes. Tighten them to form a left side T-stand Repeat the same steps with the support for the right side. - Page 10 specialized in developing, designing and manufacturing kinds of vinyl cutter Step3 Position the roll holder support’s position to floor stand, and tighten the screws. roll holder support floor stand roll holder support Step4 Place two roll holders into the holes in the roll holder support roll holder support...
- Page 11 Specialized in developing, designing and manufacturing kinds of vinyl cutter Step5 How to install floor stand to machine? Take off the screw from bottom of machine, insert bolt to top of floor stand, then tighten the screw.
-
Page 12: Blade Installation
specialized in developing, designing and manufacturing kinds of vinyl cutter 4. Blade Installation Caution Do not touch the tip of the blade with your fingers. Adjustment depth knobs Lock Notice The blade is a consumable item, and you’ll always get the best quality cut with a newer blade. Please replace with a new blade when: 1. -
Page 13: Key Function
6.1 Installing the USB Lead Connect the USB Lead to the SAGA Plotter Cutter and the Computer USB port. 6.2 Installing the USB Interface 1, Attach the Plotter to a 220V/110V mains power supply using the power lead supplied 2, Switch the Plotter Cutter On. - Page 15 Specialized in developing, designing and manufacturing kinds of vinyl cutter 5, Please Restart your Computer 6, Please refer to section 9.4 & 9.5 for more details on the printer selections for Corel Draw and illustrator.
-
Page 16: Loading Media
specialized in developing, designing and manufacturing kinds of vinyl cutter 6.3. Loading media • Always load media for processing from the rear of the machine. • Pull the lever upward to raise the pinch rollers, Load your media on the platen and slide it under the pinch rollers. -
Page 17: Settings Mode
Specialized in developing, designing and manufacturing kinds of vinyl cutter 6.5. Settings Mode You can press the Mode key multiple times in Offline mode to toggle through the following menus: Pressure Use the Left/Right keys to set the pressure in units of one gram; the valid range of values is between 0g and 510g, 2g/step. -
Page 18: Cutting Test
specialized in developing, designing and manufacturing kinds of vinyl cutter 6.6. Cutting test • Press the Test key to perform a cutting test. The cutting plotter will now cut a square containing a triangle divided into four quadrants. • The cutting test helps you verify the knife holder setting and cutting pressure. The cutting test should give you clean and straight cuts in the loaded media;... -
Page 19: Precaution In Cleaning
Specialized in developing, designing and manufacturing kinds of vinyl cutter 8. Drag knives Drag knives are extremely sensitive, extremely sharp and dangerous precision tools. • Always keep knives well out the reach of children! • To avoid danger of injury, always handle knives with caution. •... -
Page 20: Recommended Methods
specialized in developing, designing and manufacturing kinds of vinyl cutter Recommended Methods • Gently wipe the cutting plotter surface with a lint-free cloth. If necessary, clean with a damp cloth or an alcohol-immersed cloth. Wipe with water to rinse off any residue and dry with a soft, lint-free cloth. - Page 21 +5°C - +35°C +5°C - +35°C Meas 99 x 34 x 43cm 160 x 34 x 40cm G.W./N.W. 27.5/25kgs 38/35kgs Technical Specifications/Stepper Cutting Plotter Item No. SAGA-720I SAGA-1350I Max. media width 720mm 1350mm Max. cutting width 630mm 1260mm Max. speed 800mm/s...
- Page 22 9. Software Settings Required for SAGA Plotter (Sign Cut/FlexiStarter 10.0/Artcut/ Corel Draw and illustrator) We have instructed the major software companies to include our Manufacturer selection to make it easier for the customer to set up and this is likely to be available to all software versions from 2010.
- Page 23 Specialized in developing, designing and manufacturing kinds of vinyl cutter 9.2 Flexi Starter 10.0 Settings Please see below the settings required for Flexi Starter 10.0:...
- Page 24 specialized in developing, designing and manufacturing kinds of vinyl cutter...
- Page 25 Specialized in developing, designing and manufacturing kinds of vinyl cutter Settings required to for the printer head to return to origin. Please select the ‘F1’ key if you would like to be directed to FLEXI Help.
- Page 26 Specialized in developing, designing and manufacturing kinds of vinyl cutter 9.3 Artcut Settings Please see below the settings required for Artcut:...
