Summary of Contents for JB-Lighting Varyscan 6 HMI 575

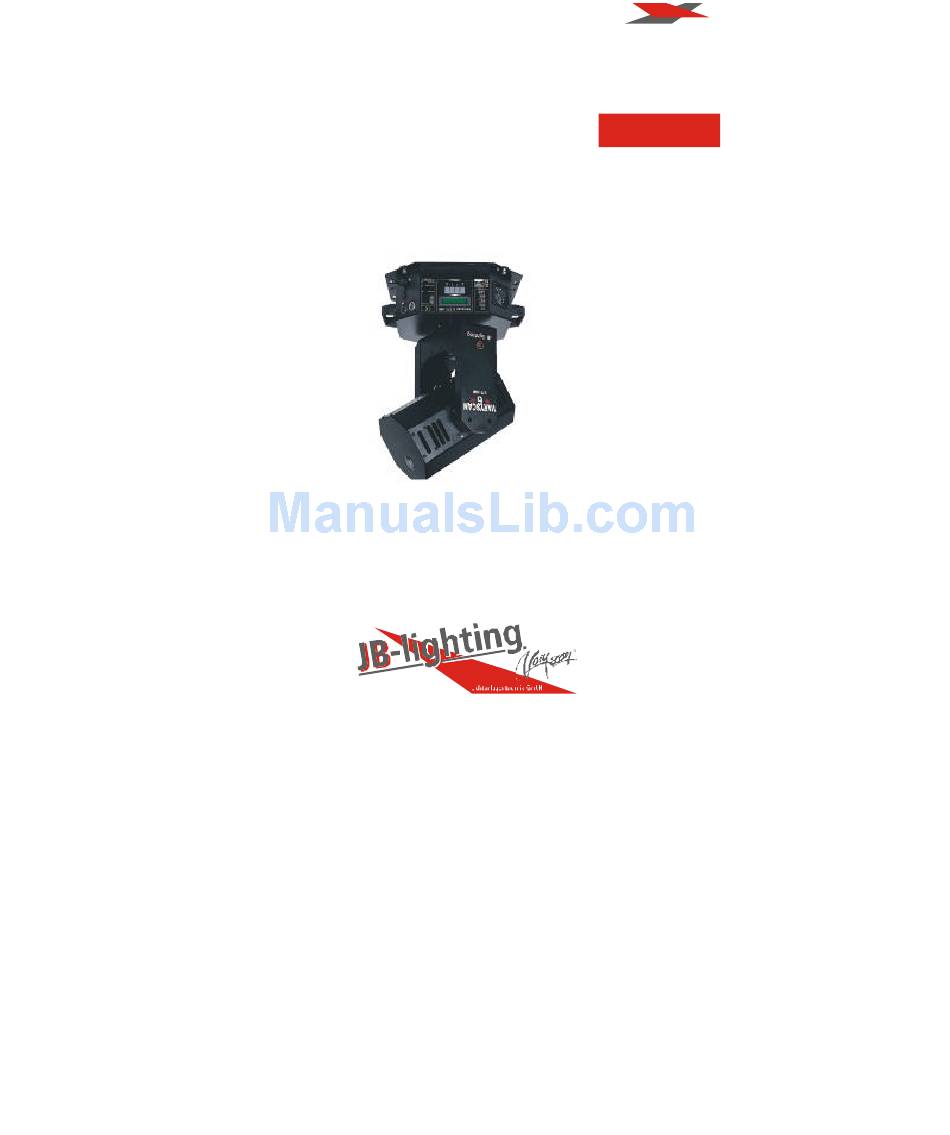

- Page 1 Varyscan 6 HMI 575 User manual 1.1 software version 0.25/1.25 english JB-lighting Lichtanlagentechnik GmbH Sallersteigweg 15 D-89134 Blaustein-Wippingen Telefon ++49(0)7304-9617-0 Telefax ++49(0)7304-9617-99 http://www.jb-lighting.de...
- Page 2 Varyscan 6 HMI 575 - 2 -...
-
Page 3: Table Of Contents
Varyscan 6 HMI 575 Illustration Varyscan 6 575 HMI..........................4 ® Unpacking of the Varyscan equipment........................5 ® Put in/exchange of the bulb ............................5 Starting the equipment..............................5 Hang up/put up of the Varyscan®..........................5 2. Cabling of the Varyscan ............................5 ® ® 3. Configuration of Varyscan ..........................5... -
Page 4: Illustration Varyscan ® 6 575 Hmi
Varyscan 6 HMI 575 Illustration Varyscan 6 575 HMI ® f i x e d l e n s e f o r o b j e c t i v s t e p p e r m o t o r s h u t t e r / d i m m e r... -
Page 5: Unpacking Of The Varyscan Equipment
Varyscan 6 HMI 575 Unpacking of the Varyscan equipment ® First of all take out all parts of the carton. ?? Varyscan ® 6 575 HMI ?? These operating instructions Check, if the delivery contains all parts. If you notice a damage through transportation, please inform immediately your dealer. Also in case of noticing missing parts. - Page 6 Varyscan 6 HMI 575 - 6 -...
-
Page 7: Definition Of The Menu / Projector-Setup
Varyscan 6 HMI 575 Definition of the menu / projector-setup Read off the working hours of the lamp or of the projector: After you press the key menu you will see in the display the first point of menu; the time for the working hours of the lamp (time 2). -
Page 8: Pan/Tilt Normal/Changed
Varyscan 6 HMI 575 Pan/Tilt normal/changed With this function you can change the pan-axis and the tilt-axis i.e. if you put in the function to changed, the projector moves in tilt-direction if in your controller there is a pan-direction programmed and with a programmed tilt-direction it moves to pan-direction. -
Page 9: Changing Gobo
Varyscan 6 HMI 575 Changing gobo ® Open the lid of the Varyscan 6 575 HMI by screwing off the eight screws. Following T o o p e n t h e c o v e r screw off the two silver screws at the side of the projector head approximately 8 mm, p l e a s e o p e n through the holes i n the arms. -
Page 10: Standard Size: (E-Size)
Varyscan 6 HMI 575 Standard size: (E -size) Outside diameter: 37,50 mm Use diameter: 28,13 mm Glass-gobo: (E-size) Outside diameter: 37,50 mm Use diameter: 28,13 mm max. thickness 3,00 mm B Service instructions Repair of defects Defect The appliance does not work at all Check the 8 ampere fuse for the bulb of the projector and change it, if it is defect. -
Page 11: Adjustment Of The „Motor Brake
The motor brake (at your Varyscan 6 only at the gobo wheel) is principally at all scans of JB-lighting in the projector the same. It consists of 3 special parts (special kind of disc, steel part, teflon disc). This three parts must have the following order: No. -
Page 12: General Information About Dmx512-Record
Varyscan 6 HMI 575 General Information about DMX512-record The DMX 512-record is divided in 512 addresses. You have 512 addresses for your disposal. To be able to connect different appliances with a DMX-controller, it is necessary to determine the number of DMX-channel for every appliance. -
Page 13: Occupation Dmx-In / Dmx-Out
Varyscan 6 HMI 575 colour 10 (orange) colour 11 (orange/blue) colour 12 (blue) colour 13 (blue/aqua) colour 14 (aqua ) colour 15 (aqua white) colour wheel rotation speed 1 (slow) colour wheel rotation speed 7 (fast) channel no. 5 Dimmer / Shutter dimmer (linear) channel no. -
Page 14: Change Of Eprom / Software Update
Varyscan 6 HMI 575 1 8 2 2 8 3 3 1 0 1 8 3 1 7 4 3 0 3 3 0 3 3 6 0 3 6 0 3 8 6 Weight: 20 Kilo Power consumption: ca. 900VA...
