AXM STS-110 Assembly Instructions Manual

Payload space station
Hide thumbs

Advertisement

Quick Links

Download this manual
© 2008
Assembly Instructions for STS-110 payload

Advertisement

loading
Need help?

Need help?

Do you have a question about the STS-110 and is the answer not in the manual?

Questions and answers

Summary of Contents for AXM STS-110

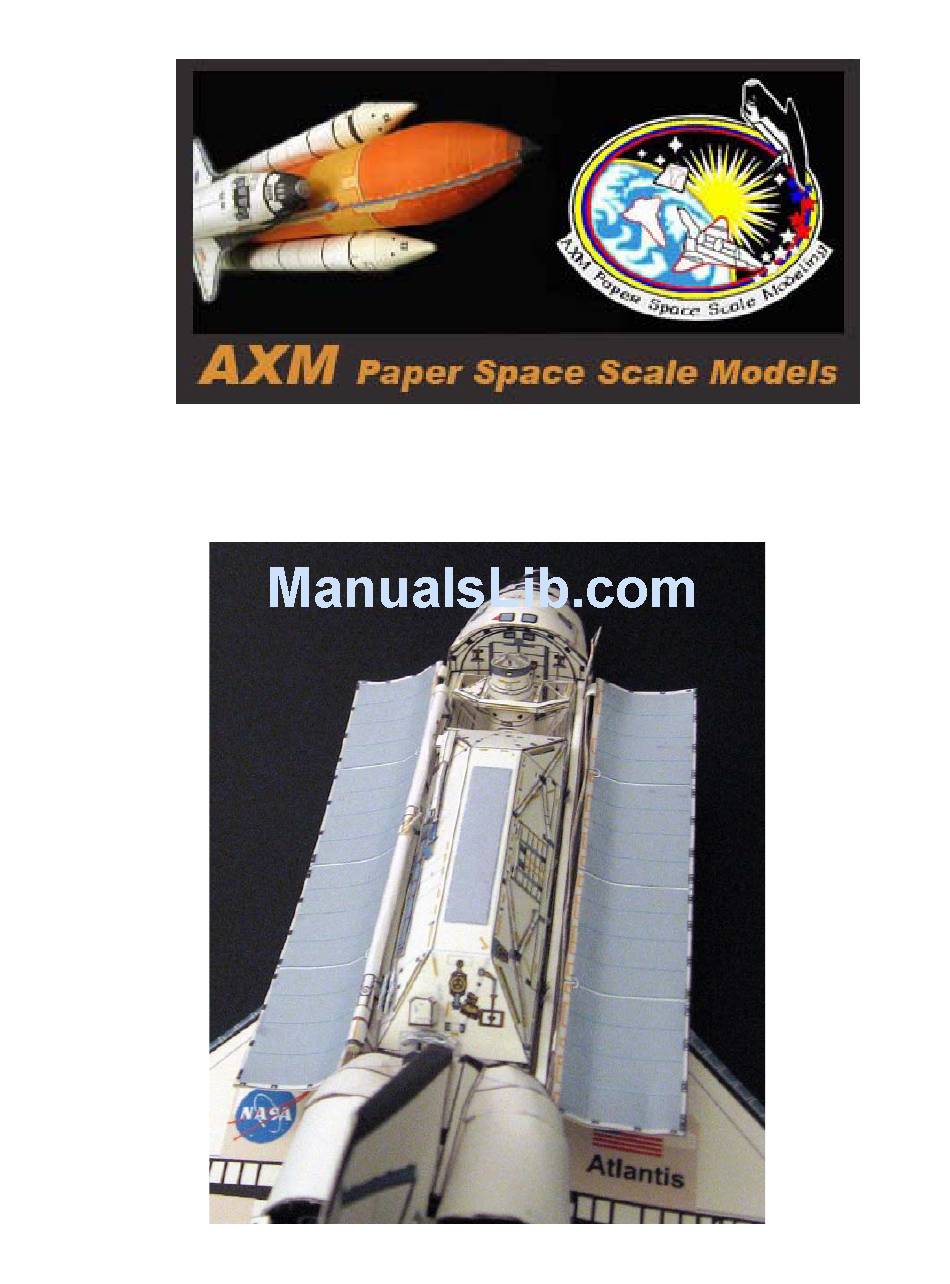

  • Page 1 © 2008 Assembly Instructions for STS-110 payload...
  • Page 2 1:100. In general, the building steps apply for both scales with the exception of certain details on the 1:100 model. The download file for the STS-110 mission consists of 3 paper models for the S0 truss: 1- A Payload bay model, which has no interior elements. (1:144 scale)
  • Page 3 Familiarization with the S0 truss element...
  • Page 4 Red arrows indicate SIDES of S0 truss. From top to bottom: SIDE 1: Keel support and Drag link (A) and 3 DDCUs (B) SIDES 2 and 3: Node 2 umbilicals (C ), Node 3 umbilical (D), spare DDCU (E), forward avionics umbilicals for Destiny (F) and 2 MBSUs (G) SIDE 4: Aft radiator (H), and Segment to Segment Jumpers (I) on side 3 and Port.
  • Page 5 Port Side: showing the spare DDCU, EVA tools and Segment to Segment Jumpers. Starboard Side: showing the Airlock Spur.
  • Page 6 Building the S0 truss payload bay version (simple build) For the Payload bay version model, an optional simple S0 truss was designed. Because it will be displayed in the Shuttle’s payload bay, it’s not important to show the interior of Side 1. To make it more realistic, the red arrow shows the “inside”...
  • Page 7 Once the whole structure is built, then glue the Mobile Transporter railing section on top of SIDE 1. After this step is done, then it’s very simple just to glue the other elements onto the rest of the truss sides. Photos show the outside and inside of the Aft tray door, which is glued on top of the “inside”...
  • Page 8 Photo shows detail of the Avionics Umbilicals for Destiny lab. Just glue each TOP to each BOTTOM, fold and glue onto SIDE 2. Refer to photos to know the exact location. NOTE: These umbilicals are assembled the same way for both scale models with the exception that for the space station versions, these are glued to Destiny.
  • Page 9 When gluing these umbilicals, be careful not to glue on top of the 4 circles (black arrow). These are the station GPS antennas. The rectangular areas with an arrow indicate the location where the MBSU boxes are placed. Just match the direction of the arrow on the corresponding MBSU boxes before you glue.
  • Page 10 Photo also shows where the Keel support and Drag link are glued (arrows) The Module to Truss structure attach system is glued on this photo as well.
  • Page 11 Note the building steps to assemble the Module to Truss structure attach system. It applies for both scales. Glue on top of a white line in the gray area (arrow) EVA tools. For the 1:100 scale model, these are glued. These are the support triangular parts for the Segment to Segment...
  • Page 12 SEGMENT TO SEGMENT JUMPER CONFIGURATIONS This is the launch configuration for these jumpers. This is the way it looks when the model is placed on the payload bay and when the S0 truss is placed on top of Destiny for this mission only.
  • Page 13 Note the cover for the spare DDCU box. This is only for the payload bay version. Note the position of the Node 3 umbilical tray (future STS-130 mission) It is optional to glue it until STS-130 mission, if not do not glue it. As a reference point, match the tip of the trunnion with the tip of the Node 3 umbilical.
  • Page 14 Assembly of the Node 2 umbilicals These are the parts to build each of the Node 2 umbilical. This applies to both scales. Photo shows the 1:100 scale version.
  • Page 15 This photo shows part A of the Node 2 umbilical. Notice that is folded inwards. The final product looks like the blue part from the photo below (arrow). The 1:144 scale version of the Node 2 umbilical is much simpler but follows the same steps.
  • Page 16 Note how the tip is twisted in an angle. These parts are used only during folded position.
  • Page 17 Note the position of the Node 2 umbilicals on the S0 truss for the payload bay version of the model for reference when gluing these parts. IMPORTANT: these umbilicals should not be glued to S0 after mission STS-120, because these will be glued to Node 2 module. Another element to glue is the EV-CPDS box (arrow).
  • Page 18 Building the S0 truss Space Station version S0 exterior The building steps are similar for both scales. Important to fold this section as photo shows.
  • Page 19 S0 interior This is the inside of the S0 truss (draft 1:144 model). Similar for both scales. Match the triangular boxes following the direction of the arrows and glue them. These boxes are the same for both scales.
  • Page 20 Now glue the Trailing Umbilical system cable reel on top and bottom. Optional details are the boxes drawn (black arrows). You can leave it as it is or build similar 3D boxes and glue on top of the drawings for more realism. (ONLY FOR 1:100 SCALE).
  • Page 21 Another detail is this opening only for the 1:100 scale model. This opening is covered by a part that is glued from inside of the truss.
  • Page 22 This is one of the interior “walls” of the truss. Each wall is different in details. In order to correctly glue them in the truss, the side that has the 4 little golden marks should face forward (arrows), and the black area where the red arrow is will indicate that that corner points down.
  • Page 23 Test model showing the interior walls placed in between the triangular boxes. Another view from inside of the truss. One can only imagine the complexity of the real truss.
  • Page 24 Now glue this part (arrow) on the outer face matching the openings. Now build each one of the DDCU boxes (white box) and glue following the direction of the arrow to the darker box or boilerplate box. There are 3 sets of DDCU boxes.
  • Page 25 This is where the 3 DDCU box is glued.
  • Page 26 For the 1:100 scale version, both boxes are glued together to a rectangular base (arrow) All 3 DDCU boxes in place.
  • Page 27 Draft model showing both the exterior and interior parts of the truss. Put glue on SIDE 4 and on the inside of the exterior opening.
  • Page 28 Glue on top...
  • Page 29 Add these parts A and B. Closeup view Now the assembly of the Aft tray.
  • Page 30 This section is the aft umbilical tray for the S0 truss. In the real truss, these are the connections between the S0 and the Z1 truss, and it’s been known as the “Rat’s Nest”. Assembly of the supports or struts This is one of the forward struts of the S0 truss.
  • Page 31 Note location of the Drag links on the space station version model. Note the orientation and positioning of the struts.
  • Page 32 Note the position of the aft struts on top of SIDE 5. Photo below shows how the struts are folded as tripods. TIP: Fold the strut as shown matching the shortest leg with the longest one. Then open the strut as a tripod element.
  • Page 33 Also note the location of the keel triangular supports on the Starboard side of the S0 truss for the space station version only.
  • Page 34 A different approach in the design was done for the 1:100 scale version struts.
  • Page 35 Building the space station First build the Avionics umbilicals for Destiny lab in order to place the S0 truss on top of Destiny. Note location of the Starboard and Port connector panels for the Avionics umbilicals for Destiny. (red arrows)
  • Page 36 First glue the Mobile to Truss structure attach system to the Lab Cradle on top of Destiny (red arrow). Second, glue each of the Avionics umbilicals on each side of Destiny (yellow arrows) Third, glue the tip of each umbilical to each connector panels on S0 (light blue arrows) Closeup view...
  • Page 37 Now place and glue each of the forward struts (V parts) The S0 truss needs to be straight. Then start gluing the aft struts. Photo shows a draft version of one of the struts.
  • Page 38 A view from the Port side showing a draft version of the aft struts. In general, the struts need to be glued as a tripod converging onto a small gray area on the aft section of Destiny (arrow) 1- Smallest strut 2- Medium strut 3- Longest strut...
  • Page 39 Building the Airlock Spur Note location where the Airlock Spur is glued to the S0 truss. (red arrow) The tip of the Airlock Spur is bent 90 degrees inwards and glued to a tiny black dot at the end of a handrail on the Quest airlock (blue arrow). Note that the handrail is at the level of the NASA logo on Quest.
  • Page 41 Umbilicals for Node 2 (post mission STS-120) The Node 2 umbilical is actually glued on top of the Destiny umbilical. Note where both ends are glued.
  • Page 42 Note the upward orientation of the umbilical on each side. Adding the EV-CPDS box...
  • Page 43 Building the Mobile Transporter (1:100 model shown) TIP: Leave the white areas in order to cut the inner part.
  • Page 44 Place the interior walls. Place the 4 triangular supports. The Grapple Bar is glued perpendicularly on top of the middle wall.
  • Page 46 Note position of the radiator and the small box in front of the railcar.
  • Page 47 This railcar model was not designed to be glued to S0’s Side 1 face. Instead, the 2 flaps shown here will attach the railcar to the truss. Note the location of the other boxes. The 1:144 model is a simple box and has no inner walls.

  • Page 48: Reference Photos

    Note location of KU-band antenna that is glued on the tab from the right payload bay door. REFERENCE PHOTOS...
  • Page 52 Enjoy! http://www.axmpaperspacescalemodels.com...
