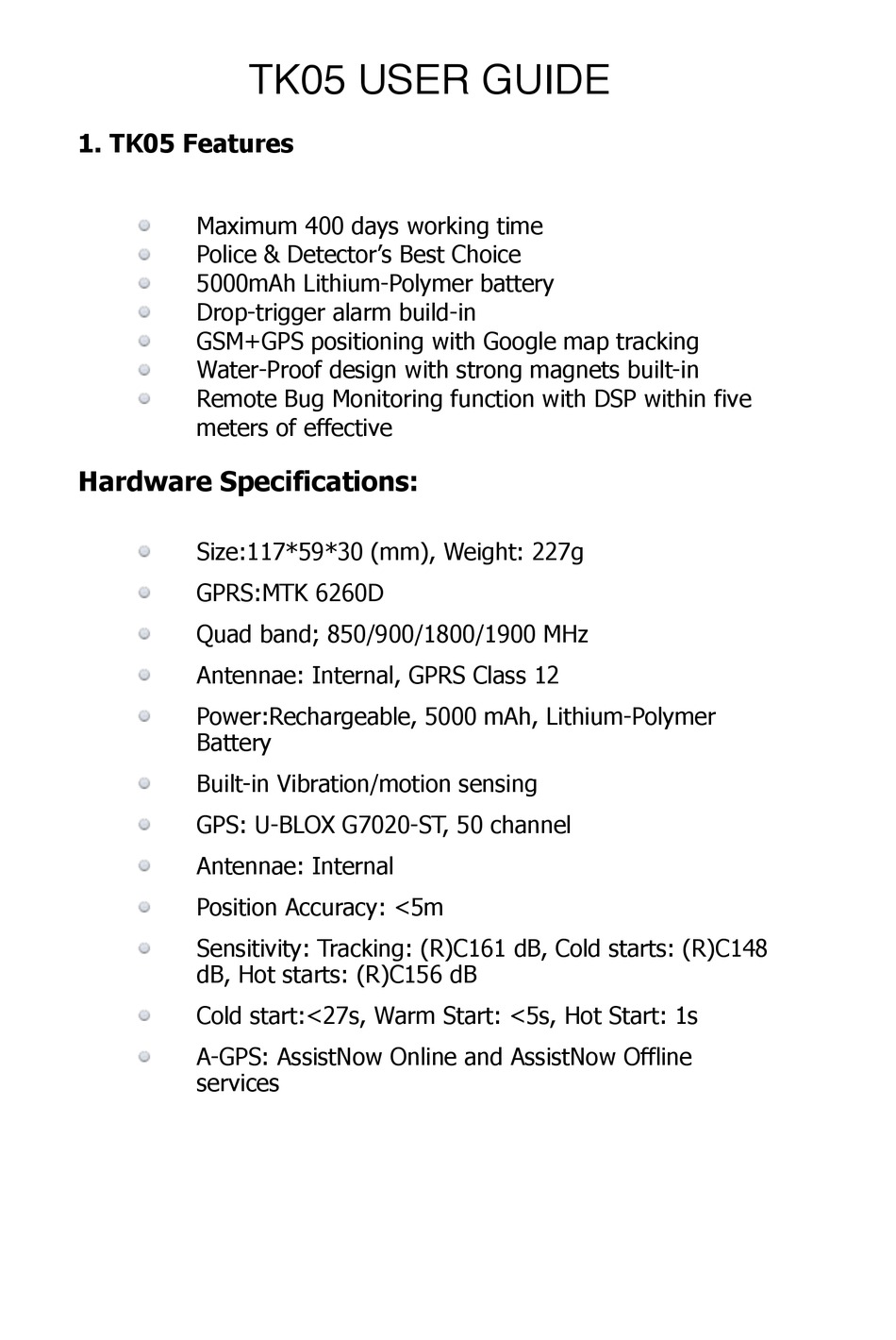

1. TK05 Features
!
!
Maximum 400 days working time
Police & Detector's Best Choice
5000mAh Lithium-Polymer battery
Drop-trigger alarm build-in
GSM+GPS positioning with Google map tracking
Water-Proof design with strong magnets built-in
Remote Bug Monitoring function with DSP within five
meters of effective
!
Hardware Specifications:
!
Size:117*59*30 (mm), Weight: 227g
GPRS:MTK 6260D
Quad band; 850/900/1800/1900 MHz
Antennae: Internal, GPRS Class 12
Power:Rechargeable, 5000 mAh, Lithium-Polymer
Battery
Built-in Vibration/motion sensing
GPS: U-BLOX G7020-ST, 50 channel
Antennae: Internal
Position Accuracy: <5m
Sensitivity: Tracking: (R)C161 dB, Cold starts: (R)C148
dB, Hot starts: (R)C156 dB
Cold start:<27s, Warm Start: <5s, Hot Start: 1s
A-GPS: AssistNow Online and AssistNow Offline
services!
!
TK05 USER GUIDE
!
Advertisement
Table of Contents
Related Manuals for Vjoycar TK05
Summary of Contents for Vjoycar TK05
-
Page 1: Hardware Specifications
TK05 USER GUIDE 1. TK05 Features Maximum 400 days working time Police & Detector’s Best Choice 5000mAh Lithium-Polymer battery Drop-trigger alarm build-in GSM+GPS positioning with Google map tracking Water-Proof design with strong magnets built-in Remote Bug Monitoring function with DSP within five... -
Page 2: Product Image
2. Product Image 3. Installation Manual 3.1 SIM Card Pre-installation, specification note a. GSM Sim Only b. SIM card should have its GPRS function enabled. c. SMS request will function only if Caller ID function is enabled. d. If SIM card is locked via PIN, please unlock SIM. 3.2 SIM Card Installations and Removal b. - Page 3 4.1 Button Operation for GPS function NOTE: “button” presses must be less than 2 seconds each in all uses This control button is at the bottom of the device a. On: Press control button 5 times. The green indicating light will be on for 30 seconds.
- Page 4 5.3 Changing the Password: SMS: *password*654321* (654321 refers to new password) You will receive the following text: "Notice: The password change is successful for +1XXXXXXXXXX. The new password is 654321.” Note: Changing password command has to be sent from master controller number.
-
Page 5: Remote Listening
6.3 Period Motion Alert System will enable motion alert function at appointed periods, up to 3 time periods. Time format need to be in military time and can be set to every half hour. e.g. 08001100，14001830 refers to 8:30-11:00,14:00-18:30 of the day. SMS：*continuousalert*XXXX*XXXX* Device Response: “Notice: System has enabled period alert function at appointed time period.”... - Page 6 8.1 SMS: *callin* Enables the Master controller to call the device to start listening within 30mins after the SMS is sent. 8.2 SMS: *callback* The device will call the master controller enabling the Maser Controller to listen when the call is accepted. 9.
- Page 7 set to always on.” 9.1.2.1 Real-time tracking location data collecting interval. The smaller interval, the higher accuracy, but the higher power consumption. *rsampling*1-999* (1-999 represents seconds of data collecting interval, default as 10 seconds) 9.1.2.2 Real-time tracking location data upload interval. The smaller interval, the higher accuracy, but the higher power consumption.
- Page 8 Device Response: You will receive back a text message with a google map link, click the link in order to view the location through cellphone browser. It is suitable for smart phone user only. SMS：*timinglocateoff* Device Response: “Notice: System has ended timing locate function.” 9.4 Period Tracking Period Tracking.
-
Page 9: Deep Sleep
The online command function enables device to connect with server for 15 minutes, and user will be able to send online command from the tracking website. SMS：*onlineon* Device Response: “Notice: System has enabled online control function. Data will be uploaded every 30 seconds for 15 minutes.” SMS：*onlineoff* Device Response: “Notice: System has disabled online control function.”... -
Page 10: Device Information
SMS: *sleepv*1-99* (1-99 represents hours of deep sleep period, system will be activated with motion during this period. )! Device Response: “Notice: System has enabled deep sleep with motion call alert function for XXX hours.” ! 10.4 Sleep Off SMS: sleepoff*! Device Response: “Notice: System has ended all sleep functions.”! -
Page 11: Command Setting List
Default alert phone number is registered master number, and it can be changed as needed. SMS: *lowbat* +1XXXXXXXXXXXX*, (For instance, master controller phone number is +1XXXXXXXXXXXX. +1 refers to the country code. XXXXXXXXXXXX is the cellphone number. Please make sure country code is included, and digit 0 is not needed before cell phone number) As a reminder, the LED light will stop flashing and remains on as a constant during low battery period. - Page 12 Function Command Description *callalert* Call alert will call master number 2 times when motion is detected after 3 minutes non- movement. *smsalert* SMS notification will sent Motion Alert to master number when motion is detected after 2 minutes non- movement. *alertoff* End Call/SMS alert! *continuousalert*...
- Page 13 Function Command Description Sampling Interval *rsampling*1-999* 1-999 represents seconds of data collecting interval, default as 10 seconds. Upload Interval *rupload*60-999* 60-999 represents seconds of data uploading interval, default as 60 seconds, minimum rate should not be less than 60. Real-time Tracking *routetrackoff* End routetrack function.! *check*0-99*...
- Page 14 Function Command Description *uploadalert*off* End upload alert function Online Control *onlineon* Enable online control function *onlineoff* End online control function *sleep*1-99* 1-99 represents hours of Deep Sleep Setting deep sleep period. * sleepv*1-99* Period Motion Sleep. Period Motion Sleep 1-99 represents hours of deep sleep period.
