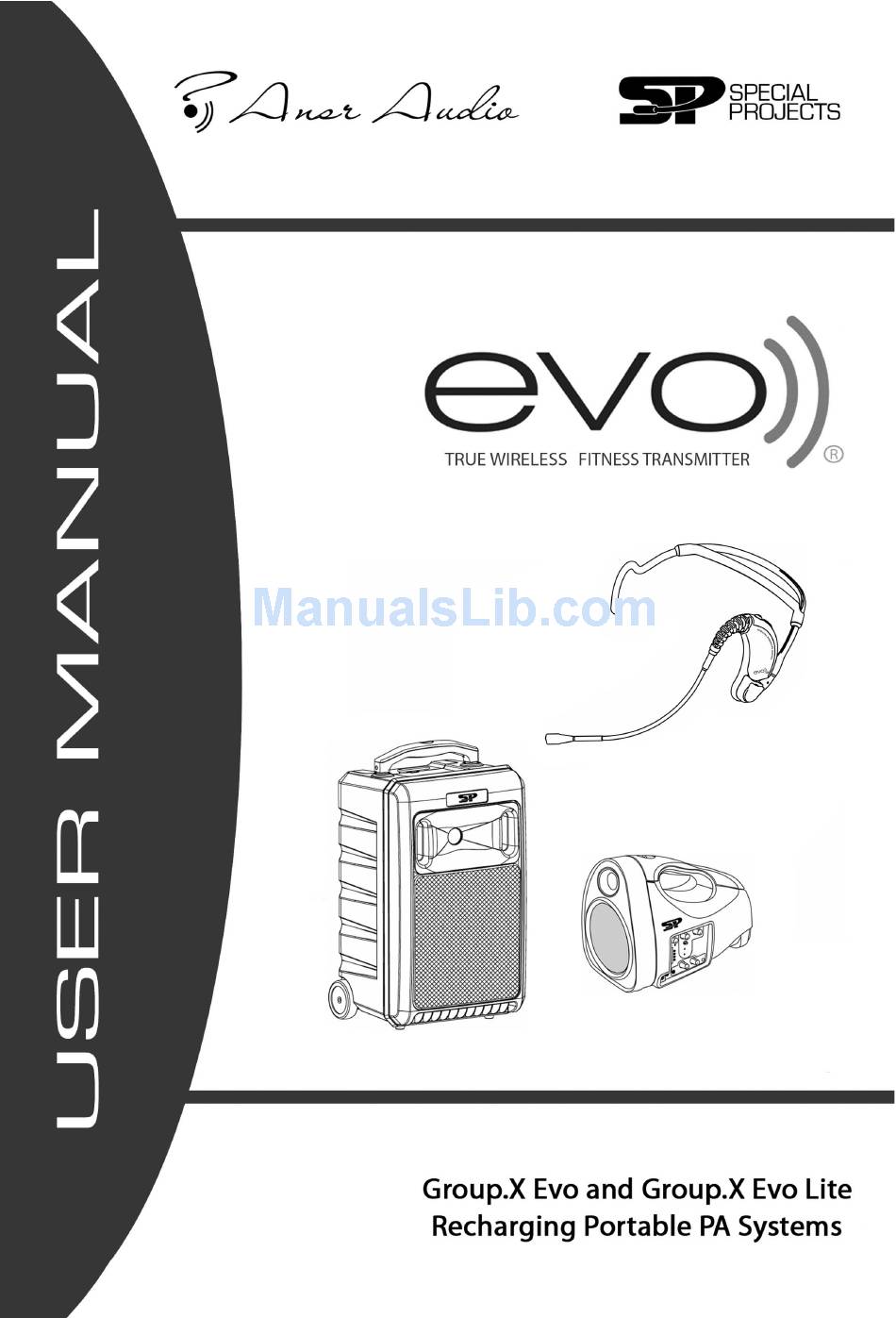

Summary of Contents for Ansr Audio Group.X Evo
-
Page 3: Table Of Contents
4. Wireless Notes 5. Quick Start Guide 6. Group.X Evo Portable PA 7. Evo Headworm Microphone with Transmitter 7.1 Charging the Evo 7.2 Evo transmitter channel set 8. Group.X Evo Lite Portable PA 9. System Specifications 10. Troubleshooting 11. Warranty 12. Notes... -
Page 4: Introduction
1. Introduction Thank you for purchasing the the only portable PA systems featuring the Evo True Wireless transmitter. This Patent Pending PLL synthesized wireless microphone system operates in an FCC approved UHF band frequency with 16 selectable channels. Please read this instruction manual carefully before operating your system. -
Page 5: Quick Start Guide
5. Quick Start Guide • Fully charge the Evo transmitter by connecting the Evo to the supplied wall plug transformer. Leave your Evo transmitter powered OFF while charging. • Fully charge the Group.X or Group.X Lite Portable PA. • Set master volume to minimum, switch Group.X portable PA power on. Leave Evo off. •... -
Page 6: Group.x Evo Portable Pa
Group.X Evo Portable PA The Group.X Evo is designed for use only with Ansr Audio / Special Projects 16-channel selectable channel transmitters. The receiver operates in UHF 682-697 MHz frequency band with PLL synthesized control. - Page 7 A) Built-in Storage: Ideal for external mics, MP3 players, AC power and charging cables. B) Wireless Receiver Module(s): LED channel displays the channel number. Second receiver optional. B1: RF Indicator – illuminates to indicate signal reception on the selected channel B2: Selected Channel Display B3: AF Indicator –...
- Page 8 CD Controls From Previous Page: C1: CD Power On/Off C2: CD/USB/SD Input Select: Switch between CD or SD/USB input. If you are trying to play from the USB or SD and get nothing, try this. To go back to the CD player, you must set this switch back to CD.
- Page 9 G) Primary Power ON /OFF H) AC Power Input I) Primary Rechargeable Battery Compartments: This system features a built-in charging system, eliminating the need to remove the batteries. Contact Ansr Audio / Special Projects prior to accessing the batteries. J) Retractable Transport Handle...
-
Page 10: Evo Headworm Microphone With Transmitter
7. Evo True Wireless Headworn Transmitter 1. Microphone Element: Shown without the windscreen. Always be sure the side with the yellow dot is toward the mouth. In the event that you experience a low audio level with excessive feedback, check the direction of the microphone element. DO NOT twist the element. 2. -
Page 11: Charging The Evo
7.1 Charging The Evo True Wireless Fitness Transmitter NOTICE: Prior to use, it is necessary to fully charge your Evo transmitter. Initial charge from a depleted state may take up to two hours or more. NOTICE: The supplied charger is designed specifically for use with the Evo True Wireless system. -
Page 12: Evo Transmitter Channel Set
7.2 Evo Headworn Transmitter Channel Set NOTICE: Prior to setting up, please check that the transmitter and receiver are tuned to the same frequency. Two or more transmitters operating in the same frequency can not be used at the same time and area. So for each extra transmitter, please select a different frequency which can be used simultaneously at local area. -
Page 13: Group.x Evo Lite Portable Pa
NOTICE: PRIOR TO USE, BE CERTAIN TO FULLY CHARGE THE INTERNAL BATTERY. SEE (H) BELOW FOR DETAILS. The Group.X Evo Lite is designed for use only with Ansr Audio / Special Projects 16- channel selectable channel transmitters. The receiver operates in UHF 682-697 MHz... - Page 14 A) USB Control: Supports a variety of MP3 players and USB storage devices. 1) On/Off/Volume: Independent volume control for the USB input. Clockwise turn increases volume. Leave in the OFF position if not used. 2) Error LED: Will flash to indicate a read error. 3) Stop: Just that –...
- Page 15 2) Wireless Channel Selector: With Evo True Wireless transmitter turned OFF, select a channel on the Group.X Evo Lite that shows no RF present, as indicated by the RF LED below. 3) Power Status LED: Indicates power status as determined by the On/Off control above.
- Page 16 E) Mix Output: 1/8 inch (3.5 mm) output for connecting to an external recorder or audio system. For example, if you wish to record a presentation, an audio recorder could be connected to the Mix Out. This would preserve your mix of relative levels (mic to music).
-
Page 17: System Specifications
Weight: 34 pounds, including battery Dimensions: 11.4 (D) x 12.6 (W) x 19.7 (H) Accessories: Storage case Group.X Evo Lite Portable PA System Carrier Frequency Range: UHF band, 682 – 697 MHz Power Output: 40W RMS, 80W peak Frequency Response: 60 Hz –... -
Page 18: Troubleshooting
Your Evo True Wireless Fitness System is covered for one year against defects in materials and workmanship. In the event of such defects, Ansr Audio will repair our product free of charge unless otherwise specified in detail, or replace with a new product of equal or greater value .This warranty excludes defects due to normal wear, shipping damages or failure to use products according to instructions for proper use. -
Page 19: Notes
12. NOTES What kind of notes? How about which channel worked well in different locations? Default volume settings in different classes? Any particular points you might tend to forget (like be sure to close the channel selector cover!). You can even use it for your grocery list, it's up to you –... - Page 20 Ansr Audio, Inc. 3800 HWY 271 N Powderly, TX 75473 Phone: 866-491-2677 Fax: 866-746-4366 www.ansraudio.com www.specialprojectsaudio.com Copyright Ansr Audio, Inc., 2009...
