User's Guide
The Ethernet converter EDX100 is an unmanaged Fast Ethernet media converter, which
offers an economical copper to fiber optic signal conversion.
As Ethernet has evolved into the most widely implemented physical and link layer protocol
today, more and more services are delivered on Ethernet infra-structure. As bandwidth
demand is growing, Fast Ethernet to the customer satisfies today needs for broadband
access. Fiber optic connections allow long-haul Ethernet-links to spread Metro Ethernet
services into a wide area.
EDX100 is an easy to install and easy to operate device, which saves costs and energy.
In case of signal loss of fiber optic port, an alarm-output is triggered for external use, so
failures can easily be detected and problem-location is quickly done.
As part of arcutronix Multi Service Platform (axMSP) the EDX100 can be housed in small
footprint single-slot housing or 19'' rack to achieve high density on small footprint.
EDX100
Fast Ethernet Converter
EDX100
Short Description
V1.3
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDX100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for arcutronix EDX100

  • Page 1 Fiber optic connections allow long-haul Ethernet-links to spread Metro Ethernet services into a wide area. EDX100 is an easy to install and easy to operate device, which saves costs and energy. In case of signal loss of fiber optic port, an alarm-output is triggered for external use, so failures can easily be detected and problem-location is quickly done.
  • Page 2 User’s Guide Covered Products The EDX100 product family offers 2 interfaces to the customer. One copper Fast Ethernet interface (10/100BaseT) and a fiber-optic Ethernet interface (100BaseFX). While the copper interface is always the same (RJ45), the fiber-optic port can vary to fit the unit in different application scenarios.

  • Page 3: Application Example

    User’s Guide Application Example The EDX100 can be used to bridge long distances, thus enhancing copper Ethernet networks by using a fiber optic line between branch offices or to achieve FE-rollout for customers. Each EDX model is a 3U card that can be either plugged into a 19”...

  • Page 4: Connectors, Indicators And Controls

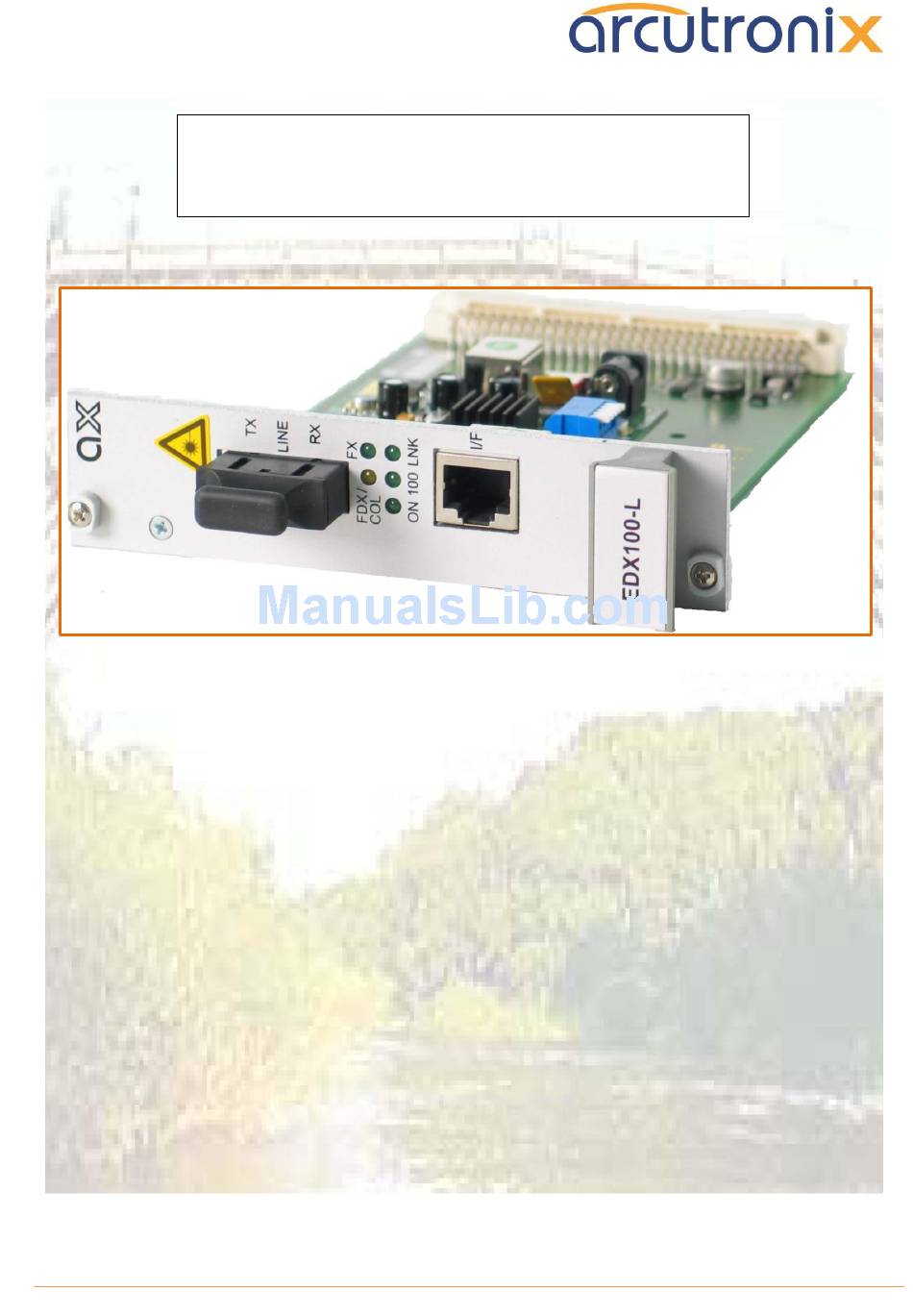

    Connectors, Indicators and Controls Front Panel The front panel of the EDX100 does give access to the copper Fast Ethernet port as well as the fiber-optic interface. Three slightly different variants are available, but the ports and LED indicators are always the same. As an example, the EDX100-SFP is shown.

  • Page 5: Unit Setup

    User’s Guide Unit Setup The Ethernet converter EDX100 is a “plug’n’play” unit, which needs no special setup or knowledge. Installation in single-slot housing (SHX) or system rack (SRX) must be done according the specification of these devices. After installation of the EDX100 in the housing, attach fiber optic cable and CAT5 (better 5e) cable to interfaces.
  • Page 6 Rem.: The DIP-switches 2 and 3 are to be used in Forced Mode (DIP 1 = ON), only. The Default-Configuration for the different variants is given below: …-L …-M …-A/B …-SFP Name EDX100-S Local TP Port Forced ON (down) Forced Mode Autoneg-Mode Autoneg-Mode Autoneg-Mode...
  • Page 7 The TP port of EX100 can work at auto mode or force mode. The following table shows all of the combination of its TP port. Link partner’s capability AN on AN off { Local TP Port Forced, EDX100’s link result 100F 100H 100F 100H Local TP Port Low-Speed, EDX100’s capability...
  • Page 8 User’s Guide RJ45 Pinout (Female) Signal 10/1000BaseTX port acc. EIA/TIA T568B Supporting Auto-MDIX EDX100 V1.3...

  • Page 9: Technical Data

      Low power consumption Different optical characters available:   Support of Jumbo Frames EDX100-L:  Support of VLAN-tagged traffic o 1550nm SM, long haul, 29dB Budget, 80km  LEDs on front to indicate status o Connector: SC ...

  • Page 10: General Safety Precautions

     Prevent loose items from falling into the device.  Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous laser light exposure. Impressum arcutronix GmbH Garbsener Landstr. 10 Phone: +49 (511) 277 2700 Sales-Contact: sales@arcutronix.com...
