Summary of Contents for RIGEBA RG-W15IB15-KF3A
-
Page 1: User Manual

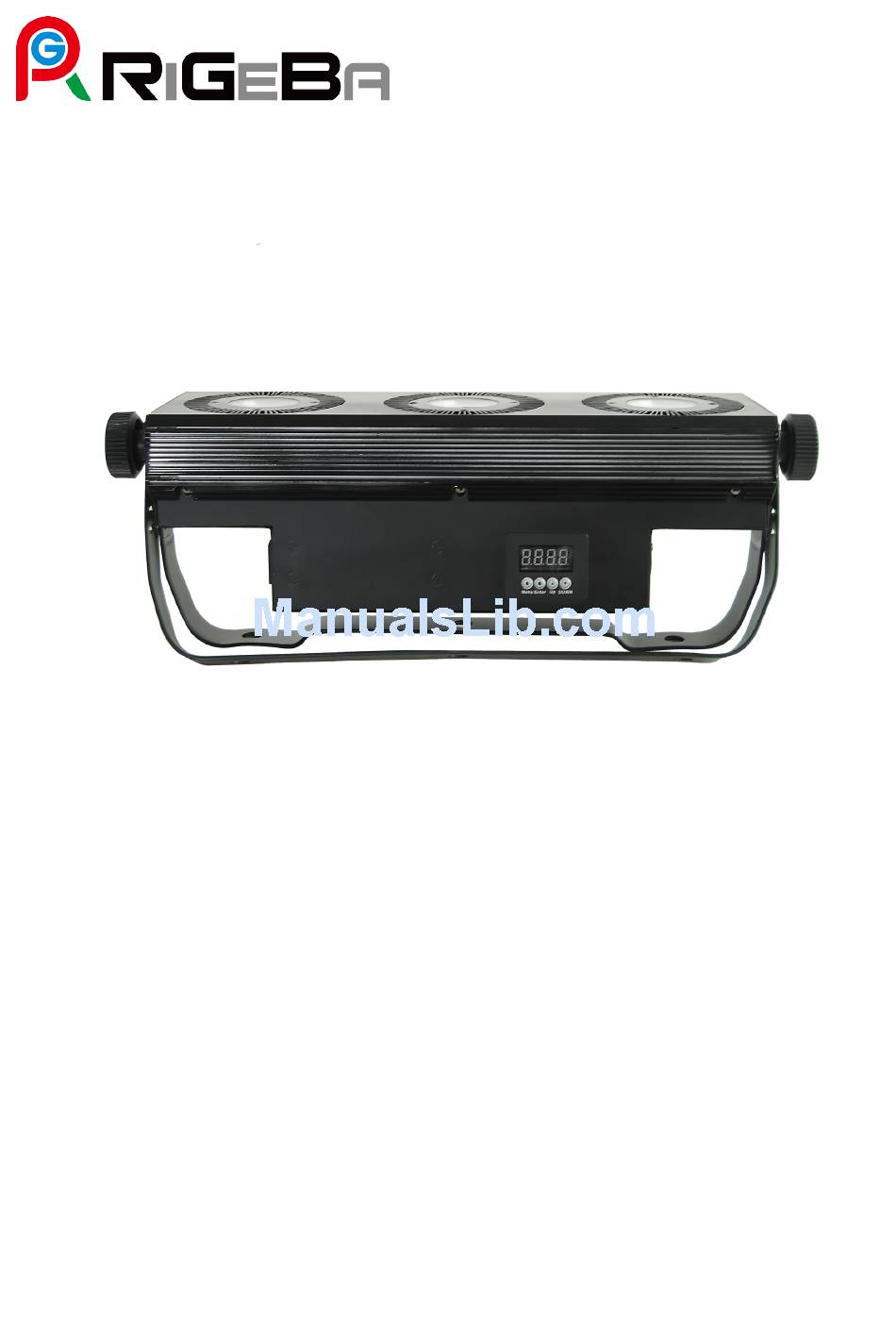

RG-W15IB15-KF3A USER MANUAL — 15W3Leds Wall Washer Guangzhou Geliang Lighting Technology Co.,Ltd Tel:+8620-86872001/2/3 www.rigelighting.com... -
Page 2: Table Of Contents
CONTENS GENERAL INFORMATION 2. PACKING LIST 3. SAFETY INSTRUCTIONS 4. SCHEMATIC DIAGRAM 5. PRODUCT FEATURES 6. TECHNICAL SPECIFICATIONS 7. MOUNTING AND INSTALLATION 8. UNDERSTANDING DMX 9. CONTROL BOARD 10. Wireless DMX (WDMX) System 11. DMX CHANNEL TRAITS 12. MAINTENANCE AND CLEANING 13. -
Page 3: General Information
15W3lLeds Wall Washer 1. GENERAL INFORMATION INTRODUCTION: Congratulations, you have just purchased one of the most innovative and reliable lighting fixtures on the market today! The fixture has been designed to perform reliably for years when the guidelines in this booklet are followed. Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this unit. -
Page 4: Packing List
15W3lLeds Wall Washer 2. PACKING LIST 15W3lLeds Wall Washer 1 pcs User Manual 1 pcs Signal cable 1 pcs Power Cable 1 pcs 3. SAFETY INSTRUCTIONS Always be sure that the fan and the air inlets remain clean and are never blocked. Allow about 6”... -
Page 5: Schematic Diagram
15W3lLeds Wall Washer 4. SCHEMATIC DIAGRAM ITEM FUNCTION Power supply input / output Dual hanging bars LED display board Fixed knob DMX input / output LED model Safety buckle... -
Page 6: Product Features
15W3lLeds Wall Washer 5. PRODUCT FEATURES High power Led 15W /pcs , RGB 3IN1 ,total 3pcs Three control modes: Sound active mode, DMX mode, Stand-alone mode Unlimited programming effects Professional color mixing Soft light effect Protection class IP30 Quick and easy installation Indoors use 6. -
Page 7: Mounting Points
15W3lLeds Wall Washer an appropriate safety cable. Never stand directly below the device when mounting, removing, or servicing the fixture. The fixture is fully operational in two different mounting positions, hanging upside-down from a ceiling, or set on a flat level surface (see illustration on next page). Be sure this fixture is kept at least 0.5m away from any flammable materials (decoration etc.). -
Page 8: Understanding Dmx
15W3lLeds Wall Washer 8. UNDERSTANDING DMX DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used by most lighting and controller manufactures as a form of communication between intelligent fixtures and controllers. DMX allows all makes and models of different manufactures to be linked together and operate from a single controller. - Page 9 15W3lLeds Wall Washer You can set the same starting address for all fixtures or a group of fixtures, or set different address for each individual fixture. Be advised that setting all you fixtures to the same DMX address will subsequently control all fixtures in the same fashion, in other words, changing the settings of one channel will affect all the fixtures simultaneously.
-
Page 10: Control Board
15W3lLeds Wall Washer 9. CONTROL BOARD 9.1 ADDR This function is used to set or adjust the fixture’s starting DMX address. Every device controlled by DMX has to have a unique starting address. The addressing feature is... -
Page 11: Manual Mode
15W3lLeds Wall Washer what allows DMX to function properly. The DMX address of a fixture is what allows it to communicate with a controller properly. The DMX addressing also allows the fixture to ignore any DMX information coming from the controller that is not meant specifically for the fixture. -
Page 12: Dmx Channel Traits
15W3lLeds Wall Washer 10. DMX CHANNEL TRAITS dn00 CHANNEL Value Function CH1=0 Autorun mode (open) 0-225 Fifteen kind of autorun effect 226-255 Two kind of sound control(226-240 & 241-255) 0--255 Speed of autorun CH1=1-128 1-128 Overall mode (open) 0-255 Dimmer for all color 0-255 All red dimmer 0-255... -
Page 13: Maintenance And Cleaning
15W3lLeds Wall Washer 11. MAINTENANCE AND CLEANING The following points have to be considered during the inspection: All screws for installing the devices or fixturets of the device have to be tightly connected and must not be corroded. There must not be any deformations on the housing .color lenses, fixations and installation spots. -
Page 14: Year Limited Warranty
15W3lLeds Wall Washer 12. 1-YEAR LIMITED WARRANTY ● A. Hereby warrants, to the original purchaser, our products to be free of manufacturing defects in material and workmanship for a period of one years, (365 days) from the date of purchase. ●...
