INSTALLATION MANUAL – BCB-36C Mini Day/Night Camera
WARNING: Before beginning installation of this product, carefully review the safeguards and
precautions found on page 2 of this manual.
Unpacking
Unpack carefully. This is electromechanical
equipment and should be handled with care. If an
item appears to have been damaged in shipment,
replace it properly in its carton and notify the shipper.
If any items are missing, notify Broadsight Systems,
Inc. The shipping carton is the safest container in
which the unit may be transported. Save it for
possible future use.
Service
If the unit ever needs repair service, the customer
should contact Broadsight Systems, Inc. for a return
materials authorization (RMA) and shipping
instructions.
Care and Maintenance
Perform routine maintenance to keep the unit dust
free.
Model Designation
BCB-36C Miniature Day/Night Camera,
600TVL, 3.6mm Fixed Lens
Description
The BCB-36C features a 1/3" Sony Super HAD CCD
sensor providing over 600TVL of resolution.
The ultra compact size and adjustable mounting
bracket are suitable for small enclosures and short
viewing distances (i.e. ATM machines). Additional
features include OSD-controlled privacy masking,
motion detection, image mirror functions, lens
shading compensation, highlight mask, and defective
pixel correction.
Hardware Kit
Power / Video Cable
Tools Required
Small Cross Recessed Screwdriver (Phillips)
www.broadsightsystems.com
1124 Louise Road
Winston-Salem, NC 27107
Service: 1-336-837-1272
Certification
Installation should be performed by a licensed
professional and conform to the National Electrical
Code (NEC) and any applicable local codes.
Installation
1. Select mounting location capable of supporting
the camera. If cables are to be routed into a
surface such as a wall, drill out the hole for the
cables using an appropriate size drill bit.
2. Loosen the two screws that attach the camera
bracket to the camera body. Slide the camera up
the bracket slots so that the mounting hole in the
base of the camera bracket is accessible.
3. Attach the camera bracket to the wall using
appropriate customer-supplied fasteners and
anchors (if needed).
4. Orient the camera as desired before tightening
the side screws to hold the camera in place.
5. Connect power and video to the cable harness
shown in Figure 1 and attach the small connector
at the end of the cable harness to the camera as
indicated.

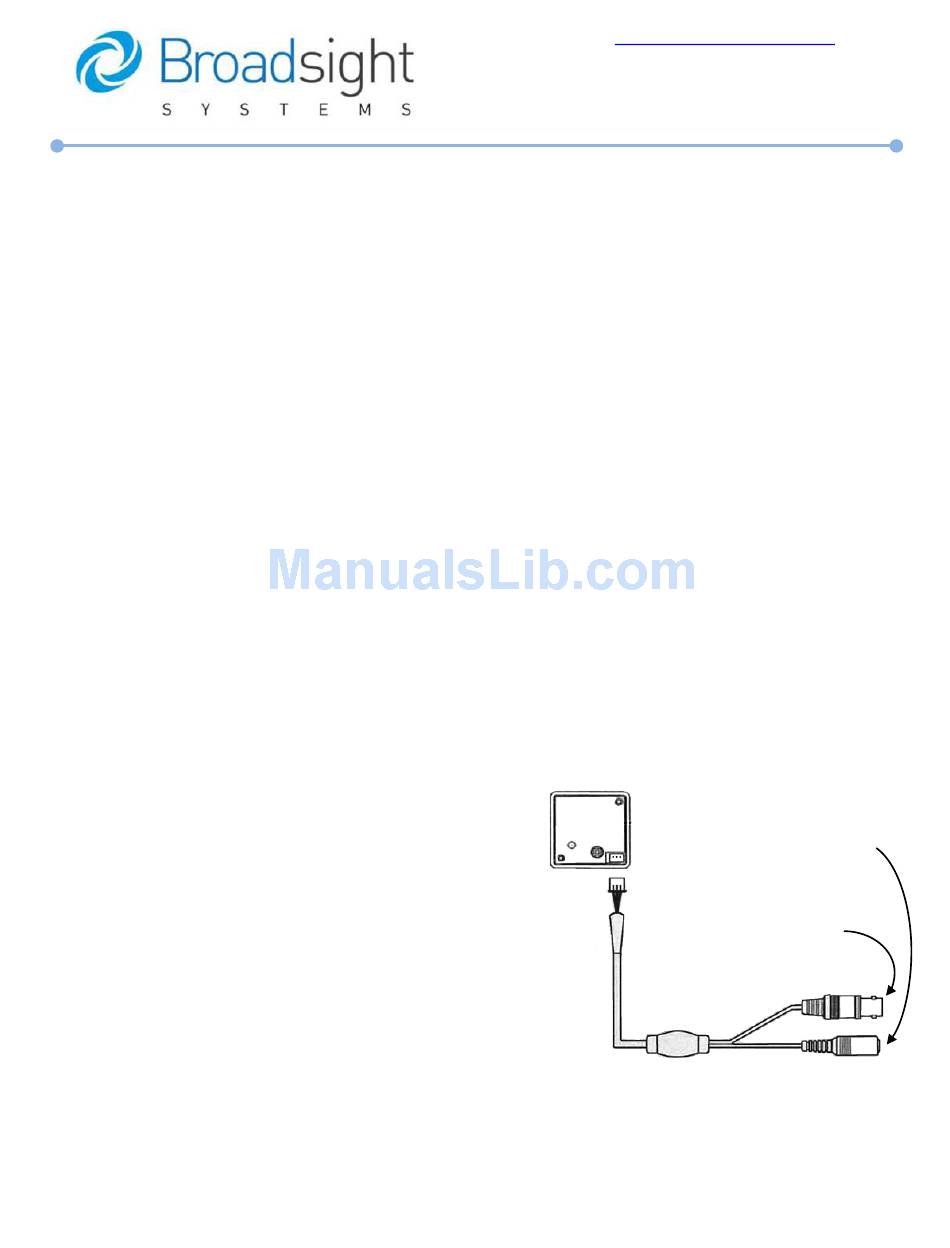

Figure 1 - Camera and Cable Harness
6. Adjust camera settings as needed by referencing
the chart on page 3.
DC Barrel Plug
Core: +12VDC
Shell: Ground
BNC Jack
Page 1 of 3
