2501

USER MANUAL

- 1 -

Table of Contents

Need help?

Do you have a question about the 2501 and is the answer not in the manual?

Questions and answers

Summary of Contents for Blow 2501

Page 1 SD MPEG-4 TERRESTRIAL RECEIVER 2501 USER MANUAL - 1 -...
Page 2: Table Of Contents
CONTENTS Important Safety Instructions---------------------------------------------------------------------------- Precautions-------------------------------------------------------------- Layout of Your Set Top Box---------------------------------------------------------------------- Remote Control Connecting Your Set Top Box Main Menu 1. Installation 1.1. Basic Settings 1.2. Auto/Manual Scan 2. Channel Manager 3. Timer Manager 3.1. Program Timer 3.2. Sleep Timer 3.3.
Page 3: Important Safety Instructions
IMPORTA T SAFETY I STRUCTIO S WARNING TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE WITH AN EXTENSION CORD, ● RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PRESENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS APPLIANCE TO RAIN ●...
Page 4 reference. 3. Heed Warnings-All warnings on the appliance and in the operating instructions should be adhered to. 4. Follow Instructions-All operating and use instructions should be followed. 5. Water and Moisture-The appliance should not be used near water. 6. Ventilation-The appliance should be well situated that its location or position does not interfere with its proper ventilation.
Page 5: Precautions
Precautions Please read these precautions before operating this unit. 1. Power cord protection To avoid any malfunctions of the unit, and to protect against electric shock, fire or personal injury, please observe the following. Hold the plug firmly when connecting or disconnecting the AC power cord. •...

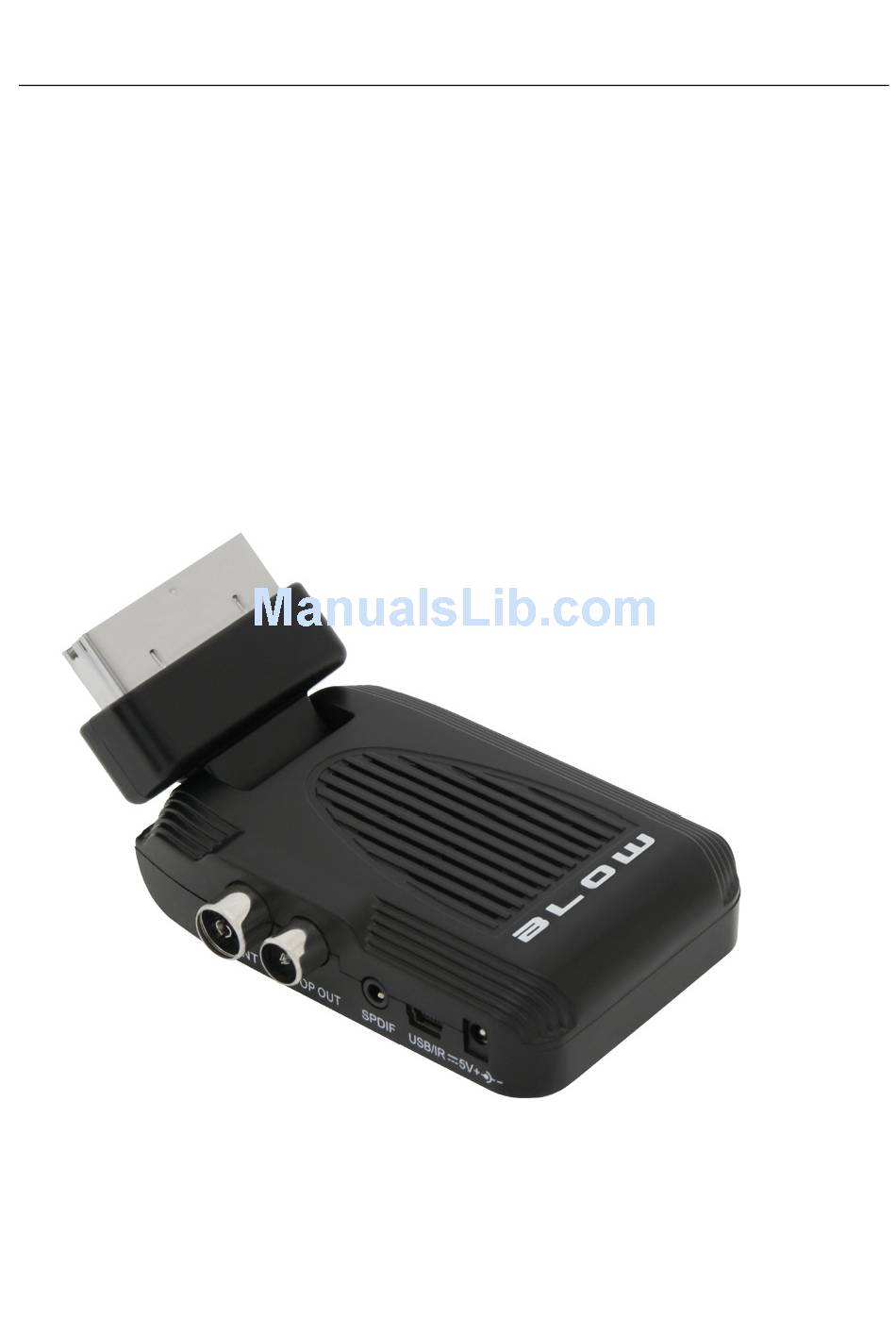

Page 6 IDENTIFY YOUR SET TOP BOX 1. ANT IN 2. LOOP OUT 3. IR 4. USB 5. DC 5V - 6 -...
Page 7: Remote Control
Remote control : 1.Mute: Turn off / on voice. 2.Number Key: <0-9> 3. Menu: Enter main menu 4. VOL -/+ : Volume adjustment 5. EPG: Electronic Program Guide 6. AUDIO: Audio mode operation 7. Info: Display program information in full-screen playing Or show operation guide in current menu 8.
Page 8: Connecting Your Set Top Box
Connecting Your Set Top Box Antenna to set top box connection Connect the aerial to the unit through ANT IN jack. Set Top Box to TV Connection Connect the unit to TV with scart cable through scart socket. c) Turn on your TV and the unit, then select AV IN. Main Menu 1.
Page 9 Figure 2 Figure 3 <NOTE> Before searching, Make sure the antenna is connected to the STB. Once the channel scan is finished and all the channels are stored into the database, you can start to watch the digital TV channels, some typical operations are given in this chapter. Following is Main Menu for operating functions.
Page 10: Channel Manager
2. Channel Manager 2.1 Press <OK> to enter “Channel Manager” page through “ Main Menu - Channel Manager– OK”. 2.2. Press <CH+>/<CH-> to select a TV channel, press <EPG><AUDIO><SUBTITLE> <TTX> to edit the channel, Four functions are available for editing channels, Skip / Delete/Fav/ Lock. See figure 4: Figure 4 Skip: Press red button <EPG>...
Page 11: Program Timer
Figure 5 3.1 Program Timer Press <OK> to enter Program Timer page, then press green button <AUDIO> to set the TV/Radio channel, Date, Start Time, Duration, Mode, Function which you’d like to record. Press <OK> to confirm the setting. See Figure 6: Figure 6 3.2 Sleep Timer Press <OK>...
Page 12: Auto Scan Timer
Figure 7 3.3 Auto Scan Timer Press <OK> to enter Auto Scan Timer page, Press <CH+>/<CH-> to select the item you wish to set, and press <V+>/<V-> to set ON/OFF mode for Standby & Operate Mode. When both are in on mode, press number buttons to set the time for auto scan.
Page 13 Figure 9 4.1 Multimedia supported files are illustrated below. NTFS, FAT32 and FAT16 file system can be supported at the moment. 1) Video size: up to SD (standard definition) 2) Photo size: up to 256M pixels (16376*16376) 3) Audio channels: 2 channels Video Decoder Audio Decoder Image Decoder...
Page 14 4.2 Press <CH+>/<CH-> to select the item(Music, Photo, Movie, PVR) you wish to play, <OK> to enter playing mode. NOTE: In PVR mode, if there isn’t any recorded files on USB drive, you can record live program first as per below steps: (a) Insert USB drive into USB socket, after seeing a hint message on the screen “Insert USB device”, select a channel you want to record, then press <REC>...
Page 15: Settings
Note: When USB drive is full, system will display a message ”Disk Full Error, Leaving ” 5. Settings press <OK> to enter “Settings” page through “ Main Menu – Settings – OK”, <CH+>/<CH-> to select the items you wish to adjust. See Figure 12: Figure 12 5.1 Press <OK>...
Page 16: Recording Settings
to select the modes (for Display Mode, Aspect Ratio, Video Output) which are suitable for user’s TV. See Figure Figure 14 5.3 Press <OK> to enter Recording Settings page after you choose this item, using <CH+>/<CH-> & <V+>/<V-> to set the detailed data(for Timeshift Function, Timeshift Storage, Recording Duration, Recording Target). See Figure 15: Figure 15 5.4 Press <OK>...
Page 17: Tools
Figure16 (2) using <CH+>/<CH-> & <V+>/<V-> to turn on/off Menu Lock, Channel Lock, Maturity Lock. See Figure 17: Figure 17 (3) For PIN Code changing, press <V+>, then input old password, display shows “Please enter the new PIN code”. Input the new password, then “Confirm the new PIN code”. Until display shows “The PIN code is changed!!”, which means the password set success.
Page 18: Storage Manager
wish to adjust. See Figure 18: Figure 18 6.1 Insert USB, then press <OK> to enter Storage Manager page after you choose this item. The display will show the volume information of the USB. See Figure 19: Figure 19 6.2 Press <OK> to enter Software Upgrade page after you choose this item, then use <CH+>/<CH-> to choose USB / SD card as upgrading tools.
Page 19: Factory Reset
Figure 20 6.3 Press <OK> to enter Factory Reset page after you choose this item, then input your old password (default password is “0000”) the unit will ask “The operation will load default setting. Are you Sure?” Choose No/Yes as you wish.
Page 20: Convenient Functions
Figure 22 6.4 Press <OK> to enter Software Information page after you choose this item, then display will show your present system version No.. Convenient Functions 1 Ways of selecting program STB provides four ways to select program. (1) Press <Up/Down> button to next or previous program. (2) Press <OK>...
Page 21: Ttx
Display subtitle on screen, the style of subtitle may be different by content provider. (1) Press <SUBTITLE> yellow button to enter subtitle page. (2) press <V-/V+> and <OK> to turn on/off subtitle. 5. TTX (1) Press <TTX> to enter Teletext page. (2) Press <Up/Down>...
Page 22: Recall
This button is used to play or pause the current live program or recorded program playing 13. RECALL A hot-key to recall recorded program watched. 14. STOP Stop to play current live program. Troubleshooting There may be various reasons for the abnormal operation of the receiver. Check the receiver according to the procedures shown below.
