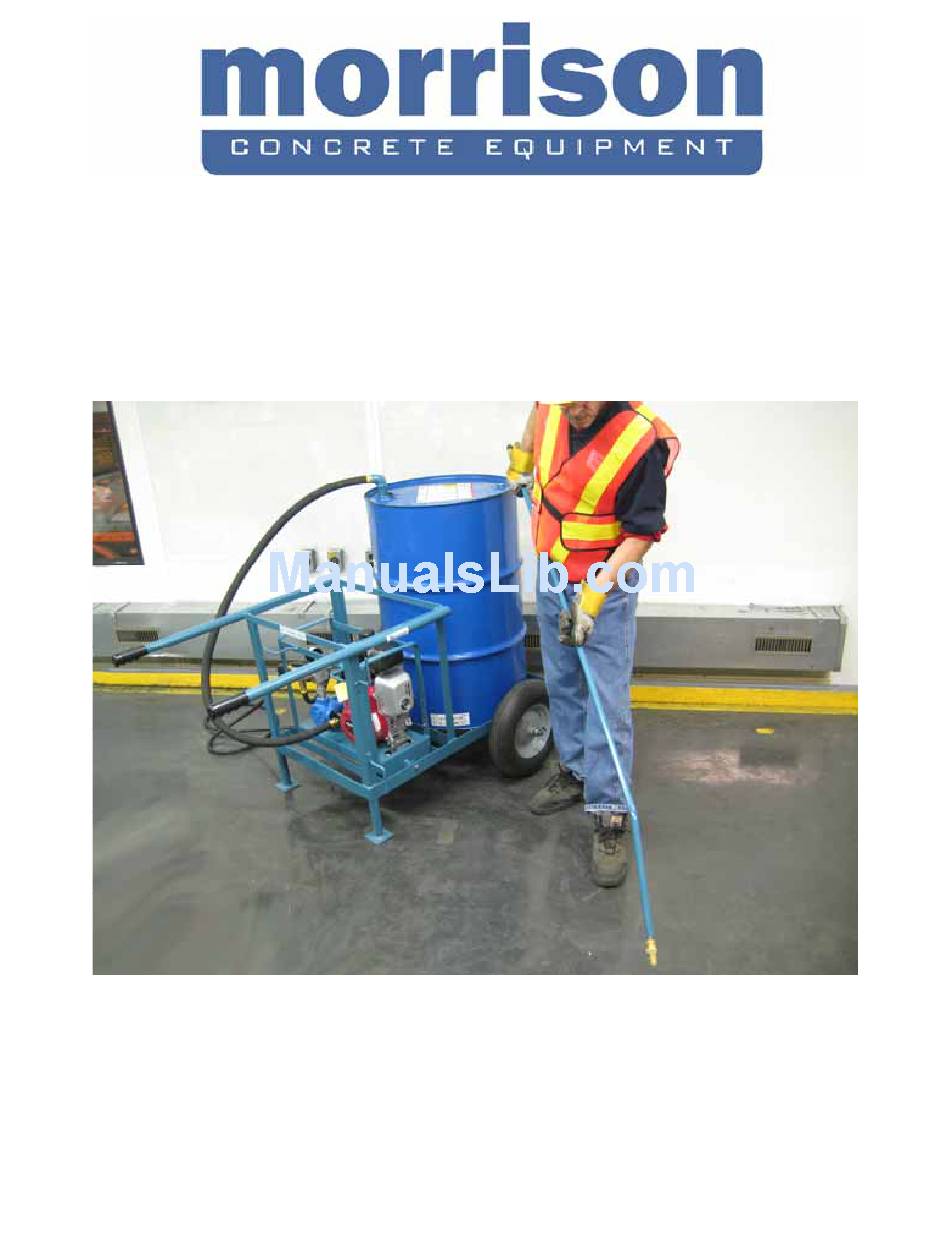

POWER SPRAYER
Model: S151 and S201
Operator's Manual
BARTELL MORRISON INC.
BARTELL MORRISON (USA) LLC
375 ANNAGEM BLVD, MISSISSAUGA, ONTARIO, CANADA, L5T 3A7, 905-364-4200 FAX 905-364-4201
200 COMMERCE DRIVE, FREEHOLD, NEW JERSEY, USA, 07728, 732-566-5400 FAX 732-5444
Doc. # OI – M09205
Orig. Rel. – 07/2008
Curr. Rev. – 04
Rev. Date – 06/2014
