Summary of Contents for ASROCK Fatal1ty Z87 Professional Series

  • Page 2: Copyright Notice

    (including damages for loss of proits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 3 Fatal1ty Story Who knew that at age 19, I would be a World Champion PC gamer. When I was 13, I actually played competitive billiards in professional tournaments and won four or ive games of guys who played at the highest level. I actually thought of making a career of it, but at that young age situations change rapidly.
  • Page 4 LIVIN’ LARGE Since my irst big tournament wins, I have been a “Professional Cyberathlete”, traveling the world and livin’ large with lots of International media coverage on outlets such as MTV, ESPN and a 60 Minutes segment on CBS to name only a few. It's unreal - it's crazy. I’m living a dream by playing video games for a living.

  • Page 5: Table Of Contents

    Contents Chapter 1 Introduction Package Contents Speciications Unique Features Motherboard Layout I/O Panel Chapter 2 Installation Installing the CPU Installing the CPU Fan and Heatsink Installing Memory Modules (DIMM) Expansion Slots (PCI and PCI Express Slots) Jumpers Setup Onboard Headers and Connectors Smart Switches Dr.
  • Page 6 Operation Guide 2.13.1 Installing Two CrossFireX -Ready Graphics Cards 2.13.2 Installing Three CrossFireX -Ready Graphics Cards 2.13.3 Driver Installation and Setup 2.14 Dual LAN and Teaming Operation Guide Chapter 3 Software and Utilities Operation Installing Drivers F-Stream Intel® Rapid Start Technology Intel®...
  • Page 7 Advanced Screen 4.4.1 CPU Coniguration 4.4.2 Chipset Coniguration 4.4.3 Storage Coniguration 4.4.4 Intel® Rapid Start Technology 4.4.5 Intel® Smart Connect Technology 4.4.6 Super IO Coniguration 4.4.7 ACPI Coniguration 4.4.8 USB Coniguration Tools Hardware Health Event Monitoring Screen Boot Screen Security Screen Exit Screen...

  • Page 8: Chapter 1 Introduction

    If you require technical support related to this motherboard, please visit our website for speciic information about the model you are using. You may ind the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com.

  • Page 9: Speciications

    Pentium® / Celeron® in LGA1150 Package • Digi Power Design • 12 Power Phase Design • Supports Intel® Turbo Boost 2.0 Technology • Supports Intel® K-Series unlocked CPU • Supports ASRock BCLK Full-range Overclocking • Intel® Z87 Chipset • Dual Channel DDR3 Memory Technology Memory • 4 x DDR3 DIMM slots...
  • Page 10 Fatal1ty Z87 Professional Series • 3 x PCI Express 3.0 x16 slots (PCIE2/PCIE3/PCIE4: single Expansion Slot at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE3); triple at x8 (PCIE2) / x4 (PCIE3) / x4 (PCIE4)) • 1 x PCI Express 2.0 x1 slot • 1 x mini-PCI Express slot...
  • Page 11 • Gigabit LAN 10/100/1000 Mb/s • 1 x Giga PHY Intel® I217V, 1 x GigaLAN Intel® I211AT • Supports Intel® Remote Wake Technology (on Intel® I217V) • Supports Wake-On-LAN • Supports Dual LAN with Teaming • Supports Energy Eicient Ethernet 802.3az • Supports PXE • 1 x PS/2 Keyboard Port Rear Panel...
  • Page 12 • Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore • Microsot® Windows® 8 / 8 64-bit / 7 / 7 64-bit compliant • FCC, CE, WHQL Certiica- • ErP/EuP Ready (ErP/EuP ready power supply is required) tions * For detailed product information, please visit our website: http://www.asrock.com...
  • Page 13 Due to limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit operating systems. Windows® 64-bit operat- ing systems do not have such limitations. You can use ASRock XFast RAM to utilize the memory that Windows® cannot use.

  • Page 14: Unique Features

    LED, FAN-Tastic Tuning, OC Tweaker and a whole lot more. ASRock Instant Flash ASRock Instant Flash is a BIOS lash utility embedded in Flash ROM. his conve- nient BIOS update tool allows you to update the system BIOS in a few clicks without preparing an additional loppy diskette or other complicated lash utility.
  • Page 15 ASRock XFast RAM ASRock XFast RAM is included in F-Stream. It fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. ASRock XFast RAM shortens the loading time of previously visited websites, making web suring faster than ever.
  • Page 16 Windows® 8 brings the ultimate boot up experience. he lightning boot up speed makes it hard to access the UEFI setup. ASRock Restart to UEFI allows users to enter the UEFI automatically when turning on the PC. By enabling this function, the PC will enter the UEFI directly ater you restart.
  • Page 17 ASRock FAN-Tastic Tuning ASRock FAN-Tastic Tuning is included in F-Stream. Conigure up to ive diferent fan speeds using the graph. he fans will automatically shit to the next speed level when the assigned temperature is met. ASRock Easy Driver Installer For users that don’t have an optical disk drive to install the drivers from our support...

  • Page 18: Motherboard Layout

    Fatal1ty Z87 Professional Series 1.4 Motherboard Layout ATX12V1 CPU_FAN1 CMOS CPU_FAN2 PWR_FAN1 HDMI_IN1 USB 3.0 Top: T: USB0 RJ-45 B: USB1 USB 3.0 Top: T: USB2 RJ-45 B: USB3 CHA_FAN3 CHA_FAN2 FATAL PCIE1 PCIE2 CMOS Battery Intel PCI1 Z87 PROFESSIONAL...
  • Page 19 No. Description Power Fan Connector (PWR_FAN1) ATX 12V Power Connector (ATX12V1) CPU Fan Connector (CPU_FAN1) CPU Fan Connector (CPU_FAN2) 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1) 2 x 240-pin DDR3 DIMM Slots (DDR3_A2, DDR3_B2) ATX Power Connector (ATXPWR1) USB 3.0 Header (USB3_4_5) SATA3 Connectors (SATA3_A3_A4) SATA3 Connectors (SATA3_A1_A2) SATA3 Connectors (SATA3_0_1)

  • Page 20: I/O Panel

    Fatal1ty Z87 Professional Series 1.5 I/O Panel No. Description No. Description USB 2.0 Ports (USB01) Optical SPDIF Out Port Display Port USB 3.0 Ports (USB3_23) Fatal1ty Mouse Port (USB2) (ASMedia Hub) USB 2.0 Port (USB3) USB 3.0 Ports (USB3_01) LAN RJ-45 Port (Intel® I217V)* (ASMedia Hub) LAN RJ-45 Port (Intel®...
  • Page 21 * here are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications. ACT/LINK LED SPEED LED LAN Port Activity / Link LED Speed LED Status Description Status Description No Link 10Mbps connection Blinking Data Activity Orange...

  • Page 22: Chapter 2 Installation

    Chapter 2 Installation his is an ATX form factor motherboard. Before you install the motherboard, study the coniguration of your chassis to ensure that the motherboard its into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.

  • Page 23: Installing The Cpu

    2.1 Installing the CPU 1. Before you insert the 1150-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found.
  • Page 24 Fatal1ty Z87 Professional Series...
  • Page 25 Please save and replace the cover if the processor is removed. he cover must be placed if you wish to return the motherboard for ater service.

  • Page 26: Installing The Cpu Fan And Heatsink

    Fatal1ty Z87 Professional Series 2.2 Installing the CPU Fan and Heatsink...

  • Page 27: Installing Memory Modules (Dimm)

    2.3 Installing Memory Modules (DIMM) his motherboard provides four 240-pin DDR3 (Double Data Rate 3) DIMM slots, and supports Dual Channel Memory Technology. 1. For dual channel coniguration, you always need to install identical (the same brand, speed, size and chip-type) DDR3 DIMM pairs. 2.
  • Page 28 Fatal1ty Z87 Professional Series...

  • Page 29: Expansion Slots (Pci And Pci Express Slots)

    2.4 Expansion Slots (PCI and PCI Express Slots) here are 2 PCI slots and 5 PCI Express slots on the motherboard. Before installing an expansion card, please make sure that the power supply is switched of or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

  • Page 30: Jumpers Setup

    Fatal1ty Z87 Professional Series 2.5 Jumpers Setup he illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. he illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”...
  • Page 31 BIOS Selection Jumper (BIOS_SEL1) Default Backup BIOS (see p.11, No. 20) (Main BIOS) his motherboard has two BIOS onboard, a main BIOS (BIOS_A) and a backup BIOS (BIOS_B), which enhances protection for the safety and stability of your system. Normally, the system works on the main BIOS. However, if the main BIOS is corrupted or damaged, please use a jumper cap to short pin2 and pin3, then the backup BIOS will take over on the next system boot.

  • Page 32: Onboard Headers And Connectors

    Fatal1ty Z87 Professional Series 2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.
  • Page 33 Power LED Header Please connect the chassis PLED- (3-pin PLED1) power LED to this header PLED+ PLED+ (see p.11, No. 18) to indicate the system’s power status. Serial ATA3 Connectors hese ten SATA3 (SATA3_0_1: connectors support SATA see p.11, No. 11) data cables for internal (SATA3_2_3: storage devices with up...

  • Page 34: Front Panel Audio Header

    Fatal1ty Z87 Professional Series USB 3.0 Headers Vbus Vbus Besides four USB 3.0 ports Vbus IntA_PB_SSRX- (19-pin USB3_4_5) IntA_PA_SSRX- IntA_PB_SSRX+ on the I/O panel, there IntA_PA_SSRX+ (see p.11, No. 8) IntA_PB_SSTX- are two headers on this IntA_PA_SSTX- IntA_PB_SSTX+ IntA_PA_SSTX+ motherboard. Each USB...
  • Page 35 Chassis Speaker Header Please connect the chassis DUMMY SPEAKER (4-pin SPEAKER1) speaker to this header. DUMMY (see p.11, No. 16) SPDIF Out Connector Please connect the (2-pin SPDIF_OUT1) SPDIF_OUT connector of SPDIFOUT (see p.11, No. 28) a HDMI VGA card to this header with a cable.
  • Page 36 Fatal1ty Z87 Professional Series ATX 12V Power his motherboard pro- Connector vides an 8-pin ATX 12V (8-pin ATX12V1) power connector. To use a (see p.11, No. 2) 4-pin ATX power supply, please plug it along Pin 1 and Pin 5.

  • Page 37: Smart Switches

    2.7 Smart Switches he motherboard has three smart switches: Power Switch, Reset Switch and Clear CMOS Switch, allowing users to quickly turn on/of the system, reset the system or clear the CMOS values. Power Switch Power Switch allows users Power (PWRBTN) to quickly turn on/of the (see p.11, No.

  • Page 38: Dr. Debug

    Fatal1ty Z87 Professional Series 2.8 Dr. Debug Dr. Debug is used to provide code information, which makes troubleshooting even easier. Please see the diagrams below for reading the Dr. Debug codes. Code Description Please check if the CPU is installed correctly and then clear CMOS.
  • Page 39 Problem related to USB devices. Please try removing all USB devices. Problem related to memory. Please re-install the CPU and memory then clear CMOS. If the problem still exists, please install only one memory module or try using other memory modules.

  • Page 40: Front Usb 3.0 Panel Installation Guide

    Fatal1ty Z87 Professional Series 2.9 Front USB 3.0 Panel Installation Guide Step 1 Prepare the bundled Front USB 3.0 Panel with 2.5” HDD/SSD Rack, four HDD screws, and six chassis screws. Step 2 Screw the 2.5” HDD/SSD to the Front USB 3.0 Panel with 2.5”...
  • Page 41 Step 5 Plug the Front USB 3.0 cable into the USB 3.0 header (USB3_4_5 or USB3_6_7) on the motherboard. Step 6 he Front USB 3.0 Panel with 2.5” HDD/SSD Rack is ready to use.

  • Page 42: Rear Usb 3.0 Bracket Installation Guide

    Fatal1ty Z87 Professional Series 2.10 Rear USB 3.0 Bracket Installation Guide Step 1 Unscrew the two screws from the Front USB 3.0 Panel with 2.5” HDD/SSD Rack. Step 2 Put the USB 3.0 cable and the bundled rear USB 3.0 bracket together.

  • Page 43: Using The Hdmi-In Port

    2.11 Using the HDMI-In Port he HDMI-In port on this motherboard lets you easily switch between PC screen (on-board VGA) and external video source on the same monitor. his function saves you the hassle of switching cables back and forth when you want to display the screen of another device, such as smartphone, tablet, camcorder, DVD player, or another PC, onto the PC monitor.
  • Page 44 Fatal1ty Z87 Professional Series Connection Diagram HDMI Adapter Power Source...
  • Page 45 Step 1 Connect your monitor to the HDMI-Out port on the motherboard via an HDMI cable. Step 2 Connect an external devices with HDMI output to the HDMI-In port on the motherboard via an HDMI cable. Step 3 Double-click the “F-Stream“ icon on the desktop and ind "HDMI-IN"...

  • Page 46: Sli Tm And Quad Sli Tm Operation Guide

    Fatal1ty Z87 Professional Series 2.12 SLI and Quad SLI Operation Guide ® his motherboard supports NVIDIA and Quad SLI (Scalable Link Interface) technology that allows you to install up to two identical PCI Express x16 ® graphics cards. Currently, NVIDIA...
  • Page 47 Step 3 Align and insert the ASRock SLI_ Bridge_2S Card to the goldingers on each graphics card. Make sure the ASRock SLI_ Bridge_2S Card is irmly in place. SLI_Bridge_2S Card ASRock SLI_Bridge_2S Card Step 4 Connect a VGA cable or a DVI cable to the...

  • Page 48: Driver Installation And Setup

    Fatal1ty Z87 Professional Series 2.12.2 Driver Installation and Setup Install the graphics card drivers to your system. Ater that, you can enable the ® Multi-Graphics Processing Unit (GPU) in the NVIDIA nView system tray utility. Please follow the below procedures to enable the multi-GPU.

  • Page 49: Operation Guide

    2.13 CrossFireX , 3-Way CrossFireX and Quad CrossFireX Operation Guide his motherboard supports CrossFireX , 3-way CrossFireX and Quad CrossFireX that allows you to install up to three identical PCI Express x16 graphics cards. Currently CrossFireX , 3-way CrossFireX and Quad ®...

  • Page 50: Installing Three Crossfirex

    Fatal1ty Z87 Professional Series Step 3 Connect a VGA cable or a DVI cable to the monitor connector or the DVI connec- tor of the graphics card that is inserted to PCIE2 slot. 2.13.2 Installing Three CrossFireX -Ready Graphics Cards...

  • Page 51: Driver Installation And Setup

    2.13.3 Driver Installation and Setup Step 1 Power on your computer and boot into OS. Step 2 Remove the AMD drivers if you have any VGA drivers installed in your system. he Catalyst Uninstaller is an optional download. We recommend using this utility to uninstall any previously installed Catalyst drivers prior to installation.

  • Page 52: Dual Lan And Teaming Operation Guide

    Fatal1ty Z87 Professional Series 2.14 Dual LAN and Teaming Operation Guide Dual LAN with Teaming enabled on this motherboard allows two single connections to act as one single connection for twice the transmission bandwidth, making data transmission more efective and improving the quality of transmission of distant images.

  • Page 53: Chapter 3 Software And Utilities Operation

    Chapter 3 Software and Utilities Operation 3.1 Installing Drivers he Support CD that comes with the motherboard contains necessary drivers and useful utilities that enhance the motherboard’s features. Running The Support CD To begin using the support CD, insert the CD into your CD-ROM drive. he CD automatically displays the Main Menu if “AUTORUN”...

  • Page 54: F-Stream

    Fatal1ty Z87 Professional Series 3.2 F-Stream F-Stream is ASRock’s multi purpose sotware suite with a new interface, more new features and improved utilities, including XFast RAM, Dehumidiier, Good Night LED, FAN-Tastic Tuning, OC Tweaker and a whole lot more. 3.2.1 Installing F-Stream When you install the all-in-one driver to your system from ASRock’s support CD,...
  • Page 55 Tools Various tools and utilities. XFast RAM Boost the system’s performance and extend the HDD’s or SDD’s lifespan! Create a hidden partition, then assign which iles should be stored in the RAM drive. Fast Boot Fast Boot minimizes your computer's boot time. Please note that Ultra Fast mode is only supported by Windows 8 and the VBIOS must support UEFI GOP if you are using an external graphics card.
  • Page 56 Fatal1ty Z87 Professional Series Dehumidiier Prevent motherboard damages due to dampness. Enable this function and conigure the period of time until the computer powers on, and the duration of the dehumidifying process. HDMI-IN Connect two diferent devices to one monitor and toggle between the primary and secondary screen without replugging the connectors every time.
  • Page 57 Tech Service Contact Tech Service.

  • Page 58: Intel® Rapid Start Technology

    Fatal1ty Z87 Professional Series 3.3 Intel® Rapid Start Technology Intel® Rapid Start Technology enables your system to wake up faster from deep sleep, saving time and power consumption. Feel secure to know that your system will resume to working condition even if an unexpected power loss happens while the PC is in sleep mode.

  • Page 59: Setup Guide

    3.3.2 Setup Guide Coniguring Rapid Start Step 1 Run ASRock Rapid Start utility from Start -> All Programs -> ASRock Utility. Step 2 If you have more than one hard drives in your system, you must select one, then choose the Partition Size desired for your hidden partition and click on Create. he system will automatically create a hidden partition according to your settings.
  • Page 60 Fatal1ty Z87 Professional Series Step 3 When prompted to restart ater the setup, click Yes to reboot. Step 4 Double-click the Intel® Rapid Start Technology Manager icon in the Windows system tray.
  • Page 61 Step 5 Make sure Rapid Start is on. Drag the slider to conigure the time. For example, if the timer value is set to ten minutes, the system will enable Rapid Start mode ater entering sleep state for ten minutes. If the timer is set to 0 minutes, Windows will immediately enable Rapid Start mode as it enters sleep state.
  • Page 62 Fatal1ty Z87 Professional Series state for a period of time. he power of the computer in Rapid Start mode can be cut of, it will not cause data loss of the programs or iles you were executing before entering sleep state.

  • Page 63: Intel® Smart Connect Technology

    3.4 Intel® Smart Connect Technology Intel® Smart Connect Technology is a feature that periodically wakes your computer from Windows® sleep state to refresh email or social networking applications. It saves your waiting time and keeps the content always up-to-date. 3.4.1 System Requirements •...
  • Page 64 3.4.2 Setup Guide Installing ASRock Smart Connect Utility Step 1 Install ASRock Smart Connect Utility, which is located in the folder at the following path of the Support CD: \ ASRock Utility > Smart Connect. Step 2 Once installed, run ASRock Smart Connect from your desktop or go to Windows...
  • Page 65 Step 3 Click the Add button. Take Foxmail as an example, add Foxmail to the Application list. Step 4 Select Foxmail from the Application List, then click the arrow pointing right to add this application to the Smart Connect List. Step 5 Click Apply to enable Smart Connect.
  • Page 66 Fatal1ty Z87 Professional Series Step 6 Double-click the Intel® Smart Connect Technology Manager icon in the Windows system tray. Step 7 Drag the slider to conigure how oten the system will connect to the network to download updates. Shorter durations will provide more frequent updates, but may cause more power consumption.
  • Page 67 he system will wake up from sleep state periodically, and then start to update Foxmail. he screen will not display anything so the computer can maintain minimum power usage. Aterwards, the system will automatically return to sleep state again. Upon waking up the system, you will ind the new mail that were sent to you during sleep state are already updated and ready to be read in Foxmail.

  • Page 68: Intel® Remote Wake Technology

    Fatal1ty Z87 Professional Series 3.5 Intel® Remote Wake Technology Intel® Remote Wake Technology allows you to use programs or services over the Internet to wake up your home computer from energy eicient sleep mode. Before coniguring this feature, verify the following.
  • Page 69 Step 3 A new mesh window will pop up. Enter a mesh name and password. Step 4 Select all the checkboxes and click Create Mesh. Downloading and Installing Mesh Agent Step 1 Click Install on the My Account page. Step 2 Select the mesh and download both iles.
  • Page 70 Fatal1ty Z87 Professional Series Step 4 Click Install / Update. Step 5 Wait a minute for the New Machine to appear in "My Device".
  • Page 71 Step 6 Check whether "Intel Remote Wake" appeared or not. Waking up Your PC using PC Step 1 On the "My Devices" page, click on Power Actions. Step 2 Click on Wake or Sleep.
  • Page 72 Fatal1ty Z87 Professional Series Waking up Your PC Using Mobile Device Before waking up your home computer using a mobile device, please log out of Mesh- Central on other previously used computers or devices. Step 1 Login to meshcentral.com/m. Step 2 Select a Machine.

  • Page 73: Coniguring And Using Splashtop

    Download and install the Streamer on your home computer, which is located in the folder at the following path of the Support CD: \ ASRock Utility > Splashtop Streamer. hen enter your Splashtop Account. If you have not created a Splashtop acount, create one.

  • Page 74: Using Remote Control

    Fatal1ty Z87 Professional Series Using Remote Control Step 1 In "Splashtop 2”, tap an online machine from the list to connect to your home computer. Step 2 Start remotely accessing your home computer. he functionality and price of the Splashtop APP and subscription fee is subject to...
  • Page 75 Accessing Data Playing Video...

  • Page 76: Start8

    Fatal1ty Z87 Professional Series 3.6 Start8 For those Windows 8 users who miss the Start Menu, Start8 is an ideal solution that brings back the familiar Start Menu along with added customizations for greater eiciency. 3.6.1 Installing Start8 Install Start8, which is located in the folder at the following path of the Support CD: \ ASRock Utility >...
  • Page 77 Conigure Conigure provides coniguration options, including icon sizes, which shortcuts you want Start Menu to display, quick access to recently used apps, the functionality of the power button, and more. Control...
  • Page 78 Fatal1ty Z87 Professional Series Control lets you conigure what a click on the start button or a press on the Windows key does. Desktop Desktop allows you to disable the hot corners when you are working on the desktop. It also lets you choose whether or not the system boots directly into desktop mode and bypass the Metro user interface.

  • Page 79: Sbx Pro Studio Technology

    3.7 SBX Pro Studio Technology his section explains how to conigure your ASRock Game Blaster using SBX Pro Studio. SBX Pro Studio Click the power button on the let to activate or deactivate. Surround Control the level of audio immersion in music, movies and games.
  • Page 80 Fatal1ty Z87 Professional Series Dialog Plus Enhance the voices in movies for clearer dialog. CRYSTALVOICE Select a recording device Mic Volume Control the level of mic volume. Mic Boost Control the level of mic boost. CrystalVoice Click the power button on the let to activate or deactivate.
  • Page 81 Acoustic Echo Cancellation Eliminate echoes that interfere with your conversation. SCOUT MODE Scout Mode Enable or disable scout mode. his proprietary technology allows you to hear your enemies from further away, giving you a distinct tactical advantage in combat. Hot Key Coniguration Conigure hot keys to enable or disable scout mode.
  • Page 82 Fatal1ty Z87 Professional Series SPEAKERS/HEADPHONES Speakers / Headphones Coniguration Select the device connected. If there are both speakers and front headphones connected, please select the device you desire to use as audio output. Optional Speakers Center Enable or disable center speaker.
  • Page 83 Bass Management Bass Redirection Enable or disable bass redirection. Subwoofer Gain Enable or disable subwoofer gain. Crossover Frequency Redirect all frequencies below this value to the optimal speaker for better bass response. MIXER Playback Speakers Control the level of speakers playback. SPDIF-Out Control the level of SPDIF-Out playback.
  • Page 84 Fatal1ty Z87 Professional Series What U Hear Control the level of playback redirect. EQUALIZER Choose from Flat, Acoustic, Classical, Country, Dance, Jazz, New Age, Pop, Rock and Vocal. JACK SETUP Device Connected: Select the device connected. Show Jack Setup dialog when an audio jack is inserted...
  • Page 85 ADVANCED FEATURES Play stereo mix to digital output Enable or disable play stereo mix to digital output. PROFILE...
  • Page 86 Fatal1ty Z87 Professional Series User Proiles You can save, load or delete your user proiles. he default is <Custom>. Note If you want to hear your own voice through the microphone (Playback mode). You can change your settings to "playback mode" by checking the "Listen to this device"...

  • Page 87: Xsplit Broadcaster

    3.8 XSplit Broadcaster XSplit Broadcaster is a desktop application designed to make your multimedia broadcasting, live-streaming and recording a lot easier and more fun to do, we are giving away the 3 months premium license which is worth US$24.95 for free! 3.8.1 Live Streaming Your Gameplay Step 1 Go to Start >...
  • Page 88 Fatal1ty Z87 Professional Series Step 3 Go to Broadcast > Add Channels…. Step 4 Click Add..Step 5 Select a platform for live streaming. *Before you start streaming, you need to register an account for the streaming service website, such as Twitch.tv, USTREAM, or other livestreaming services.
  • Page 89 Step 6 Fill in your platform's Username and Password. Based on your needs, conigure the Video and Audio Encoding settings. Click OK. Step 7 he channel then appears in your broadcast list. Click Apply and OK to save the settings.

  • Page 90: Recording Your Gameplay

    Fatal1ty Z87 Professional Series Step 8 Go to Broadcast and select the platform to enable live streaming. A link to view your live Broadcast has been copied for you automatically. Simply press CTRL-V or right click and choose Paste to paste the link into the browser, and you can see your broadcast.

  • Page 91: Chapter 4 Uefi Setup Utility

    Chapter 4 UEFI SETUP UTILITY 4.1 Introduction ASRock Interactive UEFI is a blend of system coniguration tools, cool sound efects and stunning visuals. Not only will it make BIOS setup less diicult but also a lot more amusing. his section explains how to use the UEFI SETUP UTILITY to conigure your system.

  • Page 92: Navigation Keys

    Fatal1ty Z87 Professional Series 4.1.2 Navigation Keys Use < > key or < > key to choose among the selections on the menu bar, and use < > key or < > key to move the cursor up or down to select items, then press <Enter>...

  • Page 93: Main Screen

    When you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview. Active Page on Entry Select the default page when entering the UEFI setup utility. UEFI Guide UEFI Guide is a quick tutorial for ASRock's UEFI setup Utility. You may abort the tutorial by pressing "esc".

  • Page 94: Oc Tweaker Screen

    Fatal1ty Z87 Professional Series 4.3 OC Tweaker Screen In the OC Tweaker screen, you can set up overclocking features. Because the UEFI sotware is constantly being updated, the following UEFI setup screens and descriptions are for reference purpose only, and they may not exactly match what you see on your screen.

  • Page 95: Long Duration Maintained

    Spread Spectrum Enable Spread Spectrum to reduce electromagnetic interference for passing EMI tests. Disable to achieve higher clock speeds when overclocking. Intel SpeedStep Technology Intel SpeedStep technology allows processors to switch between multiple frequen- cies and voltage points for better power saving and heat dissipation. Intel Turbo Boost Technology Intel Turbo Boost Technology enables the processor to run above its base operating frequency when the operating system requests the highest performance state.

  • Page 96: Dram Timing Coniguration

    Fatal1ty Z87 Professional Series Override: he voltage is ixed. GT Adaptive Voltage Conigure the ixed voltage added to the integrated GPU. GT Voltage Ofset Conigure the voltage added to the integrated GPU when the system is under heavy load. DRAM Timing Coniguration...
  • Page 97 DRAM Tweaker Fine tune the DRAM settings by leaving marks in checkboxes. Click OK to conirm and apply your new settings. CAS# Latency (tCL) he time between sending a column address to the memory and the beginning of the data in response.
  • Page 98 Fatal1ty Z87 Professional Series Read to Precharge (tRTP) he number of clocks that are inserted between a read command to a row pre- charge command to the same rank. Four Activate Window (tFAW) he time window in which four activates are allowed the same rank.
  • Page 99 tWRWRDR Conigure between module write to write delay from diferent ranks. tWRWRDD Conigure between module write to write delay from diferent DIMMs. tRDWR Conigure between module read to write delay. tRDWRDR Conigure between module read to write delay from diferent ranks. tRDWRDD Conigure between module read to write delay from diferent DIMMs.

  • Page 100: Fivr Coniguration

    Fatal1ty Z87 Professional Series Command Tri State Enable for DRAM power saving. MRC Fast Boot Enable Memory Fast Boot to skip DRAM memory training for booting faster. FIVR Coniguration FIVR Switch Frequency Signature Select whether to boost or lower the FIVR Switch Frequency.

  • Page 101: Voltage Coniguration

    System Agent Voltage Ofset Conigure the voltage for the System Agent. Setting the voltage higher may increase system stability when overclocking. CPU Analog IO Voltage Ofset CPU I/O Analog Voltage. CPU Digital IO Voltage Ofset CPU I/O Digital Voltage. CPU Integrated VR Faults Disable FIVR Faults to raise the threshold to trigger CPU over current protection and over voltage protection for better overclocking capabilities.

  • Page 102: Advanced Screen

    Fatal1ty Z87 Professional Series 4.4 Advanced Screen In this section, you may set the conigurations for the following items: CPU Coniguration, Chipset Coniguration, Storage Coniguration, Intel® Rapid Start Technology, Intel® Smart Connect Technology, Super IO Coniguration, ACPI Con- iguration and USB Coniguration.

  • Page 103: Cpu Coniguration

    4.4.1 CPU Coniguration Intel Hyper Threading Technology Intel Hyper hreading Technology allows multiple threads to run on each core, so that the overall performance on threaded sotware is improved. Active Processor Cores Select the number of cores to enable in each processor package. CPU C States Support Enable CPU C States Support for power saving.

  • Page 104: Intel Virtualization Technology

    Fatal1ty Z87 Professional Series Package C State Support Enable CPU, PCIe, Memory, Graphics C State Support for power saving. CPU Thermal Throttling Enable CPU internal thermal control mechanisms to keep the CPU from overheat- ing. No-Execute Memory Protection Processors with No-Execution Memory Protection Technology may prevent certain classes of malicious bufer overlow attacks.

  • Page 105: Chipset Coniguration

    4.4.2 Chipset Coniguration Primary Graphics Adapter Select a primary VGA. VT-d Intel® Virtualization Technology for Directed I/O helps your virtual machine monitor better utilize hardware by improving application compatibility and reliability, and providing additional levels of manageability, security, isolation, and I/O performance.

  • Page 106: Render Standby

    Fatal1ty Z87 Professional Series IGPU Multi-Monitor Select disable to disable the integrated graphics when an external graphics card is installed. Select enable to keep the integrated graphics enabled at all times. Render Standby Power down the render unit when the GPU is idle for lower power consumption.

  • Page 107: Storage Coniguration

    4.4.3 Storage Coniguration SATA Controller(s) Enable/disable the SATA controllers. SATA Mode Selection IDE: For better compatibility. AHCI: Supports new features that improve performance. RAID: Combine multiple disk drives into a logical unit. AHCI (Advanced Host Controller Interface) supports NCQ and other new features that will improve SATA disk performance but IDE mode does not have these advan- tages.
  • Page 108 Fatal1ty Z87 Professional Series Hard Disk S.M.A.R.T. S.M.A.R.T stands for Self-Monitoring, Analysis, and Reporting Technology. It is a monitoring system for computer hard disk drives to detect and report on various indicators of reliability. ASMedia SATA3 Mode IDE: For better compatibility.

  • Page 109: Intel® Rapid Start Technology

    4.4.4 Intel® Rapid Start Technology ® Intel Rapid Start Technology Intel® Rapid Start Technology is a new zero power hibernation mode which allows users to resume in just 5-6 seconds.

  • Page 110: Intel® Smart Connect Technology

    Fatal1ty Z87 Professional Series 4.4.5 Intel® Smart Connect Technology ® Intel Smart Connect Technology ® Intel Smart Connect Technology automatically updates your email and social networks, such as Twitter, Facebook, etc. while the computer is in sleep mode.

  • Page 111: Super Io Coniguration

    4.4.6 Super IO Coniguration Serial Port Enable or disable the Serial port. Serial Port Address Select the address of the Serial port. Infrared Port Enable or disable the Infrared port.

  • Page 112: Acpi Coniguration

    Fatal1ty Z87 Professional Series 4.4.7 ACPI Coniguration Suspend to RAM Select disable for ACPI suspend type S1. It is recommended to select auto for ACPI S3 power saving. Check Ready Bit Enable to enter the operating system ater S3 only when the hard disk is ready, this is recommended for better system stability.
  • Page 113 Ring-In Power On Allow the system to be waked up by onboard COM port modem Ring-In signals. RTC Alarm Power On Allow the system to be waked up by the real time clock alarm. Set it to By OS to let it be handled by your operating system.

  • Page 114: Usb Coniguration

    Fatal1ty Z87 Professional Series 4.4.8 USB Coniguration USB Controller Enable or disable all the USB 2.0 ports. USB 3.0 Controller Enable or disable all the USB 3.0 ports. Legacy USB Support Enable or disable Legacy OS Support for USB 2.0 devices. If you encounter USB compatibility issues it is recommended to disable legacy USB support.

  • Page 115: Tools

    In order to prevent users from bypassing OMG, guest accounts without permission to modify the system time are required. UEFI Tech Service Contact ASRock Tech Service if you are having trouble with your PC. Please setup network coniguration before using UEFI Tech Service. Easy RAID Installer Easy RAID Installer helps you to copy the RAID driver from the support CD to your USB storage device.

  • Page 116: Instant Flash

    ROM and execute Secure Backup UEFI to duplicate the current working ROM image to the secondary lash ROM. Internet Flash ASRock Internet Flash downloads and updates the latest UEFI irmware version from our servers for you. Please setup network coniguration before using Internet Flash.
  • Page 117 UEFI Download Server Select a server to download the UEFI irmware. Dehumidiier Function If Dehumidiier Function is enabled, the computer will power on automatically to dehumidify the system ater entering S4/S5 state. Dehumidiier Period Conigure the period of time until the computer powers on and enables Dehumidiier ater entering S4/S5 state.

  • Page 118: Hardware Health Event Monitoring Screen

    Fatal1ty Z87 Professional Series 4.6 Hardware Health Event Monitoring Screen his section allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, fan speed and voltage. CPU Fan 1 & 2 Setting Select a fan mode for CPU Fans 1&2, or choose Customize to set 5 CPU...

  • Page 119: Boot Screen

    4.7 Boot Screen his section displays the available devices on your system for you to conigure the boot settings and the boot priority. Fast Boot Fast Boot minimizes your computer's boot time. In fast mode you may not boot from an USB storage device. Ultra Fast mode is only supported by Windows 8 and the VBIOS must support UEFI GOP if you are using an external graphics card.
  • Page 120 Fatal1ty Z87 Professional Series Full Screen Logo Enable to display the boot logo or disable to show normal POST messages. AddOn ROM Display Enable AddOn ROM Display to see the AddOn ROM messages or conigure the AddOn ROM if you've enabled Full Screen Logo. Disable for faster boot speed.
  • Page 121 Launch PXE OpROM Policy Select UEFI only to run those that support UEFI option ROM only. Select Legacy only to run those that support legacy option ROM only. Launch Storage OpROM Policy Select UEFI only to run those that support UEFI option ROM only. Select Legacy only to run those that support legacy option ROM only.

  • Page 122: Security Screen

    Fatal1ty Z87 Professional Series 4.8 Security Screen In this section you may set or change the supervisor/user password for the system. You may also clear the user password. Supervisor Password Set or change the password for the administrator account. Only the administrator has authority to change the settings in the UEFI Setup Utility.

  • Page 123: Exit Screen

    4.9 Exit Screen Save Changes and Exit When you select this option the following message, “Save coniguration changes and exit setup?” will pop out. Select [OK] to save changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option the following message, “Discard changes and exit setup?”...

  • Page 124: Contact Information

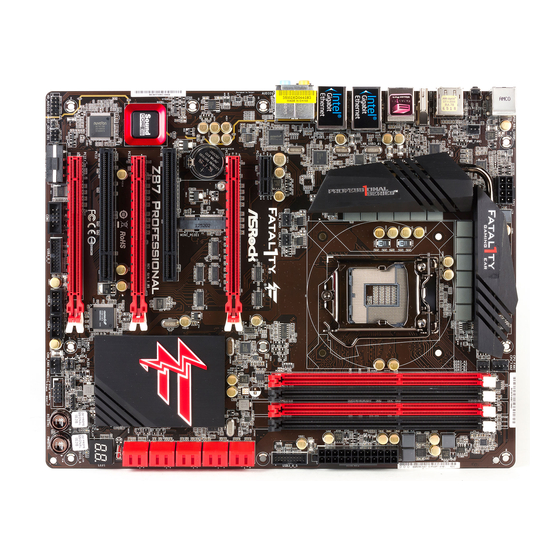

    Fatal1ty Z87 Professional Series Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at http://www.asrock.com/support/tsd.asp...
