Summary of Contents for Henkel Teroson 142241

  • Page 1 142241 Telescopic Multi-Press Dispenser Operating Manual...
  • Page 2: Table Of Contents

    Table of Contents Please Observe The Following ................... 3 Emphasized Sections ....................3 For Your Safety ......................3 Unpacking and Inspection .................... 4 Items supplied ......................4 Features ........................4 Usage .......................... 4 Description ......................... 5 Technical Data ........................5 Installation ..........................
  • Page 3: Please Observe The Following

    Please Observe The Following Emphasized Sections Warning! Refers to safety regulations and requires safety measures that protect the operator or other persons from injury or danger to life. Caution! Emphasizes what must be done or avoided so that the unit or other property is not damaged.
  • Page 4: Unpacking And Inspection

    Unpacking and Inspection Carefully unpack the Teroson® Telescopic Multi-Press Dispenser #142241 and examine the items contained in the carton. Inspect the unit for any damage that might have occurred in transit. If such damage has occurred, notify the carrier immediately. Claims for damage must be made by the consignee to the carrier and should be reported to the manufacturer.
  • Page 5: Description

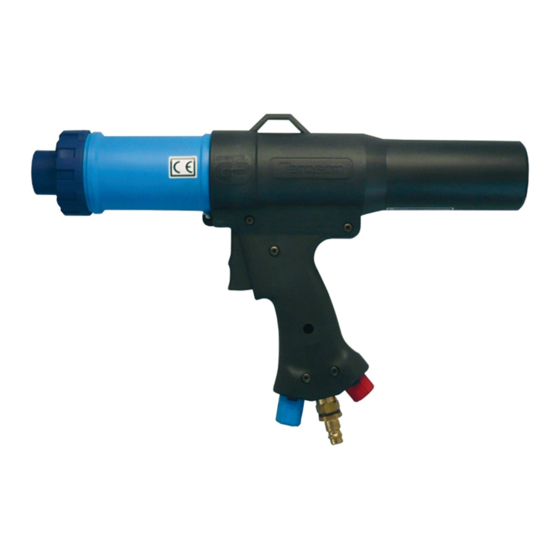

    Description The Teroson® 142241 Telescopic Multi-Press Dispenser is a hand held pneumatic applicator designed for spraying sealants and adhesives packaged in 300 ml cartridges. The air spray distributes the adhesive equally on the surface that is being coated. The dispenser is capable of either spray, bead, or ribbon patterns to produce seam and joint seals as well as surface coatings.
  • Page 6: Operation: Teroson® Telescopic Multi-Press Dispenser

    Operation: Teroson® Telescopic Multi-Press Dispenser Instruction for Use: For the application of Terostat-9320 Sprayable Seam Sealant and other 300 ml cartridges. How to apply Terostat-9320 SF 7) Sealing seams 1) Open cartridge Spray from a distance of 4 cm, with nozzle Puncture aluminum base of cartridge with held vertically and at right angles to seam enclosed tool.
  • Page 7 12) Recognizing the position of the adjusting knobs The red adjusting knob regulates the The handle of the pistol has projections 2.5 pressure on the cartridge piston. mm in height. These correspond exactly to a For plastic cartridges, a pressure of only 2-3 full rotation of the thread.
  • Page 10: Application Hints

    Application Hints As with all adhesives, performance depends on conditions of use. Suggestions or recommendations contained herein are for guidance only, since actual conditions of use are outside the supplier’s control. Troubleshooting Before proceeding with any repair or maintenance operation disconnect the tool from the main air supply.
  • Page 11: Warranty

    Teroson® Telescopic Multi-Press Dispenser (hereafter called “Products”) shall be free from defects in materials and workmanship. Liability for Henkel shall be limited, as its option, to replacing those Products which are shown to be defective in either materials or workmanship or to credit the purchaser the amount of the purchase price thereof (plus freight and insurance charges paid therefor by the user).
  • Page 12 No Products shall be returned to Henkel for any reason without prior written approval from Henkel. Products shall be returned freight prepaid, in accordance with instructions from Henkel. NO WARRANTY IS EXTENDED TO ANY EQUIPMENT WHICH HAS BEEN ALTERED, MISUSED, NEGLECTED, OR DAMAGED BY ACCIDENT.
  • Page 14 Deutchland www.equipment.loctite.com ® and ™ designate trademarks of Henkel Corporation or its affiliates. ® = registered in the U.S. and elsewhere. © Henkel Corporation. All rights reserved. Data in this operation manual is subject to change without notice. Manual P/N: 8904464, Date: 09/23/2014...
