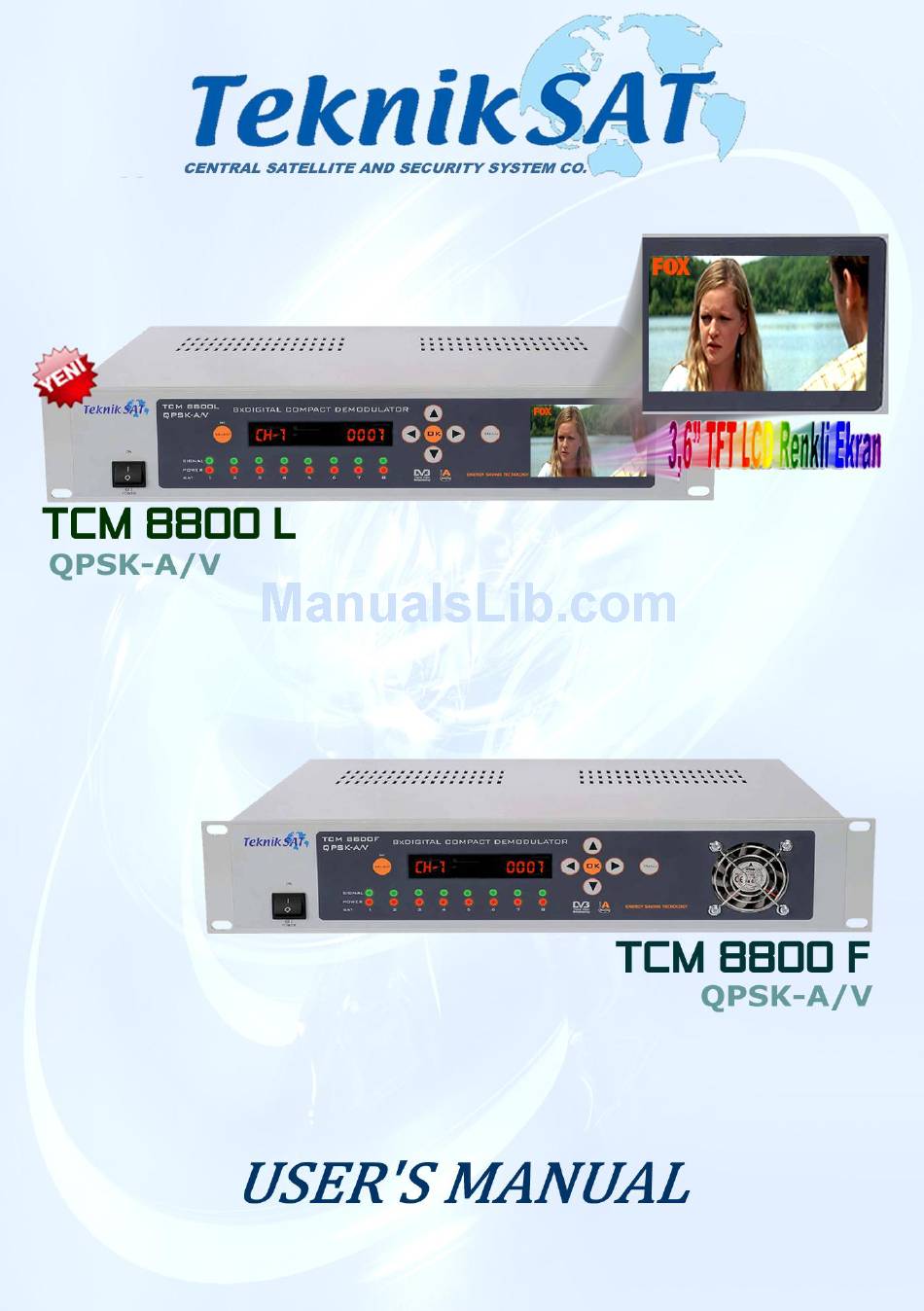

Summary of Contents for Teknik TCM 8800 L QPSK - A/V
- Page 2 FRONT PANEL FUNCTIONAL On-Off Switch : for use to turn on and turn off of the device Sat Select Button : for use transition to the satellite receivers Signal Light : showing signal status of the satellite receiver you chosen Power Light : light indicator the operating status of device Display :...
- Page 3 REAR PANEL FUNCTIONAL SPESIFICATIONS Rear Panel Connection Points IF Input you can connect the cables from LNB or satellite multiswitches. RS 232 you can upgrade your receiver with this input Audio you can make stereo audio output Video you can make high quality video output fan is cooling and ventilating of device Fuse to prevent the electrical malfunction there is a...
-
Page 4: Connection Types
CONNECTION TYPES TA 35 CATV PUSH-PULL LINE AMPLIFIER... - Page 5 TCM 8800 L SPECIFICATIONS Professional solution for the distribution of the satellite signal • 8 Channel QPSK demodulator,Professional 19” standart, with suitable Mechanical structure long lasting use • You can set your receiver with Sat Select button from the front panel •...
- Page 6 TCM 8800 F SPECIFICATIONS Professional solution for the distribution of the satellite signal 8 Channel QPSK demodulator,Professional 19” standart, with • suitable Mechanical structure long lasting use • You can set your receiver with Sat Select button from the front panel •...
-
Page 7: Installation
MOUNTING You have to fix the device first from the assembly slots in front panel of device INSTALLATION Dish Installation You can plug in the LNB cable or multiswitch cable directly to this devices 8 Sat IF Input in rear panel •... - Page 8 SETTINGS OK Button : when you make changes in this device to confirm the changes you have to press this button / UP/Down Button : you can change channel or move to cursor up and down in menu to pressing these buton in front panel or the remote control ...
- Page 9 SETTINGS 2 x 4 Digit Display : It will show numerically the satellite and channel you choosed 3,6’’ TFT LCD Renkli Ekran : you can monitor everything you have done in this LCD screen Note : there is no monitor in the TCM 8800 F,but you can connect any television or screen to monitor what you have done...
- Page 10 USİNG FAULTY Read the users manual carefully and follow the instructions step by step. If you cant fix the problem look at this table. If you stil cant fix the problem contact with technical Services. Problems Solutions Be sure about the power connection and Not working : check on/off switch heck the yellow color video inputs...
- Page 11 WARRANTY OBLIGATION ISSUES MUST BE CONSIDERED 1- Warranty is void if you try to change the original number on label and warranty paper 2- Anyone should not interfere of the device repair except for authorized personel. 3- Only technical Services determine the repair location and ways.
