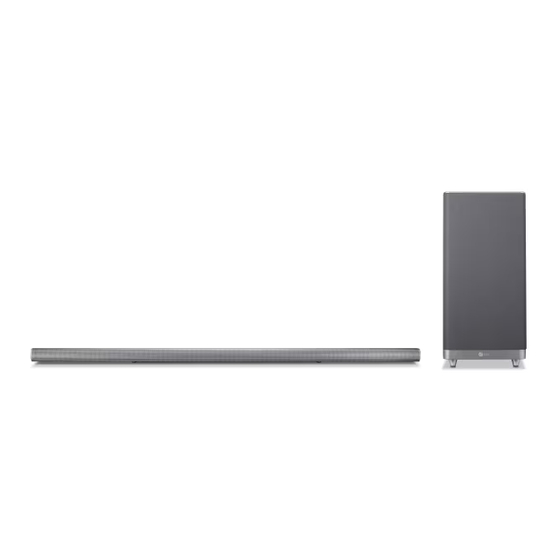

LG MusicFlow HS6 Simple Manual

SMART Hi-Fi AUDIO
Wireless Multi-room Sound Bar
Model : LAS650M (HS6)
ENGLISH | SIMPLE MANUAL (1 of 2)
To view the instructions of advanced features, visit
http://www.lg.com and then download Owner's Manual.
Some of the content in this manual may differ from
your unit.
Unpacking
Instruction manual
Adapter and power cord
LG Tag On
Sticker
Cable ties
Wall bracket install guide
Wall brackets and screws
LAS650M-N.BGBRLLK_ENG_6732.indd 1
Optical operation
a
Select OPTICAL.
b
,
Some TV need to change setting of sound output. Refer to the description below.
Set up the sound output of your TV : TV setting menu
[ [Sound] [ [TV Sound output] [ [External Speaker
TV Speaker
(Optical)]
External Speaker (Optical)
LG Sound Sync (Optical)
LG Sound Sync (Wireless)
,
Details of TV setting menu vary depending on the manufacturers or models of your TV.
www.lg.com
HDMI operation
a
Select HDMI IN.
b
LG Sound Sync
LG Sound Sync enables you to control some functions of this unit by a remote control of your LG TV.
Controllable functions are volume up/down and mute. Make sure that your TV has LG Sound Sync logo as
shown above.
Optical
a
Set up the sound output of your TV : TV setting menu
b
[ [Sound] [ [TV Sound output] [ [LG Sound Sync
TV Speaker
(Optical)]
External Speaker
LG Sound Sync (Optical)
LG Sound Sync (Wireless)
Select OPTICAL.
c
HDMI ARC (Audio Return Channel) operation
The ARC function enables an HDMI capable TV to send the audio sream to HDMI OUT of the unit.
a
Some TV need to change setting of sound output. Refer to the description below.
b
Set up the sound output of your TV :
1. TV setting menu [ [Sound] [ [TV Sound output] [
TV Speaker
[External speaker (HDMI ARC)]
External Speaker (HDMI ARC)
2. Set up ARC mode to [On].
LG Sound Sync (Optical)
3. Activate HDMI CEC and select sound output of your TV.
LG Sound Sync (Wireless)
,
For specific information of operating, refer to the instruction manual of your TV.
,
When the connections failed, make sure of the conditions of this unit and your TV : power, function
and cable connection.
,
The amount of time to turn off this unit is different depending on your TV when you set AUTO POWER
function to ON.
ARC function is automatically selected when you turn on your TV no matter what kind of the function you are
using.
SIMPLINK
SIMPLINK enables you to control some functions of this unit by a remote control of your TV. Controllable
functions are power on/off and volume up/down, etc. Make sure that your TV has SIMPLINK logo as shown
above.
