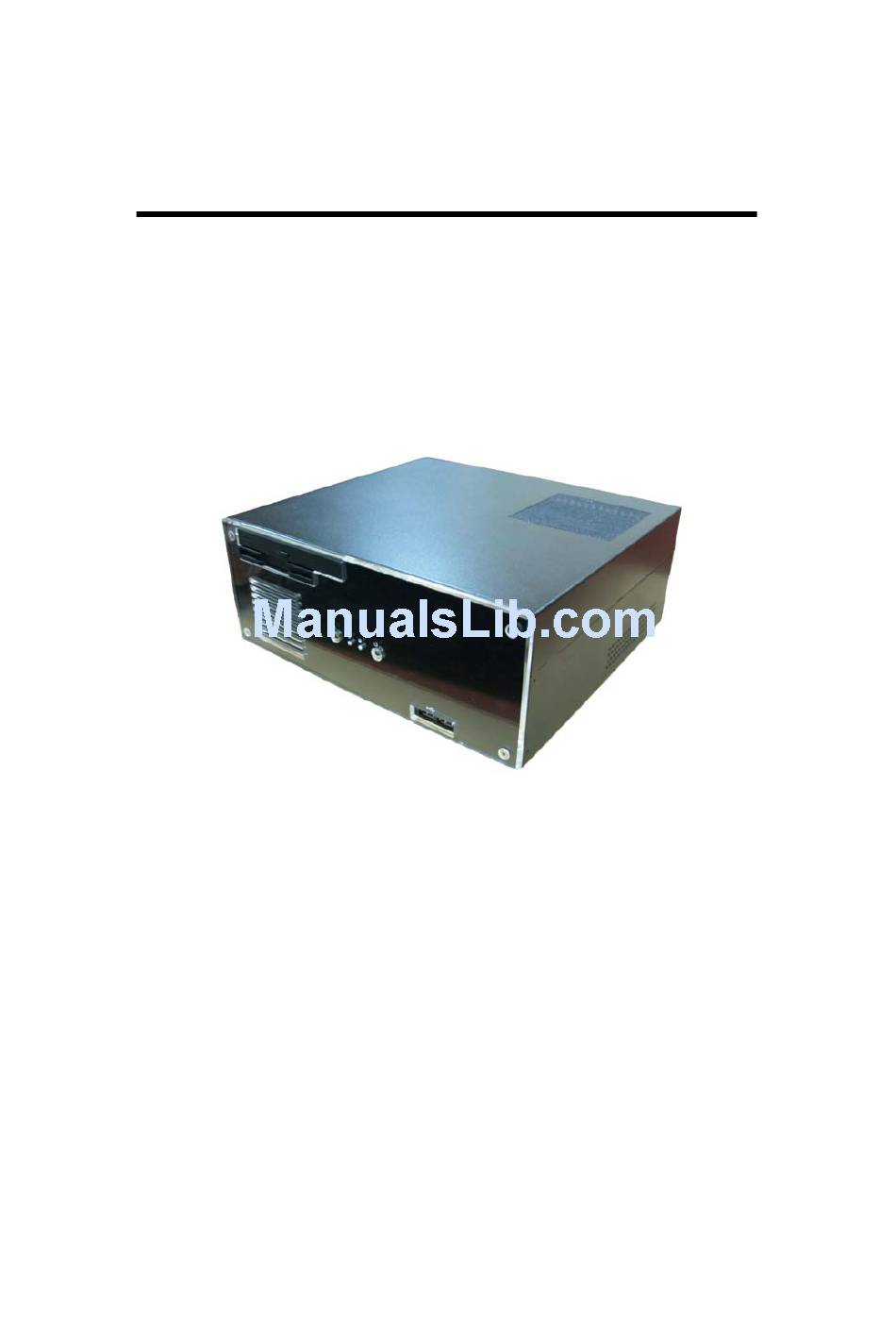

CMB-672/674
Mini Barebone system
Intel High Performance Platform
Installation Guide
Edition 1.0
2006/07/30

Advertisement

loading
Need help?

Need help?

Do you have a question about the CMB-672 and is the answer not in the manual?

Questions and answers

Related Manuals for Commell CMB-672

Summary of Contents for Commell CMB-672

  • Page 1 CMB-672/674 Mini Barebone system Intel High Performance Platform Installation Guide Edition 1.0 2006/07/30...

  • Page 2: Packing List

    CMB-672/674 Installation Guide Document Content: Packing List Product Specification Hardware Installation Packing List: CMB-672/674 Chassis x 1 (Including LV-672/LV-674 Motherboard) DCP-PSG300 300W AC-DC Adapter x1 Slim FDD Cable x 1 40-pin to 40-pin UDMA IDE Cable x1 SATA Cable x2...

  • Page 3: Hardware Installation

    CMB-672/674 Installation Guide Hardware Installation: Motherboard placement JLAN1 CDIN JLAN2 CN_12V PCI-Express SATA CPU Socket NBFAN CPUFAN JFRNT SYSFAN JRTC DDRII 1/2 JDOM Components showed is available for CMB-672 only For Jumper For Connector...
  • Page 4 CMB-672/674 Installation Guide SYSFAN CN_IR JFRNT DDRII 1/2 JRTC NBFAN SATA Port PCI-Express CN_12V SPDIF CN_AUDIO Mini_PCI CN_1394 CPUFAN Components showed is available for CMB-674 only For Jumper For Connector...
  • Page 5 CMB-672/674 Installation Guide I/O panel: LV-672/LV-674 Front: CD-ROM Power Button Reset Button Power LED HD LED...
  • Page 6 CMB-672/674 Installation Guide LV-672 Rear: Lan Port PCI-E Port Antenna COM Port IEEE1394 COM Port Keyboard Power Supply Line-Out Line-In Mic Phone Mouse...
  • Page 7 CMB-672/674 Installation Guide LV-674 Rear: Antenna PCI-E Port Lan Port 1/3 VG A 1394 KB/MS Power Supply COM Port 1/2 Lan Port 2/4 LINE-IN Center LINE-OUT Rear Speaker MIC-IN Side Speaker...

  • Page 8: Chassis Setup Procedure

    CMB-672/674 Installation Guide Chassis Setup procedure: 1. Turn the chassis screws. 2. Push the Chassis shield towards the back then open it .
  • Page 9 CMB-672/674 Installation Guide 3. Turn the holder screws and open it. 4. Be carefully to take the CPU Fan off.
  • Page 10 CMB-672/674 Installation Guide 5. Open the CPU cover and refer the motherboard manual page.16 to install the CPU. (After installed CPU, please remember to install the CPU Fan back )
  • Page 11 CMB-672/674 Installation Guide 6. Open the Dimm holder then check the pin number to match the socket side well before installing memory module. 7. Press down the memory module then check dimm holder hook well.
  • Page 12 CMB-672/674 Installation Guide 8. Turn the PCI-E port shield’s screw and take shield off refer picture A and B. (If you don’t install PCI-E card, please direct to Step 11 .) (A).
  • Page 13 CMB-672/674 Installation Guide 9. Put into the PCI-E Card. And Check the connects into the riser card well then turns shield screw.
  • Page 14 CMB-672/674 Installation Guide 10. Take the holder to install HD driver.This holder can install two 3.5” HD driver or four 2.5” HD driver. To refer the picture (a) and (b). 2.5 HD Drive 1 2.5 HD Drive 2.5 HD Drive...
  • Page 15 CMB-672/674 Installation Guide 11. Put into HD driver and connect the cable well then turn the HD driver screws. (If you don’t have HD driver, please direct to step 12.)
  • Page 16 CMB-672/674 Installation Guide 12. Before Install Floppy. Turn the CD-ROM and Floppy shield screw. (If you don’t have floppy,please direct to step 15. ) 13. Take the CD-ROM and Floppy shield off.
  • Page 17 CMB-672/674 Installation Guide 14. Turn the floppy Screws then refer motherboard manual page “21” to connect the floppy cable correctly.
  • Page 18 CMB-672/674 Installation Guide 15. Before Install the CD-ROM. Turn the CD-ROM shield screws and take it off. (If you don’t have the CD-ROM, please direct to step 18. ) 16. Insert CD-ROM into the chassis from front panel.
  • Page 19 CMB-672/674 Installation Guide 17. To tighten the CD-ROM and holder screws. 18. To tighten the chassis shield screws well.
  • Page 20 CMB-672/674 Installation Guide Mini-PCI card Setup procedure(For CMB-672): Turn the mini-PCI chassis shield screws. Take mini-PCI chassis shield off.
  • Page 21 CMB-672/674 Installation Guide Follow the Idiot-proof design then insert the mini-PCI card then press down. Push Press To close mini-PCI chassis shield and tighten a screw.

  • Page 22: Contact Information

    19F, No. 94, Sec. 1, Xintai 5th Rd., Xizhi Dist Address New Taipei City, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw i nfo@commell.com.tw (General Information) E-Mail t ech@commell.com.tw (Technical Support) Facebook https://www.facebook.com/pages/Taiwan-Commate-Computer-Inc/547993955271899 Twitter https://twitter.com/Taiwan_Commate Commell is a brand name of Taiwan Commate Computer Inc.
