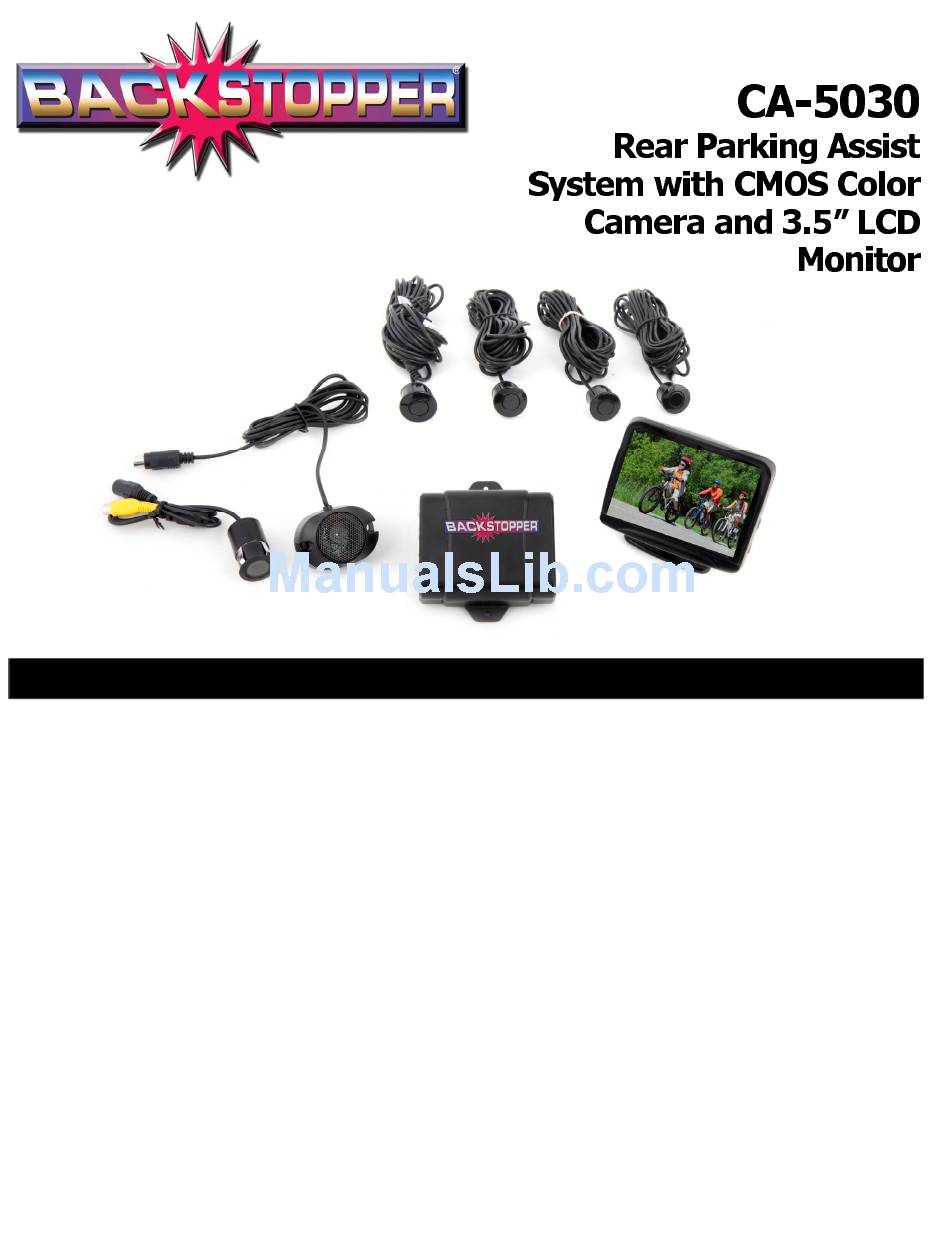

The CA-5030 is an ultrasonic parking assist system designed for use on the rear bumper of
most cars and trucks. This system detects any people or objects behind the vehicle using (4)
ultrasonic sensors that are mounted in the rear bumper as well as giving you a full view behind
the vehicle with a 170° CMOS color camera. The distance display and the image are displayed
on a 3.5" LCD color monitor
FEATURES:
• (4) Ultrasonic sensors with quick disconnect waterproof connectors
• (1) 170° CMOS color camera
• (1) 3.5" ultra-thin color LCD monitor
• Separate audible buzzer with multiple tones to warn driver of obstruction
• Camera automatically switches on when vehicle is shifted into reverse
• Audible and visual alerts
• 4-Stage simulation bars for distance read-out on the monitor
• Shallow vertical sensing are (Sensors can be mounted on vehicles that have lower
bumpers or body kits)
• Sensors can be painted to match the color of the vehicle
• Special metal bumper sensors (MBS) available for trucks that have metal bumpers
• Includes hole saw bits and 3M tape for installation
INSTALLATION INSTRUCTIONS:
Advertisement
Table of Contents
Summary of Contents for BackStopper CA-5030
-
Page 1: Installation Instructions
INSTALLATION INSTRUCTIONS: The CA-5030 is an ultrasonic parking assist system designed for use on the rear bumper of most cars and trucks. This system detects any people or objects behind the vehicle using (4) ultrasonic sensors that are mounted in the rear bumper as well as giving you a full view behind the vehicle with a 170°... -
Page 2: Installing The Sensors
INSTALLATION INSTALLING THE SENSORS The CA-5030 can be installed with (2) sensors or (4) sensors on the rear bumper of the vehicle. (4) Sensors are recommended for the best coverage behind the vehicle. 1. Measure out the distance across the bumper and try to space the sensors equally apart. - Page 3 CAR BUMPERS (2) Sensor Install (4) Sensor Install 1.5 - 2.5 feet (Height) 2 - 2.5 feet (Width) 1 - 1.5 feet (Width) TRUCK BUMPERS Use the provided hole saw bit to drill sensor holes Bumper Sensor 1.5 - 2.5 feet Route the sensor cables through the hole and snap (Height) the sensor into place on the bumper...
-
Page 4: Installing The Camera
INSTALLATION INSTALLING THE CAMERA 1. The rear view CMOS camera uses a 170° wide-angle lens for best all around performance. The Camera will display the full width of most parking spaces up to 7 feet or even wider. 2. The camera is designed to be flush mounted on vehicle’s surface. It can be mounted anywhere on the vehicle that has a flat surface. -
Page 5: Installing The Control Module
INSTALLATION INSTALLING THE SENSOR CABLES 1. Route the cables into the trunk panels of the vehicle either by drilling and hole or using a pre-existing rubber grommet. If you have the drill a hole, make sure to seal the hole once the installation is complete to prevent leaks and keep out any other weather elements. -
Page 6: Monitor Mounting
Sensors Buzzer Monitor Camera Control Box CONTROL MODULE MOUNTING MONITOR MOUNTING Monitor uses 3M double-side Control Box Monitor tape to mount (S ide View) 3M Double-Side Tape Mounting Surface Mounting Surface VOLUME ADJUSTMENT BUZZER MOUNTING Speaker 3M Double-Side Tape NOTE: Please make sure when routing the sensor, camera, monitor and buzzer cables to the control module to avoid any moving parts (Steering column or pedals) or removable brackets or panels. - Page 7 NOTE: The camera and monitor use standard RCA cables that plug into the main control module. If you don’t want to use the supplied camera and monitor that comes with the CA-5030 system, then you can use any camera and monitor of your choice as long as they use standard...
- Page 8 This can sometimes cause a back-feed into the Backstopper system and cause false warnings making the system work incorrectly or not at all. Please see our troubleshooting section for tips on how to solve this issue.
-
Page 9: Operation
3ft. 5ft. - 8ft. • The maximum detection range of the CA-5030 system is over 8 feet behind the vehicle and the closer the object is to the vehicle, the more warnings the system will give to the driver. (See FIGURE 12) •... - Page 10 0ft. 3ft. 5ft. - 8ft. SAFE AREA 5 ft. - 8 ft. Beep... Beep... Beep... << ALERT AREA 1.5 ft. - 4.5 ft. Beep Beep Beep Beep <<< DANGER AREA 0 ft. - 1.5 ft. STOP BeBeBeBeBeBeBeBe << DISTANCE AWARENESS DISPLAY SOUND >5.0 feet...
-
Page 11: Installer Notes
INSTALLER NOTES After the installation of the system is complete, make sure to adjust the direction of the sensors to correct any range problems you might be experiencing such as false alerts or no alerts at all. If need be, the provided plastic shims can be used to adjust the angle of the sensors on the bumper. -
Page 12: Troubleshooting
TROUBLESHOOTING Please read the following helpful tips if you run into any trouble installing this system into the vehicle. These tips may also be useful if the operation of the system is not functioning properly. Please make sure that the system is powered up and working properly before reading through these tips. - Page 13 4. Make sure the sensor cables are not installed or ran next to any high current power wires or electrical devices such as an amplifier or any other lighting or control modules in the vehicle. Also check to make sure the Backstopper control module is not next to any high current devices.
- Page 14 9. If you are installing on a vehicle with a metal bumper (Most likely a truck) then you may need to use a specific system for that vehicle called a CA-5030.MBS. This kit is the exact same system but comes with sensors specifically designed for use on metal bumpers.
- Page 15 State or Federal Motor vehicle codes with regards to modifications of vehicle bumper or any systems in the vehicle. The manufacturer of the Backstopper™ CA-5030 assumes no liability or responsibility whatsoever with regards modifications of the vehicle bumper or any other equipment in the vehicle.
