McIntosh C2500 Connection Diagram

1
A

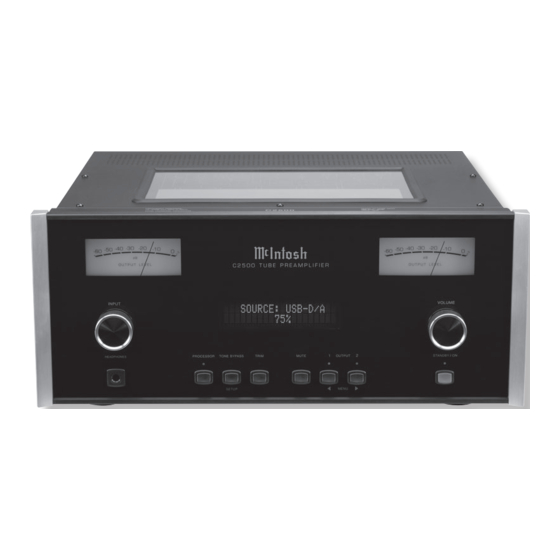

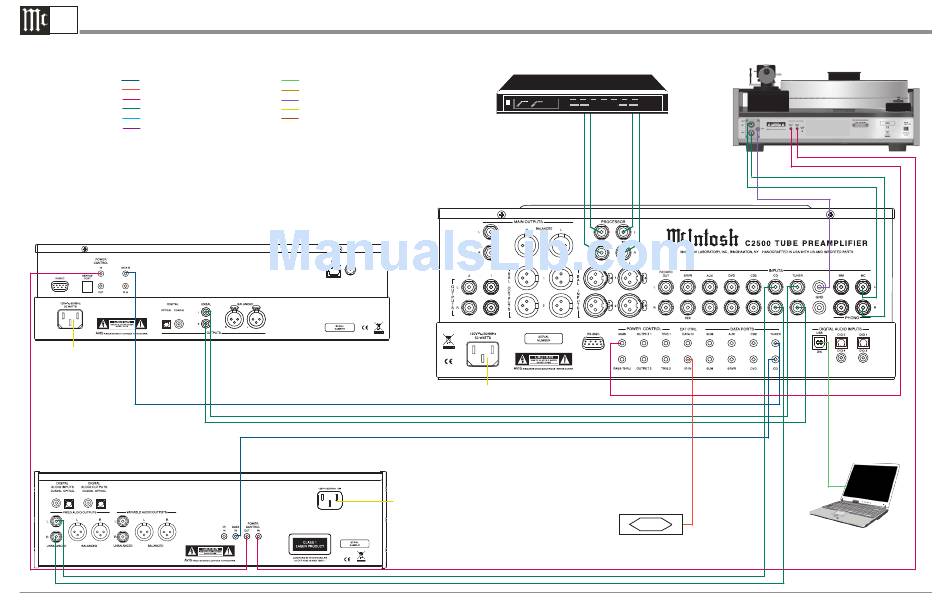

C2500 Tube Preamplifier Input and Control Connection Diagram
Note: Refer to the C2500 Owner's Manual page 9 for additional connection information.
Connection Legend:
Data Cable*- Digital Signal Cable -
Sensor/Keypad Cable - RS232 Cable -
Power Control Cable* - Ground Wire -
Audio Signal Cable - AC Power Cords -
Video Signal Cable - Loudspeaker Cable -
RF Signal Cable -
*
2 conductor shielded with 3.5mm stereo mini phone plug on each end.
AM/FM Tuner
Connect to AC Outlet
SACD/CD Player
McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 FAX: 607-724-0549
Connect to
AC Outlet
3
Connect to
AC Outlet
Part No. 04139500
Audio Signal Processor
Out In
Sensor
Turntable with Moving Coil Cartridge
Computer
