5.1.2ch Home Theater Speaker Package
Supplied Accessories
Make sure you have the following accessories.
Front & Height Speakers (SKF-594)
(White)
(Left)
(Right)
(Brown)
Front & Height speakers Speaker cables 10 ft. (3.0 m)

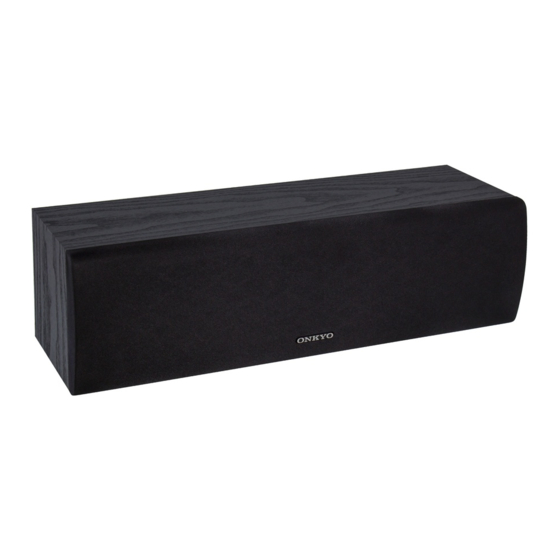

Center Speaker (SKC-594)
Center speaker
Speaker cable 10 ft. (3.0 m)
4 rubber stoppers*1
*1
Configuration of the rubber stoppers may be different from the
figure, such as being 2 sheets instead of 1 sheet, but the total
number will be same.
En
HTP-588
Surround Speakers (SKR-594)
(Left)
Surround speakers
Powered Subwoofer (SKW-658)
(Red)
(Tan)
Subwoofer
(Green)
4 floor pads
(Right)
(Blue)
(Gray)
Speaker cables 26 ft. (8.0 m)
RCA cable 10 ft. (3.0 m)
En-1
* 2 9 4 0 2 0 1 1 *
Part Names
Front & Height Speakers (SKF-594)
Speaker units
Keyhole slot
Speaker terminals
(Height)
Speaker terminals
(Front)
Center Speaker (SKC-594)
Speaker terminals
Keyhole slots
Surround Speakers (SKR-594)
Keyhole slot
Speaker terminals
F1503-0
