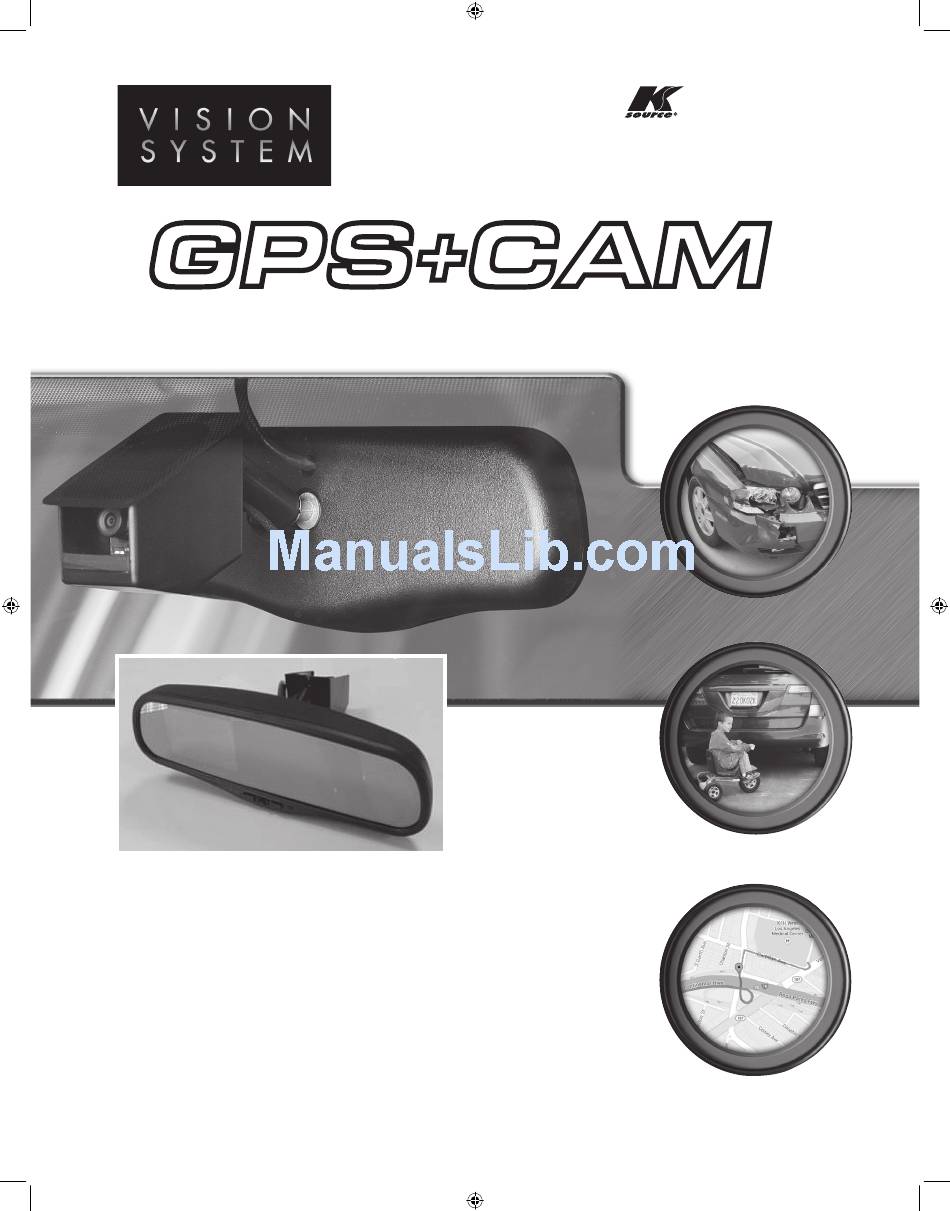

VS55020
®
GPS +
GPS + CAM
CAM
TM
User Manual
Congratulations on purchasing the Vision System.
This innovative product integrates the functions of a
front view car video recorder, a rear view monitoring
system, and GPS recording device into an interior
mirror. The advanced technology built into this system
effectively monitors your fleet vehicles, increases your
employees' driving skills while helping you avoid
traffic disputes. We recommend keeping this manual
in a safe place for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS55020 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vision Systems VS55020

  • Page 1 VS55020 ® GPS + GPS + CAM User Manual Congratulations on purchasing the Vision System. This innovative product integrates the functions of a front view car video recorder, a rear view monitoring system, and GPS recording device into an interior mirror.
  • Page 2 INSTALLATION DIAGRAM...
  • Page 3 FRONT CAMERA ANGLE ADJUSTMENT View range on front camera Camera bracket Manual up/down adjustment for 10˚ each.

  • Page 4: Table Of Contents

    Contents INSTALLATION DIAGRAM ………………………………………………………………… CAMERA ANGLE ADJUSTMENT ……………………………………………………… 1. FUNCTION DESCRIPTION …………………………………………………………… 2. SPECIFICATION DESCRIPTION ……………………………………………………… 3. USE AND CARE ………………………………………………………………………… 4. MIRROR PARTS ………………………………………………………………………… 5. REFORMATING MEMORY CARD …………………………………………………… 6. BUTTON FUNCTIONS …………………………………………………………………… …………………………………………………………………………………… 6.1 Menu …………………………………………………………… 6.1.1 Video size (Resolution) …………………………………………………………………………...

  • Page 5: Function Description

    1. FUNCTION DESCRIPTION • High Resolution: The resolution of recording image is high HD 720P (1280x720, about 920K dots). 30 frames per second. • Uninterrupted Recording: Uses dedicated file format for uninterrupted recording to ensure total video capture. • Loop Recording: Recording will start to loop when memory reaches full capacity, saving your latest recorded files as it records over your oldest files.

  • Page 6: Specification Description

    2. SPECIFICATION DESCRIPTION Front camera 1/4" CMOS Sensor 1.2 million dots, 90 view angle Sensor Rear camera 1/4" CMOS Sensor 0.3 million dots, 130 view angle Display 3.5" TFT LCD monitor displays speed, compass and clock SDRAM 8M×16 BITS Audio Supporting voice recording and play Built-in clock SPI NOR Flash...

  • Page 7: Use And Care

    3. USE AND CARE This manual will not only help you to use your new system correctly and safely, but will also help to prevent any damage to the hardware or loss of data. Icon explanation Caution Action Required (1) Whenever a memory card is inserted into the recording mirror, the system will auto matically request you to format the card in order for the system to work properly.

  • Page 8: Mirror Parts

    4. MIRROR PARTS Front of interior mirror No. Description Voice receiver MENU Five-way button LED (Recording indicator) Back of interior mirror No. Description RESET Memory Card Slot Speaker Camera...

  • Page 9: Reformating Memory Card

    5. REFORMATTING THE MEMORY CARD 5.1 Insert the memory card into the memory card slot on the mirror, and then reformat by selecting “yes” as shown below. After formatting, open the memory card through computer and click “ADRPlayer2”, you will find an image like below.
  • Page 10 5.3 Click toolbox icon , the system will apply time zone to the memory card and display it on the bottom right corner of the window as shown below. 5.4 After completion of this process, close the window and remove the memory card from the computer and then insert it into the slot on the mirror (it takes approximately 20 seconds to get GPS satellite signal.

  • Page 11: Button Functions

    6. BUTTON FUNCTIONS Screen mode Display screen Recording screen Menu screen Description of screen modes and button functions Screen mode Display screen Recording Screen Menu Screen Button Back to recording screen × × Stop recording and MENU Go to menu screen Back to last screen mode go to menu screen Last video...

  • Page 12: Menu

    1. Power on/off: (1) ACC ON: Power on (2) ACC OFF: Additional recording for 30 seconds, then powers off automatically 2. Manual on/off (1) Manual off: In recording mode, push “REC” button for 5 seconds; the system turns off. (2) Manual on: After turning off manually, push “REC” button for 5 seconds to turn the system back on.

  • Page 13: Time Setup

    6.1.2 Time setup Function: set year/month/day and time on the system; shows on the bottom of screen. Operation: select “time setup” on the menu screen, toggle up/down to select, then push the button for next item. Selection will show in blue highlight. Sequence of setting is year>month>day>hour>minute>second Time setup screen Time setting on recording screen...

  • Page 14: Beep (Voice Prompts)

    6.1.4 Beep (Voice prompts) Function: by selecting the beep on/off for operation. Operation: select “beep” on the menu screen, toggle up/down to select voice on/off, push the button to set. Beep selection screen 6.1.5 Audio record Function: selects audio on/off during video recording. When audio recording is turned off, this symbol will appear in the upper right of the screen.

  • Page 15: Language

    6.1.6 Language Function: 6 language modes available (English / Traditional Chinese / Simplified Chinese / Japanese / Espanol / Portuguese) Operation: select “language” on the menu screen, toggle up/down for language selection, push the button to set. Language selection screen 6.1.7 Frequency Function: 50HZ and 60HZ available (default: 60HZ) •...

  • Page 16: Computer Broadcast

    7. COMPUTER BROADCAST Software for video playback will automatically install on the memory card during initial formatting. If the video needs to play on a computer, please install ADRPlayer and follow the steps necessary to display the video CAUTION! (1) Please turn off the system before you remove the memory card. (2) When reading the memory card by computer, it is normal that the file name be dis played only as ADRPlayer.exe.

  • Page 17: Slow Motion Icon

    7.1.8 Slow motion icon Slow motion icon: When playing the video, select this icon to slow the display speed. 7.1.9 Fast forward icon Fast forward icon: Increases the video play speed 2~5 times, both when playing forward or reverse. 7.1.10 Volume adjustment Volume adjustment: Adjust the volume on the video display.

  • Page 18: Troubleshooting

    8. TROUBLESHOOTING Screen information Possible reason Solution No memory card detected, Insert the memory card No Card will not record Memory card is protected, Unlock the memory card and Card Protected will not record insert the card again Error or memory card corrupted, Change to new memory card Card Error will not record...

  • Page 19: Maintenance

    9. MAINTENANCE (1) Please use a soft cloth to wipe loose dirt and dust; if heavily soiled clean with a damp cloth. Please do not use gasoline, thinner, any volatile oil or ethanol to clean the product; these solvents will harm the product surface. (2) If dirt should get on the surface of the camera lens, it will affect image quality and performance.
