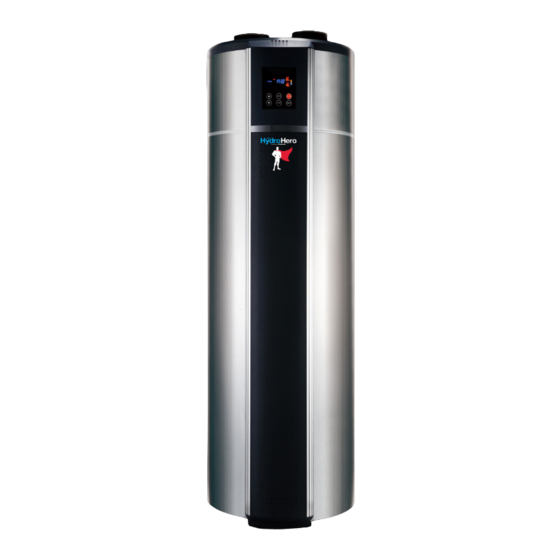

Summary of Contents for Hydro Hero Dark-Knight 190L
Page 1
0800 EES 123 p. 09 973 5993 ENER GY EFFICIENT SOL UTIONS e. info@eesnz.co.nz > the heat pump specialists Save your power bill with Hydro Hero POWERED BY ENERGY EFFICIENT SOLUTIONS > the heat pump specialists...
Page 2
Warranty heat pump / Cylinder 6 Years / 10 Years 6 Years / 10 Years Heating *Mean temperature in Auckland 2013 15.9° Possible º Save your power bill with Hydro Hero Dark-Knight Indoor Range Specifications Dark-Knight 190L Dark-Knight 260L Capacity (L)
Page 3
Hydro Hero Heat Pump Water Heater INSTRUCTIONS...
Page 4
heat pump Top Cover Screen Panel Upper Cover Decoration Bar Wiring Hole Electric Board Power Line Vent Pipe Compressor Ventilation Fan Evaporater Host Chassis Left/Right Decoration Bar Condensate Drain Hole Decoration Panel Hot Water Outlet Magnesium Anode Hole Safety Valve Hole Electric Heater Cover Tank Cover Electric Heater Hole...
Page 6
设定水温显示 Set Temperature 水温高温提示 High Temperature 机器报警指示 Alarm 辅电加热指示 Auxiliary Heater Status 机器状态指示 HTG: Heating DEF: Defrost WARM: Keep warm 工作模式指示 Working Mode 调节时钟指示 Time adjustment 当前时间显示 Time 定时开显示 Timer On 定时关显示 Timer Off 定时时段显示 Timer Period 用水温度显示 Water Temperature 水温渐变显示...
Technical Operation Press “MODE” button for 5 seconds; enter the Parameter setting status, the main parameter code as below sheet: Type Code Parameter Name Setting Range Factory Setting Unit Remark C Setting temperature 5-70 C Difference in Temp. 1 - 30 Determine Heat pump stop C -10 –...
Page 8
EEV opening query 0–480 EEV control mode 0–2 Electronic Manually set EEV opening 100–480 expansion Set EEV superheat degree -15–15 valve(EEV) Set EEV discharge temp 85–110 Return gas temp. “OFF” means no password. Password 4321 System Set “0000” to 0001 -- 9999 clear password.
Page 9
Error Handling: ERROR ERROR STATUS REASONS ERROR HANDLING CODE 1. Check the water temp. sensor Thermal sensor Water temp. sensor open connection. alarm circuit or short circuit. 2. Change the water temp. sensor. 1. Check the condenser coil temp. Condenser coil Condenser coil temp.sensor sensor connection.
Maintenance and service Examination before trial run 1. Check the water tank is filled with water, and open the water outlet tap till water flow out. 2. Check the water pressure is normal (0.15Mpa~0.7Mpa). 3. Check the air inlet or outlet is well connected; and the air outlet pipe heat insulation is completed. 4.
Page 11
Heat Pump main unit disassembly If want to check and maintain the top main parts of the unit, should disassembly the cover of the unit, follow the below steps (Fig.5, 6) to process. CLOCK ON/OFF TIMER MODE (Fig.5) (Fig.6) 1. Move up the control panel and its components-1(including control panel、decorative panel, decorative aluminum profile、decorative strip) vertically 15-20mm, then pull it out horizontally to separate hook A-2 from hook A-3 until exposed butt splice connector;...
