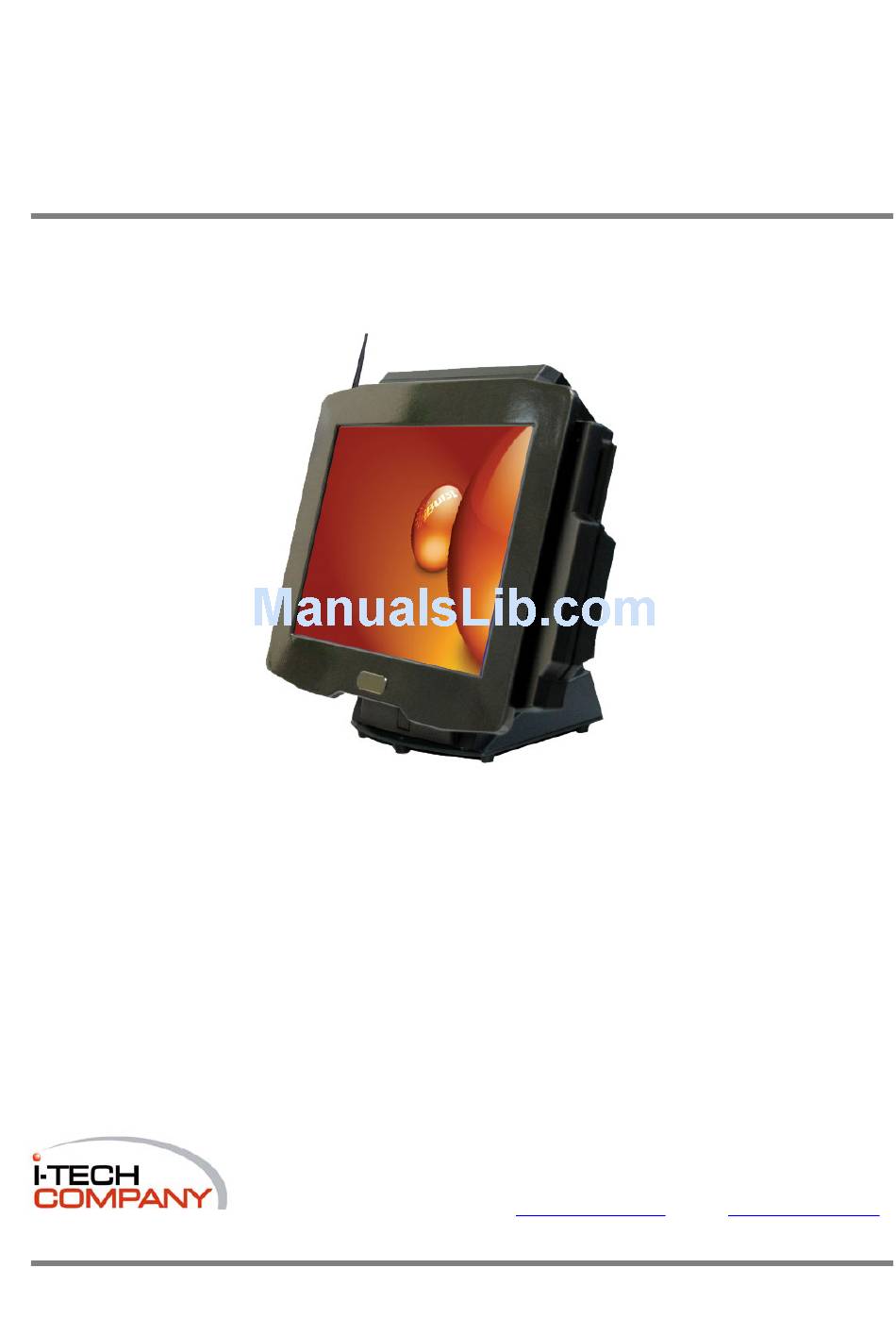

- Page 1 SxxxxADTR-IP66 Series Quick Reference i-Tech Company LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com...
- Page 2 1. Feature SxxxxADTR-IP66 solid aluminum die-cast casing body maintains a strong, compact look and utilizes innovative mechanism design to prevent dust, oil and water from harsh environments. SxxxxADTR-IP66 fits perfectly to hospitality, retail, finance and banking, travel and transportation, and self- service kiosk.
- Page 3 2. Unpacking The following items are included when you purchase the SxxxxADTR- IP6. If any items are damaged or missing, please contact your dealer for assistance. Quick Reference Antenna (Optional Part) 3. Configuration Front and Rear View VFD Interface Cover Antenna X^HDD Cover Push ON Switch-...
- Page 4 Bottom View – I/O Connector Location Chassis Inner View...
- Page 5 I/O Connector Location (VESA MOUNT) COM6 COM5 PRINTER or VGA COM4 EXT USB COM3 PS2 K/B Audio Out CF Card EXT USB 4. Power On Turn on the unit by pressing “Push ON Switch” located under iTech logo indicator at front of the LCD. Turn off the unit manually by pressing and holding the switch for 3 seconds.
-
Page 6: Hdd Replacement
5. HDD Replacement To remove HDD, use a screwdriver to loosen the screws on left side of the panel. Caution : A. Hard Disk must be screwed into HDD Cover. B. To install or to withdraw HDD, power must be switched off. - Page 7 6. LCD Angle Adjust 6.1 In order to accommodate various operating preferences and lighting conditions. SxxxxADTR-IP66 is equipped with a manual tilt adjustment mechanism. The Adjustment button is located underneath the display. 6.2 To adjust the tilt angle, press adjustment button as indicated direction.
-
Page 8: Vesa Mounting
7. VESA Mounting SxxxxADTR-IP66 is designed to be fitted with a desk stand base unit or with a VESA standard mounting bracket or arm (75mmX75mm or 100mm X 100 mm) if required. ： Note The length of M4 screws must not exceed 8mm 7.1 Unscrew the two M4x8L thumbscrews that secured the base unit to SxxxxADTR-IP66. - Page 9 7.3 Place AC Power Adapter into the Power Adapter Cover. Place silica gel grommet onto cable and fit into it’s matching position on the Power Adapter Cover. The empty holes in silica gel grommets where cables are not installed are fitted with Silica gel plug to provide water resistance.
- Page 10 Use four M4x8L screws to secure SxxxxADTR-IP66 onto any VESA standard mounting bracket or arm. M ounting on the ceiling The cable assembling sequence as follows. 1. DC IN cable x 1 2. SCSI Printer cable x 1 3. RS232 x 4 4.
- Page 11 8. Rotation Disk Installation SxxxxADTR-IP66 is designed to be fitted with a 135° rotation disk to enhance flexibility. 8.1 Use a screwdriver to remove the screws from five rubber feet. 8.2 Put I/O Cable through the rotation disk, then slide the rotation disk into lock position.
- Page 12 9. Additional Devices : Driver Installation After installing Win98 SE / ME / 2000 / XP / VISTA / Window 7, SxxxxADTR-IP66 will need additional devices drivers installed which are located in Driver CD. (Note : S150ADTR-IP66 supports Windows XP) Driver CD menu •...
- Page 13 Always unplug the power cord from the AC outlet before cleaning the product. Use a soft cloth to clean the product. Do not use solvents or abrasives and do not spray or pour any liquid directly onto the product’s screen or case. i-Tech Company LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com •...
