Wall Mount Fan
User's manual
Prior to using this appliance, please read the user's manual thoroughly, even in cases, when one has
already familiarised themselves with previous use of similar types of products. Use the appliance only as
described in this manual. Keep this manual for later use.
We recommend saving the original shipping cardboard box, packaging material, receipt and warranty
card for the duration of warranty. In the event of shipping, pack the appliance using the original
packaging materials only.
EN-1
2014
06/2014
Advertisement
Table of Contents
Related Manuals for Sencor SFG 4055WH
Summary of Contents for Sencor SFG 4055WH
- Page 1 Wall Mount Fan User's manual Prior to using this appliance, please read the user's manual thoroughly, even in cases, when one has already familiarised themselves with previous use of similar types of products. Use the appliance only as described in this manual. Keep this manual for later use. We recommend saving the original shipping cardboard box, packaging material, receipt and warranty card for the duration of warranty.
-
Page 2: Table Of Contents
Wall Mount Fan SFG 4055WH CONTENTS IMPORTANT SAFETY INSTRUCTIONS ............3 DESCRIPTION OF THE FAN . -
Page 3: Important Safety Instructions
Wall Mount Fan SFG 4055WH IMPORTANT SAFETY INSTRUCTIONS This appliance may be used by children 8 years of age and older and by persons with physical or mental impairments or by inexperienced persons if they are properly supervised or have been informed about how to use of the product in a safe manner and understand the potential dangers. - Page 4 Wall Mount Fan SFG 4055WH IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND STORE THESE INSTRUCTIONS FOR FUTURE USE. Before connecting the appliance to a power socket, check that the technical details on the rating label of the appliance match the electrical voltage in the socket.
-
Page 5: Description Of The Fan

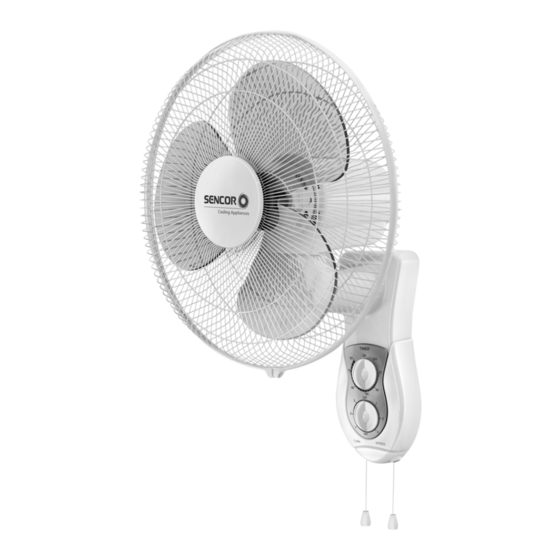

Wall Mount Fan SFG 4055WH DESCRIPTION OF THE FAN 1 Outer band 2 Front protective grill 3 Fan blade fastening nut 4 Fan blades 5 Rear protective grill fasting nut 6 Rear protective grill 7 Motor shaft 8 Motor unit 9 Wall mount holder q;... -
Page 6: Fan Assembly
Wall Mount Fan SFG 4055WH FAN ASSEMBLY Take the fan out of the packaging material and check that you have all the parts illustrated in the chapter Description of the fan. Apart from the parts mentioned above, the deliver comes with a set of two screws and dowels for fastening the holder A9 to the wall and a screw with a nut for fastening the joint on the outer band A1. -
Page 7: Cleaning And Maintenance
Wall Mount Fan SFG 4055WH Activating and deactivating oscillation 3.1 The fan is equipped with a control string (TURN) Aqf, which makes it possible to activate and deactivate the horizontal oscillation of the motor unit A8. 3.2 When the fan is running, activate oscillation by pulling on the control string Aqf. The motor unit A8 will oscillate horizontally. -
Page 8: Technical Specifications
Wall Mount Fan SFG 4055WH TECHNICAL SPECIFICATIONS Nominal voltage ............................230 V Nominal frequency ..........................50 Hz Rated power input ...........................40 W Safety class (for electric shock protection) ....................II Noise level ............................50 dB(A) Fan blade diameter ..........................40 cm Maximum fan fl ow rate ......................... 58 m³/min Service value .......................... -
Page 9: Instructions And Information Regarding The Disposal Of Used Packaging Materials
Wall Mount Fan SFG 4055WH INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of packaging material at a public waste disposal site. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. - Page 10 Wall Mount Fan SFG 4055WH EN-10 2014 06/2014...
