Dragster DAD 1201 Service Manual

MODEL: DAD 1201

SPECIFICATIONS

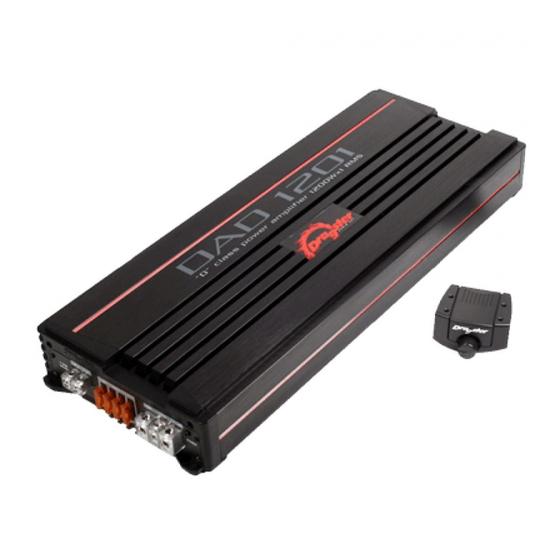

DAD 1201 CLASS D Power Amplifier
class "D" technology
input voltage 11-14.4 VOC
frequency response 15Hz~150Hz
S/N ratio [A-weight] >95dB
input level 0.17V~8V
T.H.D. 0.05%
input impedance 10K ohm
low pass crossover variable frequency 50Hz~150Hz
crossover slope 12dB/oct
variable bass boost 0-18dB@45Hz
variable subsonic filter 10~40Hz 12dB/oct
remote subwoofer level control included
phase 0~180
°
quiet ON/OFF
lit logo Dragster
fuse rating 40A×4
overall dimensions 186×490×56 mm
Service Manual
- 1 -
