Summary of Contents for Compex Wireless USA

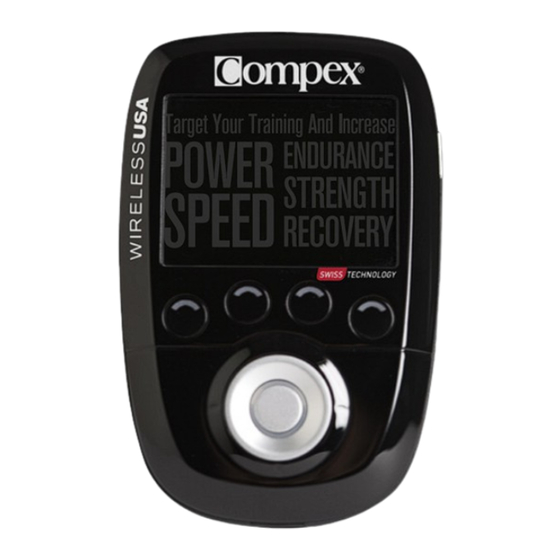

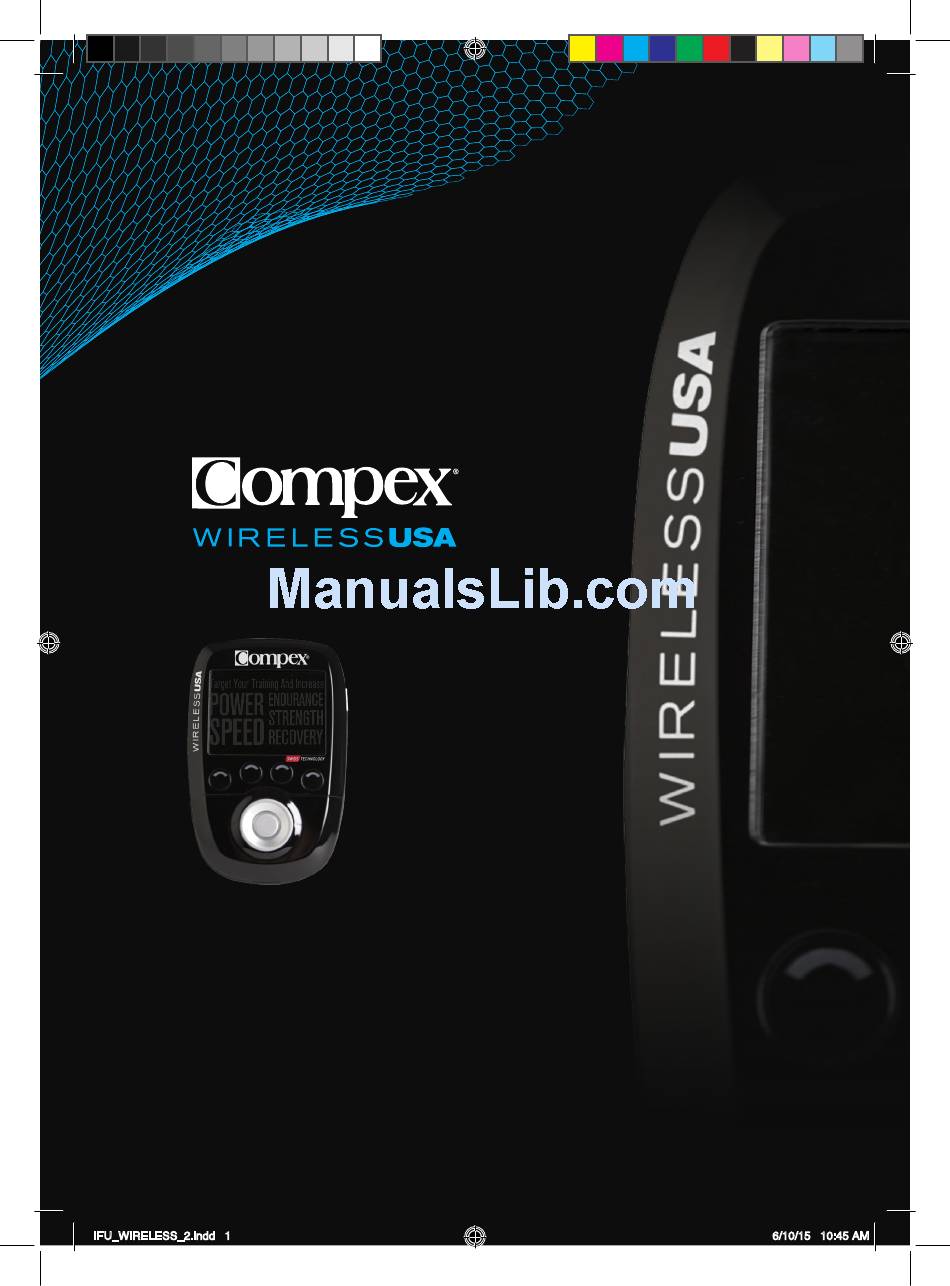

  • Page 1 USER MANUAL E N G L I S H IFU_WIRELESS_2.indd 1 6/10/15 10:45 AM...
  • Page 2: Table Of Contents

    How does Electrostimulation Work? �������������������������������������������������������������������������������������������������������������������14 Motor Nerve Stimulation (EMS) ����������������������������������������������������������������������������������������������������������������������������14 Benefits of Electrostimulation ��������������������������������������������������������������������������������������������������������������������������������15 5. SAFETY GUIDE �����������������������������������������������������������������������������������������������������������������������������������������������������������16 Who Should Not Use the Compex Wireless USA �������������������������������������������������������������������������������������������16 Where Never to Apply Electrodes �����������������������������������������������������������������������������������������������������������������������17 Precautions When Using Electrodes ������������������������������������������������������������������������������������������������������������������19 6. OPERATION ������������������������������������������������������������������������������������������������������������������������������������������������������������������20 Preliminary Settings �������������������������������������������������������������������������������������������������������������������������������������������������20...
  • Page 3 TABLE OF CONTENTS Strength ������������������������������������������������������������������������������������������������������������������������������������������������������������� 36 Explosive Strength ������������������������������������������������������������������������������������������������������������������������������������������ 36 Specialized Muscle Training Programs ������������������������������������������������������������������������������������������������������ 36 Potentiation ����������������������������������������������������������������������������������������������������������������������������������������������� 36 Training Recovery �������������������������������������������������������������������������������������������������������������������������������������37 Pre-Warmup �����������������������������������������������������������������������������������������������������������������������������������������������37 Competition Recovery �����������������������������������������������������������������������������������������������������������������������������37 Muscle Relaxation �������������������������������������������������������������������������������������������������������������������������������������37 7. OPERATIONAL GUIDELINES ������������������������������������������������������������������������������������������������������������������������������� 38 Usage Guidelines���������������������������������������������������������������������������������������������������������������������������������������������������� 38 Choosing the Appropriate Muscle Work Program ������������������������������������������������������������������������������������������ 38 Planning Stimulation Sessions �����������������������������������������������������������������������������������������������������������������������������...
  • Page 4: Foreword

    This manual has been written for the owners and operators of the Compex® Wireless USA� It contains general instructions for operation, precautionary instructions, and maintenance recommendations� In order to obtain maximum life and efficiency from your Compex Wireless USA, and to assist in the proper operation of the unit, read and understand this manual thoroughly�...
  • Page 5: About Compex Wireless Usa

    2. ABOUT COMPEX WIRELESS USA PRECAUTIONARY INSTRUCTIONS The precautionary instructions found in this section and throughout this manual are indicated by specific symbols� Understand these symbols and their definitions before operating this equipment� The definitions of these symbols are as follows: CAUTION Text with a “CAUTION”...
  • Page 6: Caution

    CAUTION • Read, understand, and practice the precautionary and operating instructions found in this manual� Know the limitations and hazards associated with the treatment table� Observe any and all precautionary and operational decals placed on the unit� • DO NOT operate this unit in an environment where other devices are being used that intentionally radiate electromagnetic energy in an unshielded manner�...
  • Page 7: Warning

    WARNING • The Compex Wireless USA should not be used adjacent to or stacked with other equipment, and if adjacent or stacked use is necessary, the unit should be observed to verify normal operation in the configuration in which it will be used�...
  • Page 8 • Never use the Compex Wireless USA or the charger if it is damaged (case, cables, etc�) or if the battery compartment is open� There is a risk of electric shock�...
  • Page 9: Danger

    DO NOT use the Compex Wireless USA device� • Only use accessories that are specifically designed for the Compex Wireless USA� Do not use accessories manufactured by other companies with the Compex Wireless USA device� DJO,LLC is not responsible for any consequence resulting from using products manufactured by other companies�...
  • Page 10: Indications For Use

    INDICATIONS FOR USE The Compex Wireless USA is intended to stimulate healthy muscles in order to improve or facilitate muscle performance� It is to be used by adults only� The Compex Wireless USA is not intended for adjunctive therapy in the treatment of medical diseases and conditions of any kind�...
  • Page 11: Adverse Reactions

    Do not use the Compex Wireless USA if you have one or more of the following medical conditions: • This device must not be used on persons with cardiac pacemakers, defibrillators, or other implanted metallic or electronic devices. • Cardiac demand pacemakers •...
  • Page 12: Contents

    3. CONTENTS COMPEX WIRELESS USA Note: You are strongly advised to carefully read the safety precautions and contraindications described at the start of this manual prior to using your stimulator� DEVICE DESCRIPTION REMOTE CONTROL On/Off button (press briefly to turn on, hold...
  • Page 13 DEVICE DESCRIPTION COMPEX WIRELESS USA DOCK - Remote control charging connector - Notch to open the lid of the docking station - Location for positioning the modules to be recharged - Charger plug IFU_WIRELESS_2.indd 12 6/10/15 10:45 AM...
  • Page 14: Accessories

    Performance Electrodes 2” X 4”, Compex Rectangular 1 Snap 11-9123 Only use this device with electrodes, battery, Docking Station and accessories recommended by Compex� Compex Wireless USA users can purchase electrodes for their device via phone by dialing Toll Free 1-877-266-7398 or shop online at www�ShopCompex�com� IFU_WIRELESS_2.indd 13...
  • Page 15: Introduction

    In other words, the muscle cannot distinguish whether the command comes from the brain or from the stimulator� The parameters of the Compex Wireless USA programs (number of impulses per second, contraction time, rest time, total program time) subject the muscles to different types of work, by stimulating different types of muscle fibers�...
  • Page 16: Benefits Of Electrostimulation

    BENEFITS OF ELECTROSTIMULATION Electrostimulation is a very effective way to make your muscles work: • with significant improvement of different muscular qualities • without cardio-vascular or mental fatigue • with limited stress on the joints and tendons. Electrostimulation thus allows a greater quantity of work by the muscles compared with voluntary activity.
  • Page 17: Safety Guide

    If you answer “Yes”, or “Maybe” , or “I don’t know” to one or more questions, do not use the device and contact Compex Product Support, DJO, LLC for more information� If you have 15 “No” answers, you can use the Compex Wireless USA� Compex Product Support – Toll Free: 877-266-7398 (877-COMPEX8) IFU_WIRELESS_2.indd 16...
  • Page 18: Where Never To Apply Electrodes

    SAFETY GUIDE WHERE NEVER TO APPLY ELECTRODES • On the head or any area of the face • On the neck or any area of the throat IFU_WIRELESS_2.indd 17 6/10/15 10:45 AM...
  • Page 19 SAFETY GUIDE WHERE NEVER TO APPLY ELECTRODES • On both sides of the thorax simultaneously (front and back sides, or lateral sides) • On, or in the vicinity of skin lesions or eruptions of any kind (wounds, swelling, burns, irritation, eczema, etc.) •...
  • Page 20: Precautions When Using Electrodes

    • Only use electrodes supplied by DJO, LLC� Other electrodes may have electrical properties that are unsuitable for the Compex Wireless USA stimulator� • Do not use electrodes with a surface <16 cm² (2�94 in²), as there will be a risk of suffering a burn injury�...
  • Page 21: Operation

    Follow the instructions below� Afterwards, for the greatest comfort, the Compex Wireless USA offers you a number of setting options (operating language selection, display contrast setting, adjusting backlighting and volume setting)� To change any of these settings, bring up the settings screen by navigating to the settings icon and selecting settings by pushing the center button on the remote control�...
  • Page 22 Once a module is turned on and recognized by the remote control, a check appears on the module� When all modules are paired, all check marks appear� Note: This pairing procedure is to be performed only once� IFU_WIRELESS_2.indd 21 6/10/15 10:45 AM...
  • Page 23: Device Function

    DEVICE FUNCTION The following screens are generic examples but they work in the same way regardless of the device that you have� HOW TO ACCESS FAVORITES The Favorites menu displays the last programs used� You need only to have one program in the Favorites menu to become directly accessible after turning on the device�...
  • Page 24 The placement of electrodes selected during the program appears� It is possible to scroll through other electrode placements� 3. CONNECT THE MODULES TO THE ELECTRODES Stick the electrodes to your skin� The module is attached to the electrode from the side� Slide the module onto the electrode’s snap until it clips into place�...
  • Page 25: How To Access Programs

    HOW TO ACCESS PROGRAMS For more information on programs, connect to: www�ShopCompex�com The Programs menu displays the program categories� Select the Program menu Confirm your selection 1. SELECT A CATEGORY Select the desired program category Confirm your selection Return to the previous step 2.
  • Page 26 3. SELECT ELECTRODE PLACEMENT Select the desired electrode placement Confirm your selection Muscle Relaxation Return to the previous step 4. CONNECT THE MODULES TO THE ELECTRODES Stick the electrodes to your skin The module is attached to the electrode snap from the side� Slide the module onto the electrode’s snap until it clips into place�...
  • Page 27: How To Access Settings

    HOW TO ACCESS SETTINGS The Settings menu enables certain elements to be configured such as backlighting, volume, language, etc� Some settings are not available in all devices� Select the Settings menu Confirm your selection 1. SELECT A SETTING Select the desired setting Confirm your selection Return to the previous step Levels: Turns the Levels function on (ON) or off (OFF)
  • Page 28 The simplest and most usual procedure is to start with level 1 and raise the level when changing to a new stimulation cycle� At the end of a cycle, you may either start a new cycle at the next level up or do some maintenance at the rate of 1 session�...
  • Page 29: Start A Stimulation Program

    START A STIMULATION PROGRAM Before beginning any stimulation program, you must turn the modules on� Return to the previous step Confirm your selection and start the program To turn on the modules, press their respective On/Off button� As soon as the module is turned on, its battery level appears on the screen�...
  • Page 30 Select the channels on which to act� When a channel is active the LED button emits a strong blue light� Pause Increase or decrease the stimulation intensities on the selected channels Increase the stimulation intensities on the selected channels� By default, all of the channels are active at the beginning of the session� To deselect a channel, simply press the corresponding button�...
  • Page 31 CONTRACTION/ACTIVE REST PROGRAMS • Endurance • Resistance • Strength • Explosive Strength These programs always begin with a warm-up phase� After this warm-up phase, a contraction cycles phase followed by active rest occurs (the number of cycles depends on the program) and when all cycles are completed, the program ends with a relaxation phase�...
  • Page 32 PAUSE AND CONTINUE A STIMULATION PROGRAM Skip the current phase or exit the program Resume the stimulation session Exit the program and return to the previous step Average stimulation intensity Maximum stimulation intensity By pressing on the central button of the remote control or on the On/Off button of one of the modules during the stimulation, the device goes into pause�...
  • Page 33: Charging

    CHARGING BATTERY LEVEL INDICATION Module battery level Remote control battery level Module battery levels appear just prior to launching the stimulation session� The remote control battery level is always visible in the top right corner� CONNECT THE DOCKING STATION Connect the AC adapter supplied with your device to the docking station and then plug it into a power outlet� It is strongly recommended that you fully charge the remote control batteries and modules before first use in order to improve its performance and life expectancy�...
  • Page 34 At the end of the stimulation session, it is strongly recommended that you store the remote control and modules in the docking station to charge the elements� COMPEX WIRELESS USA In order to do so, place the remote control on its connector�...
  • Page 35 The pod without the On/Off button must fit on the small connectors� A magnet as well as the small vertical mark on the hull of the pod helps to position the pod correctly in its slot� When it is positioned correctly you should hear a click�...
  • Page 36: Programs

    Note: For the 4 basic workout programs: Endurance, Resistance, Strength, Explosive Strength, we advise you to consult the training planner on our website www�ShopCompex�com� The Compex Wireless USA provides four muscle stimulation training programs� They correspond to the type of muscle performance the athlete wishes to improve or maintain� These training programs are: •...
  • Page 37: Strength

    EXPLOSIVE STRENGTH The purpose of the Compex Explosive Strength program is to increase the speed with which maximum muscle strength can be supplied� It is designed to improve performance in sporting activities of very brief duration such as jumps, sprints and throwing�...
  • Page 38: Training Recovery

    (basketball, soccer, football)� PRE-WARMUP The Compex Pre-Warmup program helps muscles to get ready and should be used before training sessions and before competitions� The twitches increases blood flow, warm the muscle tissue, and speed all the reactions necessary for the most efficient muscular contraction�...
  • Page 39: Operational Guidelines

    ELECTRODE POSITIONS For optimal results, use the electrode positions recommended by Compex� To do this, refer to the pictures and pictograms shown on the Remote Stimulator� Each stimulation module has two pods: •...
  • Page 40: Stimulation Positions

    DJO, LLC disclaims all responsibility for consequences arising from electrodes placed in other positions� See the Safety Guide section of this manual to more information on where not to apply electrodes� STIMULATION POSITIONS This position will vary depending on the position of the electrodes, the muscle group you wish to stimulate, and the program you are using�...
  • Page 41: Progression In The Levels

    PROGRESSION IN THE LEVELS In general, it is not advisable to go through the different levels quickly with the intention of reaching level 5 as fast as possible� In fact, the different levels correspond to progress with electrostimulation� The goal is to progress through the electrical intensities and then through the levels� The more numerous the muscle fibers you stimulate, the more numerous will be the fibers that are going to progress�...
  • Page 42: Troubleshooting

    8 . TR O U B L E S H O O TI N G ELECTRODE FAULT The remote control displays the symbol of an electrode and a disconnected module and an arrow flashes on the channel in question (in this case, channel 1)� •...
  • Page 43 • If despite this, the LED is still red, contact customer service provided and approved by Compex. The LED does not turn on� • Ensure the module is charged. • If despite this, the LED still does not turn on, contact customer service provided and approved by Compex. IFU_WIRELESS_2.indd 42 6/10/15 10:45 AM...
  • Page 44 At the time of first use, if the remote control is unable to pair all modules, an error message may appear� • Ensure that the module is charged, and repeat the pairing step. • If despite this the message returns, contact customer service provided and approved by Compex. STIMULATION DOES NOT PRODUCE THE USUAL SENSATION •...
  • Page 45 • Ensure that the remote control and modules are charged. • Try to restart the remote control and modules. • If despite this the device still does not work, contact customer service provided and approved by Compex. IFU_WIRELESS_2.indd 44 6/10/15 10:45 AM...
  • Page 46: Device Maintenance

    This must be carried out by Compex-approved technicians or repair services� If your stimulator contains parts that appear to be worn or faulty, please contact the closest Compex customer service center�...
  • Page 47: Technical Specifications

    Remote control battery: Rechargeable 3�7[V] / ≥ 1,500[mAh] lithium polymer (LiPo) battery� Module battery: Rechargeable 3�7[V] / ≥ 450[mAh] lithium polymer (LiPo) battery� Compex Wireless USA docking station: Only 5[V] / 3�5 [A] AC power adapters bearing reference number 64902X can be used to recharge your device�...
  • Page 48: Rf Data

    RADIO FREQUENCY WIRELESS INFORMATION Radio Frequency Wireless technology is used in the Compex Wireless USA for communication between the remote control and the stimulation modules� RADIO FREQUENCY WIRELESS DESCRIPTION WIRELESS PROTOCOL CHARACTERISTICS Frequency band 2�4 GHz ISM Protocol type Proprietary frequency hopping...
  • Page 49 Compex Wireless USA wireless protocol is designed to allow coexistence with at least 3 other Compex Wireless USA devices� Each Compex Wireless USA remote control and module is assigned a unique ID� Before initial use, the remote is paired with the 4 stimulation modules in its network�...
  • Page 50: Standards

    IEC 60601-1-11 standard for use in the home environment� The Compex Wireless USA Docking Station is used to charge the remote control and stimulation modules� It complies with the IEC 60950-1 standard on general safety requirements for information technology equipment and the following standards for electromagnetic compatibility: IEC 61000-3-2, IEC 61000-3-3, CISPR 22, and CISPR 24�...
  • Page 51: Description Of Device Markings

    DESCRIPTION OF DEVICE MARKINGS The markings on the Compex Wireless USA are your assurance of its conformity to the highest applicable standards of medical equipment safety and electromagnetic compatibility� One or more of the following markings may appear on the device:...
  • Page 52: Explanation Of Symbols

    EXPLANATION OF SYMBOLS See the instructions Manufacturer’s name and address and date of manufacture This device must be separated from household waste and recycled as electronic waste Protect from sunlight Store in a dry place Non-ionizing radiation On the unit means: Protected against solid bodies with a diameter equal to or greater IP20 than 12�5 mm (0�5 po�) IP02 on the carrying case means: Protected from the ingress of water droplets from a...
  • Page 53 MANUFACTURER CONCERNING ELECTROMAGNETIC EMISSIONS The Compex Wireless USA is intended for use in the electromagnetic environment specified below� The customer or the user of the Compex Wireless USA should assure that it is used in such an environment� EMISSIONS ELECTROMAGNETIC...
  • Page 54 TABLE 2: RECOMMENDATIONS AND DECLARATION BY THE MANUFACTURER CONCERNING ELECTROMAGNETIC IMMUNITY The Compex Wireless USA is designed for use in the electromagnetic environment stipulated below� The customer or the user of the Compex Wireless USA must ensure that it is used in this recommended environment� ELECTROMAGNETIC...
  • Page 55 TABLE 3: RECOMMENDATIONS AND DECLARATION BY THE MANUFACTURER CONCERNING ELECTROMAGNETIC IMMUNITY The Compex Wireless USA is designed for use in the electromagnetic environment stipulated below� The customer or the user of the Compex Wireless USA must ensure that it is used in this recommended environment� IMMUNITY...
  • Page 56 The Compex Wireless USA is designed for use in an electromagnetic environment in which radiated RF waves are controlled� The buyer or user of the Compex Wireless USA can contribute to preventing electromagnetic interference by maintaining a minimum distance between RF portable and mobile communication appliances (transmitters) and the Compex Wireless USA according to the table of recommendations below and according to the maximum output power of the telecommunication appliance�...
  • Page 57: Warranty

    11. WA R R A NT Y DJO, LLC (“Company”), warrants that the Compex Wireless USA (“Product”) is free of defects in material and workmanship� This warranty shall remain in effect for two years (24 months) from the date of original consumer purchase�...
  • Page 58 2� The Product must be returned to the Company or the selling dealer by the owner. This warranty gives you specific legal rights and you may also have other rights which vary from location to location� The Company does not authorize any person or representative to create for it any other obligation or liability in connection with the sale of the Product�...
  • Page 59 © 2015 DJO, LLC IFU_WIRELESS_2.indd 58 6/10/15 10:45 AM...
