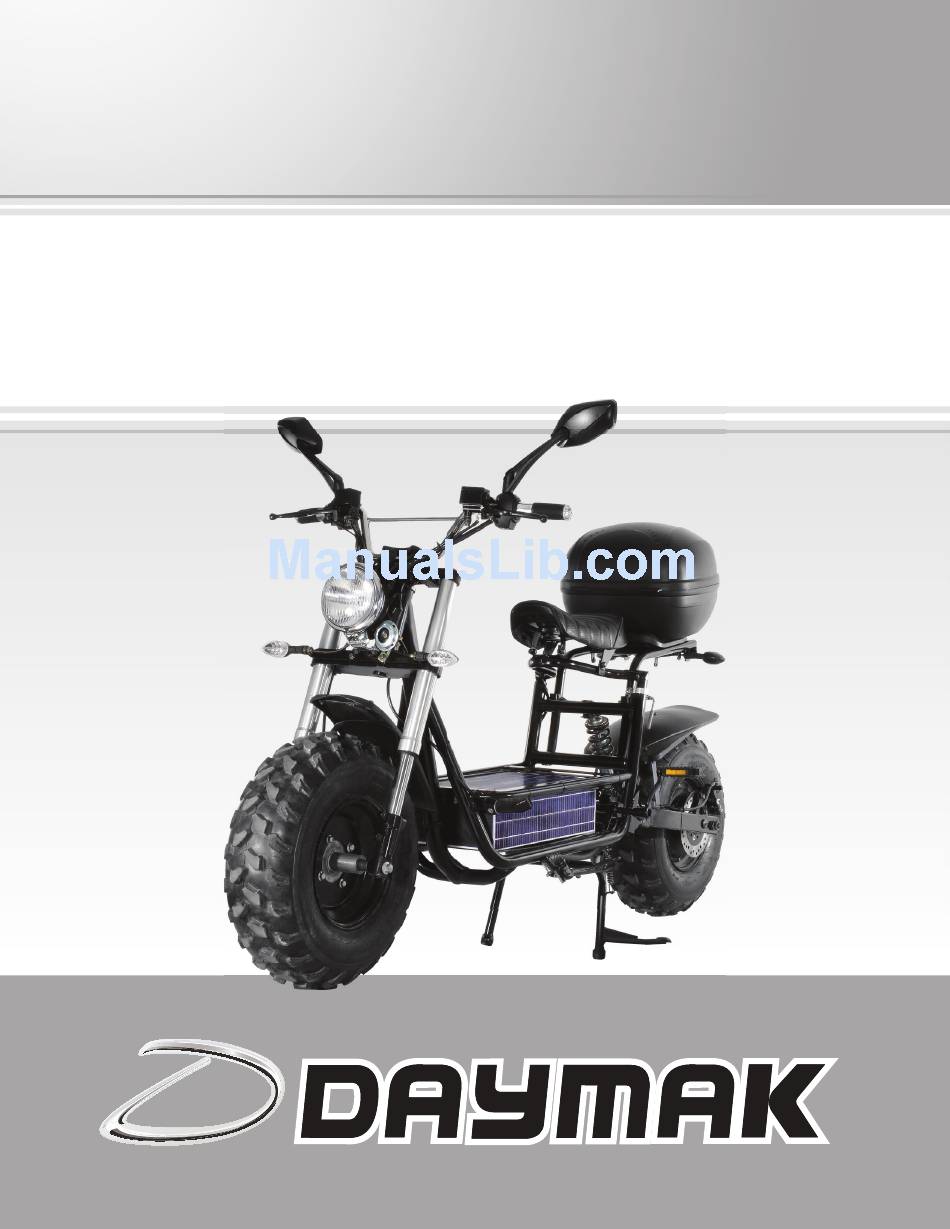

- Page 1 The Beast Standard / Deluxe / Ultimate User Manual...
- Page 2 Daymak warranties, services, and stocks parts for everything it sells. We support our prod- ucts. Please feel free to visit our website. You’ll nd the latest in cool transportation solutions, support for the products you’ve purchased and contact information.
-
Page 3: Table Of Contents
Table of Contents Introduction..............................4 Scooter Diagram .............................5 Riding Instructions ............................6 Operating Instructions ..........................10 The Battery ..............................12 Technical Data ...............................17 Maintenance and Troubleshooting .......................20 E-Bikes and Canadian Law ........................25 TPS Training Bulletin.............................27... -
Page 4: Introduction
Canadian provincial regulations that govern e-bikes. Liability Daymak does not assume any liability for damages, loss of pro ts, or claims from third parties due to improper use of this product. Daymak does not assume any liability for dam- ages due to problems with the product resulting from service by a third party that is not certi ed by Daymak. -
Page 5: Scooter Diagram
Scooter Part Diagrams Diagram 1: The Beast Electric Scooter This diagram illustrates the various parts of your electric scooter. Please note that many of these parts are not user-serviceable and should be repaired only by trained professionals. This is especially true of the elec- trical systems and the mechanical components. -
Page 6: Riding Instructions
Riding Instructions This guide assumes that you already know how to ride a standard bicycle. Before you try to ride an electric bicycle, you should be very familiar with controlling and balancing a normal bicycle. Caution If you do not have cycling experience, an e-bike is too dangerous to ride. Do not begin learning to ride a bicycle using an e-bike. - Page 7 Inspecting your Electric Bike Always inspect your e-bike before you ride it, to make sure its safety features are oper- ating properly. Many accidents can be avoided with routine inspections. Once you are comfortable with your e-bike, you will be able to detect small changes in the way it feels. If anything changes between uses, make sure to have it properly examined.
- Page 8 Stopping Your e-bike has two sets of brakes, at the front and at the rear. The levers attached to the handlebars, on the left and right, activate the brakes. Pull the levers toward you to activate the brakes. You can use both brakes to come to a stop more quickly, or you can use one of the brakes to come to a gentle stop, depending on your riding needs at the moment.
- Page 9 Pedaling This e-bike is designed to be a motor-assisted bicycle. You can use the motor by itself, but ideally, you can work with the motor by pedaling. This increases the distance you can travel on your e-bike, because it assists the motor and reduces the amount of electricity you draw from the battery.
-
Page 10: Operating Instructions
Operating Instructions Using the Rear Storage Compartment* The rear storage compartment is opened using the key provided to you when you pur- chased your e-bike. Insert the key and turn it to the right to open the compartment. Close the case and turn the key in the opposite direction to lock the compartment again. You can use this compartment to store the charger and associated cables, so you can recharge your e-bike if it runs out of power. - Page 11 Maximum Load Do not exceed the maximum load capabilities of your e-bike. You can nd the exact load- ing capacity listed in the technical speci cations in this guide. If you exceed the maximum load, the performance of the bike will su er. Exceeding the maximum load of your e-bike could cause damage to the shocks, to the mechanism and, ultimately, even to the frame.
-
Page 12: The Battery
Beast electric scooter. It includes ports for the controller, a 110V port**, and 2 USB ports. Do not attempt to service the solar battery case. If service is required, take it to the nearest Daymak retailer. Solar Panel... - Page 13 If your charger’s LED status light does not change from red to green over an extended period of time, for perhaps more than 8 hours, and the battery is very hot, the battery or charger may need replacing. Stop charging and bring both to your Daymak dealer imme- diately. Do not charge the battery.
-
Page 14: Battery Care
Battery Care Follow these suggestions to maintain your battery’s optimal performance. If you do not follow these suggestions, your battery may lose its ability to maintain a charge and might have to be replaced sooner than would otherwise be necessary. •... - Page 15 Cold Weather and your Battery Below 10 degrees Celcius or 50 degrees Farenheit, the battery will not work as well as it would in warmer temperatures. While Lithium-Ion batteries perform better than Lead-Ac- id batteries in temperature extremes, both will experience reduced performance in cold temperatures.
- Page 16 Contact your local Daymak dealer to purchase a new battery. When replacing your battery, dispose of it at a proper municipal battery recycling facility.
-
Page 17: Technical Data
Daymak pioneered the development of intelligent component control in e-bikes. The controller developed by Daymak is the brain of your e-bike. It allows your e-bike to achieve faster acceleration, to climb steeper hills, and to save energy. In future, it will allow for other ways of recharging your e-bike’s batteries, such as by using solar or wind power. -
Page 18: Front Brakes
The Brakes Front Brakes The brakes on your e-bike are Hydraulic-disc brakes, like those found on gas scooters and motorcycles. They generally provide for very ne stopping and control. This is a very tested and well-designed technology, but even so, the brakes will require servicing from time to time, and may have to be adjusted for tension. The brakes are contained within a sealed unit, and are very nely adjusted and tted. -
Page 19: Additional Information
Technical Specifi cations Battery: 60V 12AH LAB 60V 20AH Lithium Samsung 2200mAH 18650 Motor: 250EU/500W BLDC 500W BLDC 500W BLDC Controller: AD Turbo 60V 50AH AD Turbo 60V 50AH AD Turbo 60V 50AH Solar Panel: 15W/hr Included 15W/hr Included 15W/hr Included PAS: Included Included... -
Page 20: Maintenance And Troubleshooting
Please contact your Daymak dealer for speci c instructions on how to remove your wheel and tires safely, and how to replace the tubes. It may be easier – and safer - to have the tires replaced by your Daymak dealer. - Page 21 The Brakes Make sure you test the brakes regularly. Take the e-bike to your Daymak dealer if the brakes appear to be losing their stopping power or feel looser than they were previously. The brakes on your e-bike may require servicing from time to time. The brake pads will need to be replaced as they wear down, usually after about a year to a year and a half or so, depending on how the e-bike is ridden.
- Page 22 The Motor Do not service the motor yourself. Bring the e-bike to your Daymak dealer for service. The motor in your e-bike is a highly complex and ne-tuned mechanism. Repairing it requires signi cant expertise. We suggest motor maintenance every 100 running hours or so. Bring your bike once a year...
- Page 23 Ebike Maintenance Cleaning Cleaning is extremely important this will ensure your e-bike will serve you for a long time. In the long run, it will save you money and a lot of time waiting for the bike to be repaired. You should clean your ebike weekly.
- Page 24 Maintaining your Ebike The frequency of maintenance depends on how much you ride and under which conditions. Recreational riders needs far last. There are various time intervals for proper maintenance. Quick maintenance should be done before & after every ride. Time after purchase Action Suggested Check tire pressure, check brakes that they...
-
Page 25: Ebikes And Canadian Law
Ebikes and Canadian Law British Columbia, Alberta, Saskatchewan, Manitoba, Quebec, Nova Scotia, Newfoundland and Labrador, Yukon Currently, eight Canadian jurisdictions (British Columbia, Alberta, Saskatchewan, Manitoba, Quebec, Nova Scotia, Newfoundland and Labrador and Yukon Territory) have legalized power-assisted bicycles for public road use and are treating these vehicles as conventional bicycles and not as motor vehicles. - Page 26 Specifi c Riding Requirements Power-assisted bicycles are treated as bicycles. This means: • No driver’s licence is required • No written test is required • No vehicle registration or license plate is required • No motor vehicle liability insurance is required •...
-
Page 27: Tps Training Bulletin
TPS Training Bulletin TPS Training Bulletin Attention Tra c and Training Sergeants: Recently we have had some enquiries from o cers in the eld and members of the public regarding e-bikes and have found that there is some confusion over the de nition of a Power Assisted Bicycle (e-bike).
