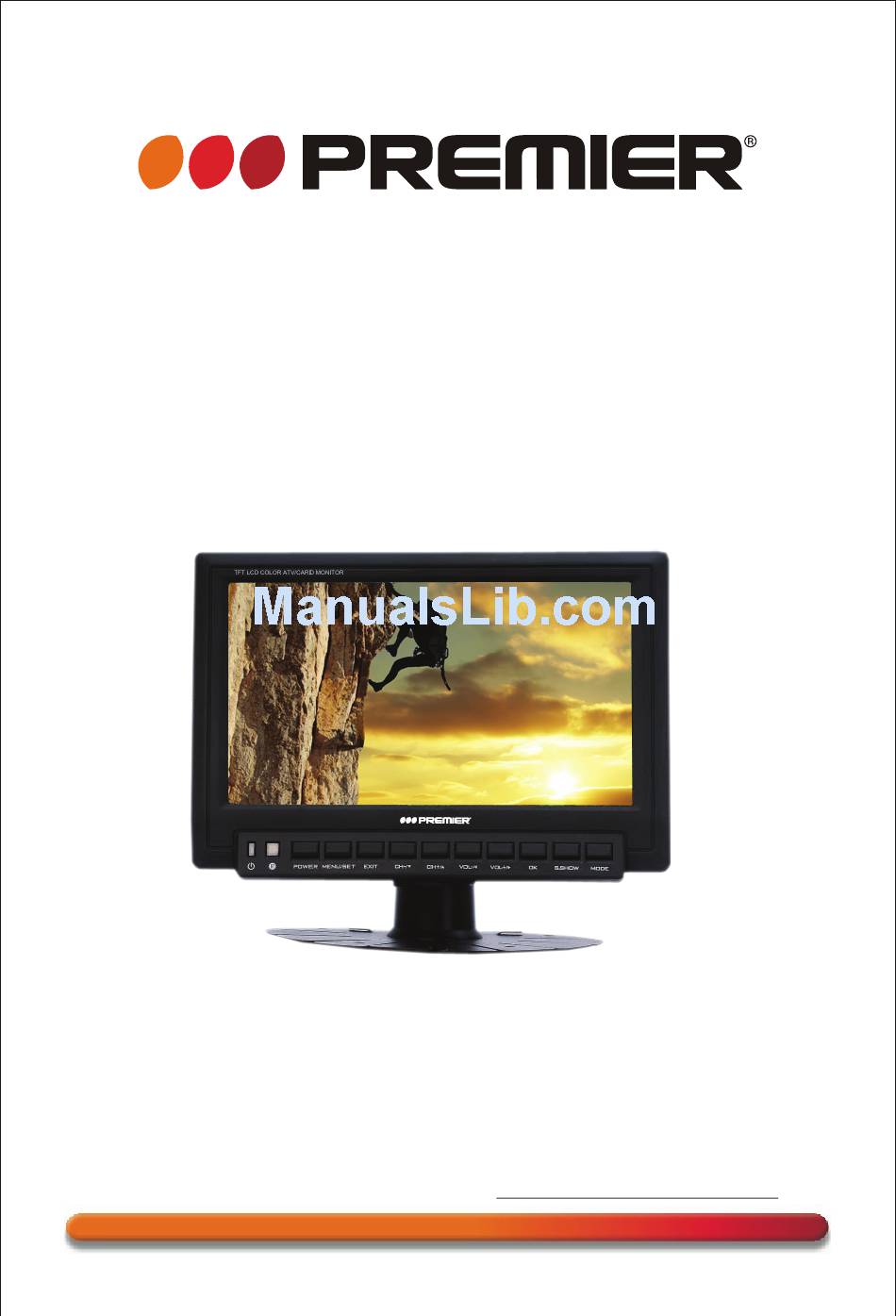

INSTRUCTION MANUAL

PORTABLE LCD TV (7")
TV-3704TFT
DEAR CUSTOMER
In order to achieve the best performance of your product, please read this
instruction manual carefully before using, and keep it for future reference.
If you need extra support, please write to
info@premiermundo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TV-3704TFT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Premier TV-3704TFT

  • Page 1: Instruction Manual

    INSTRUCTION MANUAL PORTABLE LCD TV (7") TV-3704TFT DEAR CUSTOMER In order to achieve the best performance of your product, please read this instruction manual carefully before using, and keep it for future reference. If you need extra support, please write to...
  • Page 2 This sign means that there are important instructions of operation and handling in the manual that comes with this Device. PREMIER CUSTOMER SERVICE 0800 ELECTRIC (353-2874) Venezuela: Panama: 300-5185 www.premiermundo.com...
  • Page 3: Table Of Contents

    Table of Contents 1. Precautions 2. Accessories 3. Appearance 4. Description of Panel Buttons 5. Description of Buttons on Remote Control 6. Basic Operation Methods 7. Menu Operation 7.1. PICTURE 7.2. OPTION 7.3. CLOCK 7.4. SYSTEM 7.5. PRESET 7.6. PRESET In order to watch TV properly 9.
  • Page 4: Precautions

    1. Precautions Storage 1)Keep this product away from extremely hot or cold places. The storage temperature ranges from -20 to 60 and the working temperature from -5 to 40 . 2)Do not use this product at damp environment like bathtubs, wash basins, kitchens, washtubs, as well as basements, swimming pools or similar places.
  • Page 5: Appearance

    3. Appearance 1. Telescopic antenna 2. TFT-LCD screen 3. Power indicator 4. Remote-control receive window 5. POWER: Standby/power-on 6. MENU/P.ADJ: Menu/Picture Adjust key/USB and CARD switch key 7. EXIT: Return button 8. CH-/ : Channel-. selection 9. CH+/ : Channel+. selection 10.
  • Page 6: Description Of Panel Buttons

    4. Description of Panel Buttons 1. POWER(Standby key): Press to switch between ON and Standby. 2. MENU/P.ADJ: Menu/Picture adjust key; Under AV/TV mode, press as MENU; under CARD mode, press to switch USB/CARD; Keep pressing for 3 seconds as picture adjust key. 3.
  • Page 7: Description Of Buttons On Remote Control

    5. Description of Buttons on Remote Control : the number of TV channel increases. : the number of TV channel decreases : To select program and adjust for selected program. OK/MUSIC: Under CARD mode, press to confirm, when playing slide show, press as ON/ OFF for the background music.
  • Page 8: Basic Operation Methods

    6. Basic Operation Methods 6.1 Connection of Power Supply: Align the power supply plug on AC adapter with the jack on the machine rear cover marked with DC. 6.2 Connection of Antenna Cable: 75ohm antenna conversion line Align one end of the attached a ntenna cab le plug in the antenna jack on TV set and the ot her end p lug in the external antenna jack.
  • Page 9: Menu Operation

    7. Menu Operation Press MENU to display options as follows: PICTURE OPTION CLOCK SYSTEM PRESET 7.1. PICTURE CONTRAST, BRIGHT , COLOR, SHARP and TINT displays on the screen as below description: Press to select the item, Press to adjust. Notice: Only when displaying the picture of NTSC system, it will show the character of TINT in the Picture menu.
  • Page 10: Preset

    7.5. PRESET POSITION, REMEMBER, BAND, SWAP, FINE, SEARCH and AUTO-SEARCH w ill displa y on the screen as below description: 7.5.1.Press to select POSITION, and press to set. 7.5.2.Press to select REMEMBER, and press to select ON, this channel will be displayed when selected.
  • Page 11: Card Mode Operation

    9. CARD mode operation 1.Usage of memory facility (USB&CARD) This product supports almost all types of USB, Multi Media Card (MMC), SD, Memory Stick (MS) in the market. 1)This product supports various USB & CARD within 4G (beyond the capacity, some abnormal phenomenon may occur.
  • Page 12 Note: The display languages of file or movie named are to be simplified Chinese and international standard character. If languages displayed are not the above character or character over 8 digits, disorder characters may occur. 2.5 Common functions' operation instruction : Play/pause : Fast forward : Forward file...
  • Page 13: Before You Request For Repair

    10. Before you request for repair Phenomena below are not necessarily mean failure with TV set. Please check following methods before you request for repair. Phenomena Possible Causes Improper connection with AC adapter or Care adapter. No picture, no sound Use of unauthorized power supply.
  • Page 14: Technical Parameters

    11. Technical Parameters Product Name: Portable LCD TV (7 ) Display Device: Color TFT-LCD Receiving frequency range: full frequency scan: 48.25MHz-863.25MHz Fixed channel search: AIR: 55.25MHz-801.25MHz CATV: 55.25MHz-799.25MHz Screen Size: 7 inches Resolution: 480(H) RGB 234(V) Audio Output: 0.5W 2CH Loudspeaker: 2 40mm Connecting Terminal: External antenna input jack, earphone jack, Audio / Video...
