PTM Print to Mail Endeavour Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operator's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Print to Mail Endeavour and is the answer not in the manual?

Questions and answers

Related Manuals for PTM Print to Mail Endeavour

Summary of Contents for PTM Print to Mail Endeavour

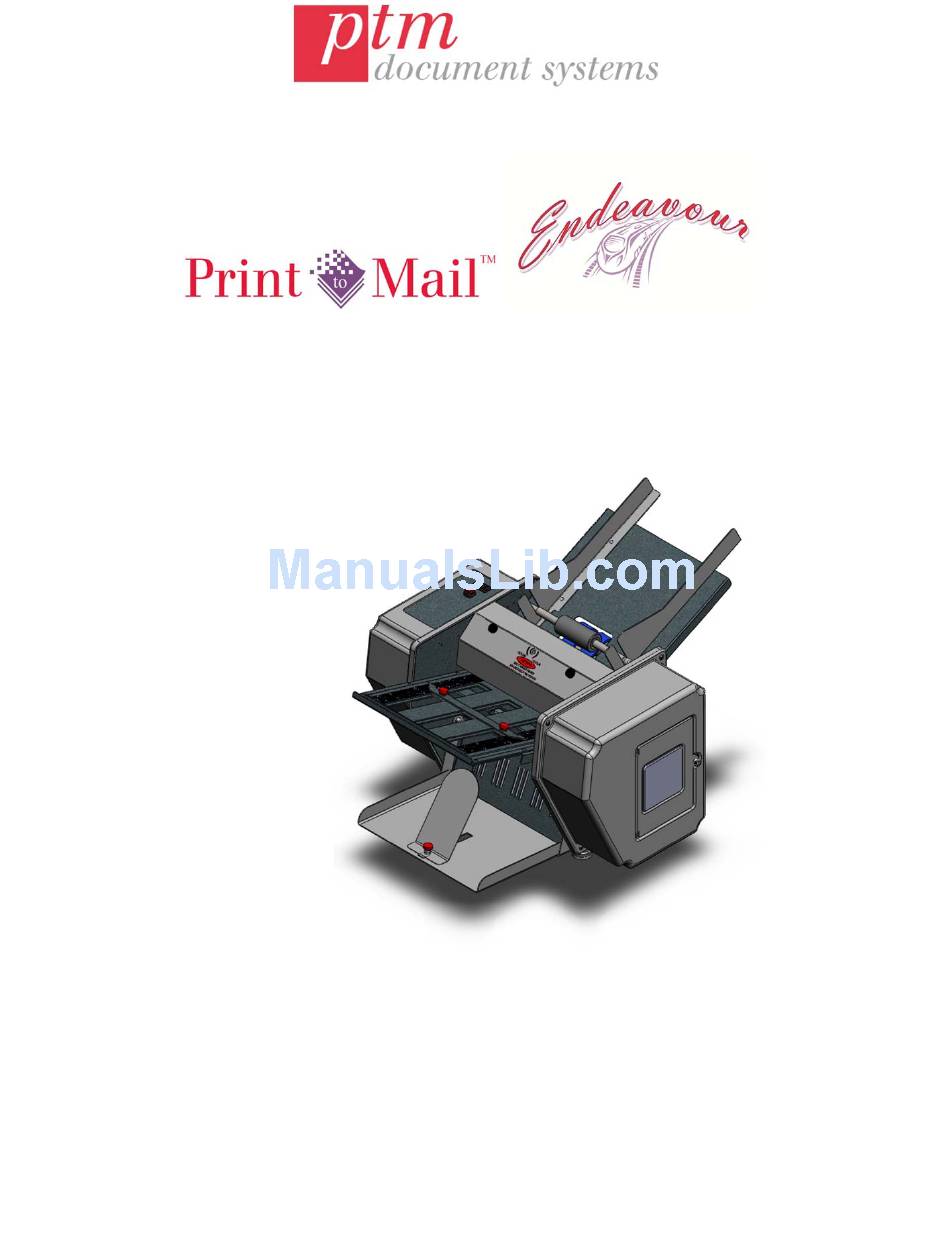

  • Page 1 Operator’s Manual...

  • Page 3: Table Of Contents

    Table of Contents Operator Safety .................... 1   Introduction ....................2   Unpacking and Setup .................. 3   Unpacking ....................3   Setup ......................4   ENDEAVOUR Overview ................5   ENDEAVOUR Diagram ................5   Capabilities ....................5   ENDEAVOUR Operation ................

  • Page 5: Operator Safety

     ENDEAVOUR maintenance should be performed only by factory authorized service personnel using factory authorized replacement parts. Contact PTM Document Systems for more information.  Keep product away from extreme heat & moisture.  Never operate ENDEAVOUR while tired, drowsy, or under the influence of medication, drugs, or alcohol.

  • Page 6: Introduction

    Introduction ENDEAVOUR is designed to fold and seal up to 3000 documents per hour. Patented folding & sealing technologies ensure a good seal on every form and a clean fold every time whether the paper is perforated or plain. The adjustable fold plates allow the ENDEAVOUR to meet your changing document processing requirements.

  • Page 7: Unpacking And Setup

    5. Left and right paper guides 6. Tool Kit a. Breaker bar & 7/16” Socket b. 3/16” T-Handle Hex Driver If any items are missing please Figure 2: Lower Fold Plate contact PTM Document Systems before continuing. Figure 3: ENDEAVOUR...

  • Page 8: Setup

    Setup Warning: Do not attempt to remove the equipment from the packaging alone. Two people are required at all times to move the equipment. Place the ENDEAVOUR on a sturdy table or cart. Check to verify that both fold plates are properly installed [see Figures 4 & 5]. Both fold plates should rest snugly on the placement pins.

  • Page 9: Endeavour Overview

    ENDEAVOUR Overview ENDEAVOUR Diagram Paper Guides Feed Table Control Panel On / Off Switch Reverse Feed Gauge Cover Upper Fold Plate Lower Fold Plate Catch Tray Electrical Panel Figure 6: ENDEAVOUR Diagram Capabilities  Your ENDEAVOUR is designed from the ground up to be a versatile folding and sealing ENDEAVOUR.

  • Page 10: Endeavour Operation

    ENDEAVOUR Operation Identifying Your Fold 1. Identify your paper size. 11” forms are the standard letter size; 14” forms are the standard legal size. Measure the form if necessary. 2. Identify the fold shape from Table 1. Note that ECC Z (EZ) Folds are a similar shape as the standard Fold, but the lengths of the folds are...

  • Page 11: Setting The Feed Gauge

    1. Loosen the red Paper Guide adjustment knobs. Don’t fully remove them. 1-2 turns clockwise will loosen them. 2. Place a ½” stack of the form to be run on the feed table. 3. Line the paper stack up against the stationery paper guide. 4.

  • Page 12: Loading The Feed Table

    2. Insert the provided 3/16” T-Handle Hex Driver into Feed Gauge Adjustment Screw. 3. Turn the T-Handle Hex Driver ¼ turn clockwise to loosen the Feed Gauge Roll. 4. Place one form on the feed table and hand feed the form about 2 inches into the ENDEAVOUR by moving the feed belt with your hand.

  • Page 13: Setting The Fold Plates

    C Folds Z Fold EZ Folds V Folds C Folds Table 2: Paper Loading & Fold Order Setting the Fold Plates To set a fold plate: 1. Remove the fold plate from the machine. 2. Loosen the thumb screws by turning counter-clockwise 3.

  • Page 14: Fold Plates

    5. Tighten the thumb screws, being careful that the paper stop does not slide out of square. 6. Return the Fold Plate to the machine, making sure that it is resting properly on the placement pins [see Setup Procedure]. a. If you are using a Fold, replace the Lower Fold Plate backwards, so that the flat face is facing in and the slot is...

  • Page 15: Maintenance

    Maintenance Regular maintenance on the ENDEAVOUR will ensure that it continues to function properly and will extend the life of the ENDEAVOUR. Perform the following steps every 10,000 forms or once a month: 1. Disconnect the power cord from the ENDEAVOUR. 2.

  • Page 16: Troubleshooting

    Troubleshooting Automatically Clearing a Paper Jam If paper becomes jammed in the ENDEAVOUR: 1. Remove all paper from the Feed Table. 2. If the Power Switch Breaker has tripped (light is off) then flip into the on (lighted) position. 3. Remove the Lower Fold Plate.

  • Page 17: Diagnosing The Paper Jam

    Diagnosing the Paper Jam Table 3 outlines the different problems that cause paper jams and the symptoms that will help you to identify the cause. Problem Double Feed Buckled Form Bad Fold Unfold the form There will be an The form which Symptom that caused the extra fold in form...

  • Page 18: Paper Feed Problems

    fold is above the perforation, then move the paper stop away from the open end of the fold plate. If the fold is below the perforation, then move the paper stop towards the open end of the fold plate. Paper Feed Problems Double Feeds If you’re having problems with two forms feeding at once: 1.
  • Page 20 Sales (866) 667-2861 Service (800) 504-4102...
