Summary of Contents for Nobel PARASOL

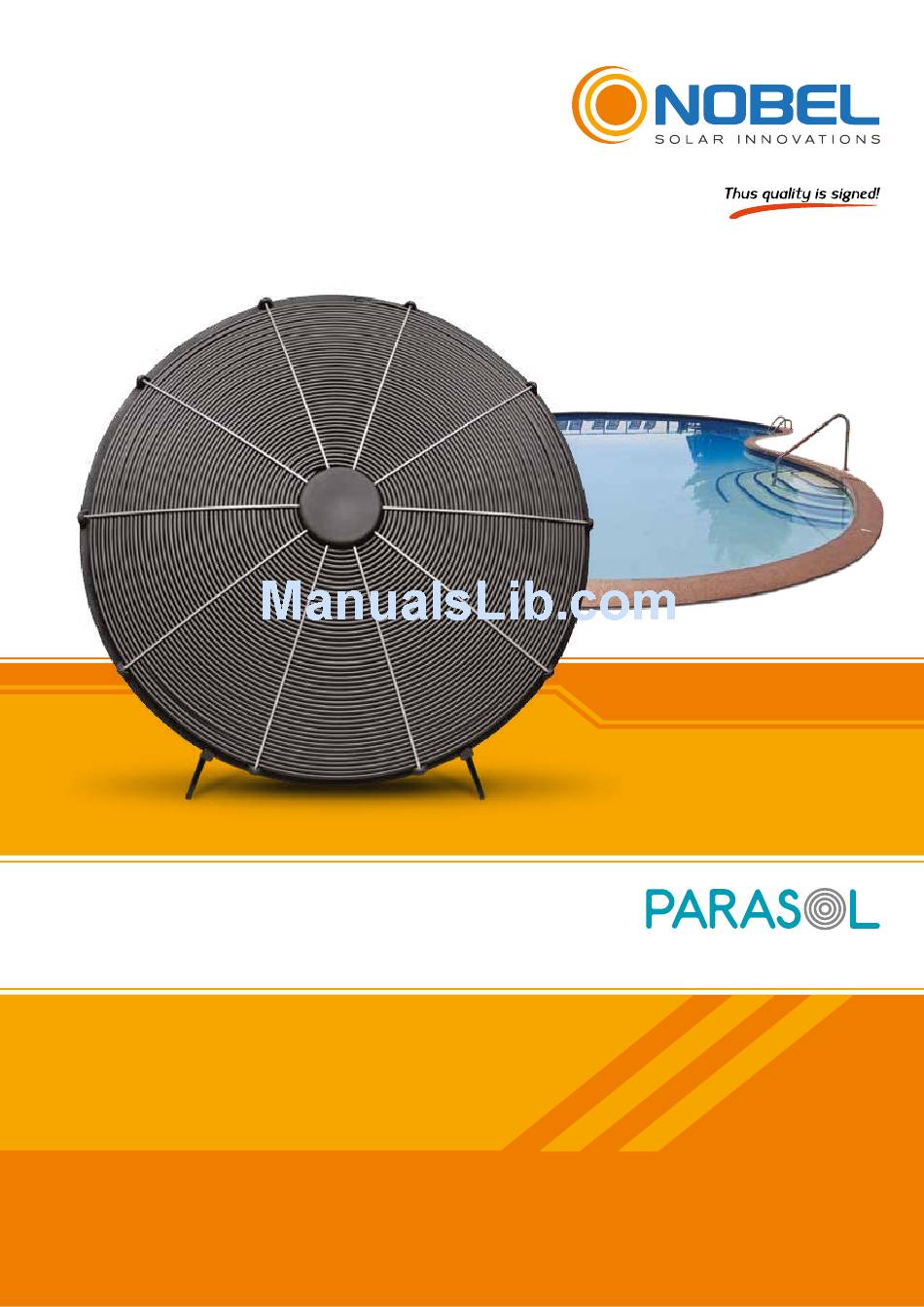

- Page 1 TECHNICAL MANUAL Swimming pool heaters Installation, maintenance & use instructions...
-
Page 3: Table Of Contents
CONNECTION GRAPH ............................. 13 TECHNICAL DRAWING ............................13 GENERAL INFORMATIONS ............................. 14 INSTALLER MODE ..............................15 PARASOL SUPPORT ..............................17 Nobel Xilinakis D. & Co preserves the right to change all specifications of the products and their accessories without prior notice... - Page 4 Spring and in the Autumn on a sunny day by an average of 3°C per day and throughout the whole swimming season by a minimum of at least 6 - 7°C. Nobel Xilinakis D. & Co preserves the right to change all specifications of the products and their accessories without prior notice...
-
Page 5: Installation Of Collectors
Sensibility to the wind As the collectors are not sensitive to the wind, you can place these without further measures or restraints. Nobel Xilinakis D. & Co preserves the right to change all specifications of the products and their accessories without prior notice... -
Page 6: How To Fix The Collector´s Temperature Sensor
PE sockets. The supply-tube needs to be connected to the right side and the return-tube to the left side. Supply tube Return tube Nobel Xilinakis D. & Co preserves the right to change all specifications of the products and their accessories without prior notice... -
Page 7: Flow Rate To And From The Collectors
Inside the technical area you normally use PVC parts, please do not forget to switch to PE materials for all connection parts and tubing which are exposed to sunlight Nobel Xilinakis D. & Co preserves the right to change all specifications of the products and their accessories without prior notice... -
Page 8: Point Of Connection Of The Temperature Sensor
We advise to insulate all tubes within the technical area to avoid false reading from the temperature sensor. Nobel Xilinakis D. & Co preserves the right to change all specifications of the products and their accessories without prior notice... -
Page 9: Non-Return Valves
85kg Max. Height 37cm Tube: total height 200m Max. Pressure 8bar Volume 29lt Technical specifications are submitted to alterations. Nobel Xilinakis D. & Co preserves the right to change all specifications of the products and their accessories without prior notice... -
Page 10: Installation Diagram
INSTALLATION DIAGRAM Nobel Xilinakis D. & Co preserves the right to change all specifications of the products and their accessories without prior notice... -
Page 11: Performance Graph
PARASOL PERFORMANCE GRAPH Swimming pool Swimming pool with Parasol CONTROL UNIT Collector Sensor and Holder Pool Sensor and Holder Nobel Xilinakis D. & Co preserves the right to change all specifications of the products and their accessories without prior notice... -
Page 12: Connection Diagram
CONNECTION DIAGRAM Nobel Xilinakis D. & Co preserves the right to change all specifications of the products and their accessories without prior notice... -
Page 13: Connection Graph
PARASOL CONNECTION GRAPH TECHNICAL DRAWING Nobel Xilinakis D. & Co preserves the right to change all specifications of the products and their accessories without prior notice... -
Page 14: General Informations
(2 minutes per solar collector). This period of time is programmable in the installer-mode. Nobel Xilinakis D. & Co preserves the right to change all specifications of the products and their accessories without prior notice... -
Page 15: Installer Mode
55 degrees. Factory setting: 2 minutes per solar collector. Don't change this value until instructed by factory. Nobel Xilinakis D. & Co preserves the right to change all specifications of the products and their accessories without prior notice... - Page 16 EXIT. To leave the installer mode you need to press the auto/man button. You will now return to the auto mode. Nobel Xilinakis D. & Co preserves the right to change all specifications of the products and their accessories without prior notice...
-
Page 17: Parasol Support
PARASOL PARASOL SUPPORT Nobel Xilinakis D. & Co preserves the right to change all specifications of the products and their accessories without prior notice... - Page 18 NOTES Nobel Xilinakis D. & Co preserves the right to change all specifications of the products and their accessories without prior notice...
