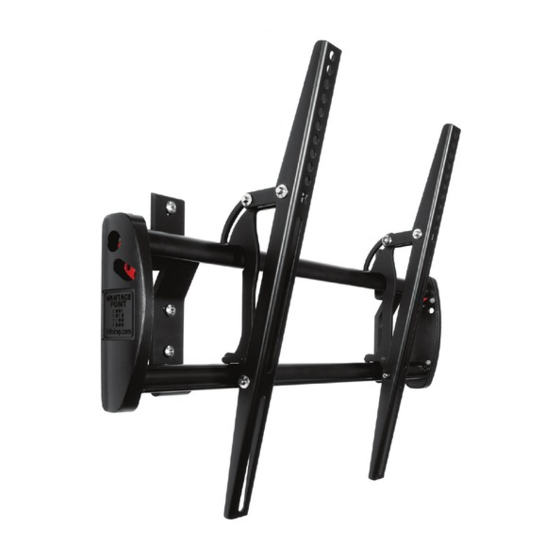

- Page 1 thinkvp.com Medium Tilt Mount MEDIANO MOYEN MITTEL Neigungsgestell Montaje de Inclinación Penchez le Mont Screen Size Range: Max Weight Load - Monitor Mount: Hole Pattern Range: 24 - 47 in. 80 lbs / 36 kg VESA® 100 x 100 61 - 119 cm 400 x 400mm rev 11/17/10...
- Page 2 Concrete installs only Tools Instrumentos Instruments Werkzeuge 3/8” or 10mm 5/32 or 4mm...
-
Page 3: Parts List
– No exceda el peso máximo indicado. Usarlo con uno mayor que el máximo peso indicado podría provocar inestabilidad causando posibles lesiones. El uso de este producto para cualquier propósito que no sea el especificado por Vantage Point Products no es recomendado. ¡Piense en la... - Page 4 Instalación y equipo de Hardware de Asamblea Installation et kit de Matériel d’Assemblage TV Montant le kit de Matériel Fernsehen, das Hardware-Bastelsatz Besteigt Installierung und Zusammenbau-Hardware-Bastelsatz VTM MEDIUM TILT MOUNT - FLAT PANEL MOUNTING HARDWARE KIT 4MX6 M4 X 6MM PHILLIPS HEAD SECURITY SCREW SILVER #14 X 2-1/2” PHILLIPS HEAD SCREW SILVER 4MX16...
- Page 5 Madera Dobla Clavo Wood Double Stud Le Bois Double le Clou Holz Doppelter Knopf 16” 40.64 cm NOTE: See mounting guide for placement Ø 5/32” X 2-1/2” DEEP Ø 4mm X 6.35 cm Go to Install Monitor Step Vaya para Instalar Paso de Monitor Allez Installer le Pas de Moniteur...
- Page 6 Concreto Concrete Béton Beton Ø 3/8” X 2-1/2” DEEP Ø 10mm X 6.35 cm 16” 40.64 cm NOTE: See mounting guide for placement Go to Install Monitor Step Vaya para Instalar Paso de Monitor Allez Installer le Pas de Moniteur Gehen Sie, um Monitor-Schritt Zu installieren...
- Page 7 Instale Soportes de Monitor Install Monitor Brackets Installez des Parenthèses de Moniteur Installieren Sie Monitor-Klammern...
- Page 8 Instalar el Monitor de Monte Install Monitor Installez le Mont de Moniteur Installieren Sie Monitor-Gestell unlock upper rail flip tabs down flip tabs up cables câbles Kabels Monitor de Cerradura Lock Monitor Moniteur de Serrure Schloss-Monitor...
- Page 9 Acceso de Alambre de Fondo Bottom Wire Access Approche de Fil de Fond Unterster Leitungszugang CAUTION: make sure monitor is in locked position as shown, prior to using wire access function. flip tabs up rotate rail move monitor flip tabs down rotate rail Install cables cables...
- Page 10 Penchez s’Adaptent Neigung passt sich An Seguridad Security Sécurité Sicherheit 4m x 6mm security screw lock not included thinkvp.com VANTAGE POINT PRODUCTS CORP. P.O. BOX 2485 SANTA FE SPRINGS CA 90670 USA TEL: 1.800.582.9595 FAX: 562.946.3898 EMAIL: support@thinkvp.com CANADA TEL: 905.607.9994...
