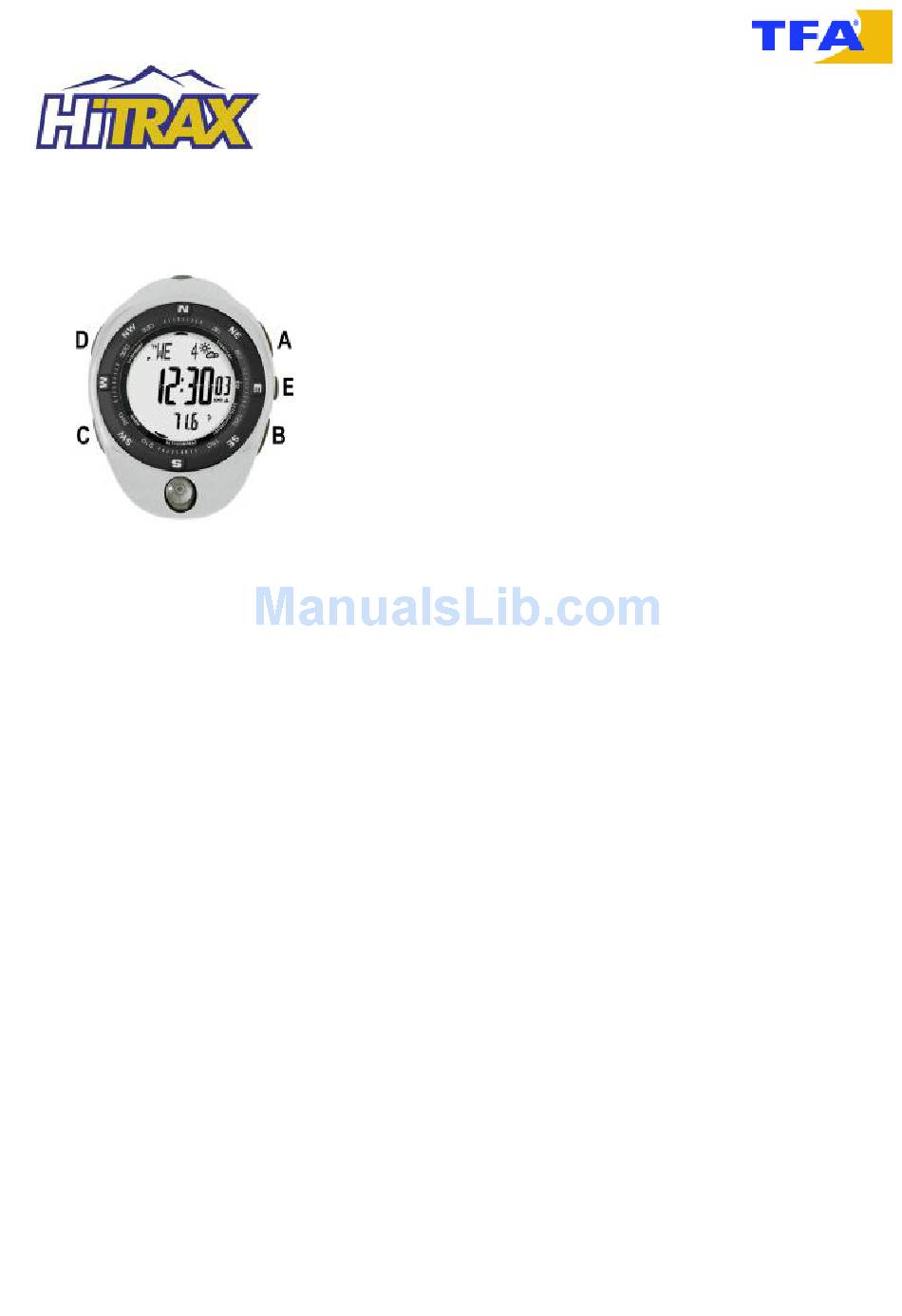

HiTRAx HIKE Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HIKE
Cat. No. 42.4001
Instruction Manual
INTRODUCTION
This device is a digital product that provides altimeter, barometer, compass, altimeter data, dual time,
chronograph, chronograph data and alarm functions.
Features:
Altimeter
- 1 meter (or foot) resolution and with working range from -700 meters (-2296 feet) to 9000 meters (29520 feet).
- Graphical expression of changes provided.
- Unit in meters or feet selectable.
- 20 memories with date, time and altitude reading.
Barometer
- 1 hPa resolution and with working range from 300 hpa to 1100 hpa.
- Graphical expression of changes provided.
- Both sea level pressure and absolute pressure can be shown.
- Weather forecast.
- Temperature displayed in °F or °C selectable.
Compass
- Electronic compass providing 16 cardinal indications together with bearing in degrees.
- Declination correction provided.
Time
- 2 time modes selectable.
- Presents day of the week, day, hours, minutes and seconds (year and month can also be set).
- 12/24-hour formats selectable.
- Auto-calendar from 2000 to 2049.
Chronograph
- 1/100-second resolution with working range up to 24 hours.
- 100 memories for lap/split times stored in a maximum of 30 runs.
Alarm
- 2 daily alarms.
- Hourly chime.
Electro-luminescent backlight
- 3 seconds light up EL backlight.
Altimetermode with altitude change: measures every 2,5 seconds
Altimetermode without altitude change (barometer mode): every 2,5 minutes
Barometermode: measures every 2,5 minutes. Changes to Time mode after 24 hours
Temperature: measures every 2,5 minutes.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HIKE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HiTRAx HIKE

Summary of Contents for HiTRAx HIKE

  • Page 1 HIKE Cat. No. 42.4001 Instruction Manual INTRODUCTION This device is a digital product that provides altimeter, barometer, compass, altimeter data, dual time, chronograph, chronograph data and alarm functions. Features: Altimeter - 1 meter (or foot) resolution and with working range from -700 meters (-2296 feet) to 9000 meters (29520 feet).

  • Page 2: Basic Operation Of Buttons

    BASIC OPERATION OF BUTTONS A: - SWITCH AMONG DISPLAYS - TAKE BEARING - STORE ALTITUDE DATA (PRESS AND HOLD) - FORWARD SELECTION OF ALTITUDE DATA - START/LAP OF CHRONOGRAPH - RETRIEVE DATA IN RUN - TURN ALARM ON AND OFF - FORWARD SETTING (SET OR CALIBRATION) B: - SWITCH BETWEEN NORMAL TIME AND DUAL TIME (PRESS AND HOLD) - SWITCH BETWEEN UNITS OF TEMPERATURE (PRESS AND HOLD)
  • Page 3 MODE CHANGE OPERATION There are 9 modes: Normal Time, Dual Time, Compass, Barometer, Altimeter, Altimeter Data, Chronograph, Chronograph Data and Alarm. Press C to change from mode to mode, hold down B to switch between Normal Time mode and Dual Time mode as in the following: Hold B NORMAL TIME...

  • Page 4: Time Mode

    TIME MODE Dual Time indicator Normal Time indicator indicator Hold B indicator Use C to enter Time mode. * Mode prompt “TIME” is displayed first. - There are 2 time modes, Normal Time (indicated by T1) and Dual Time (indicated by T2), and they count up individually with the same second.

  • Page 5: Compass Mode

    3. Press C to advance to the next setting as in the following: HOUR MINUTE SECOND YEAR 12/24H MONTH * When second digits are flashing, press A or B to reset the digits to 00. Resetting seconds when the digits are between 00 to 29 will leave the minute digits unchanged, or between 30 to 59 will increase the minute digits by one.

  • Page 6: Barometer Mode

    TENS OF DEGREE DEGREE * When E or W is flashing, press A or B to switch between East and West. * You should consult your local organization for information of declination. Declination angles for major cities are listed below for reference only. City Declination Angle City...
  • Page 7 indicator Temperature Absolute pressure Time Reading the graph of sea level pressure The graph shows the relative changes in sea level pressure in the past with the current pressure represented on the right. Each horizontal point represents one hour while each vertical point represents the relative reading of pressure in that time.

  • Page 8: Altimeter Data Mode

    Unit indicator Altitude graph Of altitude ALTIMETER MODE Current Altitude reading Time Altimeter mode indicator Use C to enter Altimeter mode. * Mode prompt “ALTI” is displayed first. - Altimeter mode indicator is shown. - The altimeter is of 1 meter (or foot) resolution and with working range from -700 meters (-2296 feet) to 9000 meters (29520 feet).

  • Page 9: Chronograph Mode

    Use C to enter Altimeter Data mode. * Mode prompt “ALTI DATA” is displayed first. - Data number, time, date and altitude reading can be retrieved. * Altitude data are shown in 2 different displays. To retrieve the altitude data Use A (+) and B (-) to select the altitude data to be retrieved.

  • Page 10: Chronograph Data Mode

    3. Press A again when the second runner finishes. * You may record the finish time of up to 100 runners by pressing A. 4. Press B when the last runner finishes. * Time measurement is stopped. 5. Hold down B until the next run number is shown on the display. * Data of the current run is stored and chronograph is reset to all zeros.

  • Page 11: Alarm Mode

    2. Press A to retrieve the data one by one. * Display examples: Lap number Lap/split time of lap 1 Best lap time Average lap time To clear one particular run 1. Use B to select the run to be cleared. 2.

  • Page 12: Resetting The Product

    3. Press C to advance to the next setting as in the following: HOUR MINUTE REFER TO T1/T2 CHIME ON/OFF * When TIME 1 or TIME 2 is flashing, press A or B to switch between setting the alarm to refer to Normal Time (TIME 1) and Dual Time (TIME 2).
