R R
User M anual
ED-B3-MA-061012-001
Beta three

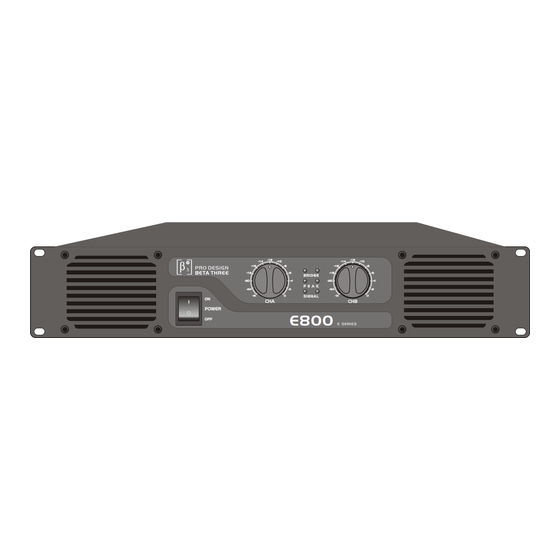

PROFESSIONAL POWER AMPLIFIER
-12
-12
-12
-12
-14
-14
-10
-10
-14
-14
-10
-10
-16
-16
-8
-8
-16
-16
-8
-8
-18
-18
-6
-6
-18
-18
-20
-20
-4
-4
-20
-20
-24
-24
-2
-2
-24
-24
0 0
0 0
E800
E200
E500
-6
-6
-4
-4
-2
-2
E300
E800

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Beta Three E200 and is the answer not in the manual?

Questions and answers

Related Manuals for Elder Audio Beta Three E200

Summary of Contents for Elder Audio Beta Three E200

  • Page 1 User M anual ED-B3-MA-061012-001 Beta three E200 E300 E500 E800 PROFESSIONAL POWER AMPLIFIER E800...

  • Page 2: Table Of Contents

    TO USERS Thanks for choosing Series E power amplifier(s). Please read this manual carefully prior to use of the product. Operation must be done strictly following the instructions stated in this manual. Please consult your â 3 dealer or visit our website www.elderaudio.com for detailed information when you have any questions.

  • Page 3: Precautions P1

    1.PRECAUTIONS Do not remove the cover to avoid high voltage hazard. Please refer servicing to qualified personnel. Do not explore the unit to rain or moisture. Do not block the ventilation of the unit to ensure cooling efficiency. Check whether the local voltage is identical with the operating voltage of the unit. Please disconnect the unit from the power supply when it is not to be used for a long time.

  • Page 4: Technical Specifications P2

    3.TECHNICAL SPECIFICATIONS OF E200 200W Stereo mode 300W 200W Rated power Parallel mono mode 300W 400W Bridged mono mode 600W <0.05%(10% rated power <0.1%(60Hz/7KHz,10% rated power Intermodulation distortion 20Hz~20KHz(+0/-0.25dB) Frequency response < 15 Phase deviation Damping factor >800(8 /100Hz) - 75dB Crosstalk >108dB(A weight) S/N ratio...
  • Page 5 3.TECHNICAL SPECIFICATIONS OF E300 300W Stereo mode 500W 300W Rated power Parallel mono mode 500W 600W Bridged mono mode 1000W <0.05%(10% rated power <0.1%(60Hz/7KHz,10% rated power Intermodulation distortion 20Hz~20KHz(+0/-0.25dB) Frequency response < 15 Phase deviation Damping factor >800(8 /100Hz) - 75dB Crosstalk >108dB(A weight) S/N ratio...
  • Page 6 3.TECHNICAL SPECIFICATIONS OF E500 500W Stereo mode 800W 500W Rated power Parallel mono mode 800W 1000W Bridged mono mode 1600W <0.05%(10% rated power <0.1%(60Hz/7KHz,10% rated power Intermodulation distortion 20Hz~20KHz(+0/-0.25dB) Frequency response < 15 Phase deviation Damping factor >800(8 /100Hz) - 75dB Crosstalk >108dB(A weight) S/N ratio...
  • Page 7 3.TECHNICAL SPECIFICATIONS OF E800 800W Stereo mode 1300W 800W Rated power Parallel mono mode 1300W 1600W Bridged mono mode 2500W <0.05%(10% rated power <0.1%(60Hz/7KHz,10% rated power Intermodulation distortion 20Hz~20KHz(+0/-0.25dB) Frequency response < 15 Phase deviation Damping factor >800(8 /100Hz) - 75dB Crosstalk >108dB(A weight) S/N ratio...

  • Page 8: Installation Diagram

    4.INSTALLATION DIAGRAM E800/E500/E300: 376mm 371mm 465.7mm 360.5mm E200: 310mm 302.5mm 298mm 292.5mm...

  • Page 9: Front Panel

    8 1 000W 4 1 600W2 CHB OUTPUT BRIDGE: 16 2 000W 8 3 200W ELDER AUDIO MANUFACTORY 1.Channel 1 signal input (XLR connector) 8.Channel 2 signal input (XLR connector) 2.Channel 1 signal input (1/4 mic socket) 9.Channel 2 signal input (1/4 mic socket) 3.Work mode switch...

  • Page 10: Power Supply

    7.POWER SUPPLY Before connecting the power amplifier to the power supply, check whether the operating voltage (AC 220V~230V, 50~60Hz) is identical with your local power supply and confirm that neither the power supply socket nor the power cord is damaged. Remember to pull the cord plug out of the outlet when the unit is turned off.

  • Page 11: Function Setting And Signal Connection

    9.FUNCTION SETTING AND SIGNAL CONNECTION 1. Setting of clip limiter switch When the switch is in OFF position, the clip limiter is turned off and the limiter circuit is out of function. Excessive signal input in such situation will easily cause clipping distortion in output signal and loudspeaker overloading.
  • Page 12 9.FUNCTION SETTING AND SIGNAL CONNECTION When the low cut switch is turned to 5Hz position, all 50HZ signals within the frequency range will be amplified 25HZ accordingly, as shown in the right diagram. 40 50 60 80 100 300 400 500 1.

  • Page 13: Operation Steps

    10.OPERATION STEPS Please follow the operation steps below when using the equipment. 1. Start the equipment a.Set functions and do connection in accordance with the detailed information described in item 9. b.Check whether the output connection is short-circuited and the load impedance is too low. c.Check whether the local voltage is identical with the operating voltage.

  • Page 14: Troubleshooting

    13.TROUBLESHOOTING Description of failures Troubleshooting guide Check whether the power plug of the unit and the power supply socket are in bad contact. There is no sound. The Check whether there is AC 220V/230V 50Hz/60Hz voltage power supply indicator is off. output from the power supply socket.
  • Page 15 User M anual E SERIES PROFESSIONAL POWER AMPLIFIER www.elderaudio.com...
