Model Numbers / Nos. de Modelos:
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS. AND SAVE FOR LOCAL GAS AND ELECTRICAL INSPECTOR'S USE.
Avanti Products has a policy of continuous improvement on its products and reserves the right to change materials and
specifications without notice.

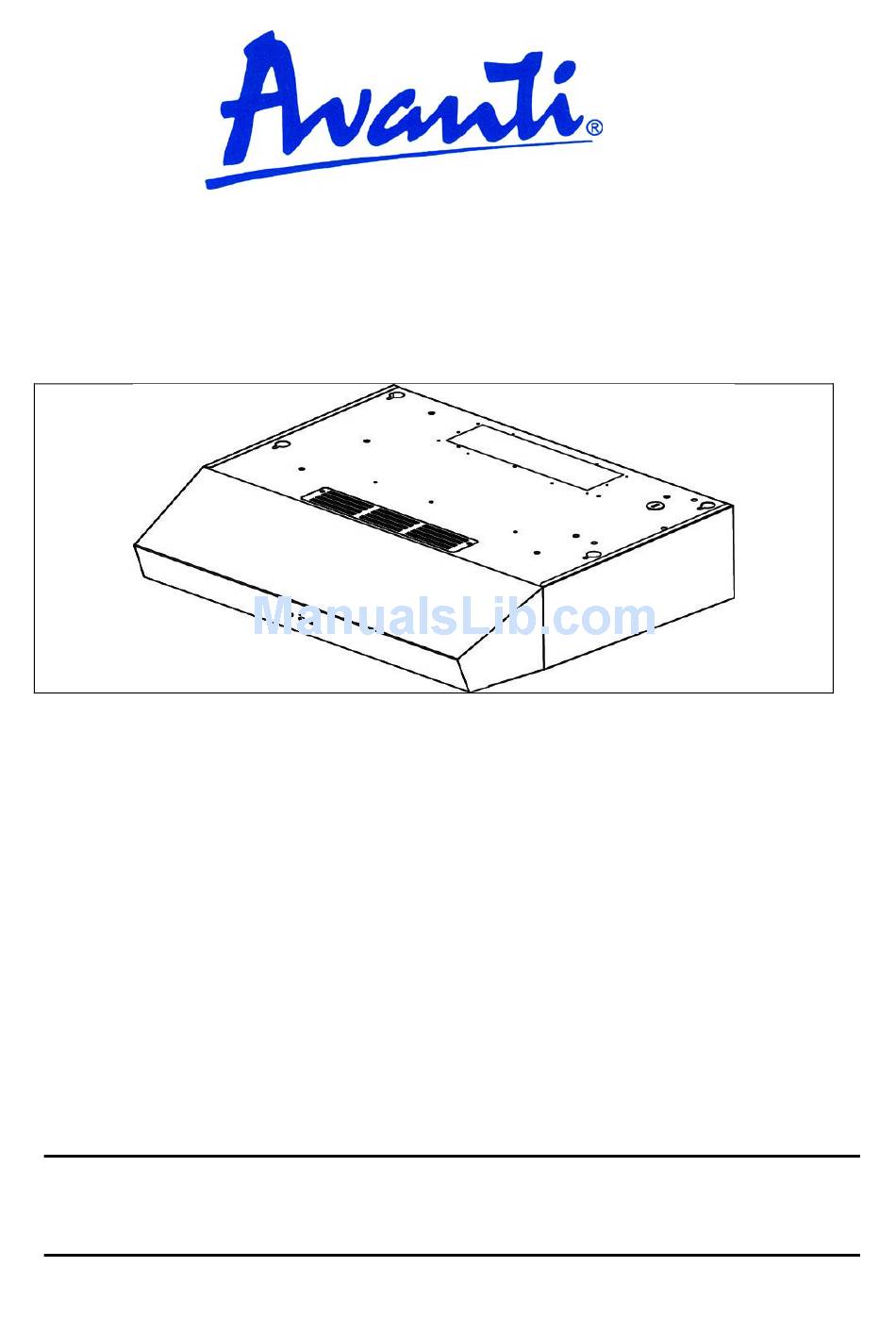

INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
Range Hood
RH24P0W
RH24P3S
Avanti Products LLC
P.O. Box 520604 - Miami, Florida 33152
www.avantiproducts.com
Advertisement
Table of Contents
Related Manuals for Avanti RH24P0W
Summary of Contents for Avanti RH24P0W
- Page 1 BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. AND SAVE FOR LOCAL GAS AND ELECTRICAL INSPECTOR’S USE. Avanti Products has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.
-
Page 2: Table Of Contents
Before Using Your Range Hood Operating Your Range Hood Important Precautions and Recommendations Installation - Mounting Installation - Product Specifications Installation- Electrical and Ducting 13 - 16 Care and Maintenance Troubleshooting Guide Service for Your Range Hood Your AVANTI Products Warranty Avanti Registration Card... -
Page 3: Range Hood Safety
IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. All safety messages will alert you what the potential hazard is, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed. -
Page 4: Important Safe Guides
• Replacement Parts – Only authorized replacement parts may be used in performing service on the range hood. Replacement parts are available from factory authorized parts distributors. Contact the nearest Avanti service center in your area. -
Page 5: Help Us Help You
Please write these numbers here: If you don't understand something or you need more assistance, please call: ____________________________________ Date of Purchase Avanti Customer Service 800-220-5570 ____________________________________ Model Number Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period. -
Page 6: Parts And Features
PARTS & FEATURES Control Panel LED Light Bulbs (2) Removable / Cleanable Mesh Air Filters (2) CONTROL PANEL Power ON/OFF Button (Red indicator Light) Fan Speed Selector Button (Blue indicator light) Fan Speeds: OFF / High / Medium / Low Light ON / OFF Selector Button (Blue indicator light) Light modes: OFF / High / Low... -
Page 7: Electrical Requirements
ELECTRICAL REQUIREMENTS WARNING All electrical work must be performed by a qualified electrician or person with similar technical knowhow and background. For personal safety, remove house electrical fuse or open circuit breaker before beginning installation. DO NOT USE EXTENSION CORD OR ADAPTER PLUG WITH THIS APPLIANCE. -
Page 8: Before Using Your Range Hood
Before Using Your Range Hood √Remove the exterior and interior packing. √Remove the protective film on steel and aluminum parts √Check to be sure you have all of the parts listed below ● (1) Range Hood ● (2) Aluminum Mesh Filters(Pre-installed) ●... -
Page 9: Operating Your Range Hood
OPERATING YOUR RANGE HOOD GENERAL OPERATION Power ON / OFF: Press this button to turn the power ON or OFF. When the power is turned on a red indicator light will be seen above the button. Fan Speed selector button: After turning the power on, press this button to select the desired fan speed. -
Page 10: Important Precautions And Recommendations
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS √ After having unpacked the appliance, check to ensure that it is not damaged. In case of doubt, do not use it and consult your supplier or a professionally qualified technician. √ Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should not be left around within easy reach of children, as these may cause serious injuries. -
Page 11: Installation - Mounting
INSTALLATION – MOUNTING MOUNTING Minimum mount height between range top to hood bottom should be no less than 24” (inches). Maximum mount height should be no higher than 32” (inches). It is important to install the hood at the proper mounting height. -
Page 12: Installation - Product Specifications
INSTALLATION – PRODUCT SPECIFICATIONS View Side View Back View... -
Page 13: Installation- Electrical And Ducting
INSTALLATION – ELECTRICAL AND DUCTING Preparation – General – Non-Ducted – Recirculation Kit Use the follow steps to set up and install your range hood using the recirculation kit (sold separately). 1) Remove the filters 2) Remove the cover from the junction box and access the electrical wiring. 3) If using a cable lock (not provided) pry open the desired electrical knockout (either on the top or the back panel). - Page 14 Step 6. Attach the spring clips (2) to the safety grille body by inserting the screw through the Step 7. Insert the charcoal filter into spring and into the clip. Then secure each clip the filter assembly and place it over to the safety grille using a Phillips head the safety grille body.
- Page 15 Preparation – General – Ducted Installation Start from Step 1-4 Step 5. Find the accessories for ducting installation Step 6.Remove the recirculating panels. Step 7. Install the two arced plates to the unit and then install the recirculating panels removed from step 6.
- Page 16 Step 9. Insert the blocking plate and replace the cover. Step 10. Pry open the desired 3¼” x 10” ducting knock out (either on the top or the back panel), then attach the 3¼” x 10” starting collar with damper to the duct opening exposed. Final Installation.
-
Page 17: Care And Maintenance
CARE & MAINTENANCE WARNING: GENERAL RECOMMENDATION SWITCH OFF THE ELECTRIC SUPPLY BEFORE MAINTENCE ALUMINUM MESH FILTERS (MAINTENANCE) The filters are made of an aluminum mesh material and are designed to trap residue and grease while cooking. The filters should never need to be replaced while they are maintained correctly. You will need to clean the filters at least once every 30 days or when needed depending on your normal cooking habits. -
Page 18: Troubleshooting Guide
We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti appliances. With the purchase of your Avanti appliance, you can have the confidence that if you ever need additional information or assistance, the Avanti Products Customer Service team will be here for you. -
Page 19: Your Avanti Products Warranty
F. Repairs when your range hood is used in other than normal, single-family household use. AVANTI PRODUCTS SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation may not apply to you. -
Page 20: Avanti Registration Card
Registration Information Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the following address within 100 days from the date of purchase and receive these important benefits: Avanti Products, LLC. P.O.Box 520604 – Miami, Florida 33152 ... - Page 21 PRINTED IN CHINA RH24P0W / RH24P3S – 01-05-2015...
