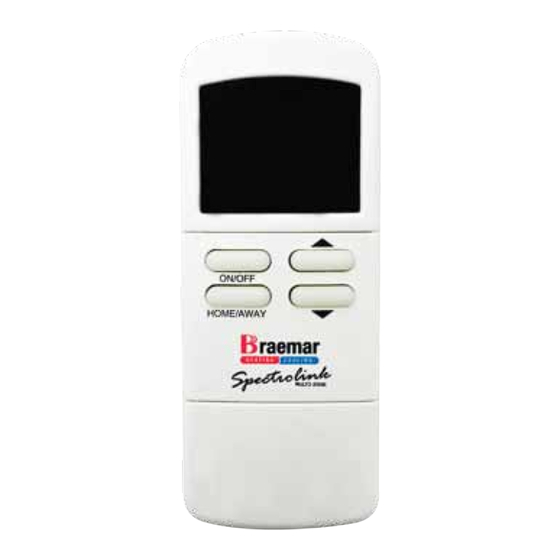

- Page 1 HOME OWNER’S MANUAL DUCTED GAS HEATER (with Spectrolink Comfort Control) (English) (623528m Version 23-09-14)
-
Page 2: Important Safety Information
If you are unsure how to find, remove, and clean the return air filter, then please contact your local Braemar Dealer or your installer. Cleaning the return air filter regularly will help to keep the heater running efficiently. An inefficient heater results in higher gas bills. You will also have to pay the costs of any service call associated with a failure to clean the return air filter. -
Page 3: Table Of Contents
HEATING HEATER OPERATION This section of the manual covers operation of your Braemar TH or THM series gas ducted heater using your Spectrolink Comfort Controller/s (SCC) - note that some functions are not available with 3 star models. Turn the manual over for instructions on operation of a Braemar, Breezair or Coolair evaporative cooler, or operation of a refrigerated cooling system. -
Page 4: Quick Start - Manual Operation
5 SET and the day display will flash. Set time 6 Press the UP or DOWN arrow button to adjust to the current day. 7 Press the SET button when the day is correct to return to normal operation. Set day Spectrolink Comfort Control... -
Page 5: Button Functions
HEATING BUTTON FUNCTIONS DOOR CLOSED ON/OFF UP ARROW AUTO HEAT Turns SCC on or off. Increase temperature set-point. HOME HOME/AWAY ON/OFF DOWN ARROW Toggles between Decrease temperature HOME/AWAY current and next time set-point. period. UP ARROW RESET Press to increase Press once to acknowledge fault value in setting signal and turn heater off. -
Page 6: Display Features
• SET is displayed flashing with another segment to indicate the item being set or adjusted. RESET • RESET is displayed flashing (along with a number in the time display) when the control system has detected a fault. Spectrolink Comfort Control... - Page 7 • Note: This SCC is hard-wired to the heater and does not use batteries. • Service call required. Contact your local Braemar dealer or contact Braemar Service on 1300 650 644. • ON indicates that the SCC has been turned on to operate the heater or cooler (where installed).
-
Page 8: Manual Mode Operation
Adjusting the Room Temperature 1 Increase set temperature: Press the UP arrow to increase set temperature by 1 2 Decrease set temperature: Press the DOWN arrow to decrease set temperature by 1 Spectrolink Comfort Control... -
Page 9: Auto Mode Operation
HEATING AUTO MODE OPERATION • When operating in AUTO mode the Adjusting the Room heater will automatically turn on and Temperature off to maintain the programmed 1 The set temperature can be temperature. temporarily adjusted while operating • The SCC will automatically advance in AUTO mode. -
Page 10: Setting The Auto Program - Single Scc
15ºC • 5.00pm: HOME period starts, heater will turn on/off as required to maintain a temperature of 21ºC • 10.30pm: SLEEP period starts, heater will turn on/off as required to maintain a temperature of 15ºC Spectrolink Comfort Control... - Page 11 HEATING SETTING THE AUTO PROGRAM - SINGLE SCC Enter Program Setting Mode 2 Press SET when required temperature is displayed. 1 Press the ON/OFF button to turn the Set WAKE period zones (where fitted): SCC ON. 1 Where zones have been fitted (and 2 Press the SET button and hold for 3 enabled by theinstaller when setting seconds (the SCC will enter...
-
Page 12: Setting The Auto Program - Multiple Scc's
(6:00am) (24) (6:00am) (24) (6:00am) (24) (6:00am) (24) WAKE (8:30am) (28) (8:30am) (28) (8:30am) (28) (8:30am) (28) AWAY COOL (5:00pm) (24) (5:00pm) (24) (5:00pm) (24) (5:00pm) (24) HOME (10:30pm) (28) (10:30pm) (28) (10:30pm) (28) (28) (10:30pm) SLEEP Spectrolink Comfort Control... - Page 13 HEATING SETTING THE AUTO PROGRAMS - MULTIPLE SCC'S Enter Program Setting Mode 2 Press the ON/OFF button on the "Master" SCC. The "Master" SCC 1 Press the ON/OFF button on the must be ON to enable "Slave" "Master" SCC. The "Master" SCC controls to be turned ON.
-
Page 14: Adjusting The Fan Speed
USING THE FAN-ONLY Fan-only display with FEATURE zones 1, 2 and 3 on - single SCC with ZONE Single SCC Systems zones, or multiple SCC system. 1 Turn the SCC OFF (press ON/OFF Spectrolink Comfort Control... -
Page 15: Troubleshooting
HEATING TROUBLESHOOTING Resetting a Fault Your Braemar gas ducted heater uses inbuilt fault diagnosis software to help • If RESET is flashing and a fault code determine the source of a fault. If a is displayed: fault is detected the heater will turn off. - Page 16 • Check time, temperature, zones and fan speed settings in the AUTO program. PROBLEM: Heater does not start - fault code 07 displayed • Check that gas is turned on at gas meter. If the gas is turned off contact your installer or gas supplier. Spectrolink Comfort Control...
-
Page 17: Maintenance Schedule
It is a condition of your warranty cover that the items in the Schedule below are checked (and action taken as required) every two (2) years after the date of installation by a qualified, licenced technician, and that the Schedule is properly filled out (ie names, signature, date, and action taken). -
Page 18: Notes
NOTES Spectrolink Comfort Control... - Page 19 HOME OWNER’S MANUAL Spectrolink Comfort Control - Cooling (English) (623528m Version 23-09-14)
- Page 20 This manual tells you how to use your Spectrolink Comfort Control to operate your Braemar, Breezair or Coolair evaporative cooler. If you purchased a Braemar refrigerated cooling unit, then it also has a section on how to use the Spectrolink Comfort Control to operate your refrigerated cooling unit.
- Page 21 Please take a few minutes to read these instructions so you have a full understanding of how to operate your cooler using your Spectrolink Comfort Control. Your installer should demonstrate the features and procedures set out in these instructions.
- Page 22 7 Press the SET button when the day COOL COOL is correct to return to normal operation. COOL mode selected. COOL mode selected. HEAT Manual selected. AUTO selected. Cooler on in Cooler on in COOL VENTILATION mode. mode. SCC OFF Set time Set day Spectrolink Comfort Control...
- Page 23 EVAPORATIVE COOLING BUTTON FUNCTIONS DOOR CLOSED UP ARROW - Press to increase fan ON/OFF speed in MANUAL COOL Turns SCC on or off. mode. - Press to increase cooling output in AUTO mode. DOWN ARROW HOME/AWAY ON/OFF - Press to decrease fan Not used in evaporative HOME/AWAY speed in MANUAL...
-
Page 24: Manual Operation
2 Pump ON - evaporative cooling mode. 3 Pump OFF - ventilation only mode. 4 With the pump turned on the SCC will flash WAIT at the start of a cooling cycle while waiting for the Spectrolink Comfort Control... -
Page 25: Timed Start And Stop
EVAPORATIVE COOLING TIMED START AND STOP The SCC can be set to start and stop your evaporative cooler at times that you select. The cooler can be operated in either: • MANUAL mode - cooling or ventilation, or • AUTO mode - cooling only. With the SCC turned OFF, open the door and press (but don't... -
Page 26: Automatic Water Drain
The drain is activated by the following not installed. conditions: • High water salinity (standard on Braemar and Breezair models only), • Pre-set auto-drain time period has expired (standard Coolair models), • If the cooler is turned off for a continuous 72 hours (3 days), or •... -
Page 27: End Of Season Maintenance
EVAPORATIVE COOLING MAINTENANCE Draining water from your cooler at the 7 Thoroughly clean the tank and end of the summer season is not pump filter, DO NOT replace the required if your cooler is fitted with an bleed system. automatic drain valve system. However 8 Refit the pad frames. - Page 28 EVAPORATIVE COOLING TROUBLESHOOTING Before requesting a service call please run through the simple checks in the following "Troubleshooting" section. If required, call Braemar Service on 1300 650 644. CAUSE REMEDY PROBLEM: Unpleasant odour • Some odour from new cooler pads is normal. Allow time for the pads to be conditioned by running the cooler.
- Page 29 NOTES SEELEY INTERNATIONAL – HOME OWNER’S MANUAL...
- Page 30 REFRIGERATED COOLING - GENERAL Your refrigerated cooling system has been installed in conjuction with your Braemar Ecostar gas ducted heater. The cooling system utilises the heater fan and uses the same ducting as the heater to distribute cool air throughout your home.
- Page 31 REFRIGERATED COOLING BUTTON FUNCTIONS DOOR CLOSED ON/OFF UP ARROW COOL Turns SCC on or off. Increase temperature set-point. HOME HOME/AWAY ON/OFF DOWN ARROW Toggles between Decrease temperature current and next time HOME/AWAY set-point. period. RESET UP ARROW Not used in Press to increase value in refrigerated cooling setting modes, or to...
- Page 32 - this is temperature. to prevent damage to the compressor. 2 When AWAY is selected, adjust to the required "AWAY" set Turning the Cooler OFF temperature. 1 Press the ON/OFF button. 3 Press HOME/AWAY to switch between these settings. Spectrolink Comfort Control...
- Page 33 REFRIGERATED COOLING AUTO MODE OPERATION • When operating in AUTO mode the Turning the Cooler OFF cooler will automatically turn on and 1 Press the ON/OFF button. off to maintain the programmed temperature. • The display will revert to OFF mode.
- Page 34 3 To get air flow to zones press the ON/OFF button on the"Slave" SCC IN EACH REQUIRED ZONE to turn it on. • The fan speed is not adjustable in "FAN-only" mode. Spectrolink Comfort Control...
- Page 35 REFRIGERATED COOLING TROUBLESHOOTING CAUSE REMEDY PROBLEM: House is not heating effectively • Check that SCC is set to required temperature - decrease if required. Temperature set point must be less than the room temperature sensed by the SCC for the cooler to operate. •...
- Page 36 NOTES Spectrolink Comfort Control...
Need help?
Do you have a question about the Spectrolink and is the answer not in the manual?
Questions and answers
I need manual for heating and cooling
I need the manual for my heating and cooling unit
The manual for the Braemar Spectrolink heating and cooling system is included in the provided context. It contains instructions for operating the Braemar TH or THM series gas ducted heater and the Braemar, Breezair, or Coolair evaporative cooler, as well as a refrigerated cooling system.
This answer is automatically generated

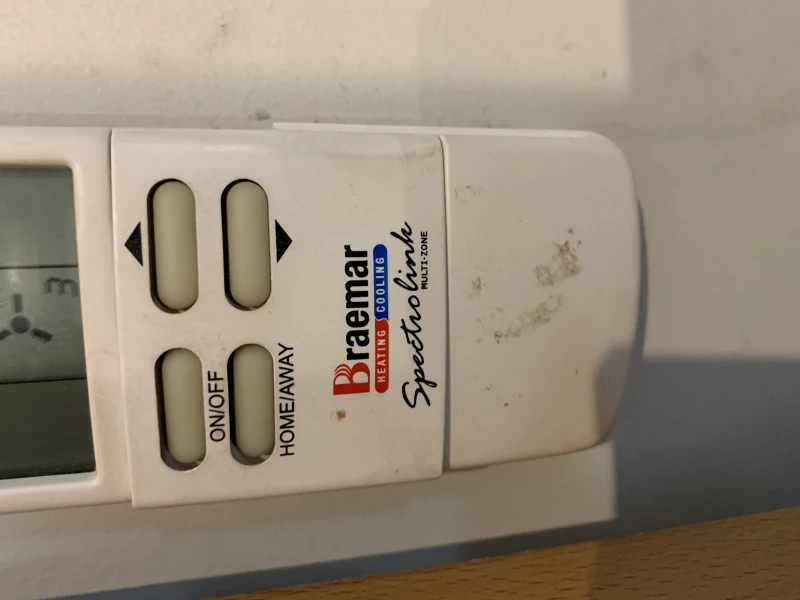

Hi. We moved into a house that has the breakage heating system. I can’t seem to adjust the fan speed on the control. It won’t budge, I am holding down for 3 seconds. How can I fix this?
