Setek CMQ1862X Operating Instructions

Color Dome Camera
o p e rating inst r u c t ion
This is the high resolution dome camera eqiupped with the most advanced DSP technology and
features humanization design.
1) built-in 3 axis bracket 2)BLC,AGC,AES,MIRROR funtion 3)automatic switching between
color and B/W mode
2) built-in IR LED
Power: DC12V
Low consunption
Day/night function
DNR (Digital Noise Reduction)
Mirror function
Super low power consumption
SR50mm
128mm
Overview
Feature
Auto white balance
HLC/BLC
Varifocal lens
Built-in 3-axis bracket
Dimensions

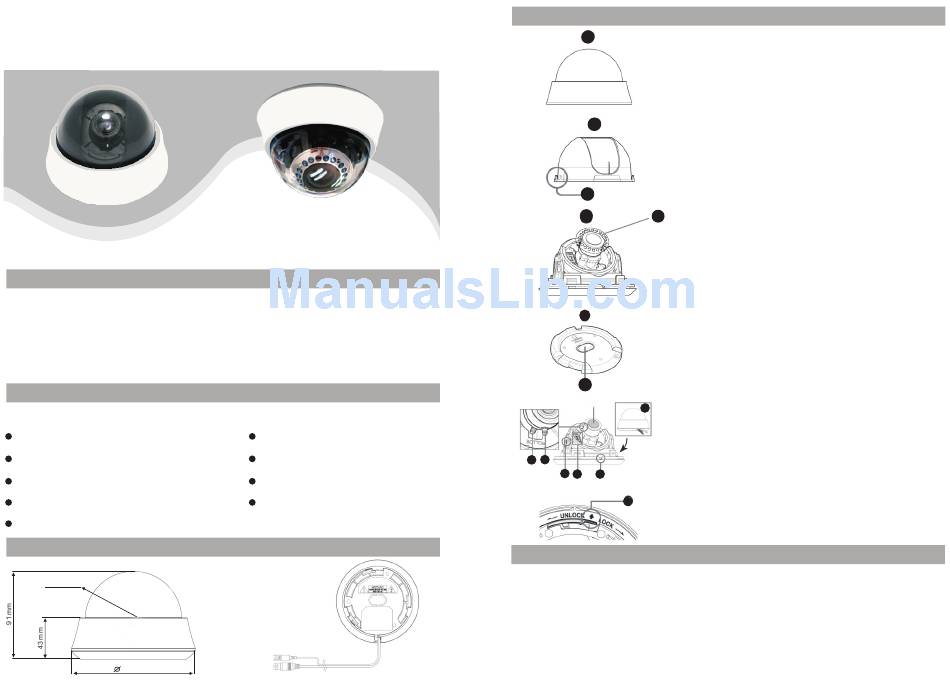

Components of your camera
Your camera has the following components:
1
1. Cover dome: Covers the inner cover, lens, and main
body to protect them.
2. Inner cover: Covers the main body to protect it.
3. Wing locker: Push a long thin screwdriver into its
narrow spot and press it outward when you want to
remove the inner cover.
2
4. Main body: Includes a lens, a switch board, a PCB
board, screws, and such.
5. IR Leds.
6. Mount bracket: Used as a ceiling or wall fixture. It
ENG is fixed using three long tab screws provided in
3
the package.
4
5
7. Ceiling mount opener: Remove it for line connection
to the ceiling when it is installed on the ceiling.
8. Zoom lever: Using this lever, the lens zoom can be
adjusted and fixed.
9. Focus lever: The lens focus can be adjusted by
rotating it left or right. Rotate it clockwise for fixing.
10.Tilt fixing screw: Using this screw, the slope of the
6
lens can be adjusted and fixed.
11.Switch board: Includes two kinds of control switches
such as function switches and phase-control switches.
The board has eight function switches in the middle
and two phase-control buttons on each side of the
7
function switch area.
12.Groove mark: To attach the Main body to the Mount
Lens
13
bracket, align this groove mark on the Main body
with the wide groove in the CAMERA FRONT side
on the Mount bracket.
13.Locker: Used to open or close the Cover dome.
8 9
To open the cover dome, press the locker.
10 11 12
14.Lock releaser: Push it outward and rotate the main
body in UNLOCK direction when you want to
14
remove the Mount bracket from the Main body or to
remove the installed camera from the Mount bracket.
Setting switches
