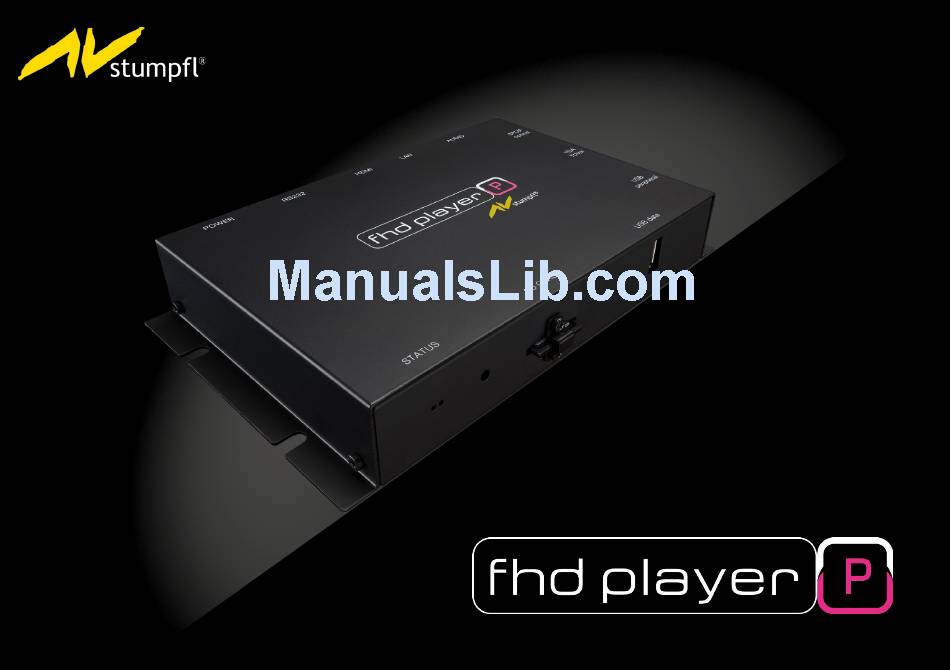

AVstumpfl fhd player P Quick Start Manual

Digital signage player

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

QUICK START GUIDE

Table of Contents

Need help?

Do you have a question about the fhd player P and is the answer not in the manual?

Questions and answers

Summary of Contents for AVstumpfl fhd player P

Page 2 Digital Signage solutions and network technology. Please read the entire quick guide very carefully. Please, read also the User Manual for save and proper usage. Further information and the User Manual can be found at : www.AVstumpfl.com/FHDplayer...
Page 3: Table Of Contents
Table of content S. 4 Product Specification S. 4 Technical data S. 5 Scope of delivery S. 5 Ambient conditions and safety information S. 5 Files on SDHC card on delivery S. 6 Ports and components S. 8 Quick Start S.
Page 4: Product Specification
Product Specification Article number: SCV-FHD The FHD Player is a syncable media player for playback of all current video and audio formats. It supports full HD resolution, seamless loop operation and network integration. Additionally, it also features various external control options (e.g.
Page 5: Scope Of Delivery
Scope of delivery Files on SDHC card on delivery 9 FHD Player 9 Sample media files (01.mp4 / 02.mp4 / 03.mp4) 9 12V Mains adapter/1.25A 9 Initialization file (FHDPlayerSetting.ini) 9 SDHC Card 8 GB 9 Sample playlist (PLAYLIST.txt) 9 Quick Start Guide 9 User Manual (User Manual.pdf) Ambient conditions and safety information Description...
Page 6: Ports And Components
Ports and components 1 AUDIO Cinch port for analog audio transfer 2 LAN Port for network cable connection (data transfer rate 100 Base-T) 3 HDMI Port for output devices for digital image and audio transfer (e.g. monitor, TV, projector) 4 RS232 Serial communication interface for control purposes 5 POWER Mains adapter port, DC polarity...
Page 7 6 STATUS Status indication (red = booting, green = ready) 7 SD Card SD card slot 8 USB data USB port for data carriers 9 USB peripheral USB port for peripheral devices 10 VGA YPbPr Port for analog image transmission 11 SPDIF optical Port for digital audio transmission...
Page 8: Quick Start
Quick Start Unpack the FHD Player. ƒ Remove the SD card slot cover (7). ƒ Using the mains adapter connect the FHD Player to the mains supply. ƒ Via the HDMI port (3) connect an output device to the FHD Player. ƒ...
Page 9: Network Connection
Network connection If you would like to use several FHD Players in a network you need to assign individual IP addresses to each FHD Player first. The IP address can be changed in the SD card initialization file. The FHD Player is preconfigured for [IP] 10.20.30.1, [Subnet] 255.0.0.0 and [Gateway] 10.0.0.253. Using a network cable connect the FHD Player to the network via the LAN port (2).
Page 10: Sync Mode
Sync Mode For Sync Mode all FHD Player media files must have the same playing time. The media files must contain audio tracks. The playlists of all FHD Players must be harmonized or deleted. The FHD Players must be integrated into the network. For every group to be synced only one master must be used.
Page 11: Selecting The Output For An Output Device
Repeat Selected: One media file selected via external control is played in an endless loop until a new media file is selected. Now plug the SD card into the FHD Player. ƒ The selected loop mode is now performed. Selecting the output for an output device Connect an output device to the desired output.
Page 12: Rs232 Control
RS232 control The RS232 interface can be used for sending control commands to the FHD Player. Preconditions for control via the RS232 interface: Data transfer: 9600 Baud, asynchronous Data bits: 8 Parity bit: None Stop bit:1 Via the RS232 interface connect the FHD Player to the control device (e.g. PC). ƒ...
Page 13: Udp Control
UDP Control You can send UDP commands via the network protocol in order to control the FHD Player. Set up the FHD Player correctly as part of your network. ƒ The FHD Player is preconfigured for UDP Port 4950. If this port is already in use assign a free UDP port in ƒ...
Page 14: 2-Button Gpio Mode
2-button GPIO mode The FHD Player can be controlled via the RS232 interface and two buttons. Standard assignment: Pushbutton 1 for jumping one media file forward, Pushbutton 2 for jumping back one media file. Fig.: Circuit diagram for two buttons at RS232 Connect the buttons in accordance with the circuit diagram.
Page 15 Sample playlist for 2-button GPIO mode. The standard key assignment must be disabled for every item via entry KeyOff in file PLAYLIST.txt. The desired key must be assigned to every ITEM. [ITEM 1] File=01.mp4 (Media file 01.mp4 is assigned to ITEM 1) Displaytime=-1 (-1 = still image with an unlimited playing time) KeyOff...
Page 16 AV Stumpfl GmbH I 4702 Wallern I Mitterweg 46 I Austria AVstumpfl@AVstumpfl.com I www.AVstumpfl.com/FHDplayer tel.: +43 (0) 7249 / 42811 I fax: +43 (0) 7249 / 42811-4...
