Summary of Contents for Cootrack Africa TR02
-

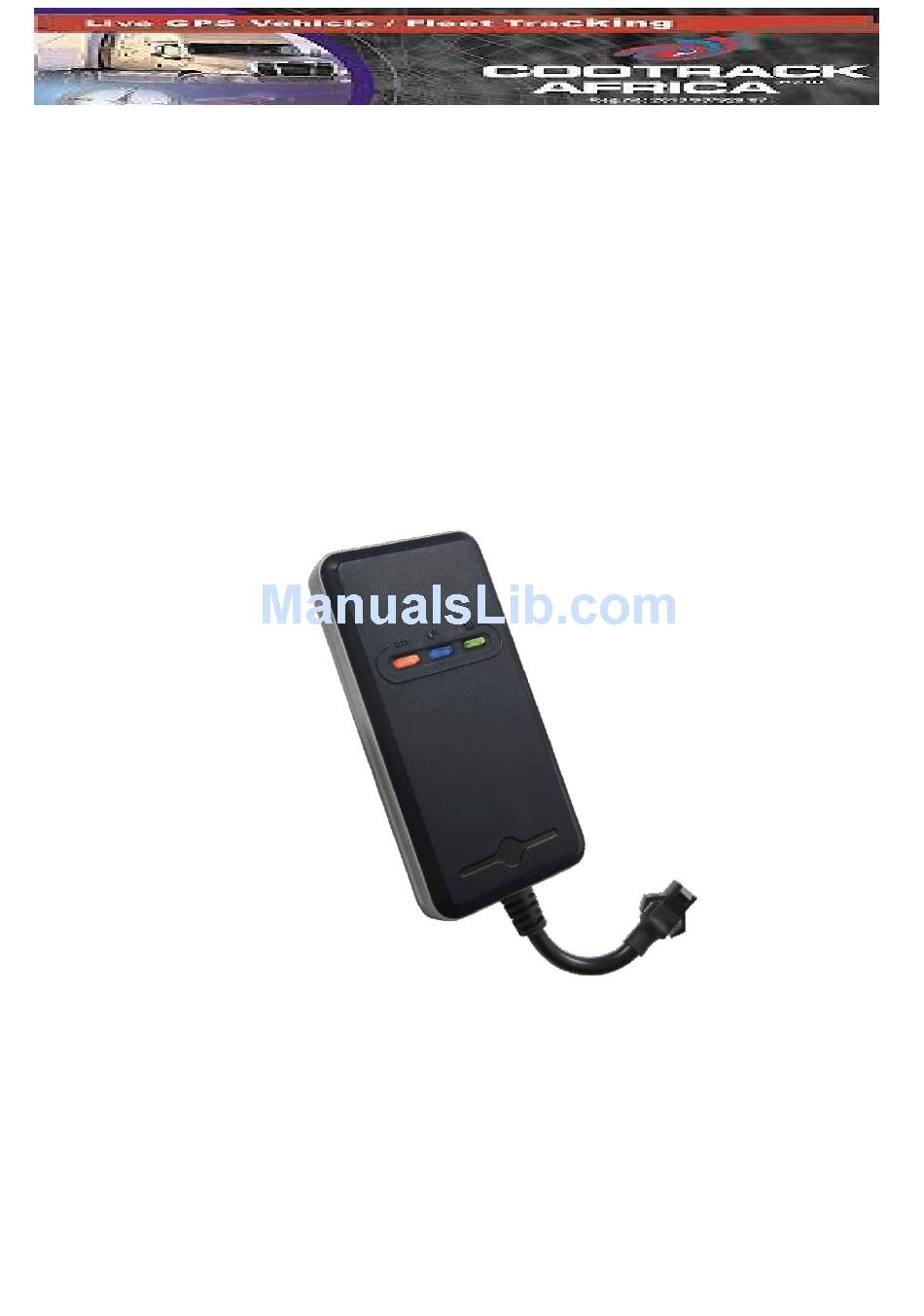

Page 1: User Manual
GPS Vehicle Tracker TR02 User Manual ( Version 1.0E ) World Wide Web www.cootrackafrica.co.za... - Page 2 Using this manual This user manual has been specially designed to guide you through the functions and features of your TR02. Instructional icons Before you start, familiarize yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your device or other...
- Page 3 securely mounted. Avoid placing your device and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of devices and chargers with care • Use only Concox-approved chargers specifically designed for your device. Incompatible chargers can cause serious injuries or damage to your device.
- Page 4 Important usage information Use your device in the normal position Avoid contact with your device’s internal antenna. Allow only qualified personnel to service your device Allowing unqualified personnel to service your device may result in damage to your device and will void your warranty. Handle SIM cards with care •...
- Page 5 Popular Uses: Fleet Management - Track your fleet easily. View up to 10,000 units from a single map. Investigators and Law Enforcement - Get the real-time location evidence you need. Vehicle Owners - Use for vehicle theft and recovery efforts. Features and Benefits: No Battery Life Concerns - The unit is hardwired to your vehicle's battery.

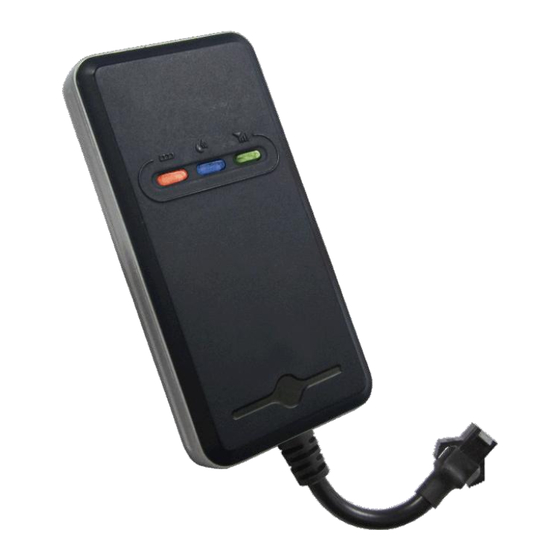

- Page 6 Introducing your TR02 Learn about your device’s layout, indications and specifications. 1. Inside the Box Check your product box for the following items: Device Charging Cable 12V Cigarette Lighter Power Adaptor User Manual 2. TR02 Overview...
-
Page 7: Specifications
GPS indicator (blue) Indication Quick Flashing (0.1s on, 0.1s off) Searching GPS signal Solid blue GPS fixed No GPS fixed or initializing GSM indicator (green) Indication Quick flashing (0.1s on, 0.1s off) GSM initializing Flashing (0.1s on, 2s off) GSM signal received. Solid green Connected to GPRS network No GSM signal... -
Page 8: Getting Started
4. Getting Started Get started by assembling and setting up your device for its first use. To remove the back cover: Firmly hold the device with both hands and the front panel facing down. Push the back cover up with your thumbs until it disengages from the device ... - Page 9 Make sure there is enough credit on the SIM card. If you will be using the GPRS function, you should pay attention to the current SIM card GPRS charge. 4.2 Charge the device (Covert installation) Plug the device connector into a charging cable. The charging cable with 2A FUSE for short-circuits over current protection.
- Page 10 3. Turn on the vehicle. The adaptor will automatically draw power from the cigarette lighter. 4 Connect the device to the adapter. The equipment now turns on, just as it does with a standard electrical outlet. The cigarette lighter power adaptor with 2A FUSE for short-circuits over current protection.
-
Page 11: Quick Operation Instructions
- Under the dash board below the front windshield; - In the parcel shelf in the rear; - In the front bumper (non-material face), make sure the device does not get wet; - Under the wiper version (non-metal), make sure the device does not get wet; - Non Covert Installation - fix the device on the dash board below windshield. - Page 12 Example: APN,666666,CLENTE# or APN,666666,CLENTE,AMENA# An automatic reply OK will be sent in one minute if setup is successful. 5.2 Change password The default password is 666666. Change password by sending SMS command to the device as follows: PASSWORD,old password (6 numbers),new password (6 numbers)# Example: PASSWORD,666666,999999# An automatic reply OK will be sent in one minute if setup is successful.
-
Page 13: Troubleshooting
6. Troubleshooting If you are having trouble with your TR02, try these troubleshooting procedures before contacting a service professional. Problems Causes Solutions Red LED does not work when The fuse blows Replace the fuse power connected Check SIM card installation... - Page 14 parties by means of networks and transmission facilities over which Concox has no control. Without limiting the generality of this disclaimer, Concox expressly disclaims any responsibility or liability for any interruption or suspension of any content or service made available through this device. Concox is neither responsible nor liable for customer service related to the content and services.
