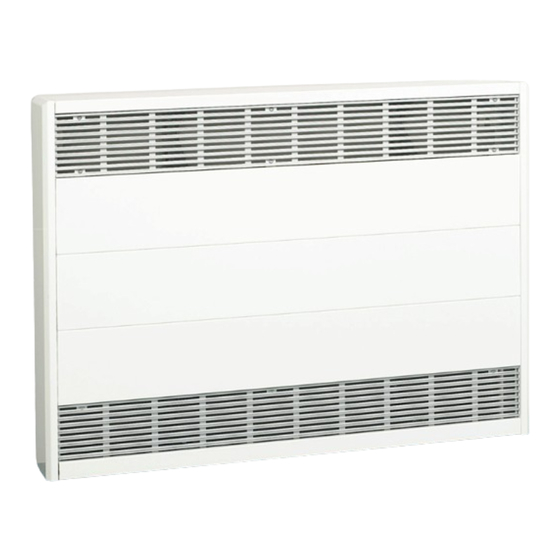

Summary of Contents for Autron SOVEREIGN STYLE ‘D’ LST

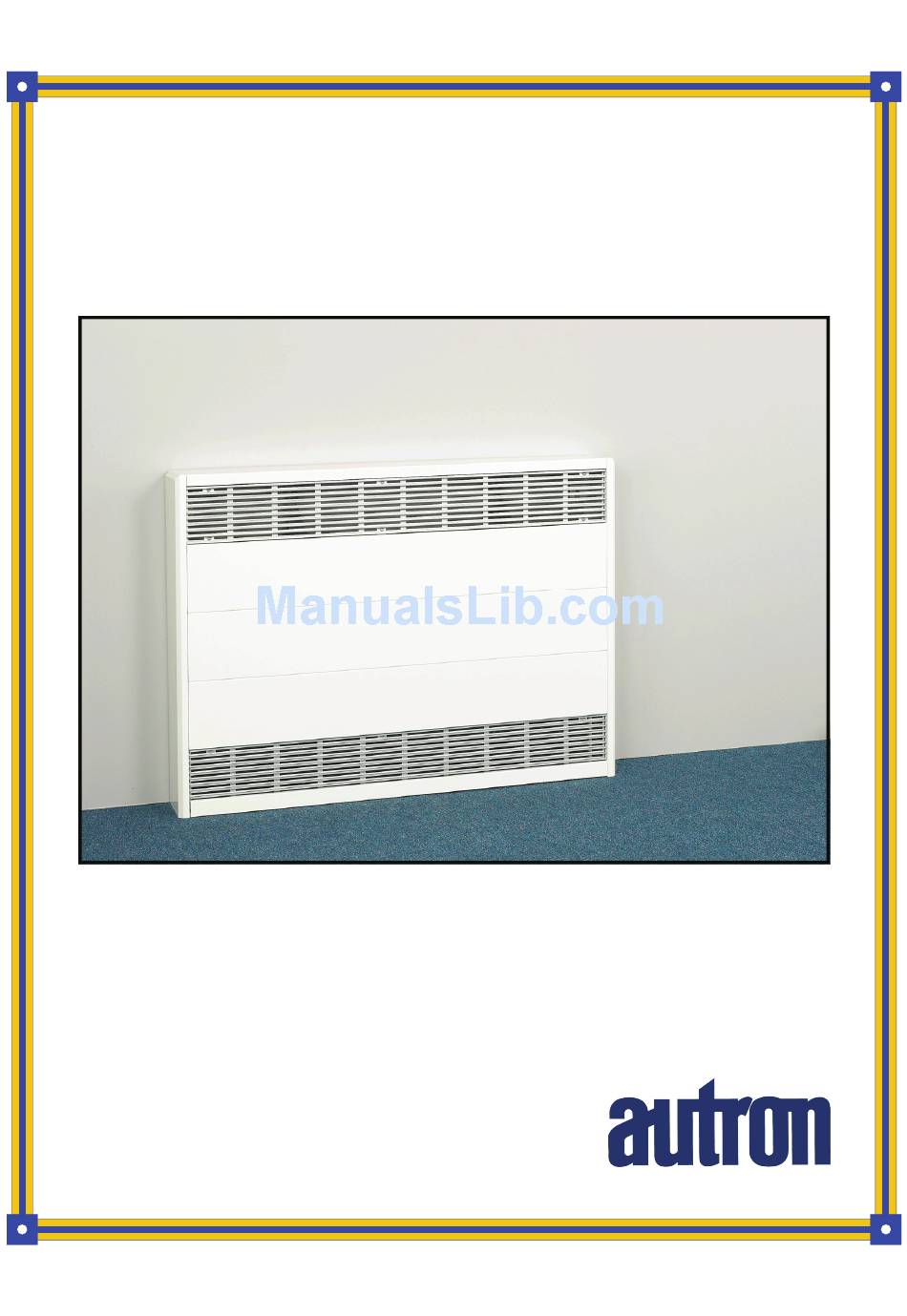

- Page 1 4TH APRIL 2008 - ISSUE 6 SOVEREIGN STYLE ‘D’ LST RADIATOR INSTALLATION INSTRUCTIONS (COPPER ALUMIMIUM HEAT EMITTER) AUTRON PRODUCTS LTD 17 SECOND AVENUE BLUEBRIDGE INDUSTRIAL ESTATE HALSTEAD ESSEX C09 2SU TEL: 01787 473964 FAX: 01787 474061...
- Page 2 SOVEREIGN STYLE ‘D’ COPPER ALUMINIUM LST INSTALLATION INSTRUCTIONS DIM ‘B’ BRACKET FIXING HEIGHTS ALL EMITTERS ARE WITH ALL WALL BRACKETS CONFIGURED T.B.O.E. SECURELY FIXED ‘HANG’ THE EMITTER ONTO THE WALL DIM. ‘B’ = 175MM AND SHOULD BRACKET HOOKS AND ‘PLUMB- MODEL DIM ‘A’...
- Page 3 20th December 2006—ISSUE 2 VALVE KIT INSTALLATION INSTRUCTIONS VK3 VALVE KIT (FOR USE WITH ALL RADIATORS) FIT THE TRV HEAD TO THE TRV BODY. FIX THE MOUNTING CLIP FOR THE REMOTE PHIAL TO THE WALL UNDERNEATH THE EMITTER AND DIRECTLY IN THE PATH OF THE INTAKE AIR FLOW, CLIP IN THE REMOTE PHIAL AND PLACE THE COVER OVER THE TOP.
- Page 4 VK5 VALVE KIT (FOR USE WITH SLENDERLINE & EUROLINE RADIATORS. FOR STERLING OPTION SEE REVERSE) FIT THE REMOTE REMOVE THE M4 BUTTON FIT THE VALVE HEAD END VALVE TRANSMITTER HEAD SCREWS SECURING OF THE REMOTE HEAD TO THE THE VALVE BODY, FORWARD FACING TRANSMITTER...
- Page 5 Copper Aluminium Heat Emitters Copper Aluminium Bracket and Pipe Centre Positions Emitters Overall Length Pipe Centres Left Hand T.B.O.E. Flow: Shown Right Hand T.B.O.E. Flow: Opposite Hand 3H1W 3H2W 3H4W Emitter Emitter Emitter Overall Length Pipe Centres Left Hand T.B.O.E. Flow: Shown Right Hand T.B.O.E.
- Page 6 Autron Sovereign Style D Copper Aluminium LST Radiators Operating and Maintenance Instructions The Sovereign D Style model features a Copper Aluminium Heat Emitter, specifically designed for use within a Casing. The Emitter will require occasional cleaning to remove dust. This can be achieved by use of a vacuum cleaner with hose attachment.
