Summary of Contents for Senter ST801B

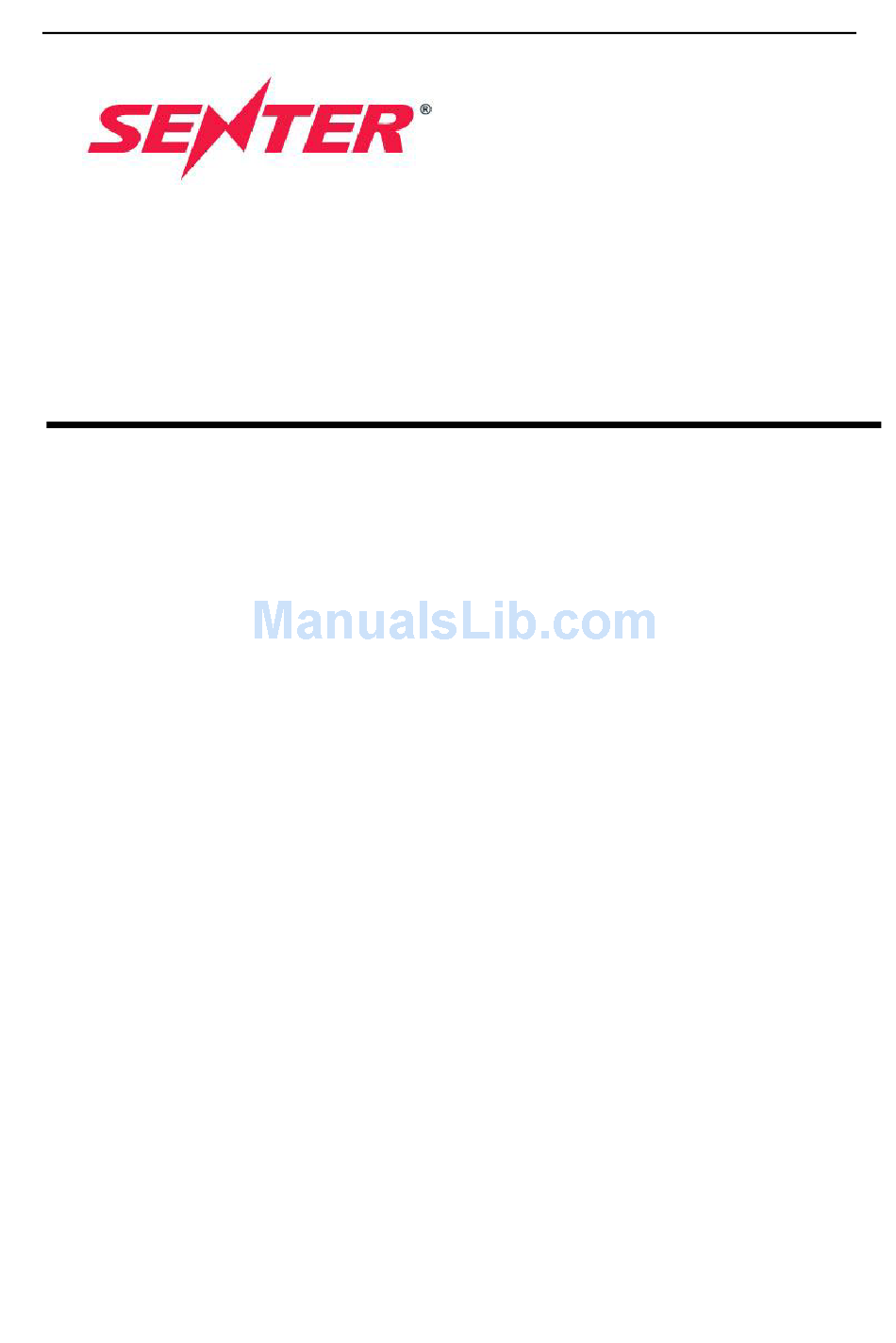

- Page 1 ST801B Optical Power Multi Meter User Manual V1.0 Shandong Senter Electronic Co., Ltd...
-
Page 2: Table Of Contents
ST801B Optical Power Multi-Meter Contents 1. Summary ................3 2. Functions ................4 3. Technical Specifications............. 5 4. Layout ................7 5. Operations ................. 9 6. Maintenance ..............12 7. Faults & Solutions............13... -
Page 3: Summary
ST801B Optical Power Multi-Meter 1. Summary Combining optical source and optical power meter in one, Optical Power Multi Meter is a portable and intelligent instrument for optical network test. There are inner 1310nm and 1550nm dual wavelength and single output optical source. -
Page 4: Functions
ST801B Optical Power Multi-Meter 2. Functions 2.1. Multi wavelength precise test 2.2. Absolute power test for dBm or μW 2.3. Relative power test for dB 2.4. Single end for dual wavelength output, free switch from 1310 nm and 1550 nm 2.5. -
Page 5: Technical Specifications
ST801B Optical Power Multi-Meter 3. Technical Specifications Optical power meter module 1. Wavelength range: 800～1700 nm 2. Detector type: InGaAs 3. Optical power test range: -50～+26dBm, -70～+10dBm 4. Uncertainty: ±5% 5. Resolution: Linearity display 0.1%, logarithm display 0.01dBm 6. Automatic frequency identification: 330Hz, 270Hz, 1 KHz, 2 KHz. - Page 6 ST801B Optical Power Multi-Meter CW continuous light and 330Hz, 270Hz, 1KHz, 2KHz modulation output. 8. Modulation of automatic wavelength identification mode (with the help of corresponding identification mode) Others 1. Work wavelength, work status, modulation light identification, indication: LCD display 2.
-
Page 7: Layout
ST801B Optical Power Multi-Meter 4. Layout... - Page 8 ST801B Optical Power Multi-Meter LD Connector: Light Source output interface (When the light is turned on, please don’t look directly into optical output or connected fiber optic connectors, in order not to...
-
Page 9: Operations
ST801B Optical Power Multi-Meter damage eyes) OPM Connector: optical power test interface Port: the instrument communicates with the management software by USB port Charge hole: connect the instrument with the charger for power charging. 5. Operations On/Off key: Pressing “... - Page 10 ST801B Optical Power Multi-Meter auto-off function is closed. Shortly pressing “ ” again, auto-off function logo will show in LCD. It means auto-off function is open and the tester will shut down in 10 minutes without any operations. Backlight key: Pressing “...
- Page 11 ST801B Optical Power Multi-Meter n Introduction for light source module 1. Open and close light source. If it is the first time to enter into the status of light source output state, dose output signal. “1310nm”,”1550nm“or “Closing the light source” can be chosen circularly by pressing “λ”.
-
Page 12: Maintenance
ST801B Optical Power Multi-Meter n Other functions: Under voltage indication: When it is under voltage, the indicator will show “ ”, and it will be powered off automatically if the voltage is lower than the protected value. Please change battery or charge it... -
Page 13: Faults & Solutions
ST801B Optical Power Multi-Meter 3. Use alcohol to clean the ceramic core fiber jumper end. You can not use it until the alcohol is dry. 4. When the instrument is being operated, it is forbidden that the eyes look at the output end of laser instrument directly, or the eyes or skin is likely to be burnt by the laser. - Page 14 ST801B Optical Power Multi-Meter Shandong Senter Electronic Co., Ltd. NO.98, WANJIE RD, NEW & HI-TECH AREA, ZIBO, SHANDONG, CHINA P.C. 255086 TEL: 86 533 3589257 FAX: 86 533 3589257 www.senter.cn export@senter.com.cn...
