Summary of Contents for Tibo EVO-2

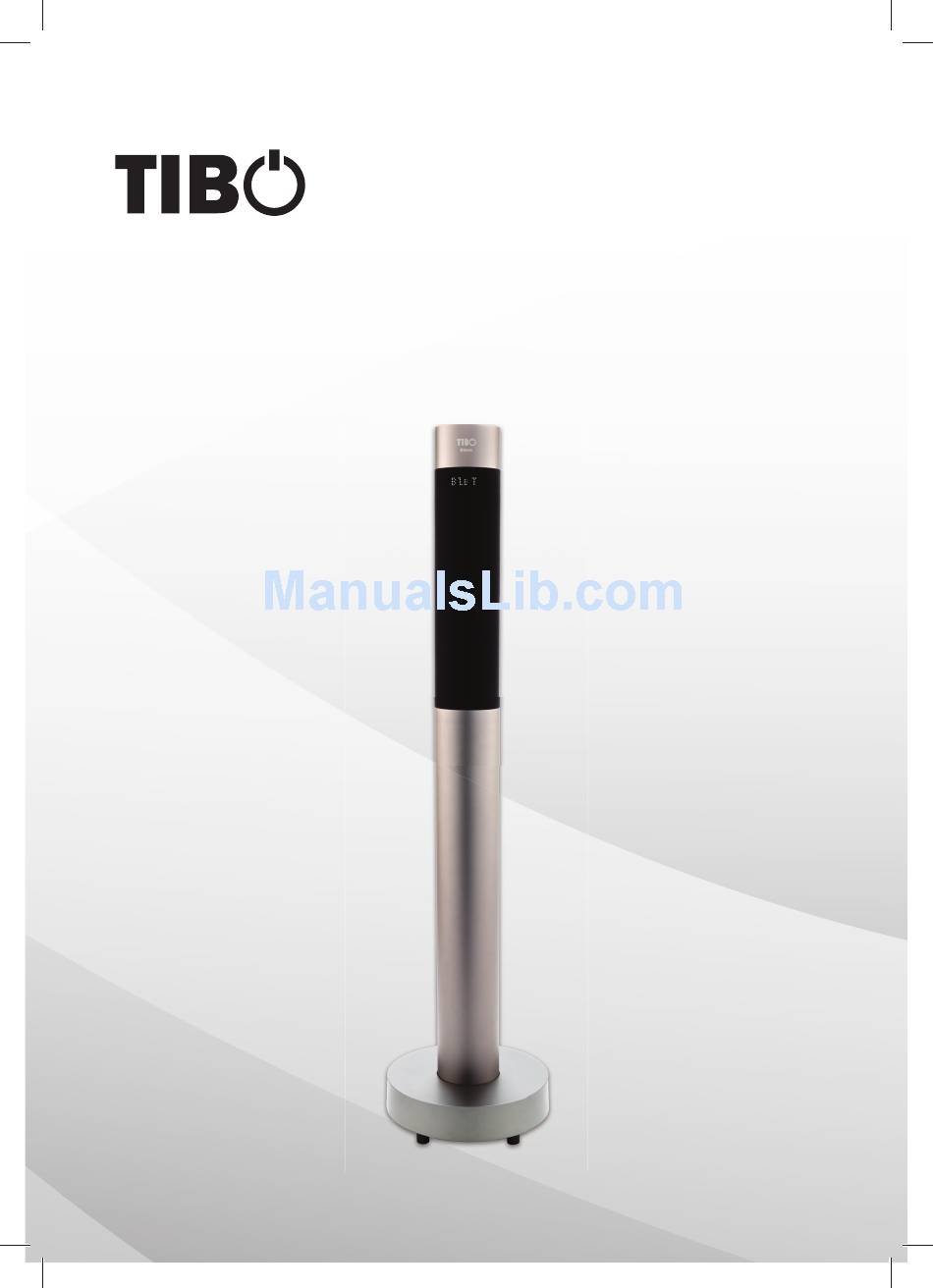

- Page 1 Turn it back on User Guide EVO-2 Please read this user manual carefully before using your EVO-2 system and retain for future reference.
- Page 2 Turn it back on...
-
Page 3: Table Of Contents
Turn it back on CONTENTS SAFETY ............4-5 INCLUDED IN THE BOX . -
Page 4: Safety
Turn it back on SAFETY Safety precautions A triangle with a A triangle with an ex- The symbol for a lighting symbol draws clamation mark draws CLASS II (double the user’s attention to the user’s attention to insulation) product. “dangerous voltage” important instructions without insulation in the cabinet, for use and maintenance in the ac-... -
Page 5: Safety
Turn it back on SAFETY Important safety instructions Penetration of objects and liquid Never push any foreign objects through the openings into the unit, as they may touch dangerous voltage points or short-circuit parts and cause fi re or an electric shock. Do not spill liquid onto the unit. Accessories Do not place the unit on unstable surfaces such as a trolley, stand, tripod, shelf or table. -
Page 6: Included In The Box
1 x Remote Control (battery included) Turn it back on User Guide EVO-2 Please read this user manual carefully before using your EVO-2 system and retain for future reference. 1 x Power Cable 1 x 3.5 mm to RCA Cable... -
Page 7: Identifying The Parts
Turn it back on IDENTIFYING THE PARTS Main unit top view FUNCTION - Press this button repeatedly to select a source. OPEN - Open the Dock for iPod/iPhone/iPad. - Press this button to turn on or switch to Eco Power standby mode. -
Page 8: Remote Control
Turn it back on IDENTIFYING THE PARTS Remote control /BASS Select a preset sound effect: Bass 1, Bass 2 or Bass 3. Skip to previous track. Tune to a radio station by searching backward. Select previous radio station. Adjust brightness level in standby mode. / Start or pause playback. -
Page 9: Connections
Turn it back on CONNECTIONS Connect to external audio device You can also listen to an external audio device on this unit. Using AUX IN socket connect audio cables to the AUX IN sockets on back of the unit. The audio output sock- ets on external audio device. -
Page 10: Installing Remote Control Battery
Turn it back on INSTALLING REMOTE CONTROL BATTERY Preparing the remote control The provided Remote Control allows the unit to be operated from a distance. Even if the Remote Control is operated within the effective range (6m), Remote Control operation may be impossible if there are any obsta- cles between the unit and the Remote Control. -
Page 11: Basic Operation
Turn it back on BASIC OPERATION Power You can control all the functions on the main unit or remote control after connecting to power supply (called Standby Mode). Turning the system On Press the button to turn the system on from standby mode. Note: The set will switch to last selected source. -
Page 12: Pair A Bluetooth Enabled Device
The fi rst time you connect your Bluetooth device to the unit, you need to pair your device to the unit. Turn on the Bluetooth function on your device. Switch EVO-2 source to Bluetooth, Display panel shows “BLU T”, then show “NO BT” (if there’s no Blue- tooth device connected). -
Page 13: Adjust Sound Level
Turn it back on BASIC OPERATION Tip: • If there’s an existing connection, hold and press “ / “ button on remote control for a few seconds and the unit will re-activate the pairing mode, the connection will be interrupted. •... -
Page 14: Troubleshooting
To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this unit, check the following points before requesting service. No power • Ensure that the AC cord of the EVO-2 is connected properly. • Ensure that there is power at the AC outlet. •... -
Page 15: Specification
Turn it back on SPECIFICATION General Power Requirements AC 220-240V ~ 50/60Hz Power Consumption 35 Watts Output Power 100 Watts Total Harmonic Distortion 1%(1kHz, 1W ) Audio Input Sensitivity/Impedance 500mV/47kΩ Frequency Response 40 - 20,000 Hz Unit Dimensions (W x D x H) 288 x 288 x 1192 mm Speaker Front... -
Page 16: Contacts
Turn it back on INDEX Adjust sound Level ............13 Adjust the brightness level of display . - Page 17 Turn it back on CONTACTS Tibo Ltd. DSV House Maidstone Road Milton Keynes MK10 0AJ United Kingdom tel.: +44 (0) 845 2711 906 e-mail: info@tibo-electronics.com Proof of purchase (attach your receipt here).
- Page 18 Turn it back on...
- Page 19 Turn it back on...
- Page 20 Turn it back on www.tibo-electronics.com...
