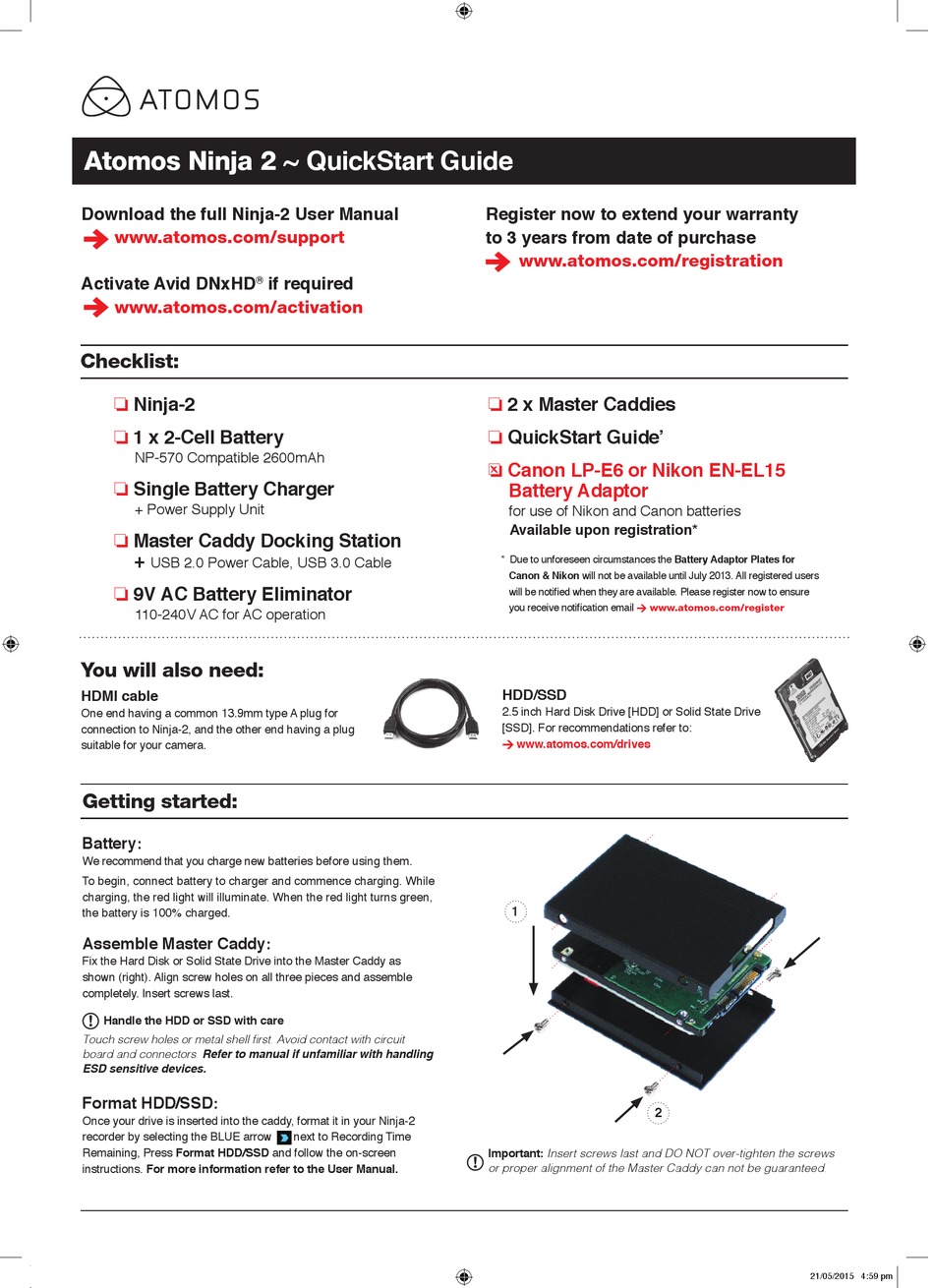

Atomos Ninja 2 ~ QuickStart Guide
Download the full Ninja-2 User Manual
www.atomos.com/support
Activate Avid DNxHD
www.atomos.com/activation
Checklist:
Ninja-2
1 x 2-Cell Battery
NP-570 Compatible 2600mAh
Single Battery Charger
+ Power Supply Unit
Master Caddy Docking Station
+
USB 2.0 Power Cable, USB 3.0 Cable
9V AC Battery Eliminator
110-240V AC for AC operation
You will also need:
HDMI cable
One end having a common 13.9mm type A plug for
connection to Ninja-2, and the other end having a plug
suitable for your camera.

Getting started:

Battery:
We recommend that you charge new batteries before using them.
To begin, connect battery to charger and commence charging. While
charging, the red light will illuminate. When the red light turns green,
the battery is 100% charged.
Assemble Master Caddy:
Fix the Hard Disk or Solid State Drive into the Master Caddy as
shown (right). Align screw holes on all three pieces and assemble
completely. Insert screws last.
Handle the HDD or SSD with care
Touch screw holes or metal shell first. Avoid contact with circuit
board and connectors. Refer to manual if unfamiliar with handling
ESD sensitive devices.
Format HDD/SSD:
Once your drive is inserted into the caddy, format it in your Ninja-2
recorder by selecting the BLUE arrow
Remaining, Press Format HDD/SSD and follow the on-screen
instructions. For more information refer to the User Manual.
Ninja 2 QSG.indd 1
if required
®
next to Recording Time
Register now to extend your warranty
to 3 years from date of purchase
www.atomos.com/registration
2 x Master Caddies
QuickStart Guide'
❏ Canon LP-E6 or Nikon EN-EL15
Battery Adaptor
for use of Nikon and Canon batteries
Available upon registration*
* Due to unforeseen circumstances the Battery Adaptor Plates for
Canon & Nikon will not be available until July 2013. All registered users
will be notified when they are available. Please register now to ensure
you receive notification email
> www.atomos.com/register
HDD/SSD
2.5 inch Hard Disk Drive [HDD] or Solid State Drive
[SSD]. For recommendations refer to:
> www.atomos.com/drives
1
2
Important: Insert screws last and DO NOT over-tighten the screws
or proper alignment of the Master Caddy can not be guaranteed.
21/05/2015 4:59 pm
