Summary of Contents for Pyrox WFBL

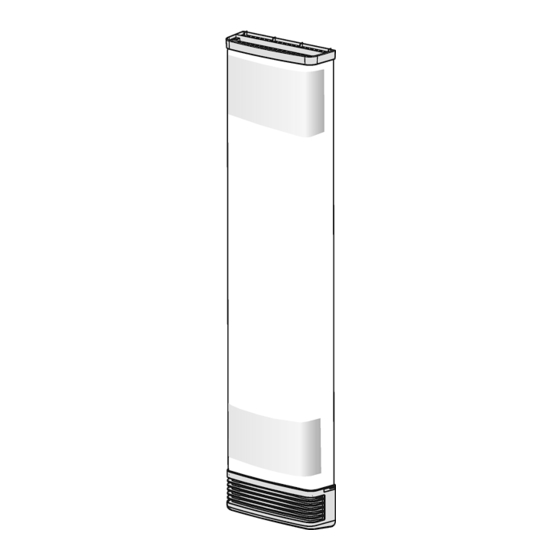

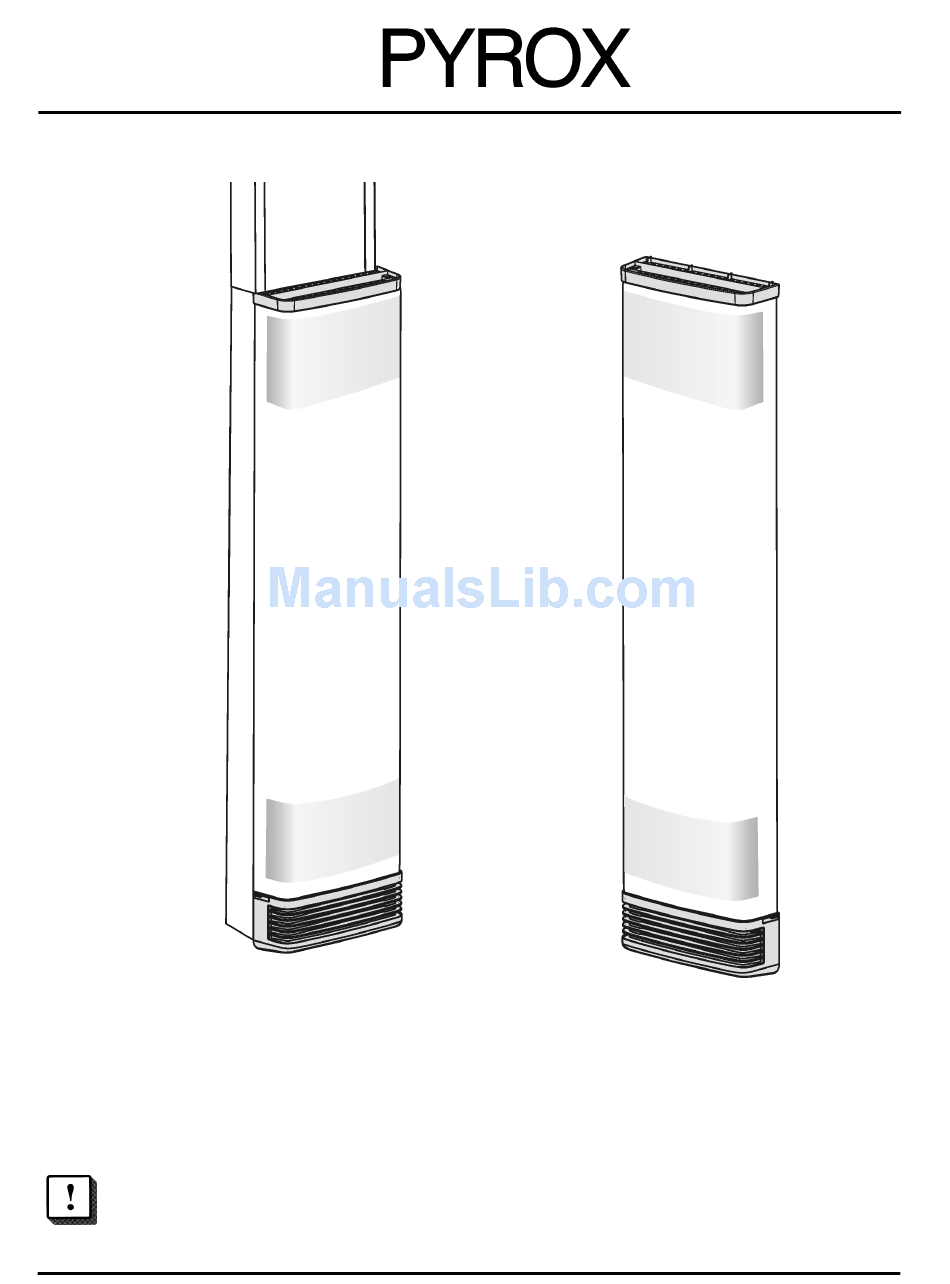

- Page 1 Owner’s Manual WFBL Deluxe Wall Furnace 4720006, 4720011 Please keep this important manual in a safe place. It is the owner’s responsibility to ensure that regular maintenance is carried out on this Wall Furnace. Failure to do so will void all guarantees beyond statutory and legal requirements.
-
Page 2: Table Of Contents
ELUXE URNACE Table of Contents ........................3 NTRODUCTION Safe Operation ..........................3 ........................4 PERATION Start-Up Sequence ........................4 Using the Controls......................... 4 Turning the Unit ON or OFF ...................... 5 Controlling the Unit ........................5 Clock Setup..........................6 Child Lock ..........................6 Fault Codes .......................... -
Page 3: Introduction
Introduction Introduction Thank you for purchasing this Pyrox product. It has been designed to give you excellent service. Now it is installed, you are no doubt anxious to run it and enjoy the far-reaching warmth. Before you do, take a few minutes to read through this instruction booklet and discover how to get the very best from your heater. -
Page 4: Unit Operation
ELUXE URNACE Operating the Unit Unit Operation This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure they do not play with the appliance. Start-Up Sequence 1. -
Page 5: Turning The Unit On Or Off
ELUXE URNACE Operating the Unit Turning the Unit ON or OFF Press and hold the on/off button for approximately one second. Controlling the Unit When the unit is in the on state, there are two modes of operation, Manual and Automatic. The mode of operation is changed by briefly touching the mode button. -
Page 6: Clock Setup
ELUXE URNACE Operating the Unit Clock Setup The clock can be changed by firstly touching the MODE button for approximately 3 seconds. The clock format screen will display. If 24-hour clock format is desired, then touch either the UP or DOWN button. -
Page 7: Warranty
ELUXE URNACE Warranty – Australia Only Warranty IMPORTANT Please read this warranty information and complete the Dealers Product information on the following page. KEEP this with your original purchase documents for any claim under warranty. WARRANTY PROCEDURES: Firstly refer to your owners manual to ensure you have followed the correct operating procedures of your product, and refer to the trouble shooting guide to assist solving any problems you may have. - Page 8 ELUXE URNACE Warranty – Australia Only DIY (Do It Yourself) installation Warranty • If the product has been installed as a DIY, a supply part only warranty will apply. Parts only will be supplied free of charge on the return of the faulty part and the owner will be responsible for all labour charges incurred for the part to be fitted by a qualified person.
-
Page 9: Warranty On Replacements Parts
ELUXE URNACE Warranty – Australia Only ARRANTY ON EPLACEMENTS ARTS Parts replace under warranty are warranted for the balance of the original warranty period. – Y ERIODS ARRANTY EARS Unit Components RESIDENTIAL COMMERCIAL Parts Labour Parts Labour Heat Exchanger Burner All other components Aged New Product Warranties For a New Product warranty to apply, a product needs to be sold and installed within 3 years... -
Page 10: Proof Of Purchase
ELUXE URNACE Warranty – Australia Only ROOF URCHASE It is important that the name of the Dealer or Retailer from whom you purchased your product and the name of the installer are recorded on this page. The installer is responsible for the correct installation, start up and demonstrating the operation of this product. -
Page 11: Service
ELUXE URNACE Service Service It is recommended by Climate Technologies that, for normal domestic applications, a biannual service be performed on your wall furnace to maintain it efficiency performance and increase its life expectancy. More frequent servicing may be required subject to the unit application / usage and its environmental conditions. - Page 12 Manufactured by Climate Technologies ABN 13 001 418 042 26 Nylex Avenue Salisbury, SA 5108 Australia www.climatetechnologies.com.au Page 12 4722216/C...
Need help?
Do you have a question about the WFBL and is the answer not in the manual?
Questions and answers

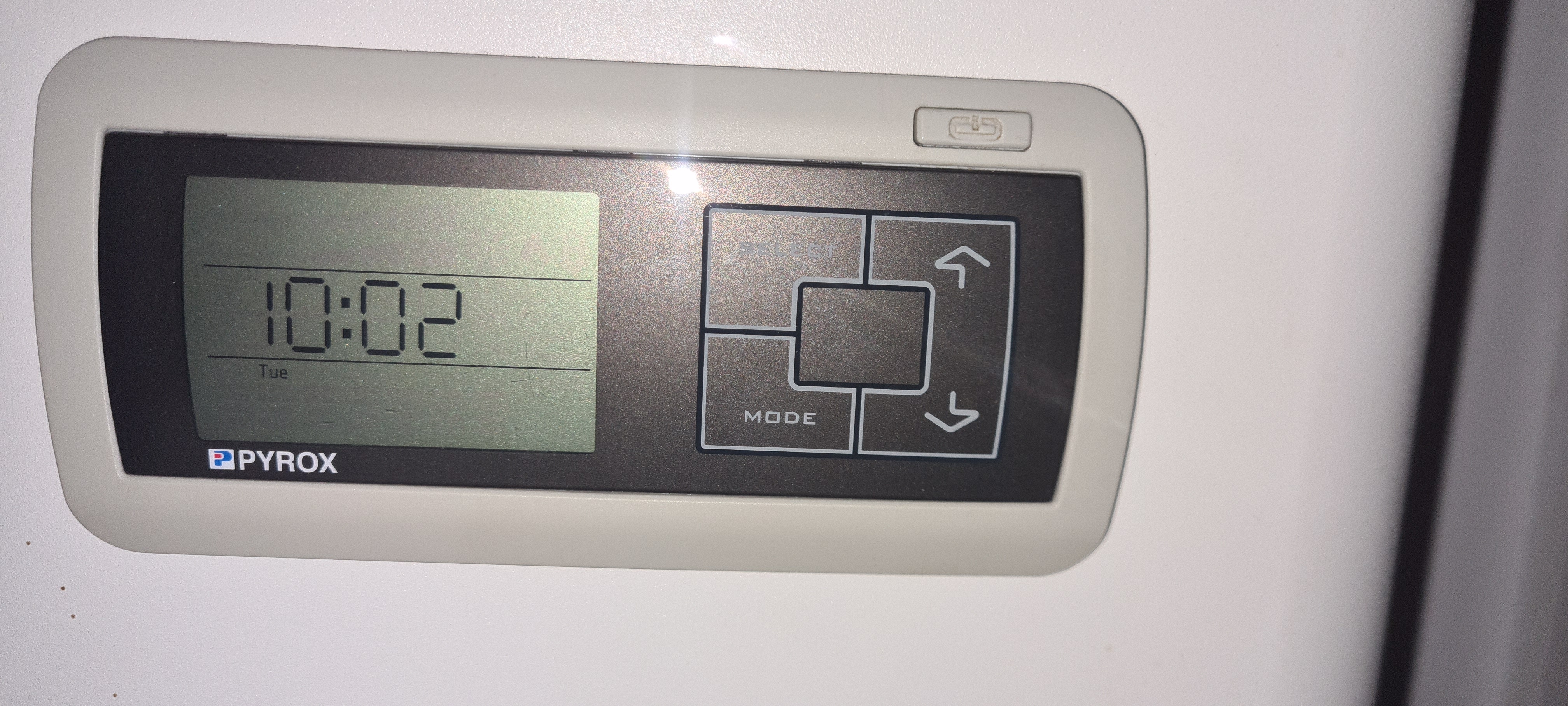

what is the part number for a replacement controller?
