INDEX INDEX ..............................3 Precautions ............................5 1. Important Safety Instructions ...................... 5 2. Notice ............................5 Before You Begin ..........................7 1. Main Features ..........................7 2. Accessories ..........................8 Hardware Description ........................... 9 1. Front Panel Configuration ......................9 2.
Page 4
PVR (Personal Video Recorder) Function ..................20 1. Recording ..........................20 1.1 Recording methods ......................20 1.2 Instant Recording ........................ 21 1.3 Recording Edit ........................21 1.4 Long Time Recording ......................21 1.5 Pause during Recording ...................... 22 2. Time Shifting ..........................23 3.
Precautions 1. Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. ...
Page 6
The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. The mains plug is used as the disconnect device. The disconnect device shall remain readily operable. To reduce the risk of electric shock, do not remove the cover (or back).
Before You Begin 1. Main Features Digital Satellite Receiver Time Shifting with External USB 2.0 Devices (Max. 2 Hours) Recording & Playback with External USB 2.0 Devices Recording and Time Shifting Simultaneously Recording and Playback Simultaneously ...
2. Accessories User's Manual Remote Control RCA Cable AAA size Batteries X2 NOTE : If any accessories listed above are missing, contact the sales representative where you purchased this unit.
Hardware Description 1. Front Panel Configuration POWER BUTTON : Press to switch between STANDBY and POWER ON modes. Menu BUTTON: Press to enter the main menu or to move to the previous menu. OK BUTTON: Press to display the service list in non-menu mode and to select an item or confirm in menu mode.
2. Rear Panel Configuration 1. LNB IN : Use to connect a satellite antenna. 2. LNB OUT : Use it when connecting to another STB for loop-through. 3. VIDEO : Use to connect to video input of TV or VCR. 4.
3. Remote Control Unit 1. POWER : Turns the STB On/Off. 2. MUTE : Turns the sound On/Off. 3. MODE a. UHF : To adjust UHF service. b. SLEEP : To adjust sleep timer. c. TV/STB : Toggles the TV output source between the cable input(STB mode) and UHF/VHF antenna input(TV mode).
Page 12
7. MENU : To enter the main menu or to move to the previous menu. 8. EXIT : Exit from the menu or pop-up window. 9. OK : Shows the service list in non-menu mode and select an item or confirm in menu mode. 10.
Page 13
16. PLAY LIST : To display recorded service list. 17. SUBTITLE : To show multilingual subtitle. 18. TELETEXT : To show the digital teletext. 19. PAUSE : This key is used to pause the video. Press once more to resume the video. 20.
Connections Diagram 1. Receiver to TV with RF Connect the satellite antenna cable to LNB IN. Connect the TV antenna to RF IN. Connect the RF OUT to RF IN of TV. Connect the VIDEO and AUDIO L, R to VIDEO IN and AUDIO L, R IN of TV. ...
2. Receiver to TV and VCR Connect the satellite antenna cable to LNB IN. Connect the TV antenna to RF IN. Connect the RF OUT to RF IN of VCR. Connect RF OUT of VCR to RF IN of TV. ...
3. Receiver to Digital Audio Equipment To get better quality audio, you can use digital audio via coaxial cable. If you have a digital audio equipment, connect SPDIF to Digital audio input of the equipment. Connect other jacks to the appropriate jacks of TV or VCR refers to above sections, 1.
4. Connecting to Dish Using Single DISH : Connect the Satellite Antenna cable to LNB IN. Using DiSEqC switch : Connect the cable of DiSEqC switch to LNB IN. Using DiSEqC motor : Connect the cable of DiSEqC motor to LNB IN.
Guide of Functions 1. Selecting a Service To select the desired service, you can use below methods. 1.1 Using CH UP/DOWN buttons You can navigate between services using UP/DOWN buttons. Whenever you press the UP(DOWN) button, current service will be changed to next(previous) service. You have to press UP or DOWN button until find the service you want.
4. Electronic Program Guide (EPG) Electronic Program Guide (EPG) helps you navigate through all the possible viewing options. The EPG supplies information such as program listings, start/end times and detailed information about the program listings for all available services. The availability and amount of these program details will vary, depending on the particular broadcaster.
PVR (Personal Video Recorder) Function 1. Recording 1.1 Recording methods There are two types of recording method. (Time Reserved Recording / Event Reserved Recording). Time Reserved Recording : - In Timer Manager you may set your time/program during this process. (Main Menu >...
- Press the OK one more time then the event will be reserved with RED record icon. This RED record icon means that you want to record the event at the reserved time. RED record icon - When you set an event for recording in EPG. It automatically set in the Timer Event in Main Menu >...
1.5 Pause during Recording When PAUSE button is pressed during recording, only the live video is paused, but recording is continued at the external USB2.0 stroage device. Press PAUSE button once again and event will resume from the pause time. ...
2. Time Shifting Press PAUSE button to pause the live TV but will continue to record to external USB2.0 stroage device. Press PAUSE button once again and event will resume from the pause time. While watching live TV, press PLAY/TIMESHIFT button to show the play bar on your screen.
3. Playback (Play List) Press the PLAY LIST button to activate the Play List screen. In Play List you may choose any of pre-recorded event(s) and play it by pressing OK button. In Play List screen, you may press RED button to choose the event you wish to view in order listed in Play List.
When the play bar is on, User can move / jump between the bookmarks by pressing the GREEN button. If you wish to delete any Bookmarks, go to that bookmark by pressing green button, then press RED button to delete the current bookmarks.
Guide of Main Menu To display the menu, press MENU button at any time. You can select the sub menu using ARROW buttons. The selected sub menu becomes highlighted. When you have selected the sub menu you want, press the OK button. If you want to return to the previous menu, press the MENU button.
To modify existing timer entry : Choose the timer entry which you wish to modify and press OK button. To delete existing timer entry : Choose the timer entry that you want to delete and press RED button. NOTE : If you reserve one or more event through the EPG menu, the reserved event(s) will be added to Timer Manager automatically.
1.5 Language Setting Menu Language : Select the desired menu language by using the ARROW buttons. NOTE : The Kind of languages can be changed depending on the country sold. Available languages are subject to change without prior notice. ...
LNB 22 Khz : When you use a dual LNB or two antennas connected to a 22 KHz tone switch box, make 22 KHz DiSEqC 1.0 : If you use a DiSEqC 1.0 switch, select one of the DiSEqC inputs. ...
2.3 Service Search Satellite : Select the target satellite for search. Search Mode : Select the following search mode. Auto Search Mode - Satellite : Press OK button to select the target satellite for search. - Search Type : Select the search type. - Network Search : You can select Off or On.
2.4 System Recovery System restore to factory default : This menu allows you to restore the factory set values in case the user has encountered some problems after changing any new parameters of service data and others which may be in error. Press OK button to erase all services and restore default setting.
3.2 Data Transfer Transfer all System data to USB storage : If you want to transfer and use BOTH of the current system parameters and service data in the future, this menu will allow you to store both data to your USB device. Press OK button to store current data to external USB storage.
4. CA 4.1 Conax smart card menu To watch scrambled services, you need to have a appropriate Conax smart card from the service providers. - Insert a valid smart card into smart card slot. - The message of ‘Smart card Initializing…’ will appear on the screen.
5. Service List 5.1 Service List manager Service List Manager menu will be appeared when press OK button. You can select Edit Mode by press YELLOW button. Lock Services : All service lists will be shown on left side of window, right side will show make service to be lock.
Set Favorite Services : Press FAV button to mark the favorite group list. Once, favorite group is chosen, left side window will show all service list marked and right side window will show only the marked service list. Using ARROW and OK buttons you may add any service to the favorite group or delete any service from the favorite group.
Troubleshooting Problem Solution Check the main power cable and check that it is plugged into a Does not display any message suitable power outlet. on the front panel. Check you have switch the STB main power switch ON at the rear of the STB.
Specifications Tuner & Channel Decoder Input Connector F-type, IEC 169-24, Female Loop through out F-type, IEC 169-24, Female Frequency Range 950MHz ~ 2150MHz Input Impedance 75Ω, unbalanced Signal Level -65 to -25dBm LNB Power 13/18VDC, max.400mA 22KHz Tone (22±2)KHz, (0.6±0.2)V V1.0/1.2/USALS Compatible DISEqC Control Demodulation...
Page 38
RF Modulator RF Connector 75Ω, IEC 169-2, Male/Female Frequency 470 ~ 860MHz Output Channel CH 21 ~ 69 for the Remodulator TV Standard PAL G/I/K Selectable by Menu Preset Channel CH 36 (or TBD) Software changeable by Menu Front Panel Slot 1 Smart Card Slot 1 USB Host Slot...
Page 40

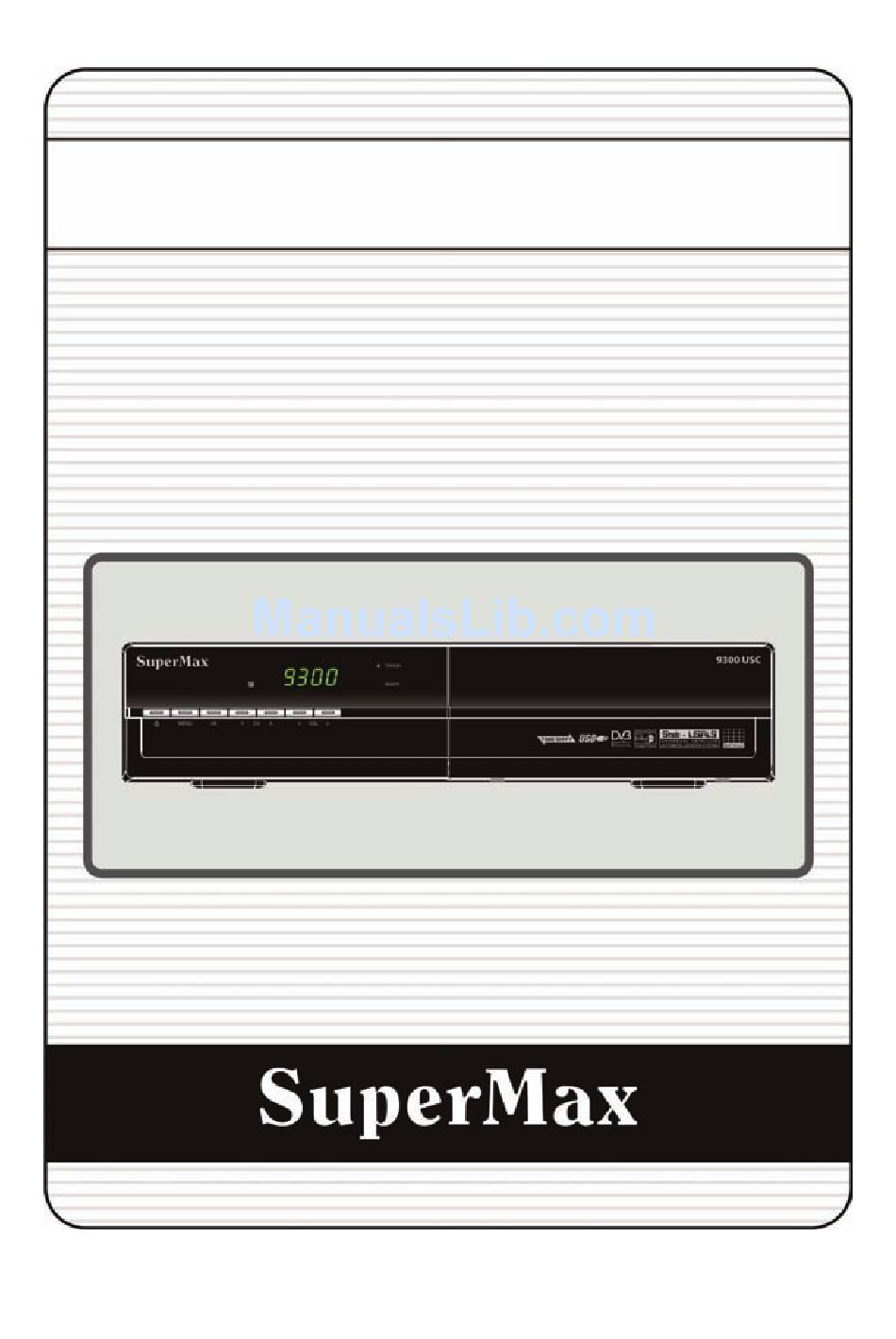

Digital Satellite Receiver 9300 USC V 11031Eng...
