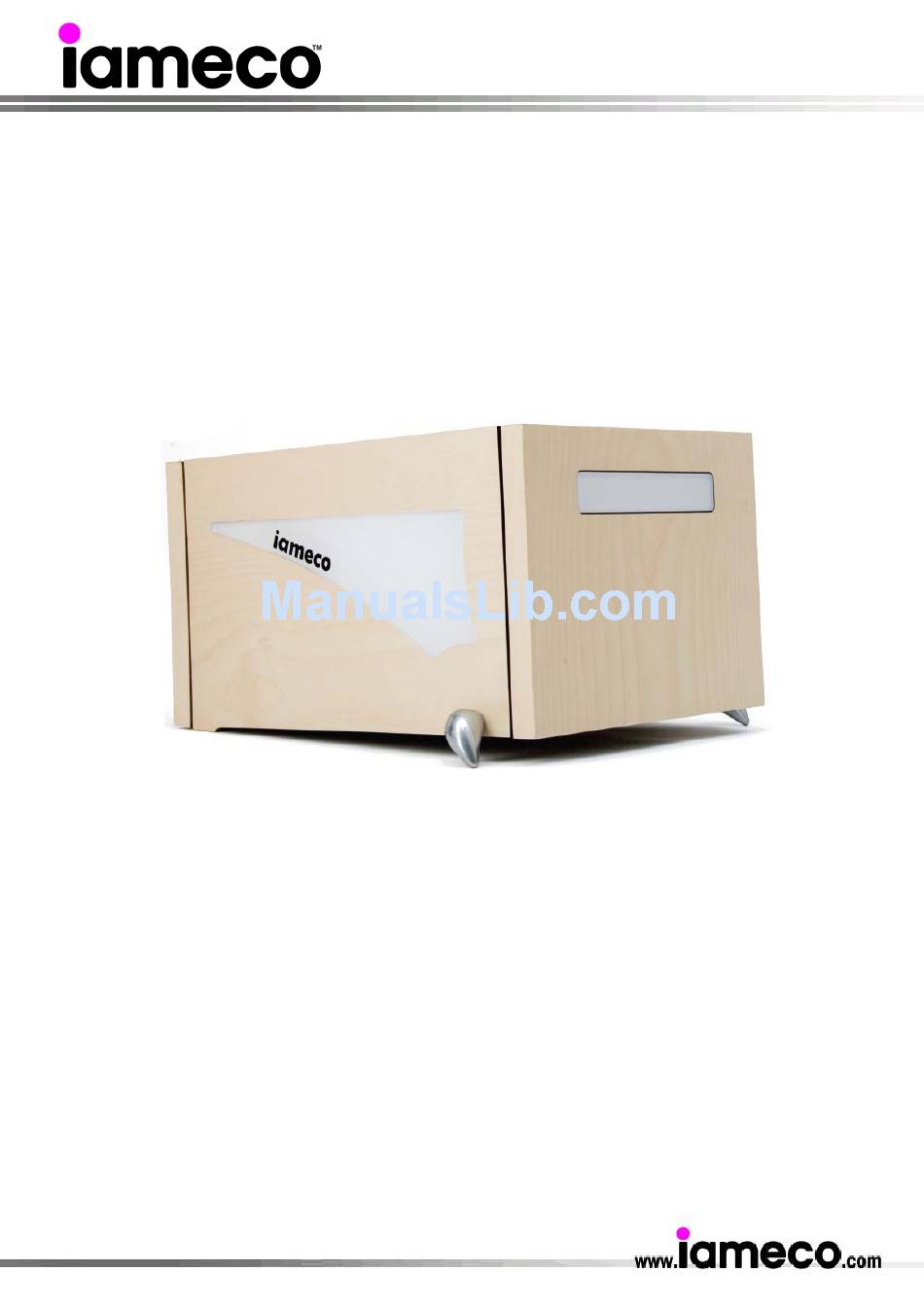

- Page 1 - 1 - ecoXPc Installation guide Copyright © 2007 includes setup, service and troubleshooting information...
- Page 2 ™ iamecoP Copyright © 2007, computers. ™ ™ MicroPro iameco and the logo are registered Multimedia Computer Systems Ltd trademarks of and its related entities. All other trademarks are the property of their respective owners. Alterations in respect of construction and design, errors and printing errors reserved.
- Page 3 In line with the growing popularity of "green" procurement system, electronics manufacturers, many of who are the customers of iameco, are increasingly demanding eco-products as well as LCA and environmental information on products. iameco is doing all it can to supply eco-products in order to meet customer demand.
- Page 4 Second, iameco is supplying eco-products that comply with the EU RoHS Directive (EU RoHS Directive banned the use of Pb, Hg, Cd, Cr+6, PBB (polybromide biphenyl) and PBDEs (polybrominated diphenyl ethers in a product). Moreover, we at iameco are continuing our efforts to develop products that do not require internationally banned toxic chemicals.
-
Page 5: Getting Started
Note: Please keep the box and packing materials in a safe place for re-use. It can be used when transporting your XPc in the future or return the packaging to iameco for recycling and re-use. - Page 6 Otherwise you may damage the connections. ™ The XPc has been designed to be easily configured directly by the end user. The iameco XPc owes its popularity to its unique combination of small-size, high performance and near universal component ™...
- Page 7 - 7 - iameco XPc Intel Mainboard Mainboard illustration...
-
Page 8: Xpc Installation Guide
- 8 - XPc Installation Guide Before you proceed Take note of the following precautions before you any components or change any the component settings. Also please read the safety information (discussed on page …) before you plug your PC into a wall socket. •... -
Page 9: Cpu And Ice Installation
- 9 - CPU and ICE Installation Remove the ICE Module 1. Unfasten the ICE fan thumbscrews on the back of the chassis. 2. Unplug the fan power connector. 3. Unfasten the four ICE module attachment screws. 4. Remove the ICE module from the chassis and put it aside. - Page 10 - 10 - 3. Orientate the CPU and socket, aligning the yellow triangle on the corner of the CPU with the triangle on the socket. Making sure the CPU is perfectly horizontal; insert the CPU into the socket. Close the load plate, lower the CPU socket lever and lock in place.
-
Page 11: Cable And Rack Installation
- 11 - DDR Memory Installation Memory Configuration: Install memory in any or all of the banks according to the combinations shown below: TOTAL 2 DIMM up to 2GB and 1GB per DIMM Density 64 Mbit 128 Mbit 256 Mbit 512 Mbit Device Width Single Side... -
Page 12: Peripheral Installation
- 12 - 4. Loosen the purse lock and separate t he IDE HDD/FDD power cable. Install the Ra Please make sure to secure the screws o n each side. Note: 1. Place the HDD and FDD in the rack and secure with screws from the side. -
Page 13: Accessories Installation
- 13 - Install an Optical Drive 1. Slide the optical drive into the chassis. 2. Fasten the four s ide screws. 3. Plug the optical drive cable and power cable into the optical drive. Note: To prevent exposure to laser emanations (harmful to human eye), do not attempt to disassemble the unit. -
Page 14: Final Touches
- 14 - Final Touches Close the Chassis Cover 1. Replace the cover and refasten the thumbscrews. 2. Complete. Technical Notes: Clear CMOS Button On some selected XPcs t here is an easy-to-use Clear CMOS Button that allows users to reset BIOS information to factory default settings. -
Page 15: Jumper Setting
- 15 - Jumper Setting Front Panel Connector (JP9/JP8) Header JP8 can be used to provide operati on status signals to the front daughterboard. Note th at this is an alternative header to the 50pins streamline header that also connects the motherboard to the front daughterboard. -
Page 16: Startup Errors
- 16 - SPDIF-In/Out Connector (JP4) Port JP4 can be used to connect special device. SPDIF IN SPDIF OUT arallel Port Hea er-E T X . Printer Port (JP11) A DB25 male parallel port header is located near the rear panel of the mainboard. The header is used to connect a parallel port socket (PC8) to the mainboard. -
Page 17: Bios Settings
- 17 - IOS Settings The BIOS ROM has a built-in setup program that allows users to modify basic system configuration. This information is stored in battery-bac ked RAM so that it retains set p information even if the system power turned off. - Page 18 - 18 - Integrated Periphe rals: Use this menu to specify your settings for integrated peripherals. Power Management Setup: Use this menu to specify your power management settings. PnP / PCI Configurations: This entry appears if your system supports PnP / PCI. PC Health Sta tus: This entry displays the current system temperature, Voltage, and FAN settings.
- Page 19 - 19 - Total Memory: Displays the total memory available in the system.The choice: N/A. DE Adapters: The IDE adapters control the hard disk drive. Use a separate sub-menu to configure each hard disk drive. IDE HDD Auto-Detection: Press <Enter> to auto-detect HDD on this channel. If detection is success ful, it fills the remaining fields on this menu.
- Page 20 - 20 - TM2 Bus VID: Represents the voltageof the throttled performance state that will be initiated when the on iesensor gose from not hot to hot. Note: CPU support TM2, item appear. imit CPUID MaxVal: Set Limit CPUID MaxVal to 3,Should Be "Disabled" for WinXp. The Choice: Disabled or Enabled.
- Page 21 - 21 - Advanced BIOS Chipset Features This section allows you to configure the system based on the specific features of the installed chipset. This chipset manages bus speeds and access to system memory resources, such as DRAM and the external cache.
-
Page 22: Integrated Peripherals
- 22 - Integrated Peripherals IS Onboard IDE Device: Press <Enter> to enter the sub-menu of detailed options. nternal PCI/IDE: This chipset contains and internal PCI IDE interface with support for two IDE channels. he choice: Disabled, Primary, Secondary, or Both. DE Primary Master/Slave PIO: The four IDE PIO (Programmed Input/Output) fields let yo u set a PIO mode (0-4) for each of the four IDE devices that the onboard IDE interface supports. -
Page 23: Power Management Setup
- 23 - Parallel Port Mode: Select an operating mode for the onboard parallel (printer) port. Select Normal, Compati ble, or SPP unless you are certain your hardware and software both support one of the other vailabl modes. The Choice: SPP, EPP, ECP or ECP + EPP. ECP Mod Use DMA: Select a DMA channel for the parallel port for use during ECP mode. - Page 24 - 24 - Switch Function: Enables you to set the System Management Interrupt (SMI) button function in DOS. The choice: Disabled or Break /wake. MODEM Use IRQ: This determines the IRQ which the MODEM can use. The choice: 3, 4, 5, 7, 9, 10, 11, r Auto.
-
Page 25: Pnp/Pci Configurations
- 25 - nP/PCI Configurations This section describ es the configuration of PCI bus system. PCI or Personal Computer Interconnection is a system which allows I/O devices to operate at the speed CPU itself keeps when CPU communicating with its own special components. This section covers some very technical items, and it is strong ecommen ded that only experienced users should make any changes to the default settings. -
Page 26: Frequency/Voltage Control
- 26 - C Health Status CPU Fan Speed Control: Set the CPU Fan Speed. The choice: Smart Fan, Ultra-Low, Low, Mid, or Full. CPU Temp Tag: Enabled 3-phase smart control to the Selected fan. This feature ranges from 25 °C to 75 °C, in an increment of 1°C. -
Page 27: Load Fail-Safe Defaults
- 27 - CPU Frequency: This item allows the user to adjust CPU Host C lock. Min: 133, Max: 232. Key in a DEC umber (Between Min and Max.) CPU: DRAM Frequency Ratio: This item allows you to adjust CPU and DRAM Ratio. The choice: SPD, 1:1, 3:4, 3:5, 1:2. -
Page 28: Exit Without Saving
- 28 - ave & Exit Setup ress <Enter> on th is item to save your changes. The system will ask for confirmation : system Save to CMOS and EXIT (Y/N)? Y ressing "Y" stores the sele ons made in the menus of CMOS - a special section of memory that stays on after you turn your system off. - Page 29 In many cases, your monitor may not need repair. Before you contact us, please consult the bleshooting section to see if you can easily remedy the problem yourself. Refer to page no 24. You ™ can find the addresses of iameco service centres in page no 37. M roPro Computers 98 N...
-
Page 30: Disposal Information
European Union (EU) ™ f the product is used for busines purposes and you want to discard it please contact your iameco dealer who will inform you about the take-back of the product. You might be charged for the costs arising from the take-back and recycling. -
Page 31: Return Policy
(subject to certain conditions contained in this return policy). You have 7 days from date of ™ shipment of your purchase to return your purchase. iameco must be notified by e-mail of your intention to return your purchase within 10 days of shipment. -
Page 32: Warranty Information
Upon request from iameco , the ™ nsumer must provide information to reasonably prove the date of purchase. iameco reserves the right to charge customer in case of warranty conditions that are not fulfilled. How long the warranty is effective ™... -
Page 33: Limitation Of Liability
Physically damaged products by purchaser, such as broken PCB, Housing, damaged LCD Module. ™ ™ No Defect Found (product returned to iameco as defective but failure is not duplicated by iameco test method). The product is not in accordance with the faul t in the application. -
Page 34: Regulatory Notices
Further information on the eco-label can be found at http://europa.eu/int/ecolabel Restriction of Hazardous Substances (RoHS) iameco products are safe from hazardous substances (Cd, Pb, Hg, Cr+6, PBDE and PBB) and can be disposed of in an environmentally safe manner. Moreover, we at iameco... - Page 35 ISO certifications ISO 9001:2000 iameco has been assessed and is in compliance with the provisions of the Quality System to IS.EN.ISO 9001:2000 in respect of the scope of operations such as build and sale of environmentally friendly computers. Service and repair of computers, peripherals and network solutions and is hereby included in the European Quality Assessment (EQA) directory of certified organisations.
- Page 36 Standard Limited Warranty. You can either e-mail it to info@iameco.com or fax it to +353 (0) 1 4943885. Returns Material Authorisation (RMA) request form Title Contact first name...
- Page 37 - 37 - iameco registered dealers in Ireland ™ MicroPro Compu ters Cultivate Sustainable Living Centre 98 Nutgrove Avenue, 15-19 Essex St, Rathfarnham, West Temple Bar, Dublin 14, Dublin 8, Ireland. Ireland. Tel: +353 (0) 1 4930514 Tel: +353 (0) 1 6745773 Fax: +353 (0) 1 4943885 Homepage: www.micropro.ie...
