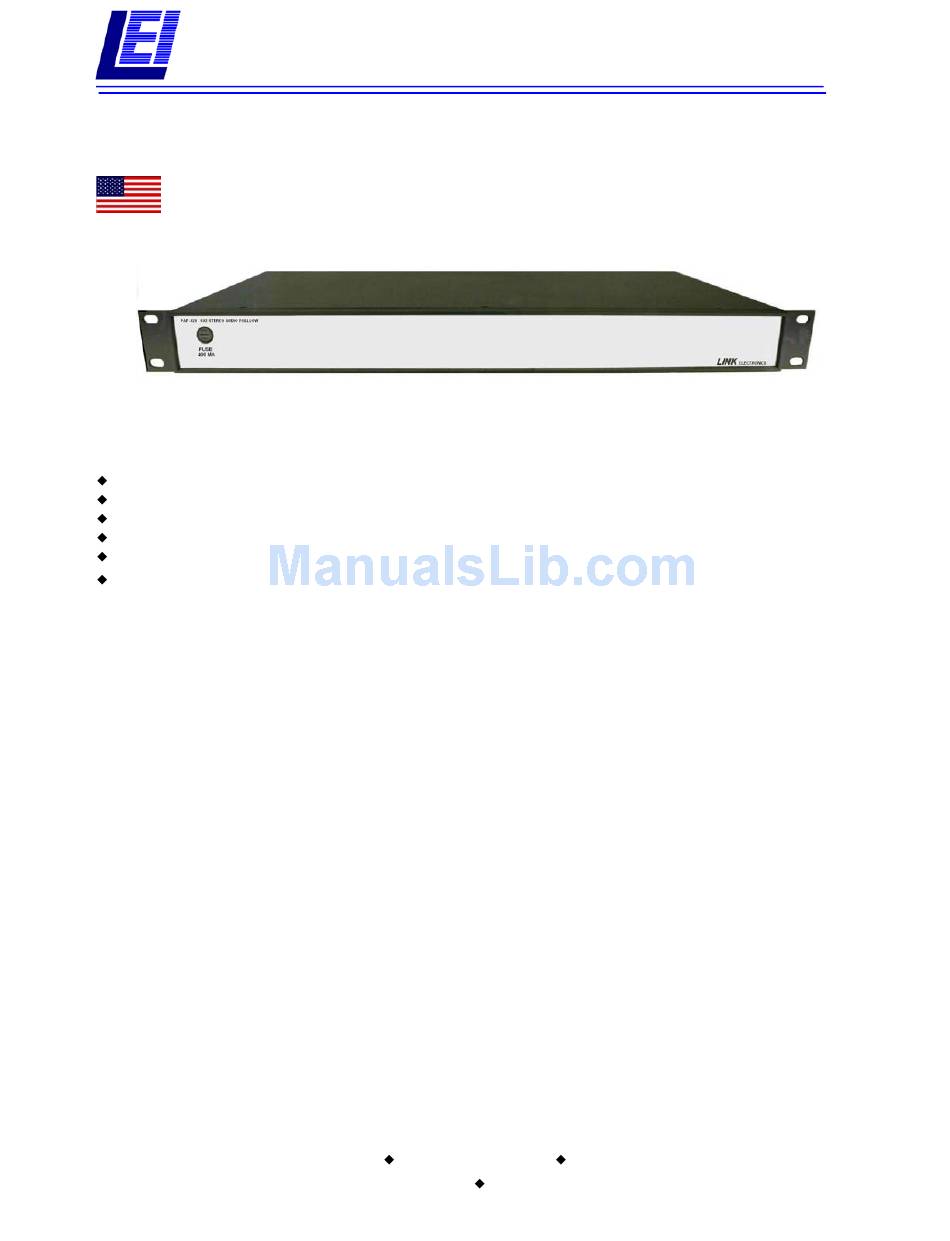

Link electronics PAF-821 Specification Sheet

LINK ELECTRONICS, INC.
8X2 STEREO AUDIO FOLLOW, RS-232/485
MODEL PAF-821
MADE IN THE USA

FEATURES

8 Inputs X2
Digital Switching
Balanced Differential
One Rack Unit Cabinet
Output Impedance, 66Ω
RS-232, RS-422, RS-485
The PAF-821 is a professional stereo audio follow
switcher for its video companion. The high
impedance balanced input circuits reduce loading
effects and noise on the incoming signals. The low
output impedance of 66Ω provides a maximum
level of +24dBu. The input and output connections
are printed circuit spring terminal blocks. The
terminal blocks provide reliable clamping action for
secure and reliable operation due to a force
amplifying hinge motion.
A nine pin female D connector provides serial
interface to computer or modem for RS-232 control
which is standard in all units. The switcher is
available in other models for stereo, mono or four
channel operation.
LINK
ELECTRONICS, INC. 2137 Rust Avenue
Phone 573 334 4433
There are no push buttons on the front panel as
the PAF-821 gets its control functions from the
VSW series switchers or RS-232 from a computer.
Multiple switchers can be controlled by a single
remote control panel, PSR series. The PAF-821 is
RS-232 controlled and remote control is RS-422 or
RS-485 via an RJ11 telephone connector and
cable assembly.
The PAF-821 is the stereo audio follow companion
switcher for the VSW-822 video switche. With
digital switching logic combined with high
performance audio circuitry this forms the
foundation for the next generation of audio routing
switchers. All VSW, ASW, PAF and PSR series
units occupies on rack space. Each unit includes
a power supply for reliable operation.
Cape Girardeau, MO 63703-7668
FAX 573 334 9255
800 SERIES
