Summary of Contents for Ednet 87232

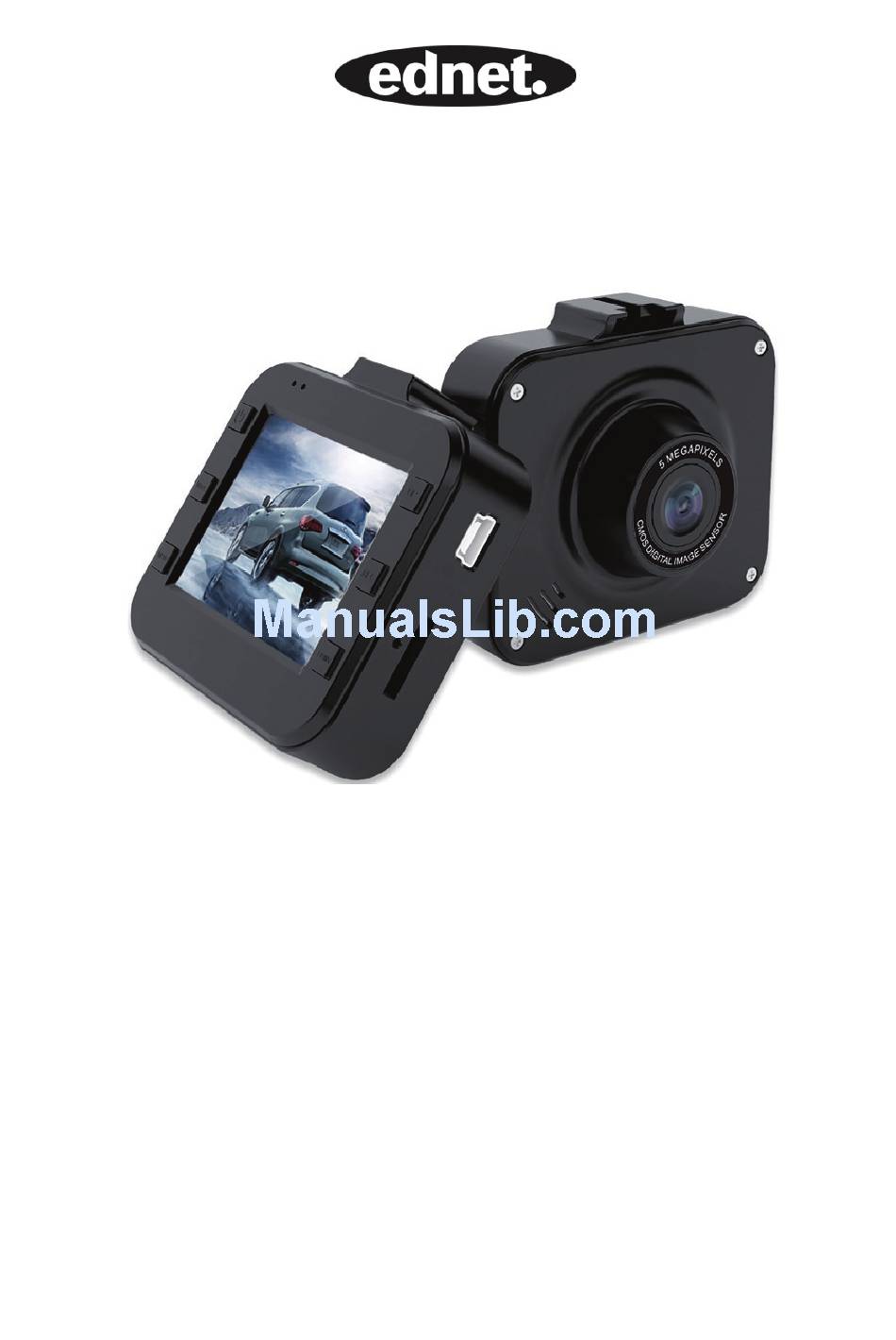

- Page 1 DASH CAM MINI, FULL HD MANUAL 87232...
- Page 2 In order to make better use of all the function of the car DVR, please read the manual carefully before using. Caution 1. Please insert the memory card to the Car DVR and format it. Please insert the card according to the correct direction to avoid damaging the TF card or Car DVR. 2.
- Page 3 1.0 STRUCTURE 1: Stand slot 2：USB interface 3: RESET key 4: TF card slot 5: Speaker 6: Status LED 7: Power LED 8: POWER key 9: MODE key 10: Menu key 11: LCD 12: DOWN key 13: REC key 14: UP key 15: Lens 2.0 FEATURES 1.
-
Page 4: Power On/Off
3.0 OPERATION GUIDE 3.1. Power on/off The Car DVR can be turned on by either pressing the POWER key or simply connected it with the car charger to automatically power it on. After power on, the Car DVR will enter the video mode automatically and start recording if the MicroSD card is already inserted. - Page 5 3.4 Install and Remove a memory card Insert the MicroSD card into the MicroSD card slot. To remove the card, simply push the memory card inside first then it will be ejected out. Please note that the SD card itself is directional. So please insert it in the correct way. 3.5 Video Press the POWER key to start and enter into the video mode directly.
-
Page 6: Sos Function
3.7．Playback and Delete files. Under Standby, short press the “MODE” button twice, it will enter into “PLAYBACK” Mode. Press UP or DOWN to select the files you want to preview. Then press REC button to play or stop. If you want to delete the files, please press MENU to select DELETE and press REC key to enter into the option of “delete all”... - Page 7 4.0 OPTIONS AND SYSTEM SETTINGS Press MENU to go to the setup menu under standby mode. Press the UP/DOWM button to select item, confirm it by pressing REC button. The specific menu options are described as below: Default MODE Menu To select the setting Setting 1080FHD 1920x1080...
-
Page 8: Connected To The Computer
MM/DD/YY,DD/MM/YY,YY/MM Date/time DD/MM/YY Auto Power off Off/1 minute/3 minutes Beep sound Off/on English/Français/Español/Port Language English uguês/Deutsch/Italiano/ setup Frequency 50Hz/60Hz 50Hz Format To format TF card Return menu setting to Default setting defaults/cancel/OK LCD OFF Off/1minute/2minutes/5minutes default:1min Version The current version number 5.0 CONNECTED TO THE COMPUTER 5.1 Video and photo download When connecting the Car DVR to your computer via USB cable, the red Status LED lights... -
Page 9: Product Specifications
6.0 PRODUCT SPECIFICATIONS Screen size 2.0inch TFT Pixel 1.0MP Lens 120degree wide angle lens Min LUX 1LUX Video resolution 1080FHD/1080P/720P/480P/VGA Video format AVI@MJPG Frames 30fps 12M/10M/8M/5M/3M/2M/VGA/1.3M Image resolution 5M/3M/1.3M Image format Motion detection Support Cycle recording Off/30s/1min/2mins Memory card MicroSD (TF) card Storage capacity Max 32GB USB port...
