Systems for aqua culture,
sea water aquaria, labs and
water desalination and purification
Reverse Osmosis Unit Excel DT
20
3
19
6
7
3
8
5
3
2
4
1
9
(10)
Montage
Schlauch
Klemmhülse
Demontage
B
A
IN
OUT
A
B
C
D
1
2
3
4
5
6
7
Fig. I
8
9
10
11
12
13
14
15
16
17
18
Fig. II
19
20
beroexdt.doc, Seite 1 von 1, Aug. 11
AquaCare GmbH & Co. KG
C
AquaCare
R
AquaCare
R
Umkehrosmoseanlage
Excel 160
GB
Instruction manual
Feed water
Waste water
Tank connection
To using unit
Flat sealing
Muffle ¾"f- ¼"m
Fitting ¼"m-6f
Tap connector
6 mm PE tube
Mounting plate
Bracket
Filter housing
Hydraulic valve
10" combi filter cartridge
Membran housing
Membran 50 GPD
Clip
Valve ¼"f-6f, 90°
Fitting 1/8"km-6f, 90°
Fitting T6f-¼"m-1/8"m
Pressure gauge
Fitting 1/8"km-6f
Flow reducer
Pressure tank 8 l
Am Wiesenbusch 11
D-45966 Gladbeck
Tel.: +49-2043-375758-0
Fax: +49-2043-375758-90
http://www.aquacare.de
e-mail: info@aquacare.de
14
17
15
18
7
D
3
16
8
11
(12)
13
(10)
15
order number
-
-
-
778-033
011-001
PM090612E
897-001
890-006
032-001
209-004
201-111
897-007
221-105
191-001
190-012
191-102
PPSV500822W
PM090601E
-
700-010
PM010601E
896-011
192-002
Advertisement
Related Manuals for AquaCare Excel DT 120 120-010
Summary of Contents for AquaCare Excel DT 120 120-010
- Page 1 AquaCare GmbH & Co. KG Am Wiesenbusch 11 Systems for aqua culture, D-45966 Gladbeck sea water aquaria, labs and Tel.: +49-2043-375758-0 water desalination and purification Fax: +49-2043-375758-90 http://www.aquacare.de e-mail: info@aquacare.de Reverse Osmosis Unit Excel DT AquaCare AquaCare Umkehrosmoseanlage Excel 160...
-
Page 2: Montage

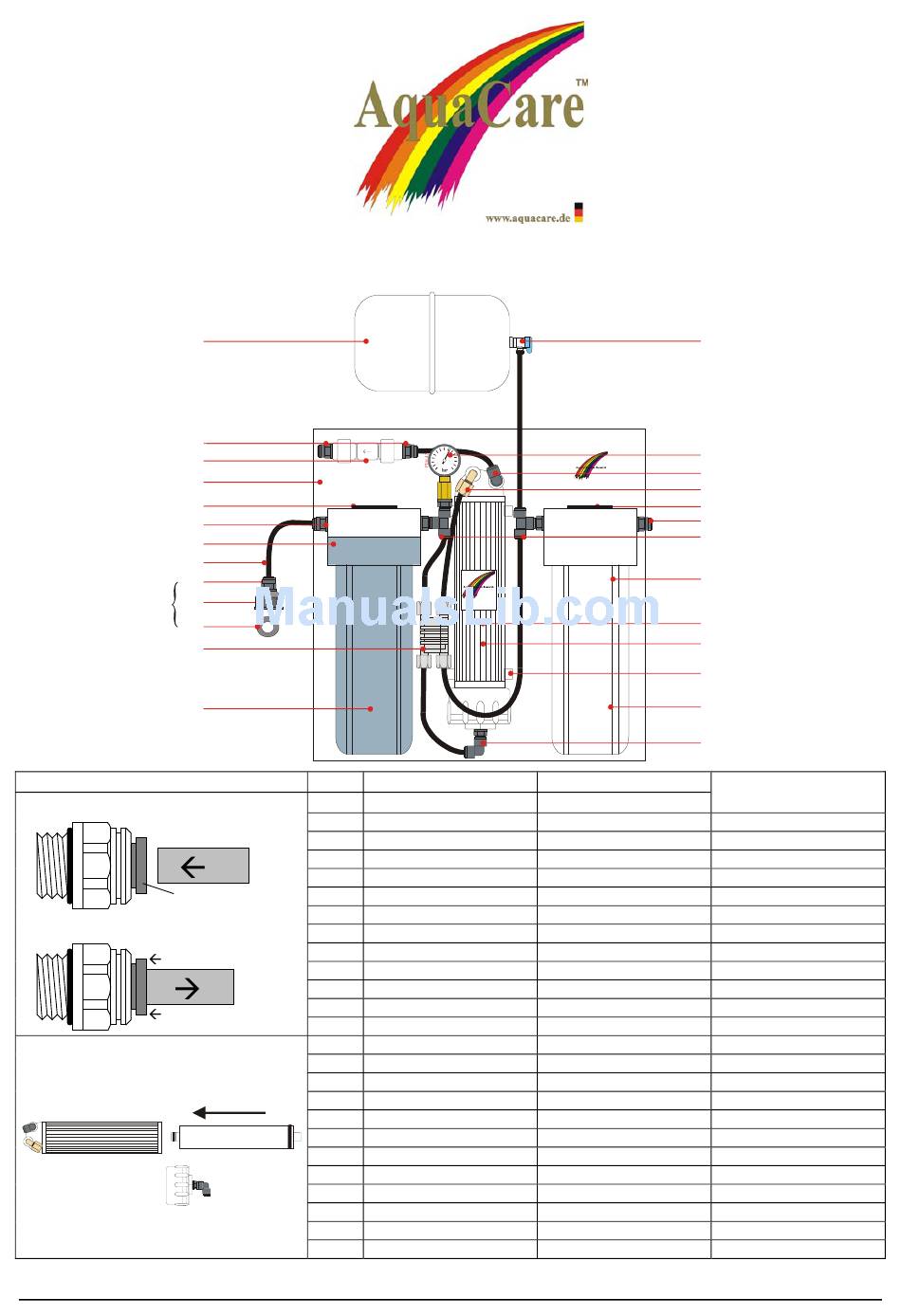

- 2 - Reverse Osmosis Unit Excel DTP AquaCare (12) (10) (10) order number Montage Instruction manual Feed water Schlauch Waste water Tank connection To using unit Flat sealing 778-033 Klemmhülse Muffle ¾”f- ¼“m 011-001 Demontage Fitting ¼“m-6f PM090612E Tap connector... - Page 3 The load of the drinking water with hardness substances, booster pump. fertilizer remainders (e.g. nitrate), dismantling products of AquaCare plants are delivered with combi filter to ensure a the pharma industry (e.g. Oestrogene), the chemical indus- long life time of the membrane and crystal clear and safe try (e.g.
-
Page 4: Electrical Connection
Maintenance It is possible to shut down an AquaCare R.O. unit for a To ensure a proper operation of the unit and the best water longer time. The membrane will not get damaged. To pre- quality it is important to maintain the R.O. unit regularly. - Page 5 AquaCare cannot be made liable. Too less or no concentrate, but enough permeate To get the guarantee AquaCare needs a copy of the dated Check the concentrate tube. purchase receipt. The feed water quality must correspond to Replace the flow reducer (19).
