Groov -AT1 Quick Start Manual

Quick Start

for GROOV-AT1

Connect to the network

LNK ACT light
Connect ETH0 to your
computer's network.
If you have a separate control network,
see the groov Box User's Guide.
For detailed information on setting up your
network, and setting up communications
over the Internet, see form 1796, the Guide
to Networking Opto 22 Products.
Form 2063-140602—June 2014

Unpack the groov Box

You need:
• A computer with a modern web browser on the same network you'll use for the
groov Box. We recommend Chrome, Firefox, or Internet Explorer 10.
• One of the following, on the same network as your computer. The network
should have DHCP & DNS.
– An OPC UA-compatible tag server communicating with virtually any
automation system or equipment
– A PAC S-series, PAC R-series, or SoftPAC controller with firmware R9.2a or
newer, running a strategy developed in Opto 22's PAC Control
In the box...
Spare fan filters (attach before use)
Open
groov Box (GROOV-AT1)

Connect the power supply

Plug the small connector on the power supply into the power terminal on the
bottom of the groov Box, and tighten the screws. Plug the other end into a
standard 120 or 240 VAC outlet.

Turn on the groov Box

Briefly press and release the On/Off button. Wait until the SYS LED has stopped
blinking and is solid green. Also, take a look at the LNK ACT light for ETH0. If the
cable is properly connected, the LNK ACT light should be on or blinking.
Antennas
CD
Activation key
certificate
Power supply Ethernet cable

Get Started

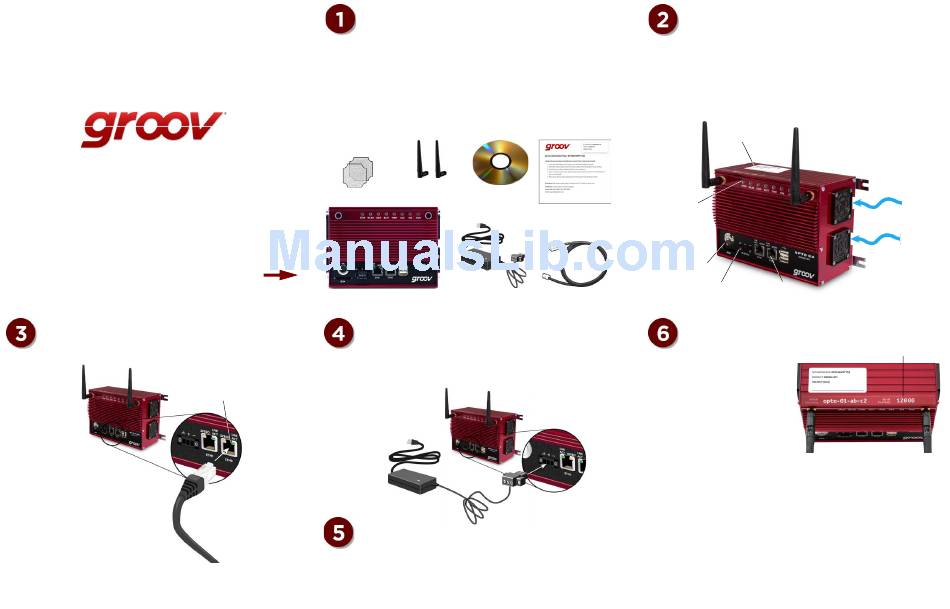

To set up the groov Box, you'll use the groov Box components shown below.
When deciding where to place the groov Box, make sure there is room around the
front, top, and sides of the groov Box to allow air to flow freely around the device.
You need to be able to see the information on the bottom.
Peel the label from the Activation Key Certificate and affix it to the top of the
groov Box.
Affix the Activation
Key label here.
LEDs
On/Off button
Power terminal ETH0
Activate the groov Box and get the
license file
Open a web browser (Firefox or
a.
Chrome recommended) and go to
activate.groov.com.
Log in using your email address and
b.
your My.Opto22 password.
You may have set up your free
My.Opto22 account when you
purchased your groov Box. If you don't
have a My.Opto22 account, enter your
email address and other information,
and the account will be created.
Follow the on-screen instructions to activate your groov Box and download the
c.
license file.
When asked to enter the serial number, you'll find it on the label on the top of
the device.
© 2014 Opto 22. All rights reserved. Printed in the United States.
Airflow
Serial number
