RTI RTiDock Installation And Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

It's Under Control
®
It's Under Control
®
RTiDock
70-210092-21 V1.1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTiDock and is the answer not in the manual?

Questions and answers

Summary of Contents for RTI RTiDock

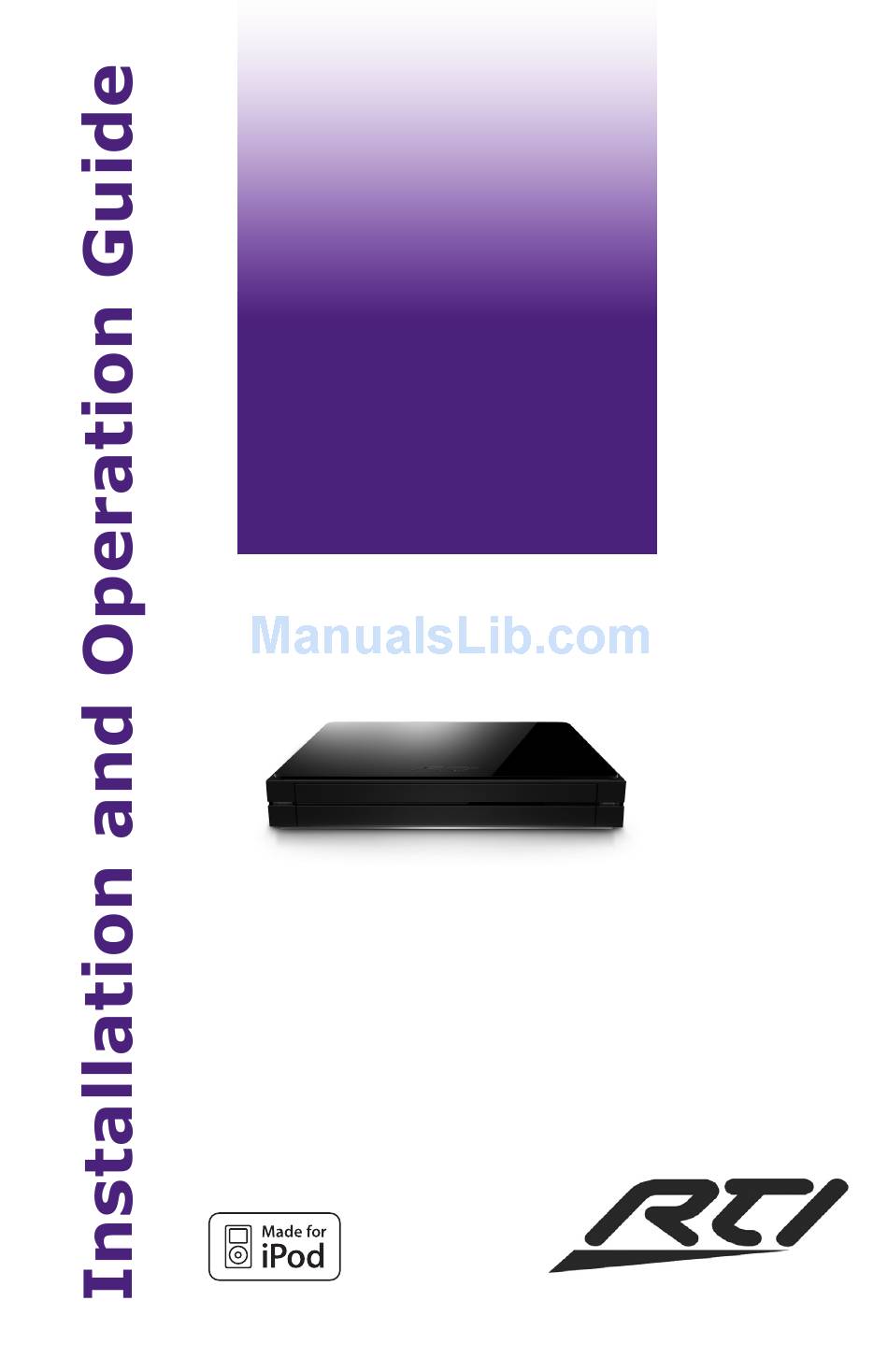

  • Page 1 It’s Under Control ® It’s Under Control ® RTiDock 70-210092-21 V1.1...
  • Page 2 RTiDock Copyright © 2011 Remote Technologies Incorporated All rights reserved.

  • Page 3: Federal Communications Commission Notice

    This device may not cause harmful interference. This device must accept any interference received including interference that may cause undesired operation. N27917 DECLARATION OF CONFORMITY (DOC) The Declaration of Conformity for this product can be found on the RTI website at: www.rticorp.com/declaration...

  • Page 4: Safety Suggestions

    RTiDock SAFETY SUGGESTIONS Read Instructions. Read all safety and operating instructions before operating the unit. Retain Instructions. Keep the safety and operating instructions for future reference. Heed Warnings. Adhere to all warnings on the unit and in the operating instructions.
  • Page 5 It’s Under Control ® SAFETY SUGGESTIONS WARNING! TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE UNIT TO RAIN OR MOISTURE.

  • Page 6: Limited Warranty

    Remote Technologies Incorporated’s liability for any defective product is limited to repair or replacement of the product, at our option. If any component of your RTiDock needs service, please contact Remote Technologies Incorporated by telephone, fax or E-mail for return information. Please do not return products to Remote Technologies Incorporated without return authorization.

  • Page 7: Table Of Contents

    - Product Contents ..............10 Chapter 2 - Features and Description ..........12 - Top/Front Panel ..............13 - Rear Panel ................13 - RTiDock Parts and Functions ..........14 Chapter 3 - Cables and Control ............16 - Installing iPod into RTiDock ..........16 ®...
  • Page 8 RTiDock...

  • Page 9: Chapter 1 - Welcome

    Avoid installing the RTiDock in a location where it can come in contact with direct sunlight. Do not let the RTiDock system or get wet. It should not be handled with wet hands or placed in an area where it could get wet.

  • Page 10: Product Contents

    One (1) 12VDC/2Amp Power supply One (1) Installation guide UNPACKING AND INSPECTION After unpacking your new RTiDock, save all of the packing materials in case you ever have to ship the unit. Thoroughly inspect the RTiDock and packing materials for signs of damage. Report any damage to the carrier immediately.
  • Page 11 It’s Under Control ®...

  • Page 12: Chapter 2 - Features And Description

    RTiDock CHAPTER 2 | FEATURES AND DESCRIPTION The RTiDock provides superior quality and reliability as well as these specific features: • On-screen interface (GUI) for navigation of music on a TV display. • Sliding tray provides a clean look and improved reliability.

  • Page 13: Top/Front Panel

    It’s Under Control ® CHAPTER 2 | FEATURES AND DESCRIPTION RTiDOCK: TOP - FRONT 1. RTiDock Status Light 2. Tray for iPod 3. iPod (purchased separately) 4. Connector and Cable for iPod 5. Infrared Receiver RTiDOCK: REAR POWER RESET ETHERNET...

  • Page 14: Rtidock Parts And Functions

    2. Tray for iPod Tray slides out for access to iPod storage. 3. iPod iPod media player. NOTE: iPod not included with RTiDock kit. 4. Connector and Cable for iPod iPod is plugged into this connector for power (recharging battery), audio output and remote updating of the iPod (via RTiSync).
  • Page 15 It’s Under Control ®...

  • Page 16: Chapter 3 - Cables And Control

    CHAPTER 3 | CABLES AND CONTROL INSTALLING iPod INTO RTiDOCK 1. Open RTiDock tray Press in to release tray, which will automatically slide out. 2. Place iPod in RTiDock tray Connector and Cable for iPod 3. Plug iPod into connector...

  • Page 17: Wiring And Connections

    Ethernet network (LAN). NOTE: To receive album art feedback on an RTI system controller requires network control. • Plug Cat-5 Ethernet cable to network port on RTiDock and to network router, hub or switch. RTiDock Network Router/Switch...
  • Page 18 RS-232 CONTROL OF RTiDOCK RS-232 control provides one-way control of the RTiDock and metadata feedback (such as current song info, music library browsing etc.) from a two-way capable RTI control system (control processor and controller). A set of RS-232 codes is available in the RTI Integration Designer programming software and RTI’s website (accessible...

  • Page 19: Controlling The Rtidock

    (accessible to RTI dealers only). USING THE IR RECEIVER The infrared receiver is located on the front right side of the RTiDock and accepts IR commands from wireless remote controls or from an IR emitter. • Point a wireless remote control device at the front of the RTiDock.
  • Page 20 ANALOG AUDIO • Using an audio cable with RCA connectors, connect to the analog outputs (left/ right) on the rear of the RTiDock. Connect the opposite end of the cable to your audio system (distributed audio system, receiver etc). RTiDock...
  • Page 21 RTiDock. • Using component video cables (RG59, RG6) with RCA plugs, connect to the video outputs (Y/PB/PR) on the rear of the RTiDock. Connect the opposite end of the cable to your television or video distribution system.
  • Page 22 RTiDock...

  • Page 23: Chapter 4 - Configure Settings

    • Other settings - power and LED status. ADJUST SETTINGS 1) With the RTiDock powered and plugged into a video monitor (TV set to this input). 2) Using a remote control cursor controls, navigate to the MAIN MENU. 3) Select CONFIGURATION.
  • Page 24 SELECT LANGUAGE 1) From the CONFIGURATION MENU select LANGUAGE. 2) Select the language that will be used for the RTiDock interface using the cursor controls on the remote control (Up/Down). 3) Send the “Select” command to accept the language change.
  • Page 25 It’s Under Control ® CHAPTER 4 | CONFIGURE SETTINGS ADJUST SOUND SETTINGS AND PLAYBACK MODES 1) From the CONFIGURATION MENU select SOUND. 2) Navigate to the setting that needs to be adjusted using the cursor controls (UP/ DOWN) on the remote control. 3) Send the SELECT command to “highlight”...
  • Page 26 RTiDock, this setting should not be enabled. A static IP address should be assigned). • IP Address - Set the IP address for the RTiDock (NOTE: This address must be different from all other devices on the network).
  • Page 27 In this mode, less than 1 Watt of electricity is consumed until the unit wakes up due to activity. Disabled = In this mode, the RTiDock is always powered on. • LED control Reflect power status = The blue LED’s will be turned off when the Power Save mode is activated.

  • Page 28: Rtidock Status

    • Version - Firmware version running on the RTiDock. • IP Address - IP address assigned to the RTiDock. • MAC Address - Unique identifier assigned to this RTiDock for Ethernet communications on the network. (NOTE: the MAC address is not configurable).
  • Page 29 It’s Under Control ®...

  • Page 30: Chapter 5 - Browse And Listen

    CHAPTER 5 | BROWSE & LISTEN ACCESSING CONTENT ON YOUR iPod The RTiDock features a guide that allows you to easily browse through the content of your iPod. A scrolling list displays your music in categories and allows you to drill down into each category to gain access to a specific album, artist, song etc.
  • Page 31 It’s Under Control ® CHAPTER 5 | BROWSE & LISTEN MUSIC MENU 1) Navigate to the category you would like to browse using the cursor controls (UP/ DOWN) on the remote control. 2) Send the SELECT command to open the category. MUSIC SEARCH CATEGORIES •...
  • Page 32 RTiDock CHAPTER 5 | BROWSE & LISTEN Below is an example of drilling down into a search category. As each selection is made it will open a new list containing the information for that category. NOTE: If the option for “<<All Songs>>” is selected, all tracks within this category will be played.
  • Page 33 Once a music selection has been made, a NOW PLAYING screen will show the information about the track that is being played. SEE NOW PLAYING INFORMATION 1) Open the RTiDock interface on your TV or RTI controller. 2) Using the remote control cursor controls, navigate to the MAIN MENU. 3) Select NOW PLAYING.
  • Page 34 RTiDock...

  • Page 35: Chapter 6 - The Rtisync Application

    PC. The difference is that with RTiSync, you can do all of this remotely from your PC’s iTunes Application while your iPod is still plugged into the RTiDock. INSTALLING RTiSYNC The RTiSync application is available for download onto your PC by visiting: www.rticorp.com/dealers...
  • Page 36 RTiDock • A Welcome to the RTiSync Install window appears. • Follow the instructions in the window and click the [Next] button to continue the installation process. • You are then directed to the User License Agreement. • It is recommended that you read the entire agreement before proceeding.
  • Page 37 It’s Under Control ® • Click the [Start] button in the next window that appears on your screen to begin with installation of the RTiSync Application. • Your PC’s installation wizard will begin installing RTiSync on your PC. • Please note that this process could take several minutes. •...
  • Page 38 RTiDock • Once the installation is complete, a new prompt will appear in the installation window. • Click the [Finish] button to complete the installation. • To access the RTiSync Application, click the RTiSync button displayed on the lower right of your PC’s desktop.

  • Page 39: Configuring Ipod Using The Rtisync Application

    The RTiSync Application allows you to configure your RTiDock’s settings in the same manner as if you were using your TV to configure the settings. To configure your RTiDock’s settings using this method ensure that your PC is connected to the internet.
  • Page 40 RTiDock • Upon selecting the Configuration tab a prompt will appear asking for your username and password. The RTiDock is shipped with a default username of “root” and no password set. Enter “root” into the User name field, leave the Password field blank, and select the [OK] button.
  • Page 41 It’s Under Control ® • You can also view important system information, such as MAC Address, Firmware Version, and the URL by selecting the System Information tab. Additionally, you can change/reset your password and/or update your firmware by selecting the appropriate link located on the top of the page.

  • Page 42: Chapter 7 - Troubleshooting

    RTiDock HAPTER 7 | TROUBLESHOOTING If you are having problems with your RTiDock, please read the information below before contacting technical support. RTiDOCK DOES NOT FUNCTION PROPERLY Symptom: No sound coming from RTiDock Possible Causes: - iPod is not connected > Verify iPod is connected in RTiDock Tray.
  • Page 43 HAPTER 7 | TROUBLESHOOTING Symptom: No video is displayed or an “invalid format” error message is displayed through the component video output of the RTiDock Possible Causes: - The NTSC/PAL video signal setting is toggled incorrectly > Verify NTSC/PAL video...
  • Page 44 RTiDock...

  • Page 45: Chapter 8 - Specifications

    It’s Under Control ® CHAPTER 8 | SPECIFICATIONS Dock DC Voltage ................12VDC, 2A Charge Power Supplied ................5VDC, 1A Disconnected Indicator ..............Solid Red LED RTiSync In-Progress Indicator ........... Flashing Red LED Connection for iPod ..........Cable with connector overmold USB ..................Type A, Future use RS-232 Control ..................
  • Page 46 RTiDock...

  • Page 47: Chapter 9 - Service And Support

    Fax (952) 253-3131 info@rticorp.com RTI TECHNICAL SUPPORT At RTI, customer service and satisfaction is an utmost priority. If you are encountering any problems or have a question about your RTI product, please contact RTI Technical Support for assistance. RTI provides technical support by telephone, fax or e-mail. For the highest quality service, please have the following information ready, or provide it in your fax or e-mail.
  • Page 48 SERVICE AND SUPPORT SHIPMENT OF RTiDOCK FOR SERVICE RTI will pay all labor and material expenses for all repairs covered by this product’s warranty. If necessary repairs are not covered by warranty, or if a unit is examined which is not in need of repair, you may be charged for the repairs or examination.
  • Page 49 It’s Under Control ®...

  • Page 50: Index

    Control (IR/RS-232) ............18 Power ................17 Important Notes ..............9 Limited Warranty ..............6 Product Contents .............. 10 RTiDock Parts and Functions ..........14 RTiSync Application ............35 Safety Suggestions ............. 4 Service and Support ............47 Settings Configuration ............23 Specifications ..............
  • Page 51 It’s Under Control ®...
  • Page 52 RTiDock It’s Under Control ® Remote Technologies Incorporated 5775 12th Avenue East, Suite 180 Shakopee, MN 55379 Tel: 952-253-3100 Fax: 952-253-3131 www.rticorp.com © 2011 Remote Technologies Inc. All rights reserved. Printed in Taiwan.
