Summary of Contents for KAPASS H50U

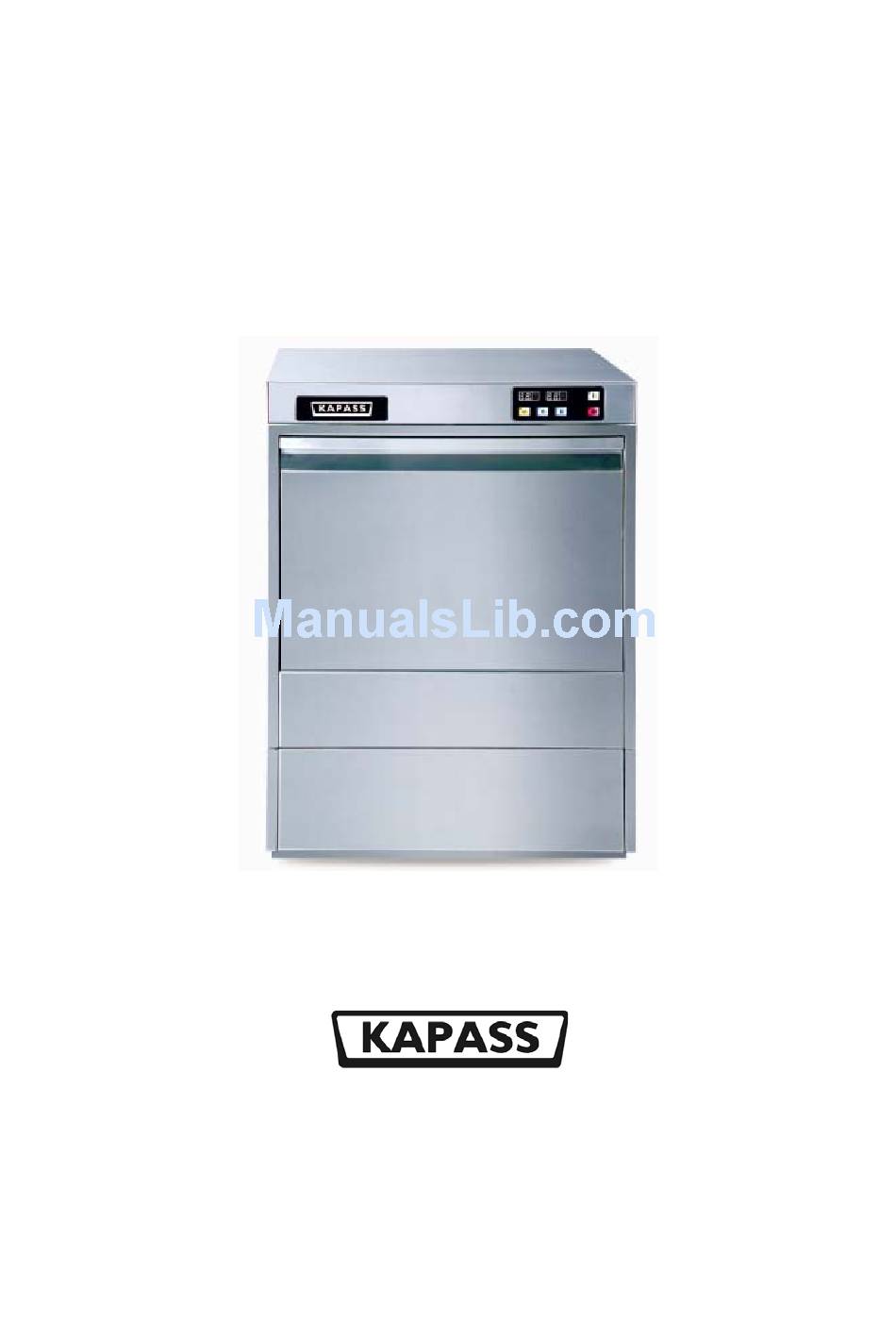

- Page 1 H50U Glass&Dish Washer installation and operation manual KAPASS COMMERCIAL DISHWASHER V．001005...
-
Page 2: Table Of Contents
Contents 1 Safety Instruction ……………………………………………………… 2 Brief introduction to the machine ……………………………… General ………………………………………………………………………… Technical Data ………………………………………………………………… 3 I n s ta l l a t i o n … … … … … … … … … … … … … … … … … … … … … Unpacking …………………………………………………………………………... -
Page 3: Safety Instruction
H50U Glass&Dish Washer installation and operation manual 1 Safety Instruction To ensure correct operating, the operators are supposed to pay special attention to the following: Safety 1, After purchasing, please contact professionals for guidance on installing and operating the machine. - Page 4 H50U Glass&Dish Washer installation and operation manual 4, Before each operation, please check the water inlet hose and drain pipe if they are well connected. Proper treatment should be done if there is water leakage or connection looseness. 5, Do not place on top of the dishwasher heavy objects, heating appliances or items easy to leak fluid.
-
Page 5: Brief Introduction To The Machine
2 Brief Introduction to the Machine General Your new H50U is a semi-automatic, rack type under counter glass&dish washer. Open the front door to allow the rack to be pushed in or out. After filling, an automatic wash and rinse cycle begins when the door is closed. In case of low water level, water will be filled in automatically when the door is closed, an automatic wash and rinse cycle will begin after reaching normal level. -
Page 6: Technical Data
H50U Glass&Dish Washer installation and operation manual Major Technical Data Technical Data Unit H50U Max capacity rack/hour Wash cycle 90/120/180 Wash Temp 60～65 °C Washing data Rinse Temp 82～90 °C Tank capacity Water consumption/rack Diameter of the water inlet hose Kg/cm 2～5... -
Page 7: N S Ta L L A T I O N
H50U Glass&Dish Washer installation and operation manual 3 Installation Check the goods if they agree with the invoice. Please immediately contact the shipping company or supplier if there is any doubt. Unpacking Immediately after unpacking, check for possible shipping damage. If the dishwasher is found to be damaged, save the packaging material and contact the supplier within 15 days of delivery. -
Page 8: Electrical Connections
H50U Glass&Dish Washer installation and operation manual The dishwasher must be level before any connections are made. Turn the leveling feet as required to level the machine and adjust to the desired height. A hood or vent may be required in order to meet local codes. The lowest ventilation capacity should be 2.8m... - Page 9 H50U Glass&Dish Washer installation and operation manual valves or solenoid valves. The manufacturer takes no responsibility over any damages and related cost caused by foreign bodies in manual or solenoid valve. Gently pull the inlet hose to confirm fastening, turn on the faucet after installation, check if there is leakage.
-
Page 10: Operation
H50U Glass&Dish Washer installation and operation manual 4 Operation Testing Water inlet hose Please clean the inlet hose before connection, clean all the filters after initial operation Plumbing connections and flow pressure Check if the inlet hose is connected firmly, as looseness and leakage may happen in transporting and carrying. - Page 11 H50U Glass&Dish Washer installation and operation manual 1, Function Keys （1） ON“ ” Press this button to start the machine. （2） SET： In "ON" mode, press SET to enter the parameter setting(Original Password is 00)； （3） Up“ ”: Press this button to select wash cycle (90 seconds / 120 seconds / 180 seconds).
-
Page 12: Preparation
H50U Glass&Dish Washer installation and operation manual Press button Up“ ”to select wash cycle 90 seconds / 120 seconds /180 seconds, respectively shown as C1, C2, C3 in rinse temp LCD. Display will disappear after 5 seconds when the cycle is chosen （B）Password setting：... -
Page 13: Dishwashing
H50U Glass&Dish Washer installation and operation manual Overflow pipe Strainer basket Fig.3 Recommend Operating Temperature Wash 60～65℃（140～149℉） Rinse 82～90℃（180～194℉） Dishwashing Please remove large particles of food debris first. ◆ Select suitable wash cycle 90s, 120s or 180s according to dish size and food soil. -
Page 14: Cleaning
H50U Glass&Dish Washer installation and operation manual Cleaning It is recommended that the machine be thoroughly cleaned at the after each orperation or at least daily. The cleaning steps are as follows: Turn off the power. Open the door. Drain the machine by pulling out the over flow pipe. -
Page 15: Maintenance
H50U Glass&Dish Washer installation and operation manual 5 Maintenance Warning Before any maintenance begins, please disconnect the electrical power supply and place a tag at the power switch indicating that you are working on the circuit. Wash and Rinse Arms Upper and lower wash and rinse arms should turn freely and continue turning for a few seconds after being whirled by hand. -
Page 16: Trouble Shooting
H50U Glass&Dish Washer installation and operation manual 6 Trouble Shooting Trouble Shooting Techniques This section may help you avoid a service call. If a symptom persists after the possible causes have been checked, please contact our service center or local authorized service office. - Page 17 H50U Glass&Dish Washer installation and operation manual 7 After sale service Dear users: Thank you for using our products, our company will follow related provisions from "Consumer Protection Act", and provide you services with warranty card and invoice. We provide 12-month warranty from the date of purchase (invoice date ). In warranty period, our company is responsible for free replacement parts and services if there is device faults or quality problem of spare parts under correct operation.
