SDI FRAME SYNCHRONIZER MODULE
DigiFlex 1190
MADE IN THE USA
FEATURES
10 Bit Processing
Digital Component Input
Digital Component Output
Analog Blackburst Reference
Infinite Window H & V Phasing
Freeze Last Good Frame/Field On Signal Loss

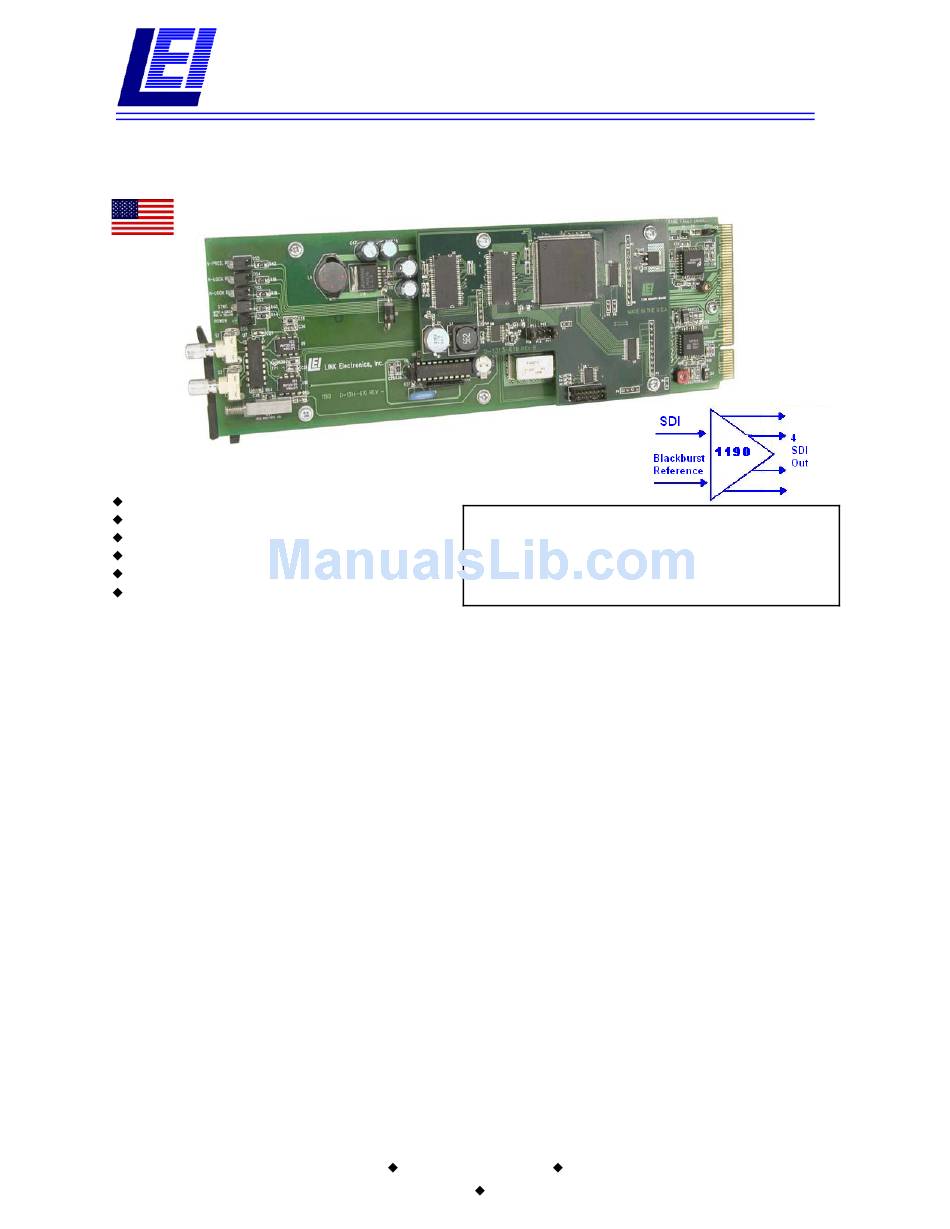

The LINK 1190 Frame Synchronizer represents
the state of the art in digital signal synchronization.
It's input is asynchronous component serial digital
video, which is de-serialized and written into the
on-board frame buffer.
The output is read from memory according to the
timebase of the analog blackburst reference
signal. Front panel horizontal and vertical phase
adjustments control the output timing relative to
the reference. When used in conjunction with our
A-to-D and D-to-A products, analog signals may
be synchronized to a house reference as well.
LED's on the card edge provide monitoring of
Power, Video Presence Analog, Video Presence
Digital, NTSC/PAL, and H Lock Analog.
The 1190 can be used with the DigiFlex 1159,
1160, 1162, 1165, 1166, or 1167 to synchronize
composite or component analog signals to the
system.
LINK
ELECTRONICS, INC.
1000
1000/2 - Dual Power Supply, Holds 10 Modules
7200
2137 Rust Avenue
Phone 573 334 4433
Mounting Frame Options
- Single Power Supply, Holds 11 Modules
- Mounting Frame, Holds 1 Module
The Link 1190 is used
conversion device or behind the conversion
device. This provides the user with a great deal of
system flexibility. There are over 24 system
configurations.
The 1190 provides for both PAL and NTSC
reference inputs. Timing for both Horizontal and
Vertical are controlled from the front panel. The
1190 operates in the 1000 series frame in any
module configuration. This is not a sub-module, it
is a full featured product.
When the input video is lost the output will either
be black or the last good frame of video, jumper
selectable. If the reference video is lost, the 1190
will use it's own internal timebase with 2.5ppm
stability standard.
The 1190 has automatic NTSC/PAL digital
detection on the input signal. The analog reference
input must match the input signal.
Cape Girardeau, MO 63703-7668
FAX 573 334 9255
